禁用行排序后的JTableHeader更新

Question

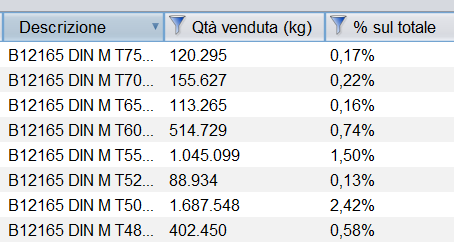

我定制了一个带有TableCellRenderer过滤器图标的Jtable头，当用户点击过滤器图标时，就会出现像excel那样的弹出过滤器(图1)。但是，如果用户单击标题的文本，则应用行排序器。当应用行排序器(图2)时，它将覆盖自定义和筛选图标。是否有一种方法可以避免这种行为，同时将行排序器保留在表头上？

​

​

​

​

Answer 1

您可以通过使用自定义表头来装饰表头的原始呈现器来实现这一点，这将添加所需的筛选图标。

例如，遵循一些代码来保留排序图标，同时在原始列标题旁边添加您自己的标签：

import java.awt.Color;
import java.awt.Component;
import java.awt.FlowLayout;
import java.util.Objects;
import javax.swing.JComponent;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.JTable;
import javax.swing.SwingUtilities;
import javax.swing.table.DefaultTableCellRenderer;
import javax.swing.table.JTableHeader;
import javax.swing.table.TableCellRenderer;

public class Main {

    private static class MyTableCellRenderer extends DefaultTableCellRenderer {

        private final TableCellRenderer originalRenderer;

        public MyTableCellRenderer(final TableCellRenderer originalRenderer) {
            this.originalRenderer = Objects.requireNonNull(originalRenderer);
        }

        @Override
        public Component getTableCellRendererComponent(final JTable table,
                                                       final Object value,
                                                       final boolean isSelected,
                                                       final boolean hasFocus,
                                                       final int row,
                                                       final int column) {
            final Component original = originalRenderer.getTableCellRendererComponent(table, value, isSelected, hasFocus, row, column);

            if (row >= 0) //The header will have a row equal to -1.
                return original;

            final JPanel container = new JPanel(new FlowLayout(FlowLayout.CENTER, 10, 0));
            final JLabel filtering = new JLabel("Filter", JLabel.CENTER); //Your icon should go in this label...

            //Put some fancy background to make the positioning of the label clear:
            filtering.setOpaque(true);
            filtering.setBackground(Color.CYAN);

            //The default renderer comes with a border... Let's apply the border to the whole new container:
            if (original instanceof JComponent) {
                container.setBorder(((JComponent) original).getBorder());
                ((JComponent) original).setBorder(null);
            }

            container.add(filtering);
            container.add(original);

            return container;
        }
    }

    private static void createAndShowGUI() {
        final JTable table = new JTable(new Object[][] {
            new Object[]{"Data001", "Data002", "Data003"},
            new Object[]{"Data011", "Data012", "Data013"},
            new Object[]{"Data021", "Data022", "Data023"},
            new Object[]{"Data031", "Data032", "Data033"},
            new Object[]{"Data041", "Data042", "Data043"}
        }, new Object[] {"Column1", "Column2", "Column3"});

        table.setAutoCreateRowSorter(true);

        final JTableHeader header = table.getTableHeader();
        header.setDefaultRenderer(new MyTableCellRenderer(header.getDefaultRenderer()));

        final JFrame frame = new JFrame("Table header");
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.getContentPane().add(new JScrollPane(table));
        frame.pack();
        frame.setLocationRelativeTo(null);
        frame.setVisible(true);
    }

    public static void main(final String[] args) {
        SwingUtilities.invokeLater(Main::createAndShowGUI);
    }
}

代替单词筛选器(出现在每个列标题上)，您可以在创建的标签上使用图标。

参考文献：

1. 来源 (参见小节: 3.保留排序图标)。
2. 如何将控件放在JTableHeader of a JTable中？
