Lisp Addin调用.dcl文件

Question

我正在努力学习和实现cad加载项的一些lisp代码，但我遇到了一个调用问题。我目前正在尝试添加一个错误处理，以便当用户激活这个加载项时，但是文件本身不是位于正确的目录中，就是文件没有保存到某个位置。我遇到了一种方法，它允许我用消息框询问用户一个问题，但是lisp文件并没有拉出dcl文件。如何解决此错误？

范围：大图片是用户单击带状上的按钮或键入命令，与打开的活动绘图所在的文件夹中的所有文件都将收到修订更新。

应用程序： DraftSight是添加lisp文件的地方。

原始教程：这里是原始教程的链接，在这里我找到了构建消息框的代码。

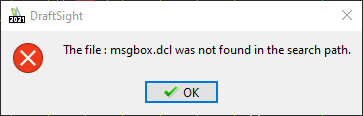

来自DraftSight的错误消息

​

​

我正在建造的代码：

;; Global Constants
(defconstant msgboxPath "C:\\Users\\GarrettB\\Documents\\Visual Studio Code\\DraftSight LISP")

;;
(defun C:ProjectRev()

    ;; Pulls the directory from the active file
    (setq dirPath (vl-catch-all-apply getvar 'dwgprefix))

    ;; Checks for an error
    (if not (vl-catch-all-error-p dirPath)
    (progn ; No error - Ask user if this is the right path
        (setq UserRespond (lspYesNoCancel "Is this the correct path?" dirfile "" "PROJECT REVISION"))
        (princ (type UserRespond))
        (princ UserRespond)

        ;; if yes then continue
        ;; else ask for correct directory (function call)
        ;; (setq dirPath (browseForFolder "Select the project folder: " 1 "d:\\"))

    );progn
    (progn ; Error - File is not saved to a directory
        ;; ask for correct directory (function call)
        ;; (setq dirPath (browseForFolder "Select the project folder: " 1 "d:\\"))
    );progn
    );if

    ;; WORK IN PROGRESS
    ;; Gather drawings into a list
    ;; Copy drawings and place into "Past revisions" folder
    ;; Add revision to drawings
    ;; Modify drawing's names
    ;; Save, close, and end
)

;; Source: https://forums.autodesk.com/t5/visual-lisp-autolisp-and-general/lisp-on-all-dwg-directory/td-p/6214507
;; Browses the current directory for .dwg files
(defun browseForFolder (title options rootFolder / sh folder folderobject result)
    (vl-load-com)
    (setq sh (vla-getInterfaceObject (vlax-get-acad-object) "Shell.Application")) ; sets the Shell Terminal variable

    ;; Obtaining starting location
    (setq folder (vlax-invoke-method sh 'BrowseForFolder
        (vla-get-hwnd (vlax-get-acad-object)) title options rootFolder)) ; User sets the folder path and file name as an object?
    (vlax-release-object sh) ;-------------------------------------------; Releases the shell application object
    (setq sh nil) ;------------------------------------------------------; Sets the sh variable to nothing

    ; If folder is not nil
    (if folder
        (progn

            ;; Conversion
            (setq folderobject (vlax-get-property folder 'Self)) ; Sets the folder path as an object
            (setq result (vlax-get-property FolderObject 'Path)) ; Sets the folder path as a string

            ;; Release and nullify
            (vlax-release-object folder) ;-----; Releases the folder path and file name as an object?
            (vlax-release-object FolderObject) ; Releases the folder path as a string
            (setq folder nil) ;----------------; Sets the folder variable to nothing
            (setq FolderObject nil) ;----------; Sets the FolderObject variable to nothing

            ;; Returning variable
            result
        ); progn
    ); if
 ); defun browserForFolder


;; Source: https://www.afralisp.net/dialog-control-language/tutorials/the-autolisp-message-box.php
;; Lisp code from tutorial
(defun lspYesNoCancel (message1 message2 message3 main)

    ;; Creating dialoge box
    (setq dcl_id (load_dialog strcat(msgboxPath "\\" "msgbox.dcl")))

    ;; Error prevention
    (if (not (new_dialog "lspYesNoCancel" dcl_id)) (exit))

    ;; Dialoge Message
    (set_tile "message1" message1)
    (set_tile "message2" message2)
    (set_tile "message3" message3)
    (set_tile "main" main)

    ;; Command Buttons
    (action_tile "no" "(done_dialog) (setq result \"F\")")
    (action_tile "yes" "(done_dialog) (setq result T)")
    (action_tile "cancel" "(done_dialog) (setq result nil)")

    ;; Interaction
    (start_dialog) ; Show dialog box
    (unload_dialog dcl_id) ; Close dialoge box
    (princ)
)

这是msgbox.dcl文件

// Source: https://www.afralisp.net/dialog-control-language/tutorials/the-autolisp-message-box.php
////////////////////////////////////////////////

lspOkCancel : dialog {
    key = "main";
    : column {
        : text {key = "message1";}
        : text {key = "message2";}
        : text {key = "message3";}
    }
    : row {
        : spacer {width = 1;}
        : button {
            label = "OK";
            key = "accept";
            width = 12;
            fixed_width = true;
            mnemonic = "O";
            is_default = true;
        }
        : button {
            label = "Cancel";
            key = "cancel";
            width = 12;
            fixed_width = true;
            mnemonic = "C";
            is_cancel = true;
        }
        : spacer { width = 1;}
    }
}

////////////////////////////////////////////////

lspYesNo : dialog {
    key = "main";
    : column {
        : text {key = "message1";}
        : text {key = "message2";}
        : text {key = "message3";}
    }
    : row {
        : spacer {width = 1;}
        : button {
            label = "Yes";
            key = "yes";
            width = 12;
            fixed_width = true;
            mnemonic = "Y";
            is_default = true;
        }
        : button {
            label = "No";
            key = "no";
            width = 12;
            fixed_width = true;
            mnemonic = "N";
            is_cancel = true;
        }
        : spacer { width = 1;}
    }
}

////////////////////////////////////////////

lspOkOnly : dialog {
    key = "main";
    : column {
        : text {key = "message1";}
        : text {key = "message2";}
        : text {key = "message3";}
    }
    : row {
        : spacer { width = 1; }
        : button {
            label = "OK";
            key = "accept";
            width = 12;
            fixed_width = true;
            mnemonic = "O";
            is_default = true;
            alignment = centered;
        }
        : spacer { width = 1;}
    }
}

////////////////////////////////////////////////

lspYesNoCancel : dialog {

    key = "main";

    : column {
        : text {Key = "message1";}
        : text {key = "message2";}
        : text {key = "message3";}
    }
    : row {
        : spacer {width = 1;}
        : button {
            label = "Yes";
            key = "yes";
            width = 12;
            fixed_width = true;
            mnemonic = "Y";
            is_default = true;
        }
        : button {
            label = "No";
            key = "no";
            width = 12;
            fixed_width = true;
            mnemonic = "N";
        }
        : button {
            label = "Cancel";
            key = "cancel";
            width = 12;
            fixed_width = true;
            mnemonic = "C";
            is_cancel = true;
        }
        : spacer {width = 1;}
    }
}

////////////////////////////////////////////

lspRentryCancel : dialog {
    key = "main";
    : column {
        : text {key = "message1";}
        : text {key = "message2";}
        : text {key = "message3";}
    }
    : row {
        : spacer { width = 1; }
        : button {
            label = "Rentry";
            key = "rentry";
            width = 12;
            fixed_width = true;
            mnemonic = "R";
            is_default = true;
        }
        : button {
            label = "Cancel";
            key = "Cancel";
            width = 12;
            fixed_width = true;
            mnemonic = "C";
            is_cancel = true;
        }
        : spacer {width = 1;}
    }
}

////////////////////////////////////////////

Answer 1

我认为问题是一致的：

(setq dcl_id (load_dialog strcat(msgboxPath "\\" "msgbox.dcl")))

应该在哪里：

(setq dcl_id (load_dialog ( strcat msgboxPath "\\" "msgbox.dcl")))
