按组填充和模式的Barplot (GGPattern)

Question

我一直在尝试创建一个自定义条形图，在这里我可以更改每个组的颜色和图案(条纹或无条纹)。

structure(list(Level= c(0.2, 0.3, 0.25, 0.35, 0.4, 0.5, 0.5, 0.6, 0.15, 0.35), Group= c("A", "A",
"B", "B", "C", "C", "D", "D",
"E", "E"), Condition = c("no", "yes", "no", "yes", "no", "yes", "no",
"yes", "no", "yes")), row.names = c(NA, -10L), class = c("tbl_df",
"tbl", "data.frame"))

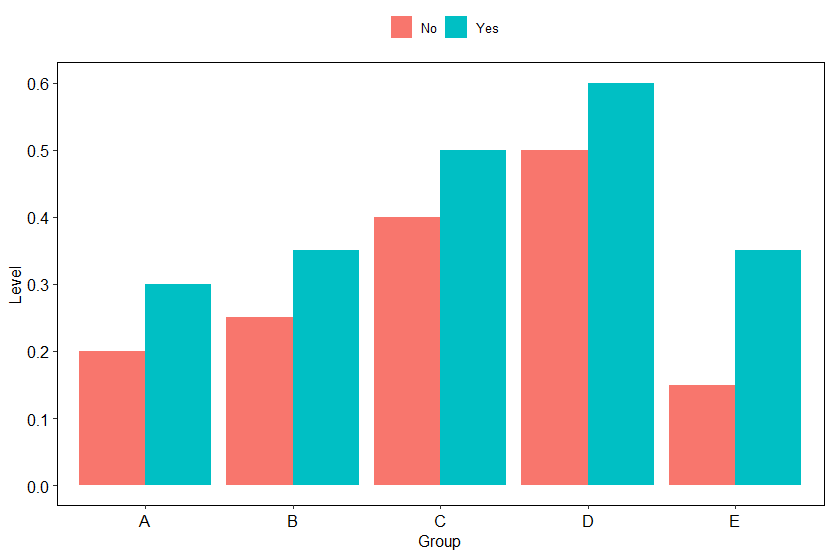

我尝试了下面的方法来创建下面的图表。

​

然而，I希望这两个组都是白色的，如果条件==是的条形图中有黑色条纹，就像as模式图中经常看到的那样。

使用ggpattern，我无法在seq.default(from，to，by)中找到可行的解决方案错误:无效的'(to - from)/by‘是我遇到的最常见的错误之一。

p<- ggplot(z, aes(fill=Condition, y=Level, x=Group, pattern = Condition)) +
  geom_bar(position="dodge", stat="identity") +
  ggpubr::theme_pubr() +
  theme(legend.position = "top") +
  theme( panel.background = element_rect(colour = "black", size=0.5)) +
  labs(x = "Group", y = "Level")+
  scale_y_continuous(breaks=seq(0, 0.8, 0.1))+
  scale_fill_discrete(name = "", labels = c("No", "Yes"))

Answer 1

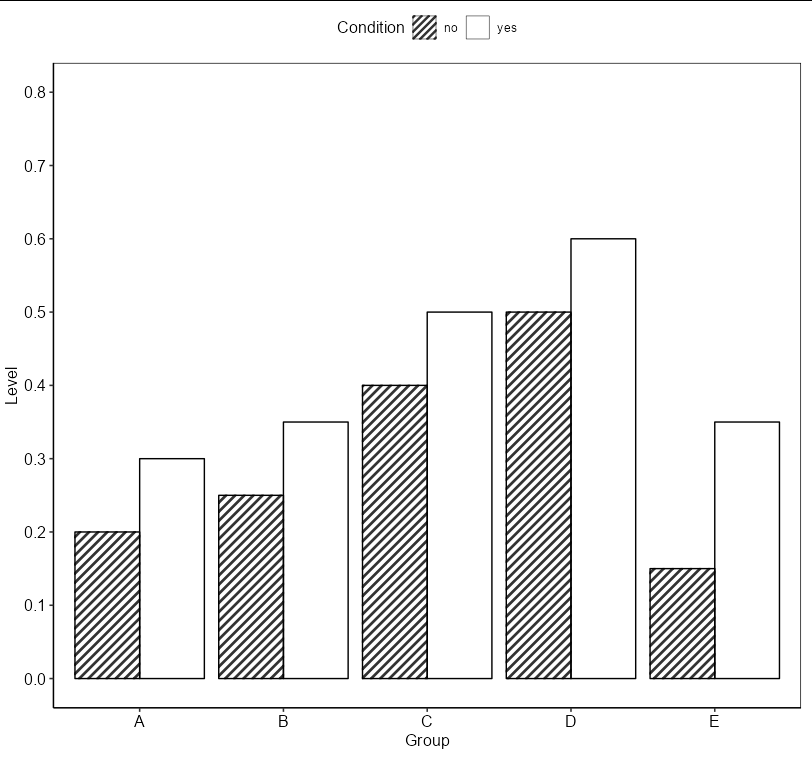

你在找这样的东西吗？

ggplot(z, aes(fill=Condition, y=Level, x=Group, pattern = Condition,
              pattern_type = Condition)) +
  geom_bar_pattern(position="dodge", stat="identity", pattern_fill = "black",
                   fill = "white", colour = "black", pattern_spacing = 0.01,
                   pattern_frequency = 5, pattern_angle = 45) +
  ggpubr::theme_pubr() +
  theme(legend.position = "top") +
  theme( panel.background = element_rect(colour = "black", size=0.5)) +
  labs(x = "Group", y = "Level")+
  scale_y_continuous(breaks=seq(0, 0.8, 0.1), limits = c(0, 0.8)) +
  scale_pattern_manual(values=c('stripe', 'none')) +
  scale_pattern_type_manual(values=c(NA, NA))

​

​
