ggforce::facet_row中的控制滴答标记

Question

我正在尝试为不同的数据子集生成一个y轴直方图。

我一直遵循这里的指示：How to automatically adjust the width of each facet for facet_wrap?

但我似乎不能让轴上的刻痕起作用。

score <- rep(c(0,1,2,3,4,5,6,7,8), c(20424, 1636, 1864, 989, 397, 174, 69, 18, 4))
damage <- rep(c("No damage", "damage"), c(20424, 5151))
damage <- ordered(damage, c("No damage", "damage"))

df <- data.frame(score, damage)

library(ggplot2)
library(ggforce)

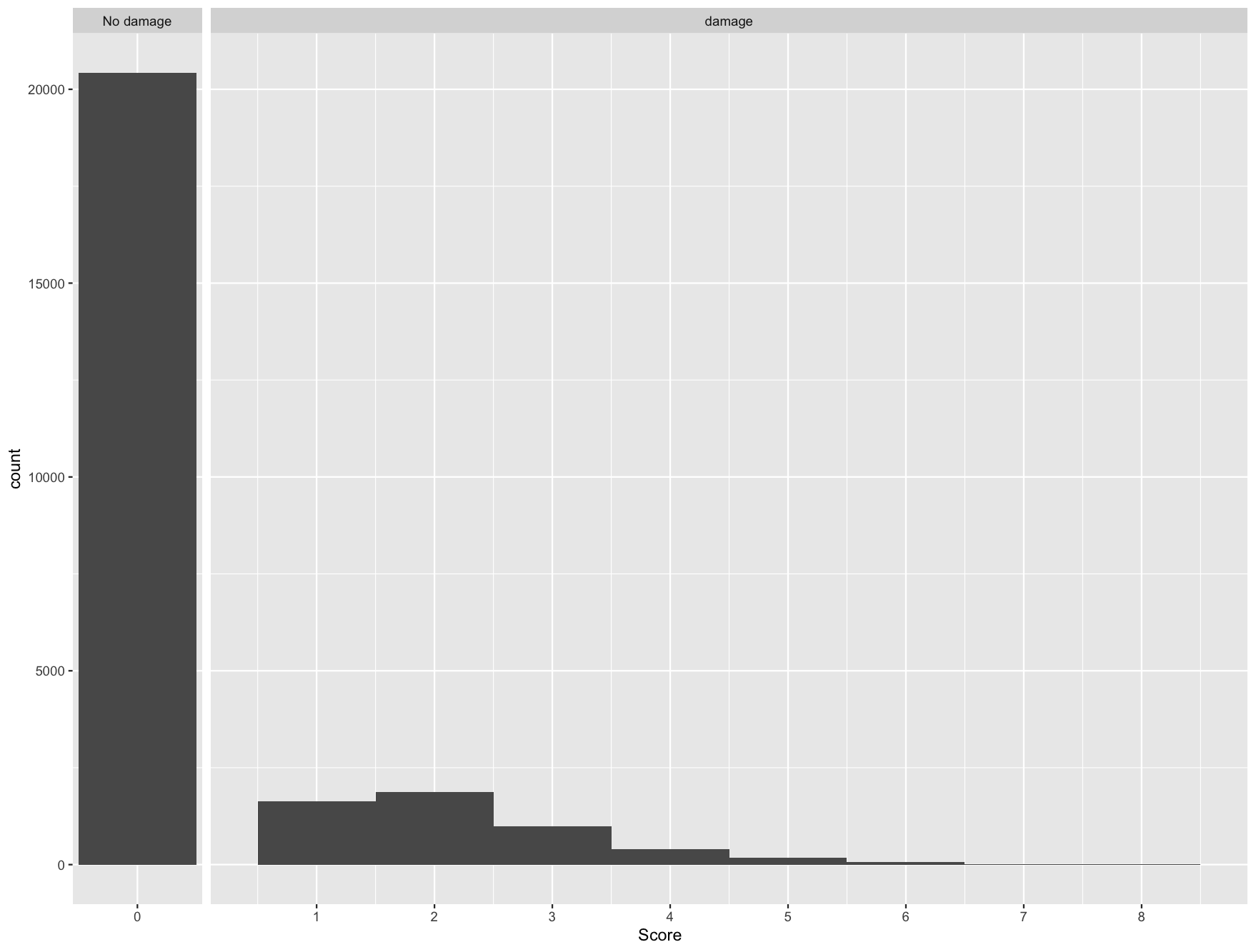

#The following produces the graph as I would like it but there are no ticks or tick labels
#on the x-axis

df %>%
        ggplot(aes(x = score)) +
        geom_histogram(binwidth = 1) +
        scale_x_discrete(name = "Score") +
        scale_y_continuous(name = "") +
        ggforce::facet_row(vars(damage), scales = 'free', space = 'free')

​

​

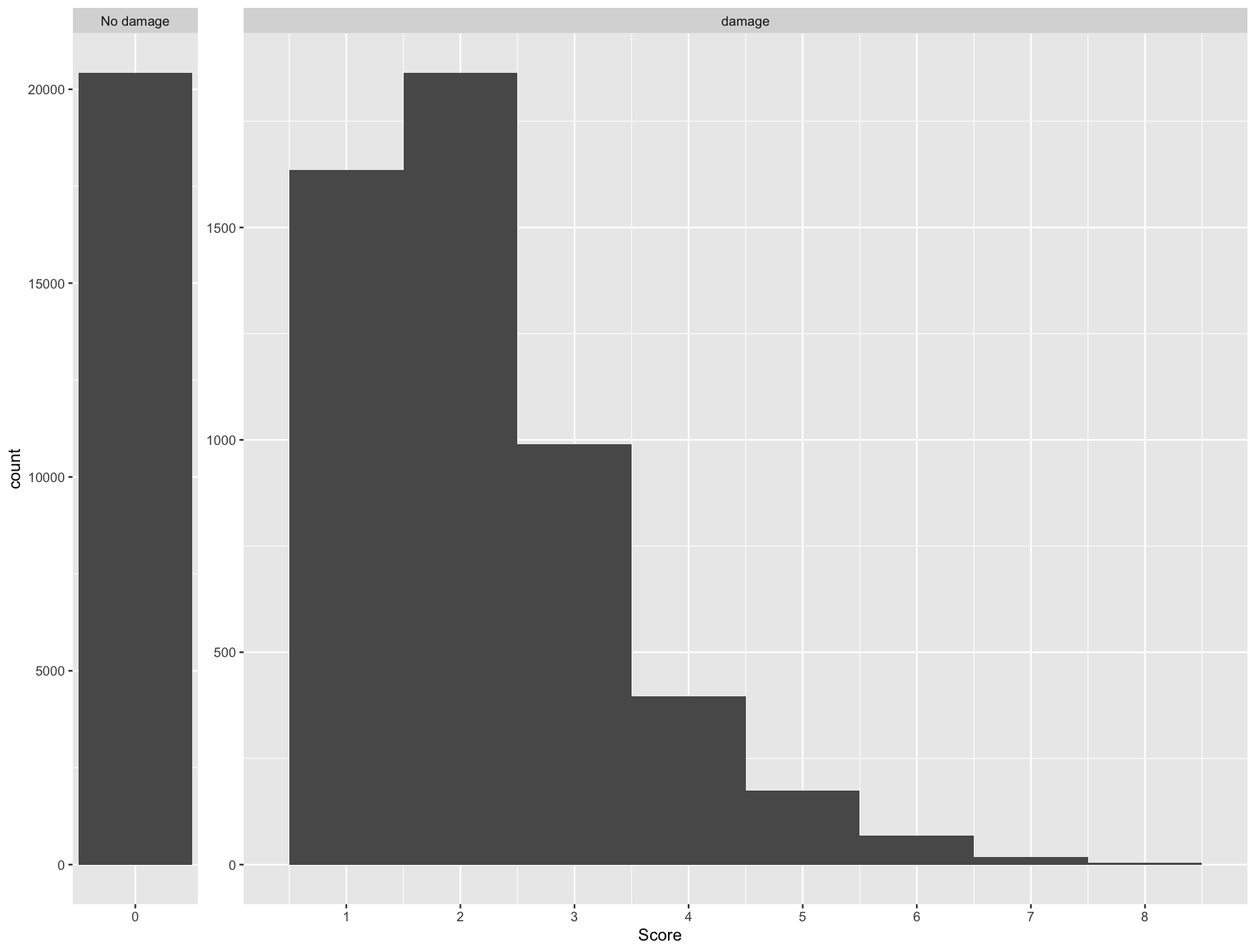

##Whereas this gives me the tick marks and labels but messes up my graph

df %>%
        ggplot(aes(x = score)) +
        geom_histogram(binwidth = 1) +
        scale_x_discrete(name = "Score",
                         limits = c(0,1,2,3,4,5,6,7,8)) +
        scale_y_continuous(name = "") +
        ggforce::facet_row(vars(damage), scales = 'free', space = 'free')

​

​

我尝试过许多排列，使用和不使用ggforce::facet_row选项，但我似乎无法使它工作。

如有任何建议，将不胜感激。

Answer 1

首先，您的x轴是continuous，@Axeman已经在注释中提到了。我建议使用facet_row of ggforce，因为这也将显示第二个图的y轴，如下所示：

library(ggplot2)
library(ggforce)

df %>%
  ggplot(aes(x = score)) +
  geom_histogram(binwidth = 1) +
  scale_x_continuous(name = "Score", breaks = 0:8) +
  ggforce::facet_row(vars(damage), scales = 'free', space = 'free')

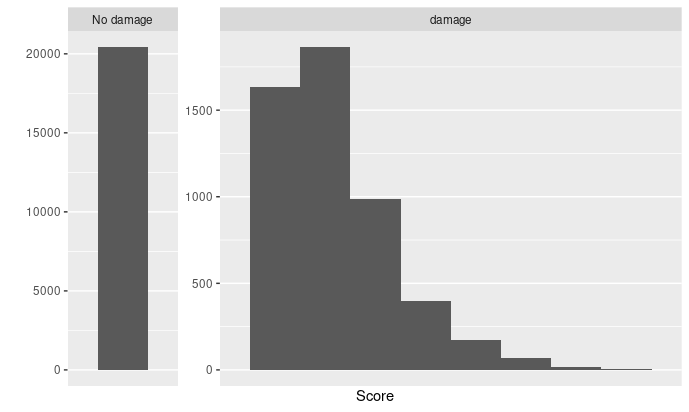

输出：

​

​

如果使用facet_grid，它不会显示像她这样的第二个直方图的标签：

library(ggplot2)
library(ggforce)

df %>%
  ggplot(aes(x = score)) +
  geom_histogram(binwidth = 1) +
  scale_x_continuous(name = "Score", breaks = 0:8) +
  facet_grid(cols = vars(damage), scales = 'free', space = 'free')

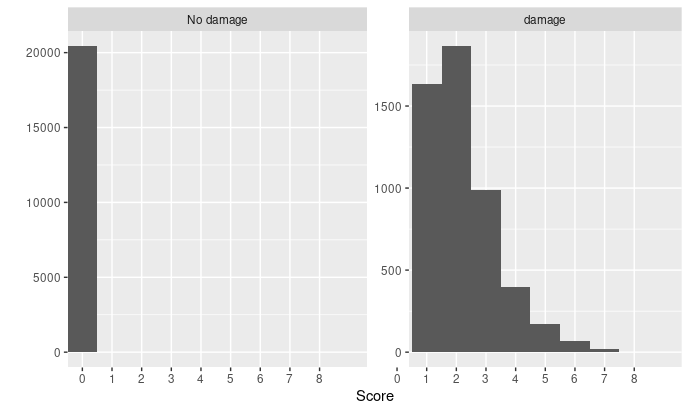

输出：

​

​
