如何使用ggtext element_textbox包装facet标签

Question

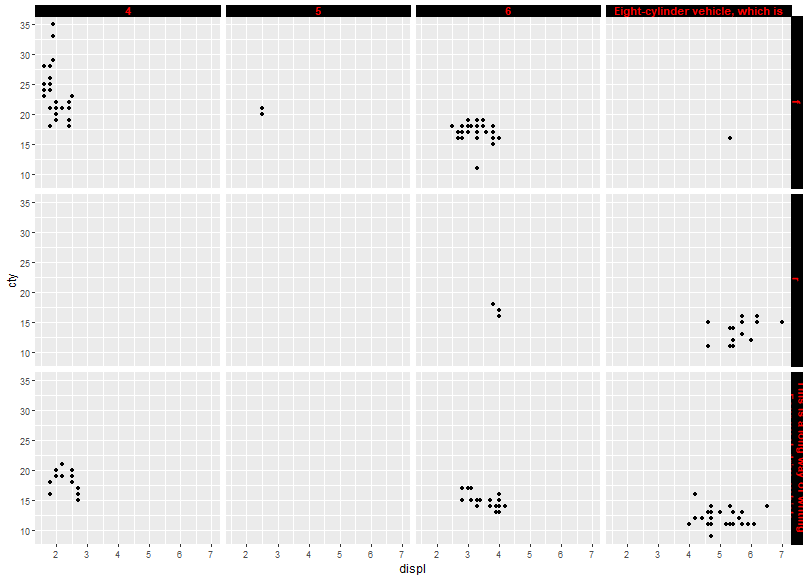

我正在使用来自element_textbox_simple()的ggtext来在ggtext主题中包装小块标签。但是，带状高度似乎并没有随着增加的线而增加。如何使文本框正确包装？

我已经考虑过在labeller = label_wrap_gen()中使用facet_grid()参数，但我觉得element_textbox()对于不同的方面大小/计数更为通用。

library(ggplot2)
library(ggtext)

mpg2 <- mpg
mpg2$drv[mpg2$drv == '4'] <- 'This is a long way of writing Four-weel drive vehicle'
mpg2$cyl[mpg2$cyl == 8] <- 'This is a long way of writing Eight-cylinder vehicle, which is very powerful'

ggplot(mpg2, aes(displ, cty)) +
  geom_point() +
  facet_grid(vars(drv), vars(cyl)) +
  theme(
    strip.background = element_rect(fill = 'black', colour = 'black'),
    strip.text.x = ggtext::element_textbox_simple(colour = 'red', face = 'bold', size = 10, hjust = 0.5, vjust = 0.5, halign = 0.5, valign = 0.5),
    strip.text.y = ggtext::element_textbox_simple(colour = 'red', face = 'bold',  size = 10, hjust = 0.5, vjust = 0.5, halign = 0.5, valign = 0.5, orientation = "right-rotated")
    )

​

​

Answer 1

对于strip text，建议的解决方案是使用ggtext::element textbox()，它可以根据可用宽度对文本进行包装。然而，我们随后面临一个新的问题:包装文本的高度不能自动确定。

样本代码：

library(ggplot2)
library(ggtext)


ggplot(mpg2, aes(displ, cty)) +
  geom_point() +
  facet_grid(vars(drv),  vars(cyl))+
  theme(
    strip.background = element_rect(fill = 'black', colour = 'black'),
    strip.text.x = ggtext::element_textbox_simple( width  = unit(1, "npc"),
                                                   height = unit(10 * 0.5, "lines"),
                                                   colour = 'red',
                                                   face = 'bold',
                                                   size = 10,
                                                   hjust = 0.5,
                                                   vjust = 0.5,
                                                   halign = 0.5,
                                                   valign = 0.5),

    strip.text.y = ggtext::element_textbox_simple(width  = unit(1, "npc"),
                                                  height = unit(10 * 0.5, "lines"),
                                                  colour = 'red', face = 'bold',  size = 10,
                                                  hjust = 0.5,
                                                  vjust = 0.5,
                                                  halign = 0.5,
                                                  valign = 0.5,
                                                  orientation = "right-rotated"))

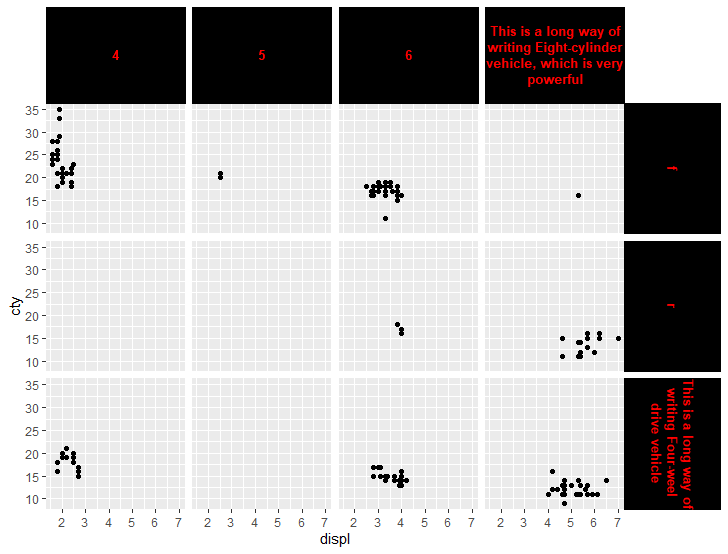

情节：

​

​

样本数据：

mpg2 <- mpg
    mpg2$drv[mpg2$drv == '4'] <- 'This is a long way of writing Four-weel drive vehicle'
    mpg2$cyl[mpg2$cyl == 8] <- 'This is a long way of writing Eight-cylinder vehicle, which is very powerful'
