离网光伏和电池系统的Python PulP线性优化

Question

我试图使用线性优化，以最小化太阳能光伏和电池的规模，为离网的财产。我有太阳辐照度数据和家庭能源消耗数据--我创建了以下数据中的一年值(8760个数据点)。

我认为这个问题可以用线性的方式解决，但是，我看到了一些奇怪的行为，PulP没有以最优的方式运行。也许它可以更好的表述。

太阳能光伏发电的数量与光伏系统(PV_size)的大小成正比(我假设了20%的效率)。太阳能光伏输出(PV_gen)和电池放电(P放电)必须始终满足家庭的需求(负荷)。当PV大于家用负载时，多余的PV可以用来充电电池(充电)。当多余的PV大于电池中可用的空间时，我们可以假设电池完全充电，然后光伏就会减少。交付的最大费用由Pcharge_a描述。

放电量(放电)必须小于电池的可用空间。电池在任何时间的充电状态由Bstatet定义，电池的最大充电量为Bmax。我们可以假设电池有100%的放电深度，因此可以放电到0。

目标函数是最小化系统的成本，我已经定义为PV (PV_size)的大小乘以PV系统的成本(假设每m2 500 )，加上电池的成本(让我们使用每kWh的电池容量1500 )。因此，目标职能是尽量减少：

PV_size * 500 + Bmax * 1500

我正在与python一起使用PulP包，到目前为止，这是我的代码。它将返回一个最优的解决方案，然而，从下面数据的第3行可以看到，它创造了一个巨大的放电和电荷，这是完全没有必要的。我认为这是因为我并没有限制放电(放电)的负面程度，同样的，我也没有限制过多余的PV (电荷)的大小。

前几个小时的数据

    load = np.array([0.580416667,0.539066667,0.390116667,0.232033333,
0.204533333,0.194716667,0.194633333,0.209233333,
0.247266668,0.407916668,0.537349998,0.576983332,
0.580216667,0.520566667,0.485200003,0.4197,
0.424300002,0.448333332,0.546983333,0.840733333,
1.320233332,0.856422014,0.921716667,0.720283335]*365)

solar_irrad = np.array([0,0,0,0,
0.846573268,6.670823882,22.34096457,48.40323145,
95.10129002,161.7686087,236.9894473,293.9150696,
305.3854497,294.6843366,251.7269744,182.2991627,
123.210826,73.11869927,33.55642336,9.910144956,
1.621109317,0.008980831,0,0]*365)

T = len(load)

# Decision variables
Bmax = LpVariable('Bmax', 0, None) # battery max energy (kWh)
PV_size = LpVariable('PV_size', 0, None) # PV size

# Optimisation problem
prb = LpProblem('Battery_Operation', LpMinimize)

# Objective function
prb += (PV_size*500) + (Bmax*1500)  # cost of battery

# Auxilliary variables
PV_gen = [LpVariable('PV_gen_{}'.format(i), 0, None) for i in range(T)]

# Load difference
Pflow = [LpVariable('Pflow_{}'.format(i), None, None) for i in range(T)]
# Excess PV
Pcharge = [LpVariable('Pcharge_{}'.format(i), lowBound=0, upBound=None) for i in range(T)]
# Discharge required
Pdischarge = [LpVariable('Pdischarge_{}'.format(i), lowBound=None, upBound=0) for i in range(T)]
# Charge delivered
Pcharge_a = [LpVariable('Pcharge_a{}'.format(i), 0, None) for i in range(T)]

# Battery
Bstate = [LpVariable('E_{}'.format(i), 0, None) for i in range(T)]

# Battery Constraints
prb += Bstate[0] == Bmax + Pdischarge[0] + Pcharge_a[0]
for t in range(1, T):
    prb += Bstate[t] == Bstate[t-1] + Pdischarge[t] + Pcharge_a[t]

# Power flow Constraints
for t in range(0, T):

    # PV generation
    prb += PV_gen[t] == PV_size*0.2*solar_rad[t]/1000

    # Pflow is the energy flow reuired to meet the load
    # Negative if load greater than PV, positive if PV greater than load
    prb += Pflow[t] == PV_gen[t] - load[t]

    # Given the below, it will push Pflow available for charge to zero or to to or greater than excess PV
    prb += Pcharge[t] >= 0
    prb += Pcharge[t] >= Pflow[t]

    # If Pflow is negative (discharge), then it will at least ePflowual discharge rePflowuired
    # If Pflow is positive (charge), then Pdischarge (discharge rePflowuired will ePflowual 0)
    prb += Pdischarge[t] <= 0
    prb += Pdischarge[t] <= Pflow[t]
    # Discharge cannot exceed available charge in battery
    # Discharge is negative
    prb += Pdischarge[t] >= (-1)*Bstate[t-1]

    # Ensures that energy flow rePflowuired is satisifed by charge and discharge flows
    prb += Pflow[t] == Pcharge[t] + Pdischarge[t]

    # Limit amount charge delivered by the available space in the battery
    prb += Pcharge_a[t] >= 0
    prb += Pcharge_a[t] <= Pcharge[t]
    prb += Pcharge_a[t] <= Bmax - Bstate[t-1]

    prb += Bstate[t] >= 0
    prb += Bstate[t] <= Bmax

    # Solve problem
    prb.solve()

Answer 1

你好，欢迎来到这个网站。有趣的问题。

您的问题似乎设置正确。你得到了“大规模排放”，因为你是人为的(?)限制电池在半夜在time=0的最大电量(通过观察你的太阳能的周期性来评估)。这会导致电池人为地太大，因为它不需要在那个特定的时间达到最大容量。最优的情况是，当需求大于光伏发电时，它应该处于峰值充电，对吗？

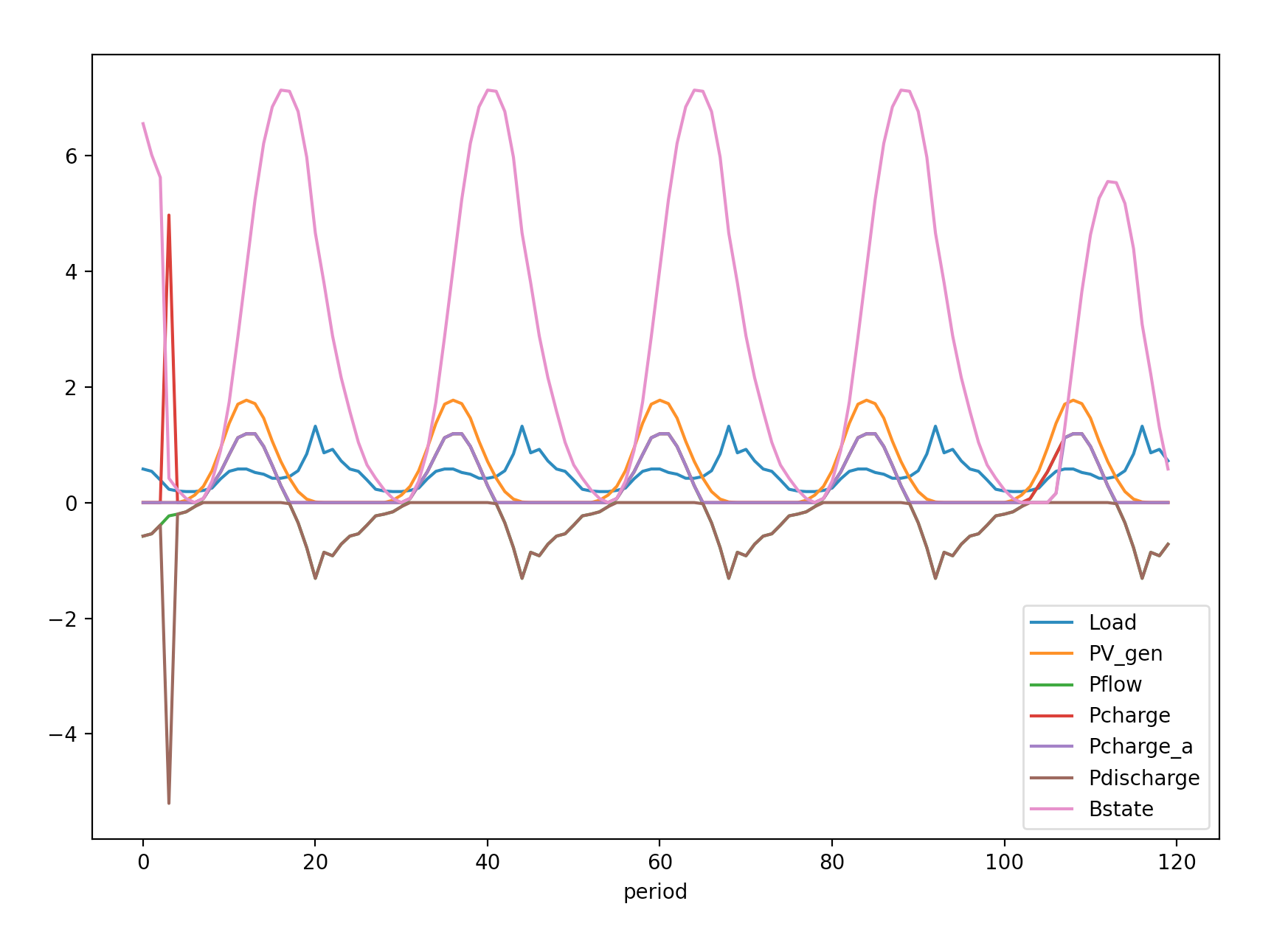

所以，它是一个巨大的倾倒在半夜，以摆脱这一指控，这(在你的模型)是免费的。从数据截断到5个句点，请参见下面的图：

​

​

那么，我们能做些什么呢？首先，在t=0不限制你的电池.这将使模型能够选择最优的初始电荷。您可能仍然会看到异常行为，因为模型仍然可以保持高于必要的电荷和放电，因为该场景具有相同的客观分数。因此，您可以选择在累积放电上设置一个微小的惩罚来影响模型。意识到这是人为地增加电池使用的成本非常轻微，所以明智地检查这一点，使放电罚款在我的代码下面巨大，并看到不同之处。或者你可以忽略这一点，把第一个周期截断为“热身”，等等.

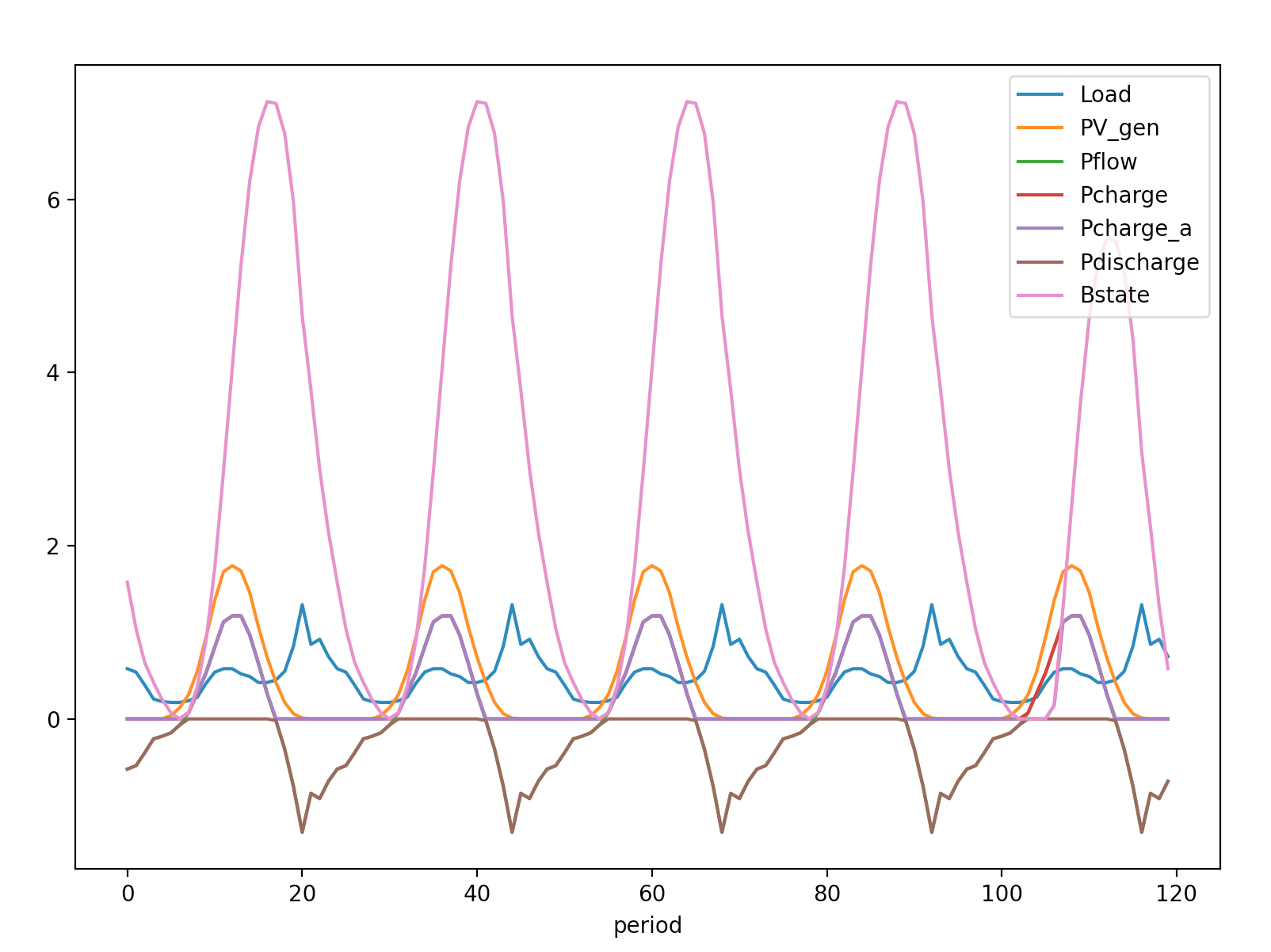

这是没有启动限制的电池和微小的放电惩罚的结果.

​

​

代码(您的代码经过一些调整/注释)：

from pulp import *
import numpy as np
import pandas as pd
from matplotlib import pyplot as plt

load = np.array([0.580416667,0.539066667,0.390116667,0.232033333,
0.204533333,0.194716667,0.194633333,0.209233333,
0.247266668,0.407916668,0.537349998,0.576983332,
0.580216667,0.520566667,0.485200003,0.4197,
0.424300002,0.448333332,0.546983333,0.840733333,
1.320233332,0.856422014,0.921716667,0.720283335]*5)

solar_rad = np.array([0,0,0,0,
0.846573268,6.670823882,22.34096457,48.40323145,
95.10129002,161.7686087,236.9894473,293.9150696,
305.3854497,294.6843366,251.7269744,182.2991627,
123.210826,73.11869927,33.55642336,9.910144956,
1.621109317,0.008980831,0,0]*5)

T = len(load)

# Decision variables
Bmax = LpVariable('Bmax', 0, None) # battery max energy (kWh)
PV_size = LpVariable('PV_size', 0, None) # PV size

# Optimisation problem
prb = LpProblem('Battery_Operation', LpMinimize)

# Auxilliary variables
PV_gen = [LpVariable('PV_gen_{}'.format(i), 0, None) for i in range(T)]

# Load difference
Pflow = [LpVariable('Pflow_{}'.format(i), None, None) for i in range(T)]
# Excess PV
Pcharge = [LpVariable('Pcharge_{}'.format(i), lowBound=0, upBound=None) for i in range(T)]
# Discharge required
Pdischarge = [LpVariable('Pdischarge_{}'.format(i), lowBound=None, upBound=0) for i in range(T)]
# Charge delivered
Pcharge_a = [LpVariable('Pcharge_a{}'.format(i), 0, None) for i in range(T)]

###  Moved this down as it needs to include Pdischarge
# Objective function
# cost + some small penalty for cumulative discharge, just to shape behavior
prb += (PV_size*500) + (Bmax*1500)  - 0.01 * lpSum(Pdischarge[t] for t in range(T))

# Battery
Bstate = [LpVariable('E_{}'.format(i), 0, None) for i in range(T)]

# Battery Constraints
### NOTE this is killed to allow initial state to "float"
#prb += Bstate[0] == Bmax + Pdischarge[0] + Pcharge_a[0]
for t in range(1, T):
    prb += Bstate[t] == Bstate[t-1] + Pdischarge[t] + Pcharge_a[t]

# Power flow Constraints
for t in range(0, T):

    # PV generation
    prb += PV_gen[t] == PV_size*0.2*solar_rad[t]/1000

    # Pflow is the energy flow reuired *from the battery* to meet the load
    # Negative if load greater than PV, positive if PV greater than load
    prb += Pflow[t] == PV_gen[t] - load[t]

    # Given the below, it will push Pflow available for charge to zero or to to or greater than excess PV
    prb += Pcharge[t] >= 0
    prb += Pcharge[t] >= Pflow[t]

    # If Pflow is negative (discharge), then it will at least ePflowual discharge rePflowuired
    # If Pflow is positive (charge), then Pdischarge (discharge rePflowuired will ePflowual 0)
    prb += Pdischarge[t] <= 0
    prb += Pdischarge[t] <= Pflow[t]
    # Discharge cannot exceed available charge in battery
    # Discharge is negative
    prb += Pdischarge[t] >= (-1)*Bstate[t-1]

    # Ensures that energy flow rePflowuired is satisifed by charge and discharge flows
    prb += Pflow[t] == Pcharge[t] + Pdischarge[t]

    # Limit amount charge delivered by the available space in the battery
    prb += Pcharge_a[t] >= 0
    prb += Pcharge_a[t] <= Pcharge[t]
    prb += Pcharge_a[t] <= Bmax - Bstate[t-1]

    prb += Bstate[t] >= 0
    prb += Bstate[t] <= Bmax

# Solve problem
prb.solve()

# make some records to prep for dataframe (what a pain in pulp!!)
res = []
for t in range(T):
    record = {  'period': t,
                'Load': load[t],
                'PV_gen': PV_gen[t].varValue,
                'Pflow' : Pflow[t].varValue,
                'Pcharge': Pcharge[t].varValue,
                'Pcharge_a': Pcharge_a[t].varValue,
                'Pdischarge': Pdischarge[t].varValue,
                'Bstate': Bstate[t].varValue}
    res.append(record)

df = pd.DataFrame.from_records(res)
df.set_index('period', inplace=True)
df = df.round(2)
print(df.to_string())

print(f'PV size: {PV_size.varValue : 0.1f}, Batt size: {Bmax.varValue : 0.1f}')

df.plot()
plt.show()
