缺失控制序列插入。revtex4 4-2模板aps中的结束{表格}错误

Question

我正在APS日志模板中写一篇论文: revtex4-2，当我导入我的表时，我有一个错误:插入了缺少的控制序列。结束{表格}但是这个表在其他模板中没有问题，例如IEEE。我不知道怎么修好它。我真的很感谢你的帮助。

\documentclass[aps,pra,twocolumn,floatfix,footinbib,notitlepage,superscriptaddress,groupaddress,showpacs]{revtex4-2}
\usepackage{graphicx,graphics,times,bm,bbm,bbold,amssymb,amsmath,amsfonts,dsfont,hyperref,mathrsfs,color,caption,subcaption,cancel}
\usepackage{adjustbox}
\usepackage{tabularx}
\usepackage{tabulary}
\usepackage{graphicx}% Include figure files
\usepackage{dcolumn}% Align table columns on decimal point
\usepackage{bm}

\begin{document}

    \preprint{AIP/123-QED}

    %\title[Sample title]{Sample Title:\\with Forced Linebreak\footnote{Error!}}% Force line breaks with \\
    \title[]

    \author{}
    \affiliation{}

    \author{}
    \affiliation{}
    \email{}


    \date{\today}
    \begin{abstract}

    \end{abstract}

%   \keywords{}
%   \maketitle

    \section{Introduction}\label{sec:introduction}

    \section{Theoretical Analysis}

    \begin{table}[h!]
        \centering
        \caption{List of Parameters Values }
        \label{table:1}
        \begin{adjustbox}{max width=8.5 cm}
            \begin{tabulary}{\columnwidth}{@{}llr@{}}
                \toprule
                \textbf{Parameters} & \textbf{Values} & \textbf{Units}\\
                \midrule
                $\lambda$   &  1550            & $nm$ \\
                \bottomrule
            \end{tabulary}
        \end{adjustbox}
    \end{table}.

\end{document}
%
% ****** End of file aipsamp.tex ******

Answer 1

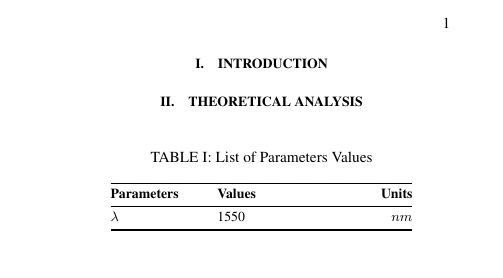

我建议使用新的、更灵活的tabularray包。

也不要缩放包含文本的内容，这将导致一个次优的结果。如果在实际文档中，必须使表变小，则使用较小的字体大小，而不是使用adjustbox进行缩放。

(你真的应该清理你的序言，删除重复的和过时的包)

\documentclass[aps,pra,twocolumn,floatfix,footinbib,notitlepage,superscriptaddress,groupaddress,showpacs]{revtex4-2}
\usepackage{graphicx,graphics,times,bm,bbm,bbold,amssymb,amsmath,amsfonts,dsfont,hyperref,mathrsfs,color,caption,subcaption,cancel}
\usepackage{adjustbox}
\usepackage{tabularx}
\usepackage{tabulary}
\usepackage{graphicx}% Include figure files
\usepackage{dcolumn}% Align table columns on decimal point
\usepackage{bm}


\usepackage{tabularray}
\UseTblrLibrary{booktabs}

\begin{document}

    \preprint{AIP/123-QED}

    %\title[Sample title]{Sample Title:\\with Forced Linebreak\footnote{Error!}}% Force line breaks with \\
    \title[]

    \author{}
    \affiliation{}

    \author{}
    \affiliation{}
    \email{}


    \date{\today}
    \begin{abstract}

    \end{abstract}

%   \keywords{}
%   \maketitle

    \section{Introduction}\label{sec:introduction}

    \section{Theoretical Analysis}

    \begin{table}[h!]
        \centering
        \caption{List of Parameters Values }
        \label{table:1}
%        \begin{adjustbox}{max width=8.5 cm}
            \begin{tblr}{width=0.8\linewidth,colspec={@{}X[l]X[l]X[r]@{}}}
                \toprule
                \textbf{Parameters} & \textbf{Values} & \textbf{Units}\\
                \midrule
                $\lambda$   &  1550            & $nm$ \\
                \bottomrule
            \end{tblr}
%        \end{adjustbox}
    \end{table}

\end{document}
%
% ****** End of file aipsamp.tex ******

​

​
