直接向Visnetwork添加标题和标签

Question

我有以下网络图：

library(tidyverse)
library(igraph)


set.seed(123)
n=15
data = data.frame(tibble(d = paste(1:n)))

relations = data.frame(tibble(
  from = sample(data$d),
  to = lead(from, default=from[1]),
))

data$name = c("new york", "chicago", "los angeles", "orlando", "houston", "seattle", "washington", "baltimore", "atlanta", "las vegas", "oakland", "phoenix", "kansas", "miami", "newark" )

graph = graph_from_data_frame(relations, directed=T, vertices = data)

V(graph)$color <- ifelse(data$d == relations$from[1], "red", "orange")

plot(graph, layout=layout.circle, edge.arrow.size = 0.2, main = "my_graph")

我能够将这个图转换成一个"visnetwork“图：

library(visNetwork)

visIgraph(graph)

现在，我试图在这张图上加上一个标题：

visIgraph(graph, main = "my title")

虽然这是行不通的：

Error in layout_with_fr(graph, dim = dim, ...) :
  unused argument (main = "my title")

我找到了一个https://datastorm-open.github.io/visNetwork/legend.html链接，它展示了如何将标题添加到"visnetwork“图中：

nodes <- data.frame(id = 1:3, group = c("B", "A", "B"))
edges <- data.frame(from = c(1,2), to = c(2,3))

# default, on group
visNetwork(nodes, edges,
           main = "A really simple example",
           submain = list(text = "Custom subtitle",
                          style = "font-family:Comic Sans MS;color:#ff0000;font-size:15px;text-align:center;"),
           footer = "Fig.1 minimal example",
           width = "100%")

这似乎非常简单，但它要求您使用"visNetwork()“函数而不是"visIgraph()”函数。

• 可以使用"visIgraph()“函数直接添加标题吗？

谢谢!

Answer 1

如果你愿意的话，我们可以试试这个方法

toVisNetworkData(graph) %>%
  c(list(main = "my title")) %>%
  do.call(visNetwork, .)

或

toVisNetworkData(graph) %>%
  {
    do.call(visNetwork, c(., list(main = "my title", submain = "subtitle")))
  }

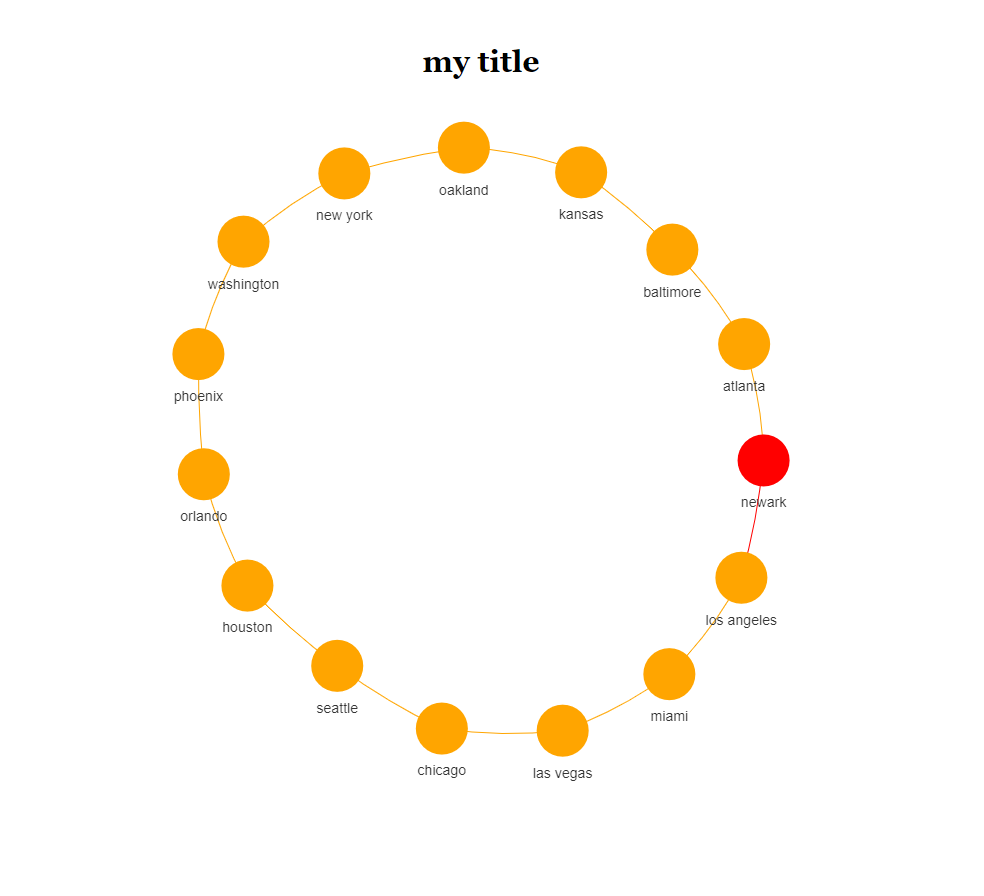

你会看到

​

​

Answer 2

我无法弄清楚如何使用"visIgraph()“函数来实现这一点--但我认为我能够知道如何生成一个随机图(满足某些条件：Generating Random Graphs According to Some Conditions)，并使用常规的"visNetwork()”函数，然后在该图上放置一个标题：

n=15

data = data.frame(id = 1:n)
data$color = ifelse(data$id == 1, "Red", "Orange")
data$label = c("new york", "chicago", "los angeles", "orlando", "houston", "seattle", "washington", "baltimore", "atlanta", "las vegas", "oakland", "phoenix", "kansas", "miami", "newark" )

relations = data.frame(tibble(
  from = sample(data$id),
  to = lead(from, default=from[1]),
))

visNetwork(data, relations, main = "my graph") %>%  visEdges(arrows = "to")

解决我自己的问题感觉很棒(有点)！

• ，但这可以直接使用"visNetwork()“函数吗？
