如何将Vuforia iOS框架纳入离子工程

Question

我想将Vuforia提供的示例xcode项目功能包含在一个离子项目中。示例项目可以从这里下载：https://developer.vuforia.com/downloads/samples

独立项目运行良好，我能够调整它以满足我对功能的期望。

当我试图将它集成到我的主要项目中时，问题就开始了，这个项目使用了离子框架。

基本上，这个项目的运作方式如下：

I在离子的webview

• There's a按钮中有一个应用程序，它导致AR functionality

• I实现了一个电容插件来启动使用Vuforia

的原生视图

我完成了Android版本，所以它超出了范围。

示例XCode项目向构建阶段添加了一堆内容，以便嵌入VuforiaEngine.framework和链接，编译C++源代码以连接Swift源代码和框架

第一个问题:离子项目将CocoaPods用于XCode项目，因此即使我设置了"App“项目(构建阶段)中的所有内容，工作区设置也忽略了它。如果我构建App，它不能导入Pods，如果我构建Pods项目，它没有必要的设置。

接下来，我尝试创建一个自定义Pod来包含框架，添加必要的设置并导入它。

首先，它是有希望的，但过了一会儿，我遇到了奇怪的错误消息，我不知道如何使它工作。

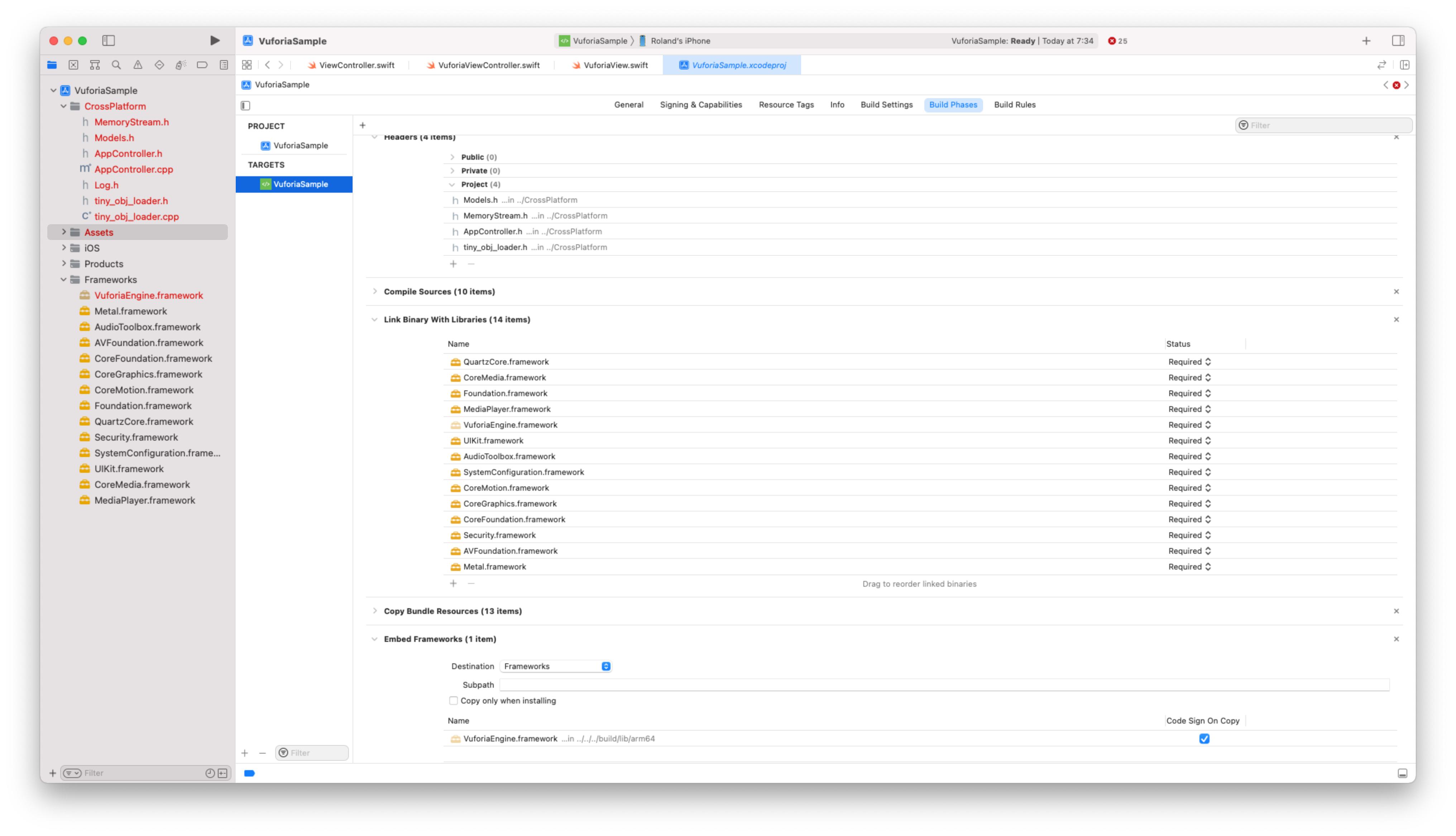

下面是示例项目中的一些设置

​

​

正如您所看到的，有几个框架必须链接，有一个嵌入式框架是由Vuforia在SDK中提供的，还有一堆c++文件和头文件要包括在内。

这是我的.podspec尝试

Pod::Spec.new do |s|
  s.name             = 'Vuforia'
  s.version          = '0.1.0'
  s.summary          = 'Vuforia library.'

  s.homepage         = 'https://github.com/7681268/vuforia'
  s.license          = { :type => 'MIT', :file => 'LICENSE' }
  s.author           = { '7681268' => '<OMITTED>@gmail.com' }
  s.source           = { :git => '<OMITTED>/vuforia/ios/pod', :tag => '0.1.0' }

  s.swift_version = '5'

  s.ios.deployment_target = '13.0'

  s.source_files = 'vuforia/Classes/**/*'

  s.library = 'c++'
  s.xcconfig = {
      #  'CLANG_CXX_LANGUAGE_STANDARD' => 'c++11',
      #  'CLANG_CXX_LIBRARY' => 'libc++',
       'HEADER_SEARCH_PATHS' => '$(inherited) "vuforia/CrossPlatform"',
       'CLANG_ENABLE_MODULES' => 'YES',
       'ENABLE_BITCODE' => 'NO'
  }

  s.resource_bundles = {
    'vuforia' => ['vuforia/Assets/*']
  }

  s.vendored_frameworks = 'VuforiaEngine.framework'
  s.frameworks = 'Foundation', 'QuartzCore', 'CoreMedia', 'MediaPlayer', 'VuforiaEngine', 'UIKit', 'AudioToolbox', 'SystemConfiguration', 'CoreMotion', 'CoreGraphics',  'CoreFoundation', 'Security', 'AVFoundation','Metal'
  s.public_header_files = 'vuforia/Classes/**/*.h'
end

文件：

<POD ROOT>
  +_pods.xcodeproj
  +Example
  -vuforia
    +Assets (contains the models, textures, vuforia database)
    +Classes (some swift code for the UI, and a C++ wrapper)
    +CrossPlatform (Contains the crossplatform c++ bridge between the sample and the framework)
  +VuforiaEngine.framework (Framework provided by Vuforia)
  Vuforia.podspec

在整理完这个项目之后，我得到了来自于Fundation框架的错误消息。

编辑：这个部分已经通过将VuforiaWrapper.cpp重命名为'.mm‘扩展来解决

- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:523:1: error: expected unqualified-id
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:525:9: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:526:9: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:528:19: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:529:44: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:531:19: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:532:53: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:534:19: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:534:50: error: unknown type name 'Protocol'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:535:19: error: unknown type name 'Protocol'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:535:61: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:539:30: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:539:53: error: format argument not an NSString
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:540:31: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:540:63: error: format argument not an NSString
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSZone.h:9:1: error: expected unqualified-id
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSZone.h:19:63: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSZone.h:20:19: error: unknown type name 'NSString'
- ERROR | xcodebuild:  /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator15.2.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObject.h:10:1: error: expected unqualified-id
- NOTE  | xcodebuild:  fatal error: too many errors emitted, stopping now [-ferror-limit=]

错误起源于VuforiaWrapper.h文件，该文件包含以下一行：

#import <Foundation/Foundation.h>

问题

是否有任何解决方案可以手动将这些设置包括在CocoaPods工作区中(就像我在没有CocoaPods的新项目prom划痕中所做的那样)？

如果没有，如何正确配置podspec以实现相同的目标？

还有其他/更好的办法吗？

注意:我正在寻找最简单的解决方案，但可以为未来提出更健壮的方法。另外，我不打算出版这个吊舱，我只是想让它在我的项目中发挥作用

Xcode版本：13.2.1

操作系统：macOS Big Sur 11.6.3

Answer 1

据我所知，Ionic是与Cordova集成的，所以可以尝试使用plugin：https://www.npmjs.com/package/cordova-plugin-vuforia-sdk。
