带有UI VirtualNetworkCombo的Azure模板挂在“加载.”中

Question

使用Microsoft.Network.VirtualNetworkCombo类型元素创建Azure模板。新的行动很顺利。但是当选择时，三分之二的现有虚拟网络显示“加载.”在每个子网下拉列表中。

屏幕快照

我不明白为什么现有的3个虚拟网络中有2个被困在“加载.”中。状态。有人知道什么会表现出这种行为吗？

更新它与添加IPv6地址空间有关(10:8:2:/64)。没有IPv6地址空间的虚拟网络/子网显示良好。

也许这与子网的约束( minAddressPrefixSize "/29“规范)有关？

我希望答案不是IPv6不受支持.

Answer 1

我已经在我的环境中测试过了，它对我来说很好。

在createUiDefinition.json中，我在"steps": [ ]中传递了下面的代码

{
        "name": "NetoworkConfig",
        "label": "NetworkSettings",
        "subLabel": {
          "preValidation": "Configure the storage settings",
          "postValidation": "Done"
        },
        "bladeTitle": "Networking",
        "elements": [
      {
        "name": "Configure Vnet Settings",
        "type": "Microsoft.Network.VirtualNetworkCombo",
        "label": {
          "virtualNetwork": "Virtual network",
          "subnets": "Subnets"
        },
        "toolTip": {
          "virtualNetwork": "",
          "subnets": ""
        },
        "defaultValue": {
          "addressPrefixSize": "/16"
        },
        "constraints": {
          "minAddressPrefixSize": "/16"
        },
        "options": {
          "hideExisting": false
        },
        "subnets": {
          "subnet1": {
            "label": "First subnet",
            "defaultValue": {
              "addressPrefixSize": "/24"
            },
            "constraints": {
              "minAddressPrefixSize": "/24",
              "minAddressCount": 12,
              "requireContiguousAddresses": true
            }
          },
          "subnet2": {
            "label": "Second subnet",
            "defaultValue": {
              "addressPrefixSize": "/26"
            },
            "constraints": {
              "minAddressPrefixSize": "/26",
              "minAddressCount": 8,
              "requireContiguousAddresses": true
            }
          }
        },
        "visible": true
      }
    ]
    }

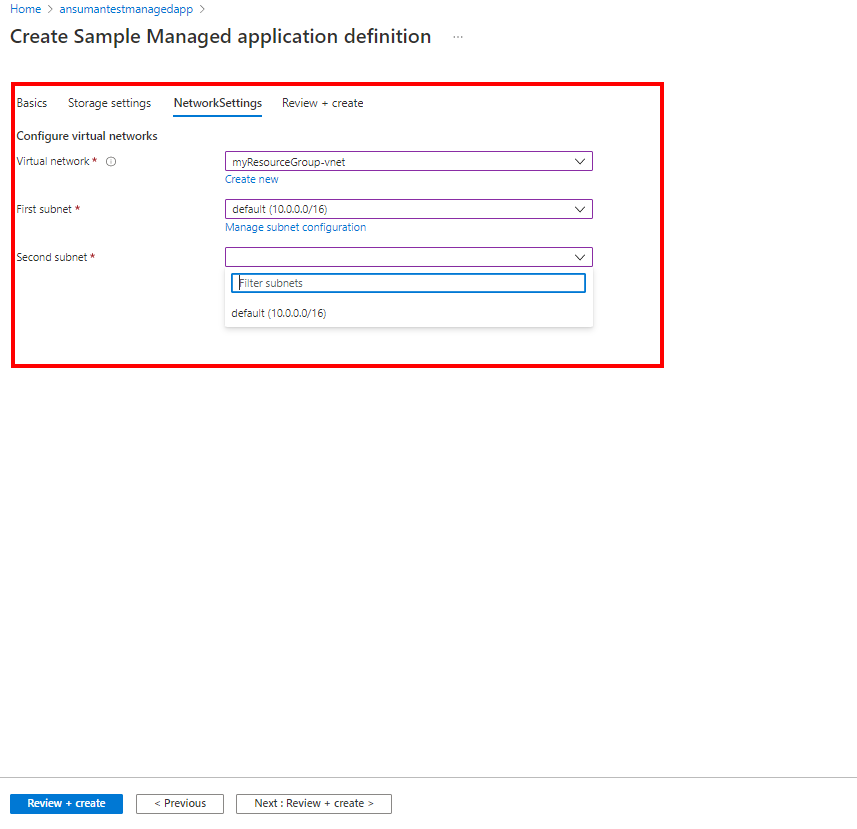

输出--

​

​

参考资料：https://learn.microsoft.com/en-us/azure/azure-resource-manager/managed-applications/publish-service-catalog-app?tabs=azure-powershell
