Cypress - iframes -无法锁定第二个字段，测试挂起，然后超时。

Question

我遇到了一个问题，一旦我的测试卡号被输入到第一个iframe中，测试就会试图针对第二个iframe (CVC) &在试图针对元素时超时。所有信息都列在下面。任何帮助，为什么这是失败，是值得感谢的！

使用的自定义命令：

    // Make the iframe command return the body contents once it’s loaded
    Cypress.Commands.add("iframe", { prevSubject: "element" }, ($iframe) => {
    return new Cypress.Promise((resolve) => {
       $iframe.on("load", () => {
         resolve($iframe.contents().find("body"));
      });
     });
    });

针对客人用户的卡号和CVC的命令

    // Checkout Add Card New Customer Card Number

    Cypress.Commands.add(
      "addCardNewCustomerCybersourceCardNumber",
      ({ cardNumber, expiry }) => {
      // Card number iFrame
      cy.get("#cardNumber-container > iframe")
         .iframe()
         .find('input[name="number"]')
         .should("be.visible")
         .should("have.attr", "placeholder", "Enter card number")
         .type(cardNumber);
       // Expiry date is not an iframe
      cy.get("[data-cy=expiryDate]").type(expiry);
     }
    );

     // Checkout Add Card New Customer CVC

     Cypress.Commands.add("addCardNewCustomerCybersourceCVC", ({ cvc }) => {
       // CVC iFrame
     cy.get("#cvc-container > iframe")
        .iframe()
        .find('input[name="securityCode"]')
        .should("be.visible")
        .should("have.attr", "placeholder", "•••")
        .type(cvc);
     });

以下是测试中的“it”语句：

        it("User adds new AMEX card for payment - Card number", () => {
           cy.addCardNewCustomerCybersourceCardNumber({
               cardNumber: "370000000000002",
               expiry: "0330",
         });
      });
        it("User adds new AMEX card for payment - CVC", () => {
           cy.addCardNewCustomerCybersourceCVC({
               cvc: "7373",
         });
      });

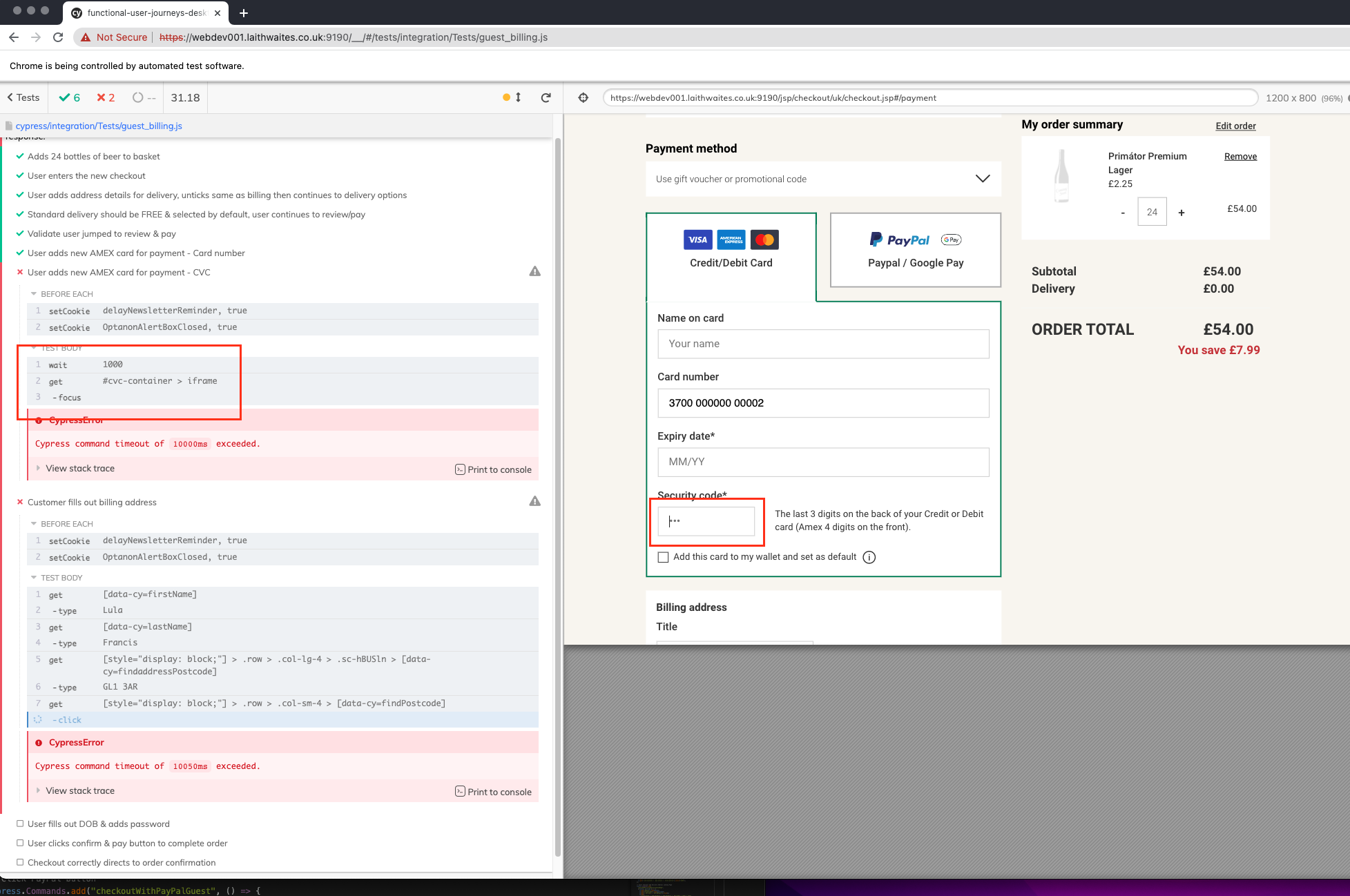

这是一张屏幕截图，显示了测试在做什么。它成功地找到卡输入并填写，但是CVC失败了。

​

​

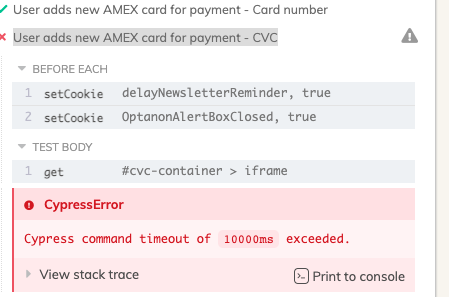

然后超时，测试无法完成：

​

​

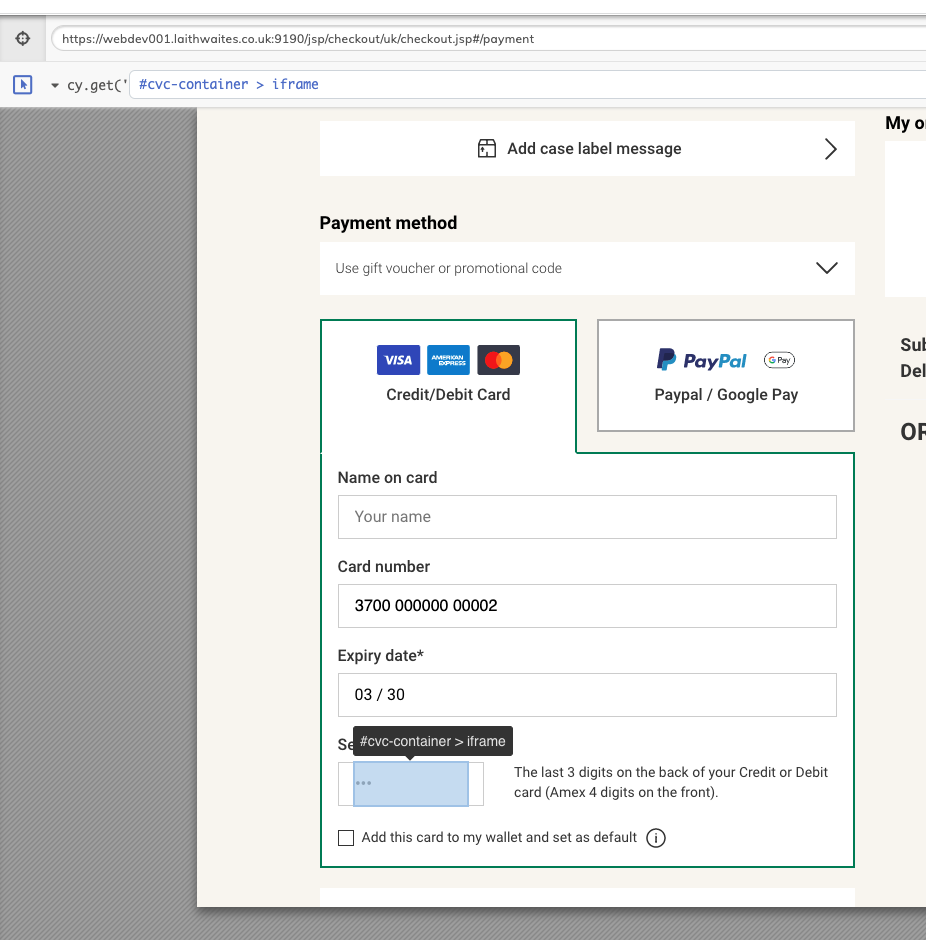

注意，它试图找到的选择器是正确的。

​

​

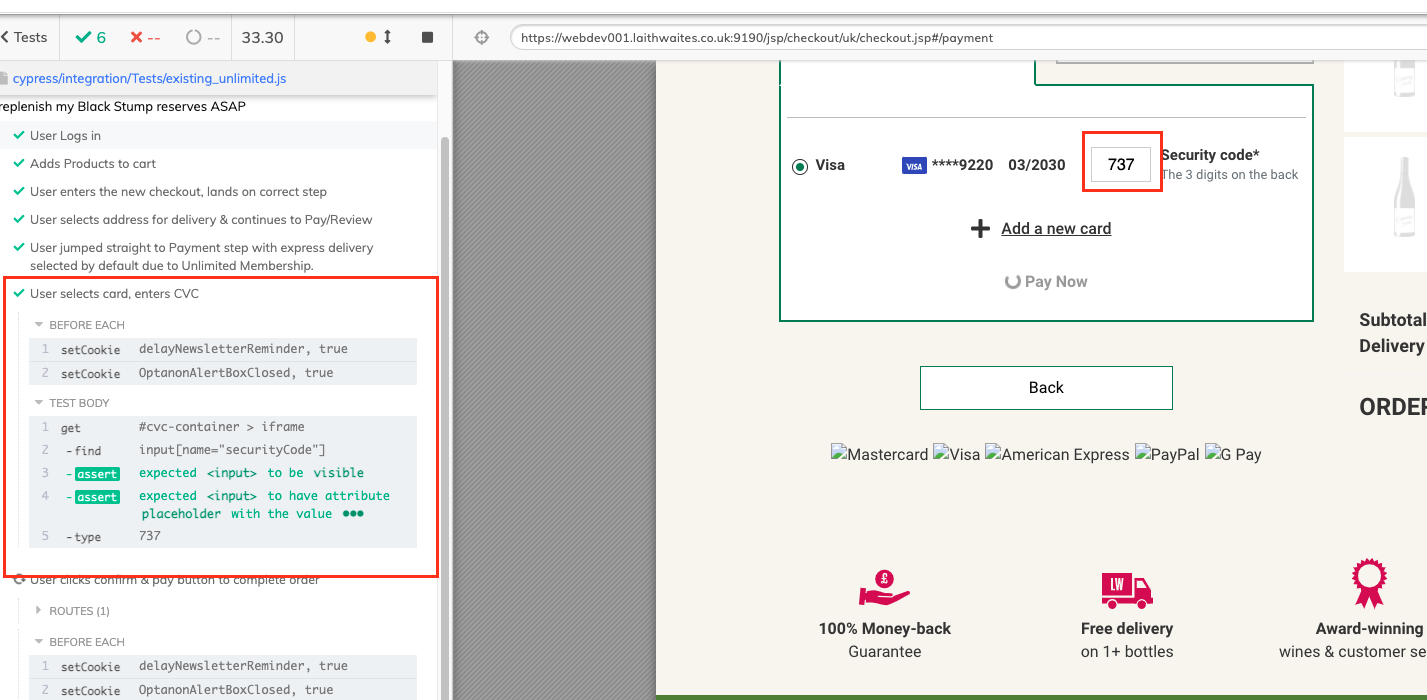

在不需要卡号的不同情况下，这也适用于只针对CVC字段的情况。

​

​

用于此操作的代码与有问题的命令相同。

// Select Existing Card Cybersource
  Cypress.Commands.add("selectExistingCardCybersource", ({ cvc }) => {
// CVC iFrame
   cy.get("#cvc-container > iframe")
       .iframe()
       .find('input[name="securityCode"]')
       .should("be.visible")
       .should("have.attr", "placeholder", "•••")
       .type(cvc);
   });

知道出什么问题了吗？这是个相当大的阻断剂。

编辑以包含完整的HTML。

<div class="tab-content">
    <div>
        <div class="row">
            <div class="col-sm-12">
                <div class="sc-bYoBSM efbeJM">
                    <div class="sc-ezbkAF jQjguY">
                        <div class="sc-dJjYzT hFgVEy">Name on card</div><input class="sc-kLwhqv hfTyyh card-name"
                            placeholder="Your name" data-cy="cardName">
                    </div>
                    <div class="sc-ezbkAF jQjguY">
                        <div class="sc-dJjYzT hFgVEy">Card number</div>
                        <div id="cardNumber-container" class="sc-ikJyIC gvVat flex-microform flex-microform-valid">
                            <iframe hspace="0" vspace="0" frameborder="0" scrolling="no" allowtransparency="true"
                                marginwidth="0" marginheight="0"
                                src="https://testflex.cybersource.com/cybersource/assets/microform/0.11.5/iframe.html?keyId=081ZqeqNTRWxPWy3gLgtSt7reOnfdz2l#{&quot;microformId&quot;:&quot;e01efa2c-96b6-43ae-a038-e81de8a9ae17&quot;,&quot;fieldId&quot;:&quot;58666f5e-2c66-4d7a-9dae-a549dd7e8ea6&quot;,&quot;jwt&quot;:&quot;eyJraWQiOiJ6dSIsImFsZyI6IlJTMjU2In0.eyJmbHgiOnsicGF0aCI6Ii9mbGV4L3YyL3Rva2VucyIsImRhdGEiOiJuSWloUXg4ekdmOTZ0NnpkMDdKSTN4QUFFSUczSEl5WXUxMzZMT0ZtdHFOZE4yOFplUTRTY2FuNWJsbmllUGl4SEZkM0Vxa1BlUVAySStZNGVWYlV2bE9EcGI4VEFxbi9DeWNBam1xK0c2S0MwRlIyamthR2VNa05pQ3hRbTZSUGpGblciLCJvcmlnaW4iOiJodHRwczovL3Rlc3RmbGV4LmN5YmVyc291cmNlLmNvbSIsImp3ayI6eyJrdHkiOiJSU0EiLCJlIjoiQVFBQiIsInVzZSI6ImVuYyIsIm4iOiI0ZHpNdFpWLXRjYU1KYTVfOUZtUm5wMDFZWGJ0VFNYWTV0enh4LWdldlR4Nm9ZZURuZnBiWnFPVllIZFZHX2dOY0dJb0NuX0lFSWhkaHZURHBwU1VIUHdiVlhKMWJfbDNuWHFUT09vNW9hWW5aeW45VVRUQzJLelIzQzFuVFBZOFJ6SjB2YkpWeXJuaG1OcTI0NHVxcy1zMnJOX24xdlpDdXFyX0xFSHBRY2F0Ynd6Ti1KMlFDOXY4dGo5dlBXVF9jNFg3U3Q5S2Y2Qm02djVzcGo0eGVBWFV5V3laa2dHVkpueTNMTWJiS0hfalZEMkMydW9UODJmcmVUVGNjV09JZWZJTTJSVnFxbEk0ZGZfcXJKdHdWTTltNU8tQklSYzBwZmplLWptMW8xMzAzUDB2ZGFTMXZmV2hoYXFjNlAtTmZ1X2pEbXZ1RGlnY24wSGUxV3daTHciLCJraWQiOiIwODFacWVxTlRSV3hQV3kzZ0xndFN0N3JlT25mZHoybCJ9fSwiY3R4IjpbeyJkYXRhIjp7InRhcmdldE9yaWdpbnMiOlsiaHR0cHM6Ly93ZWJkZXYwMDEubGFpdGh3YWl0ZXMuY28udWs6OTE5MCJdLCJtZk9yaWdpbiI6Imh0dHBzOi8vdGVzdGZsZXguY3liZXJzb3VyY2UuY29tIn0sInR5cGUiOiJtZi0wLjExLjAifV0sImlzcyI6IkZsZXggQVBJIiwiZXhwIjoxNjQ2MTQ5MTk4LCJpYXQiOjE2NDYxNDgyOTgsImp0aSI6IjdPc3JDZ1VkbFhoYVdLb2MifQ.MtWDbBZfK6YBK6RE9mwBEgZ249jbFgIDrmCjDC4lyAGQRgL3JMBPVsrnj5CNLk3QKamnMF4za25FouGsaAWBEq8MHssNaXLxEspwEM702THodpTQ0-2NZ1nAx5trtx2LvoDjIAUliKHHrgvMcvAQS04IfsWKZwehm9hLmRilnVi6NNq2eyEPLpcbeoQx55cJyKA2lvsWZxDwqVyo5q_LqwqeCrcxvIQzXRbn8_zJXwymROgYKZGgQ-lGoxwns2EJDgVM1kg2f2-SZTza4aoN7SDBVljL-JpsAV_dS9thXLWJ2ov3tgIezMRDPPNDuTwCZDPHY5Ai4kCC2_t_70fM2w&quot;,&quot;microformConfig&quot;:{&quot;styles&quot;:{&quot;input&quot;:{&quot;font-size&quot;:&quot;16px&quot;,&quot;font-family&quot;:&quot;Roboto, sans-serif&quot;}}},&quot;config&quot;:{&quot;placeholder&quot;:&quot;Enter card number&quot;},&quot;fieldType&quot;:&quot;number&quot;}"
                                style="overflow: hidden; position: relative; border: none; width: 100%; height: 100%;"></iframe>
                        </div>
                    </div>
                    <div class="sc-ezbkAF jQjguY">
                        <div class="sc-dJjYzT hFgVEy">Expiry date*</div><input name="expiryDate"
                            aria-label="Expiry date in format MM YY" autocomplete="cc-exp" id="expiryDate"
                            placeholder="MM/YY" type="tel" data-cy="expiryDate"
                            class="sc-kLwhqv hfTyyh expiry-date null" value="">
                    </div>
                    <div class="sc-ezbkAF jQjguY">
                        <div class="row">
                            <div class="col-sm-12">
                                <div class="sc-dJjYzT hFgVEy">Security code*</div>
                            </div>
                        </div>
                        <div class="row">
                            <div class="col-sm-4">
                                <div id="cvc-container" class="sc-jJoQJp ewxrAe flex-microform"><iframe hspace="0"
                                        vspace="0" frameborder="0" scrolling="no" allowtransparency="true"
                                        marginwidth="0" marginheight="0"
                                        src="https://testflex.cybersource.com/cybersource/assets/microform/0.11.5/iframe.html?keyId=081ZqeqNTRWxPWy3gLgtSt7reOnfdz2l#{&quot;microformId&quot;:&quot;e01efa2c-96b6-43ae-a038-e81de8a9ae17&quot;,&quot;fieldId&quot;:&quot;dce7c4ce-d302-47ae-9d0b-f7b2be73dbad&quot;,&quot;jwt&quot;:&quot;eyJraWQiOiJ6dSIsImFsZyI6IlJTMjU2In0.eyJmbHgiOnsicGF0aCI6Ii9mbGV4L3YyL3Rva2VucyIsImRhdGEiOiJuSWloUXg4ekdmOTZ0NnpkMDdKSTN4QUFFSUczSEl5WXUxMzZMT0ZtdHFOZE4yOFplUTRTY2FuNWJsbmllUGl4SEZkM0Vxa1BlUVAySStZNGVWYlV2bE9EcGI4VEFxbi9DeWNBam1xK0c2S0MwRlIyamthR2VNa05pQ3hRbTZSUGpGblciLCJvcmlnaW4iOiJodHRwczovL3Rlc3RmbGV4LmN5YmVyc291cmNlLmNvbSIsImp3ayI6eyJrdHkiOiJSU0EiLCJlIjoiQVFBQiIsInVzZSI6ImVuYyIsIm4iOiI0ZHpNdFpWLXRjYU1KYTVfOUZtUm5wMDFZWGJ0VFNYWTV0enh4LWdldlR4Nm9ZZURuZnBiWnFPVllIZFZHX2dOY0dJb0NuX0lFSWhkaHZURHBwU1VIUHdiVlhKMWJfbDNuWHFUT09vNW9hWW5aeW45VVRUQzJLelIzQzFuVFBZOFJ6SjB2YkpWeXJuaG1OcTI0NHVxcy1zMnJOX24xdlpDdXFyX0xFSHBRY2F0Ynd6Ti1KMlFDOXY4dGo5dlBXVF9jNFg3U3Q5S2Y2Qm02djVzcGo0eGVBWFV5V3laa2dHVkpueTNMTWJiS0hfalZEMkMydW9UODJmcmVUVGNjV09JZWZJTTJSVnFxbEk0ZGZfcXJKdHdWTTltNU8tQklSYzBwZmplLWptMW8xMzAzUDB2ZGFTMXZmV2hoYXFjNlAtTmZ1X2pEbXZ1RGlnY24wSGUxV3daTHciLCJraWQiOiIwODFacWVxTlRSV3hQV3kzZ0xndFN0N3JlT25mZHoybCJ9fSwiY3R4IjpbeyJkYXRhIjp7InRhcmdldE9yaWdpbnMiOlsiaHR0cHM6Ly93ZWJkZXYwMDEubGFpdGh3YWl0ZXMuY28udWs6OTE5MCJdLCJtZk9yaWdpbiI6Imh0dHBzOi8vdGVzdGZsZXguY3liZXJzb3VyY2UuY29tIn0sInR5cGUiOiJtZi0wLjExLjAifV0sImlzcyI6IkZsZXggQVBJIiwiZXhwIjoxNjQ2MTQ5MTk4LCJpYXQiOjE2NDYxNDgyOTgsImp0aSI6IjdPc3JDZ1VkbFhoYVdLb2MifQ.MtWDbBZfK6YBK6RE9mwBEgZ249jbFgIDrmCjDC4lyAGQRgL3JMBPVsrnj5CNLk3QKamnMF4za25FouGsaAWBEq8MHssNaXLxEspwEM702THodpTQ0-2NZ1nAx5trtx2LvoDjIAUliKHHrgvMcvAQS04IfsWKZwehm9hLmRilnVi6NNq2eyEPLpcbeoQx55cJyKA2lvsWZxDwqVyo5q_LqwqeCrcxvIQzXRbn8_zJXwymROgYKZGgQ-lGoxwns2EJDgVM1kg2f2-SZTza4aoN7SDBVljL-JpsAV_dS9thXLWJ2ov3tgIezMRDPPNDuTwCZDPHY5Ai4kCC2_t_70fM2w&quot;,&quot;microformConfig&quot;:{&quot;styles&quot;:{&quot;input&quot;:{&quot;font-size&quot;:&quot;16px&quot;,&quot;font-family&quot;:&quot;Roboto, sans-serif&quot;}}},&quot;config&quot;:{&quot;placeholder&quot;:&quot;•••&quot;},&quot;fieldType&quot;:&quot;securityCode&quot;}"
                                        style="overflow: hidden; position: relative; border: none; width: 100%; height: 100%;"></iframe>
                                </div>
                            </div>
                            <div class="cvc col-sm-8">The last 3 digits on the back of your Credit or Debit card
                                (Amex 4 digits on the front).</div>
                        </div>
                    </div>
                    <div class="sc-gWXbKe bZJPUc"><label class="sc-eCImPb caZvFZ checkbox"><input
                                name="saveCreditCard" type="checkbox" class="sc-iqseJM gIJDbg" value="false">
                            <div class="sc-pVTFL imLlDI"><svg viewBox="0 0 24 24" class="sc-gKclnd dZWWmA">
                                    <polyline points="20 6 9 17 4 12"></polyline>
                                </svg></div>Add this card to my wallet
                        </label></div>
                </div>
            </div>
        </div>
        <div class="row">
            <div class="col"><button type="button" data-cy="useExistingCard" class="sc-crHmcD jOSMtb gotoCard link"
                    style="margin-bottom: 10px;">Cancel and return</button></div>
        </div>
    </div>
    <div class="sc-iIUQWv gaphzu">
        <div class="col-sm-6"><button data-cy="payCard" type="submit" id="confirmAndPay"
                class="sc-crHmcD jOSMtb block">Pay Now</button></div>
    </div>
</div>

我还添加了.focus()，它成功地进入了CVC字段，但是类型命令在超时时仍然失败。

​

​

Answer 1

我已经通过改变我处理CVC字段的方式来解决这个问题。

使用下面的命令解决我的问题。

// Checkout Add Card New Customer CVC
Cypress.Commands.add("addCardNewCustomerCybersourceCVC", ({ cvc }) => {
  cy.get("#cvc-container > iframe").then(($element) => {
    const $body = $element.contents().find("body");
    let cvcField = cy.wrap($body);
    cvcField = cy.wrap($body);
    cvcField
      .find('input[name="securityCode"]')
      .should("be.visible")
      .should("have.attr", "placeholder", "•••")
      .click()
      .type(cvc);
  });
});

谢谢大家的帮助！

Answer 2

@BillBaily，谢谢，但我正在寻找一个更大的HTML，涵盖这两个iframes。

但是另一个建议--我在另一个使用WorldPay的项目中看到了嵌套 iframes，所以您需要类似的东西

// Checkout Add Card New Customer CVC

Cypress.Commands.add("addCardNewCustomerCybersourceCVC", ({ cvc }) => { // CVC iFrame

  cy.get("#cardNumber-container > iframe")
    .iframe()
    .within(() => {

      cy.get("#cvc-container > iframe")
        .iframe()
        .find('input[name="securityCode"]')
        .should("be.visible")
        .should("have.attr", "placeholder", "•••")
        .type(cvc)
    })
 })

但是，不需要卡号的测试与这一理论相矛盾，但在这两种情况下页面结构不同的情况下值得一提。

(顺便说一下，使用的是什么支付库？)

我刚刚注意到，在最后一张截图中，CVC字段确实获得了焦点，但是名称和到期都是空的。

看起来，验证可能会阻止输入字段中的任何内容。您可以通过手动尝试只输入CVC来检查这一点。

试试看这个测试

it("User adds new AMEX card for payment - CVC", () => {

  cy.addCardNewCustomerCybersourceCardNumber({
    cardNumber: "370000000000002",
    expiry: "0330",
  })

  // May need a name as well

  cy.addCardNewCustomerCybersourceCVC({
    cvc: "7373",
  })
})

或者(作为最后的手段)在addCardNewCustomerCybersourceCVC中使用addCardNewCustomerCybersourceCVC。
