Terraform创建的安全组没有规则。

Question

我现在正在学习Terraform，并编写了一个简单的脚本来创建一些AWS资源。

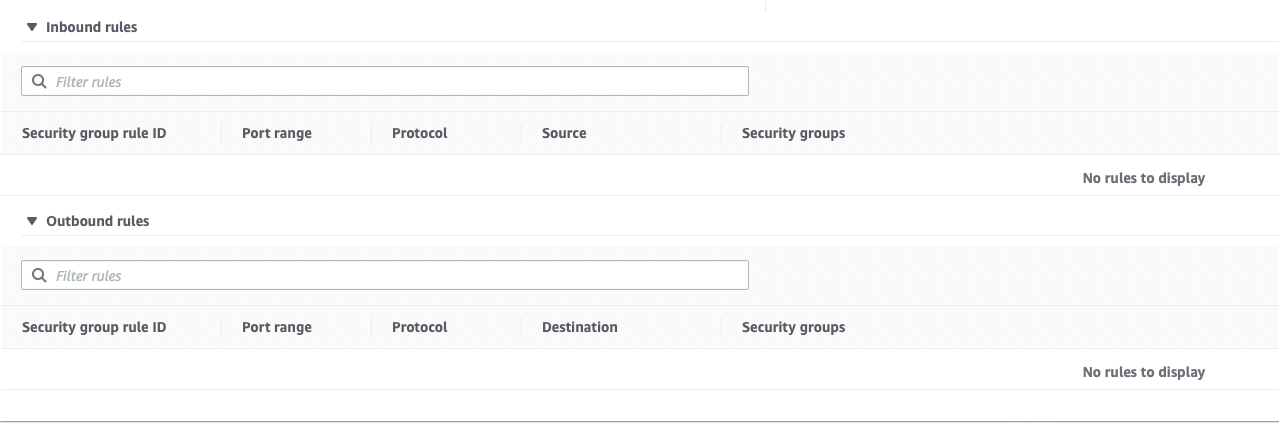

从我的脚本中，它可以创建一个带有子网的VPC，以及一个附加了一个安全组的实例。它们都是由terraform脚本新创建的。当我运行terraform计划或terraform应用时，没有显示错误或警告并成功创建。但是，当我检查AWS控制台上新创建的资源时，我发现安全组已经创建，但没有附加规则。

有人能帮忙吗？非常感谢。

下面是我的地形剧本。

provider "aws" {
  region = var.AWS_REGION
  access_key = var.AWS_ACCESS_KEY
  secret_key = var.AWS_SECRET_KEY
}

data "aws_ami" "amazon-2" {
  most_recent = true
  owners = [ "amazon" ]

  filter {
    name = "name"
    values = [ "amzn2-ami-hvm-*-x86_64-ebs" ]
  }
}

resource "aws_key_pair" "generate_keypair" {
  key_name = var.key_name
  public_key = var.public_key
  tags = var.default_tags
}

resource "aws_vpc" "study" {
  cidr_block = "10.0.0.0/20"
  tags = var.default_tags
}

resource "aws_subnet" "study-public" {
  vpc_id = aws_vpc.study.id
  cidr_block = "10.0.0.0/26"
  tags = var.default_tags
}

resource "aws_security_group" "public-instance" {
  vpc_id = aws_vpc.study.id
  name = "public-instance"
  description = "Group for public instance"
  tags = var.default_tags

  ingress {
    description = "Port 80 ingress"
    from_port = 80
    to_port = 80
    protocol = "tcp"
  }

  ingress {
    description = "Port 22 ingress"
    from_port = 22
    to_port = 22
    protocol = "ssh"
  }

  egress {
    from_port = 0
    to_port = 0
    protocol = "all"
  }
}

resource "aws_instance" "linux" {
  ami = data.aws_ami.amazon-2.id
  instance_type = "t3.micro"
  key_name = aws_key_pair.generate_keypair.key_name
  vpc_security_group_ids = [ aws_security_group.public-instance.id ]
  subnet_id = aws_subnet.study-public.id
  tags = var.default_tags
}

​

​

Answer 1

您至少需要指定任何一个规则目的地，如CIDR块、安全组ID或前缀列表。

下面的代码片段适用于您。在这种情况下，我使用了cidr_blocks。

resource "aws_security_group" "public-instance" {
  vpc_id      = aws_vpc.study.id
  name        = "public-instance"
  description = "Group for public instance"

  ingress {
    description = "Port 80 ingress"
    from_port   = 80
    to_port     = 80
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    description = "Port 22 ingress"
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "all"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

Answer 2

添加cidr_blocks = ["<your ip cidr>"]和更改protocol = "tcp"

  ingress {
    from_port   = 80
    to_port     = 80
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]

  }

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "all"
    cidr_blocks = ["0.0.0.0/0"]
  }
