Question

我想把csv文件中的x和y画成geopandas图，但只绘制出所显示的图形轴。

import fiona
import matplotlib.pyplot as plt
from mpl_toolkits.axisartist.axislines import Subplot
import pandas as pd
gpd.io.file.fiona.drvsupport.supported_drivers['KML'] = 'rw'
gpd.io.file.fiona.drvsupport.supported_drivers["KML"] = "rw"
dfN = pd.read_csv ("nodes.txt",delimiter ="\\s+")
dfN.to_csv ("nodes.csv", index=None)
df = gpd.read_file("data.kml", driver="KML")
df=df.to_crs(epsg=32733)
gdf = gpd.GeoDataFrame(dfN ,geometry=gpd.points_from_xy(dfN.X, dfN.Y))
dg=df.translate(433050,299)
fig,ax = plt.subplots()
ax.set_aspect('equal')
ax.scatter(gdf.X, gdf.Y , zorder=1, alpha= 1, c='r', s=10)
dg.plot(ax=ax,zorder=0,color='white', edgecolor='black',aspect= 'equal')
plt.show()

​

​

Answer 1

transformations...

• plotting
• --这不是一个MWE，因此已经从公开可用的源数据中获取了数据，并且应用了相同的可以简化的代码，然后它就可以工作了。在plot()上使用(包括点对象)将产生一个散射

import geopandas as gpd
import matplotlib.pyplot as plt
import pandas as pd
import requests, io

# data sourcing generated two geopandas data frames,  let's replace to make MWE
df = gpd.read_file(gpd.datasets.get_path("naturalearth_lowres"))
df=df.to_crs(epsg=32733)

dg = df.loc[df["geometry"].is_valid *df["iso_a3"].eq("GBR")].translate(433050,299)
dfN = pd.read_csv(io.StringIO(requests.get("https://assets.nhs.uk/data/foi/Hospital.csv").text),
    sep="Č",engine="python",).loc[:,["OrganisationName","Latitude","Longitude"]].rename(columns={"Latitude":"Y","Longitude":"X"})

gdf = gpd.GeoDataFrame(dfN ,geometry=gpd.points_from_xy(dfN.X, dfN.Y))
gdf = gdf.set_crs("EPSG:4326").to_crs(epsg=32733)

# plotting code is simplified as:
ax = dg.plot(zorder=0,color='white', edgecolor='black',aspect= 'equal')
gdf.plot(ax=ax, zorder=1, alpha= 1, c='r', markersize=10)

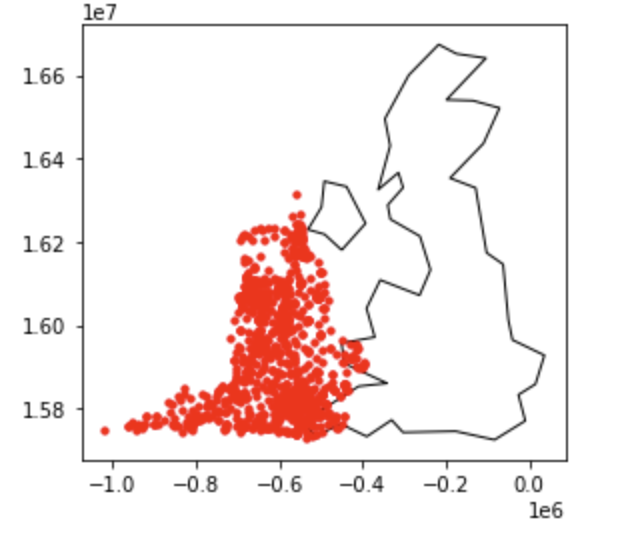

输出

显然，

• 在定义的CRS中，加上一组几何图形已被转换为

。

​

​
