在提取中不呈现或交叉引用的定理环境

Question

我试图写一个distill::distill_article博客，它需要使用LaTeX数学环境，例如定理、引理、证明等。

我尝试过遵循这些使用说明和这些指示，但无法呈现theorem环境，无论是使用LaTeX块还是rmarkdown块。

我还注意到，相似问题被问到如何在bookdown中专门使用distill::distill_article。此修复也不起作用。请注意，我的用例是在distill::distill_article内部使用bookdown定理环境，而不是相反。

以下是对这一问题的解释：

---
title: "Test Title"
description: |
  Test description
author: Test author
date: 2021-12-31
output:
  distill::distill_article:
    self_contained: false
---


```{r setup, include=FALSE}

knitr::opts_chunk$set(echo =真)

图书馆(预订)

# TL;DR;

Trying to ensure that theorem environments are working in
`distill::distill_article`.

# Main theorems

With the definitional background established, let's move onto the
main theorem of this article.

\begin{align}
g(X_{n}) &= g(\theta)+g'({\tilde{\theta}})(X_{n}-\theta) \notag \\
\sqrt{n}[g(X_{n})-g(\theta)] &= g'\left({\tilde{\theta}}\right)
  \sqrt{n}[X_{n}-\theta ] (\#eq:align)
\end{align}

<!-- # This  does not work, i.e., render in html -->
\begin{theorem}[Delta Method]\label{nthm:deltamethod}
g(X_{n}) &= g(\theta)+g'({\tilde{\theta}})(X_{n}-\theta) \notag \\
\sqrt{n}[g(X_{n})-g(\theta)] &= g'\left({\tilde{\theta}}\right)
  \sqrt{n}[X_{n}-\theta ] (\#eq:align)
\end{theorem}

<!-- # This reference does not work, i.e., is not recognized -->
We have a labeled and named theorem below, and \@ref(nthm:deltamethod).

<!-- # This  does not work either, i.e., render in html -->
::: {.theorem #pythagoras name="Pythagorean theorem"}
For a right triangle, if $c$ denotes the length of the hypotenuse
and $a$ and $b$ denote the lengths of the other two sides, we have

$$a^2 + b^2 = c^2$$
:::

<!-- # This reference does not work either, i.e., is not recognized -->
We have a labeled and named theorem below, and \@ref(thm:pythagoras).

请注意，我在重标记中加载了bookdown，目的是呈现定理环境。然而，它不起作用，即定理或交叉引用没有呈现出来。有人能帮我解决这个问题吗？

会话信息

─ Session info ───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.1.2 (2021-11-01)
 os       macOS Monterey 12.0.1
 system   x86_64, darwin17.0
 ui       RStudio
 language (EN)
 collate  en_US.UTF-8
 ctype    en_US.UTF-8
 tz       America/New_York
 date     2022-01-02

─ Packages ───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
 package     * version date       lib source
 assertthat    0.2.1   2019-03-21 [1] standard (@0.2.1)
 backports     1.2.1   2020-12-09 [1] standard (@1.2.1)
 bookdown    * 0.24    2021-09-02 [1] CRAN (R 4.1.0)
 broom         0.7.10  2021-10-31 [1] CRAN (R 4.1.0)
 cachem        1.0.5   2021-05-15 [1] standard (@1.0.5)
 cellranger    1.1.0   2016-07-27 [1] standard (@1.1.0)
 cli           3.1.0   2021-10-27 [1] CRAN (R 4.1.0)
 clipr         0.7.1   2020-10-08 [1] standard (@0.7.1)
 colorspace    2.0-2   2021-06-24 [1] standard (@2.0-2)
 crayon        1.4.1   2021-02-08 [1] standard (@1.4.1)
 DBI           1.1.1   2021-01-15 [1] standard (@1.1.1)
 dbplyr        2.1.1   2021-04-06 [1] standard (@2.1.1)
 desc          1.4.0   2021-09-28 [1] CRAN (R 4.1.0)
 details       0.2.1   2020-01-12 [1] CRAN (R 4.1.0)
 digest        0.6.27  2020-10-24 [1] standard (@0.6.27)
 distill       1.3     2021-10-13 [1] CRAN (R 4.1.0)
 downlit       0.4.0   2021-10-29 [1] CRAN (R 4.1.0)
 dplyr       * 1.0.7   2021-06-18 [1] standard (@1.0.7)
 ellipsis      0.3.2   2021-04-29 [1] standard (@0.3.2)
 evaluate      0.14    2019-05-28 [1] standard (@0.14)
 fansi         0.5.0   2021-05-25 [1] standard (@0.5.0)
 fastmap       1.1.0   2021-01-25 [1] standard (@1.1.0)
 forcats     * 0.5.1   2021-01-27 [1] CRAN (R 4.1.0)
 fs            1.5.2   2021-12-08 [1] CRAN (R 4.1.0)
 generics      0.1.0   2020-10-31 [1] standard (@0.1.0)
 ggplot2     * 3.3.5   2021-06-25 [1] standard (@3.3.5)
 glue          1.4.2   2020-08-27 [1] standard (@1.4.2)
 gtable        0.3.0   2019-03-25 [1] standard (@0.3.0)
 haven         2.4.1   2021-04-23 [1] standard (@2.4.1)
 hms           1.1.0   2021-05-17 [1] standard (@1.1.0)
 htmltools     0.5.1.1 2021-01-22 [1] standard (@0.5.1.1)
 httr          1.4.2   2020-07-20 [1] standard (@1.4.2)
 jsonlite      1.7.2   2020-12-09 [1] standard (@1.7.2)
 knitr         1.37    2021-12-16 [1] CRAN (R 4.1.0)
 lifecycle     1.0.0   2021-02-15 [1] standard (@1.0.0)
 lubridate     1.7.10  2021-02-26 [1] standard (@1.7.10)
 magrittr      2.0.1   2020-11-17 [1] standard (@2.0.1)
 memoise       2.0.0   2021-01-26 [1] standard (@2.0.0)
 modelr        0.1.8   2020-05-19 [1] standard (@0.1.8)
 munsell       0.5.0   2018-06-12 [1] standard (@0.5.0)
 pillar        1.6.1   2021-05-16 [1] standard (@1.6.1)
 pkgconfig     2.0.3   2019-09-22 [1] standard (@2.0.3)
 png           0.1-7   2013-12-03 [1] standard (@0.1-7)
 purrr       * 0.3.4   2020-04-17 [1] standard (@0.3.4)
 R6            2.5.0   2020-10-28 [1] standard (@2.5.0)
 Rcpp          1.0.7   2021-07-07 [1] CRAN (R 4.1.0)
 readr       * 1.4.0   2020-10-05 [1] standard (@1.4.0)
 readxl        1.3.1   2019-03-13 [1] standard (@1.3.1)
 reprex        2.0.1   2021-08-05 [1] CRAN (R 4.1.0)
 rlang         0.4.11  2021-04-30 [1] standard (@0.4.11)
 rmarkdown     2.11    2021-09-14 [1] CRAN (R 4.1.0)
 rprojroot     2.0.2   2020-11-15 [1] standard (@2.0.2)
 rstudioapi    0.13    2020-11-12 [1] CRAN (R 4.1.0)
 rvest         1.0.0   2021-03-09 [1] standard (@1.0.0)
 scales        1.1.1   2020-05-11 [1] standard (@1.1.1)
 sessioninfo   1.1.1   2018-11-05 [1] standard (@1.1.1)
 stringi       1.6.2   2021-05-17 [1] standard (@1.6.2)
 stringr     * 1.4.0   2019-02-10 [1] standard (@1.4.0)
 tibble      * 3.1.2   2021-05-16 [1] standard (@3.1.2)
 tidyr       * 1.1.3   2021-03-03 [1] standard (@1.1.3)
 tidyselect    1.1.1   2021-04-30 [1] standard (@1.1.1)
 tidyverse   * 1.3.1   2021-04-15 [1] CRAN (R 4.1.0)
 utf8          1.2.2   2021-07-24 [1] CRAN (R 4.1.0)
 vctrs         0.3.8   2021-04-29 [1] standard (@0.3.8)
 withr         2.4.2   2021-04-18 [1] standard (@2.4.2)
 xfun          0.29    2021-12-14 [1] CRAN (R 4.1.0)
 xml2          1.3.2   2020-04-23 [1] standard (@1.3.2)
 yaml          2.2.1   2020-02-01 [1] standard (@2.2.1)

[1] /Library/Frameworks/R.framework/Versions/4.1/Resources/library

​

Answer 1

bookdown特性可以与其他单一格式一起使用base_format参数，如描述的这里。

如果bookdown的所有特性都与提取格式不完全兼容，则定理和证明处理应该是这样的。因此，这样做是可行的：

---
title: "Test Title"
description: |
  Test description
author: Test author
date: 2021-12-31
output:
  bookdown::html_document2:
    self_contained: false
    base_format: distill::distill_article
---

```{r setup, include=FALSE}

knitr::opts_chunk$set(echo =真)

# TL;DR;

Trying to ensure that theorem environments are working in `distill::distill_article`.

::: {#pythagoras .theorem name="Pythagorean theorem"}
For a right triangle, if $c$ denotes the length of the hypotenuse and $a$ and $b$ denote the lengths of the other two sides, we have

$$a^2 + b^2 = c^2$$
:::

We have a labeled and named theorem below, and \@ref(thm:pythagoras).

​

​

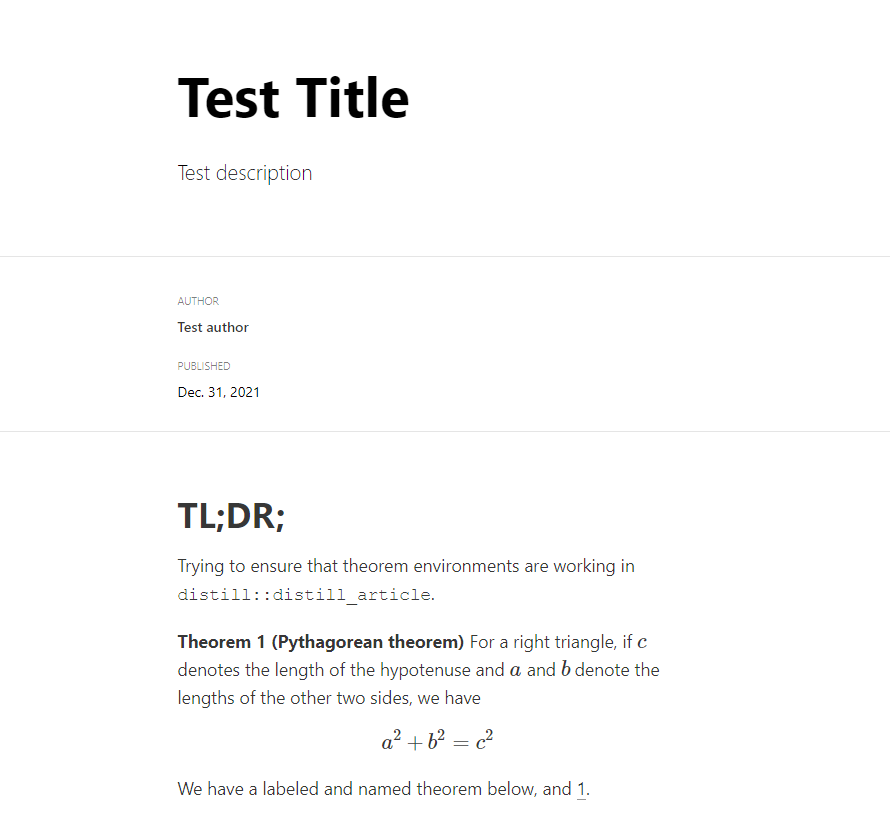

您将得到与bookdown中相同的HTML呈现。

有关更多上下文，请参见Github上的这一相关问题。

Answer 2

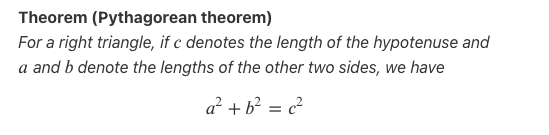

在YAML之后添加以下内容，然后:::之间的方法将起作用：

<style>
.theorem{
  display: block;
  font-style: italic;
}
.theorem::before{
  content:"Theorem. ";
  font-weight: bold;
  font-style: normal;
}
.theorem[name]::before{
  content: "Theorem (" attr(name) ") ";
}
</style>

::: {.theorem name="Pythagorean theorem"}
For a right triangle, if $c$ denotes the length of the hypotenuse
and $a$ and $b$ denote the lengths of the other two sides, we have
$$a^2 + b^2 = c^2$$
:::

​

​

如果您希望能够通过超级链接引用定理，可以使用href，如下所示：

如果你想引用你的定理，你可以这样做。考虑到<a href="#Pythagorean theorem">Pythagorean定理</a>，应该有一种方法将其联系起来。

​

​

Answer 3

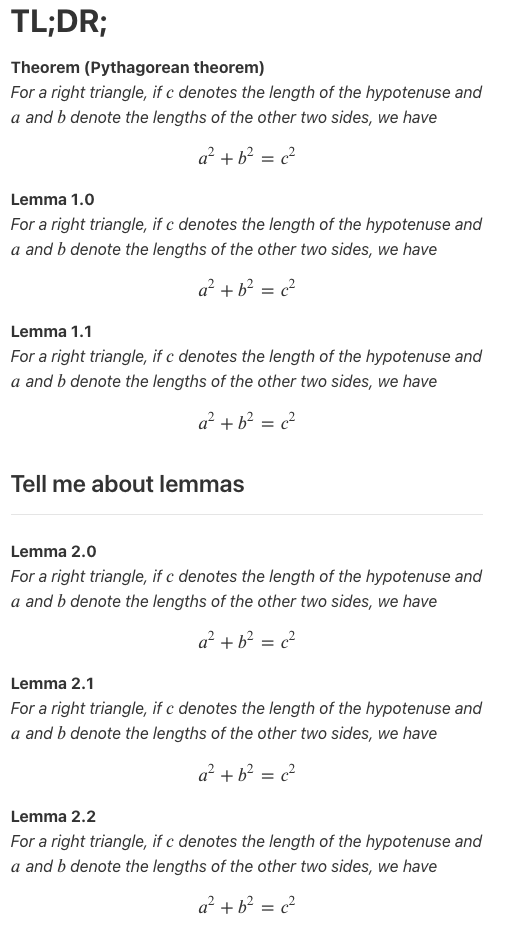

我并没有把它们都做完，但这里有一个是关于引理的。这使用两个类:引理和lemmaS。当您使用类引理时，它会更改整数，当您使用lemmaS时，它会增加十进制数。此方法可应用于所有不同类型的块的公式。

更新后的样式：

<style>
h1 {
  counter-reset: lemma;
}
h2 {
  counter-reset: lemmaS;
}
.lemma, .lemmaS, .theorem { /* updated to add two types of lemma */
  display: block;
  font-style: italic;
}
.lemma:first-of-type::before,
.lemmaS:first-of-type::before {
  counter-set: lemma 1;
}
.theorem::before{
  content:"Theorem. ";
  font-weight: bold;
  font-style: normal;
}
.theorem[name]::before{
  content: "Theorem (" attr(name) ") ";
}
.lemma::before {    /* This will increment by whole numbers: 1, 2, 3 */
  counter-increment: lemma;
  content: "Lemma " counter(lemma) "." counter(lemmaS);
  font-weight: bold;
  font-style: normal;
}
.lemmaS::before {   /* This will increment by decimals numbers: 2.1, 2.2 */
  counter-increment: lemmaS;
  content: "Lemma " counter(lemma) "." counter(lemmaS) " ";
  font-weight: bold;
  font-style: normal;
}
</style>

代码，使用h1或#重置整数；使用<h2>或##重置十进制。

# TL;DR;

::: {.theorem name="Pythagorean theorem"}
For a right triangle, if $c$ denotes the length of the hypotenuse
and $a$ and $b$ denote the lengths of the other two sides, we have
$$a^2 + b^2 = c^2$$
:::

<div class="lemma" name="pythag">
For a right triangle, if $c$ denotes the length of the hypotenuse
and $a$ and $b$ denote the lengths of the other two sides, we have
$$a^2 + b^2 = c^2$$
</div>

<div class="lemmaS" name="YetAnotherPythag">
For a right triangle, if $c$ denotes the length of the hypotenuse
and $a$ and $b$ denote the lengths of the other two sides, we have
$$a^2 + b^2 = c^2$$
</div>

## Tell me about lemmas

<div class="lemma" name="andMore">
For a right triangle, if $c$ denotes the length of the hypotenuse
and $a$ and $b$ denote the lengths of the other two sides, we have
$$a^2 + b^2 = c^2$$
</div>

在我输入它的时候，我已经想到了几种方法来使这个cleaner...but --我只想让它在那里工作！我确信有一种方法只使用一类引理，使用标题来表示何时增加整数。不管是哪种方式，这都会让你有其他选择。如果你不想要数字，使用定理设置，只需将单词定理改为你想要看到的单词。如果你想给它们编号，把引理改为你想要出现的单词。如果需要以上所有内容，请在CSS中追加名称。

例如，要使用编号，但添加推论-您可以在没有使用“内容”的地方，在使用“内容”的地方追加“内容”，复制并更改该词：

.corrolary,
.lemma,
.lemmaS,
.theorem {    /* updated to add two types of lemma */
  display: block;
  font-style: italic;
}
.corollary::before{. /* Copy of .theorem, updated for Corollary */
  content:"Corollary. ";
  font-weight: bold;
  font-style: normal;
}

​

​
