带PySimpleGUI的重叠帧

Question

我想要创建一个图形用户界面使用pySimpleGUI，类似于杀手数独游戏。对于那些不熟悉Killer sudoku的人来说，它类似于普通的Sudoku，但也有一种额外的复杂性，即不仅有9个3x3框，其中数字1-9必须在每帧、列和行中精确地使用一次，而且还有笼子。这些笼子有一个数字，指定笼子里所有的数字必须加在一起。在笼子里也不能重复任何数字。下面是一个例子，说明其中一个板是什么样子。

杀手数独委员会

正如你所看到的，我不仅需要一个框架来勾勒每一个3x3，还需要一个框架为每个笼子在板上。当笼子同时处于列和行(L形)时，问题就出现了。pySimpleGUI有能力像这款sudoku游戏所需要的那样，设计出异常的形状吗？

谢谢你的帮助

Answer 1

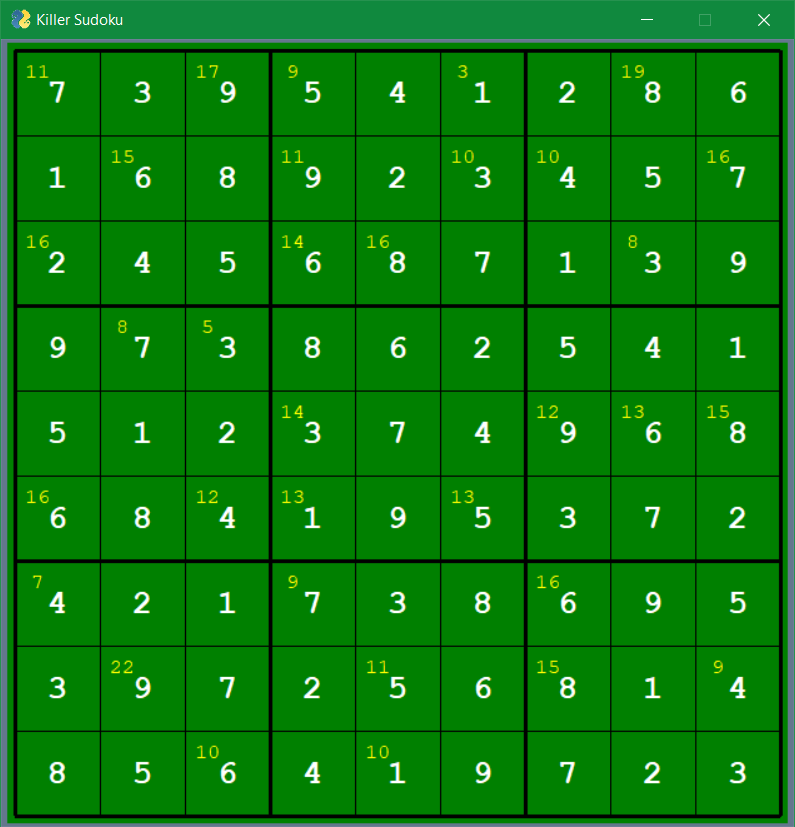

演示如何在下面的示例脚本中在sg.Graph上绘制板，当然，这里绘制的不是所有

还有很多工作要做，以实现您的杀手数独游戏。

import PySimpleGUI as sg

class Sudoku():

    def __init__(self):
        # Use monospaced font here
        self.columns = 9
        self.blocks = 3
        self.bg = 'green'
        self.line_width = (1, 3, 6)
        self.line_color = ("black", "black", 'grey')
        self.number_color = ("white", "yellow")
        self.font0 = ("Courier New", 20, 'bold')
        self.font1 = ("Courier New", 12)
        self.w0, self.h0 = self.char_size(self.font0)
        self.w1, self.h1 = self.char_size(self.font1)
        self.pad = 8
        w = self.w0 + 2 * (self.w1 + 2 * self.pad)
        h = self.h0 + 2 * self.pad
        self.cell_width = max(w, h)
        self.width = (self.cell_width * self.columns + 2 * self.line_width[2])
        self.size = (self.width, self.width)
        self.numbers0, self.numbers1 = [], []

    def char_size(self, font):
        root = sg.tk.Tk()
        size = (sg.tk.font.Font(font=font).measure("W"),
            sg.tk.font.Font(font=font).metrics('linespace'))
        root.destroy()
        return size

    def draw_board1(self, element):
        delta = self.columns * self.cell_width
        for i in range(self.columns+1):
            x = self.line_width[2] + i * self.cell_width
            x0, x1 = self.line_width[2], self.line_width[2] + delta
            y = self.line_width[2] + i * self.cell_width
            y0, y1 = self.line_width[2], self.line_width[2] + delta
            element.draw_line((x0, y), (x1, y), color=self.line_color[0],
                width=self.line_width[0])
            element.draw_line((x, y0), (x, y1), color=self.line_color[0],
                width=self.line_width[0])

    def draw_board2(self, element):
        delta = self.columns * self.cell_width
        for i in range(self.blocks+1):
            x = self.line_width[2] + 3 * i * self.cell_width
            x0, x1 = self.line_width[2], self.line_width[2] + delta
            y = self.line_width[2] + 3 * i * self.cell_width
            y0, y1 = self.line_width[2], self.line_width[2] + delta
            element.draw_line((x0, y), (x1, y), color=self.line_color[1],
                width=self.line_width[1])
            element.draw_line((x, y0), (x, y1), color=self.line_color[1],
                width=self.line_width[1])

    def draw_number0(self, element, data):
        if self.numbers0:
            element.Widget.delete(*self.numbers)
        self.numbers0 = []
        offset_x = self.line_width[2] + self.cell_width//2
        offset_y = self.cell_width*self.columns + self.line_width[2] - self.cell_width//2
        for row in range(self.columns):
            for col in range(self.columns):
                item = element.draw_text(str(data[row][col]),
                    (offset_x + self.cell_width * col, offset_y - self.cell_width * row),
                    font=self.font0, color=self.number_color[0])
                self.numbers0.append(item)

    def draw_number1(self, element, data):
        if self.numbers1:
            element.Widget.delete(*self.numbers)
        self.numbers1 = []
        offset_x = self.line_width[2] + self.pad + self.w1
        offset_y = self.cell_width*self.columns + self.line_width[2] - self.pad - self.h1//2
        for row, col, number in data:
            item = element.draw_text(str(number),
                (offset_x + self.cell_width * col, offset_y - self.cell_width * row), font=self.font1,
                color=self.number_color[1])
            self.numbers1.append(item)

s = Sudoku()
data0 = list(map(list, [
    "739541286", "168923457", "245687139", "973862541", "512374968",
    "684195372", "421738695", "397256814", "856419723"]))
data1 = [
    (0, 0, 11), (0, 2, 17), (0, 3, 9), (0, 5, 3), (0, 7, 19),
    (1, 1, 15), (1, 3, 11), (1, 5, 10), (1,6, 10), (1,8, 16),
    (2, 0, 16), (2, 3, 14), (2, 4, 16), (2, 7, 8),
    (3, 1, 8), (3, 2, 5),
    (4, 3, 14), (4, 6, 12), (4, 7, 13), (4, 8, 15),
    (5, 0, 16), (5, 2, 12), (5, 3, 13), (5, 5, 13),
    (6, 0, 7), (6, 3, 9), (6, 6, 16),
    (7, 1, 22), (7, 4, 11), (7, 6, 15), (7, 8, 9),
    (8, 2, 10), (8, 4, 10),
]

layout = [
    [sg.Graph(s.size, (0, 0), s.size, background_color=s.bg, key='GRAPH',
        enable_events=True)],
]

window = sg.Window("Killer Sudoku", layout, margins=(0, 0), finalize=True)
graph = window['GRAPH']
s.draw_board1(graph)
s.draw_board2(graph)
s.draw_number0(graph, data0)
s.draw_number1(graph, data1)

while True:
    event, values = window.read()
    if event in (sg.WINDOW_CLOSED, 'Exit'):
        break
    print(event, values)
window.close()

​

​
