OpenFoam:改变STL位置会导致不确定的行为或崩溃

Question

我正在测试OpenFoam-9 https://drive.google.com/file/d/1J2rKIRU8DAZadORyjUfd6OBBcfR-9rLo/view?usp=sharing的Magnus效应示例。

我从https://holzmann-cfd.com/community/training-cases/magnus-effect那里得到了什么

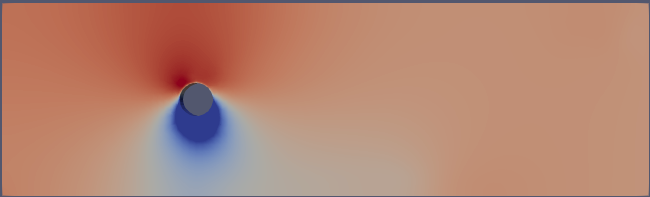

它工作得很好：

​

​

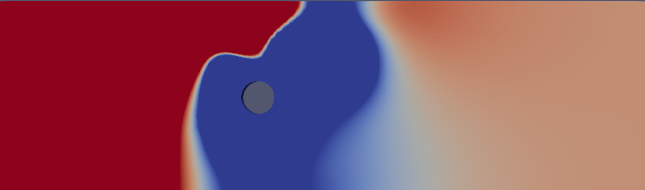

但是当我改变STL对象时，在STL文件中移动一点位置，那么模拟就会中断。

snappyHexMeshDict:
geometry
{
    cylinder_x01y0z0.stl
    {
        type triSurfaceMesh;
        name cylinder;
    }
};

​

​

请帮助理解为什么在STL文件中的一个小位置移动中断模拟。

提前谢谢你。

Answer 1

尝试将0.orig/U中的代码更改为cylinder边界条件，如下所示(请参阅注释)：

    cylinder
    {

        type            codedFixedValue;
        value           uniform (0 0 0);
        name            myBC;

        code
        #{
            const scalar time = this->db().time().value();

            const fvPatch& boundaryPatch = patch();

            const vectorField& Cf = boundaryPatch.Cf();

            vectorField rot(Cf.size(), vector(0,0,0));

            const vector CENTER(0.1,0.0, 0.0); // <<<< Add this line and add it below

            const scalar rotate_speed_max = 10.0;
            const scalar rotate_time_start = 0.0;

            scalar rotate_speed = 0.5 * (time - rotate_time_start) * (time - rotate_time_start);
            rotate_speed = rotate_speed > rotate_speed_max ? rotate_speed_max : rotate_speed;

            //- Start motion of the wall after 15s
            if (time > rotate_time_start)
            {
                rot = rotate_speed * vector(0,0,1) ^ (Cf- CENTER); //<<<< Added here
                // std::cout << __func__ << ":" << __LINE__ << " rotate_speed=" << rotate_speed <<std::endl;
            }

            operator==(rot);

        #};
    }
