增加PlantUML甘特图中可交付钻石的尺寸？

Question

下面的plantuml文件：gantt.uml创建一个甘特图，增加了条形的厚度和字体，这样如果甘特图中有很多项目，它就更容易辨认。

@startgantt
project starts the 2021/07-22
saturday are closed
sunday are closed
skinparam classFontSize 100


[<size:30>Document relevant studies - 0.2] as [0_2] lasts 10 days
[<size:30>Deliverable: Literature Study - 0.3] as [0_3] happens at [0_2]'s end
[<size:30>Overlapping Research Project - 1] as [1] lasts 11 days

[0_3] happens at [0_2]'s end
[1] starts at [0_2]'s end

[0_2]  is colored in DarkOrchid
[1]  is colored in Cyan
@endgantt

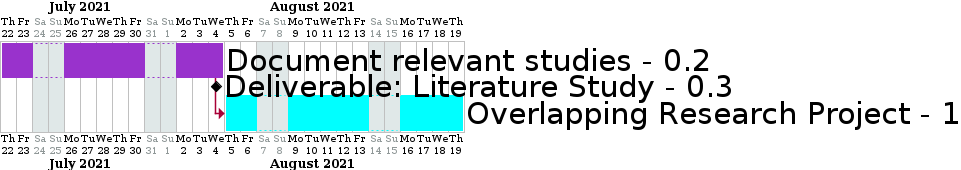

屈服：

​

然而，我注意到黑色钻石的大小，就像可交付的一样，并没有增长。因此，我想问：

我如何能增加黑色钻石的大小，类似于可交付的PlantUML甘特图？

Answer 1

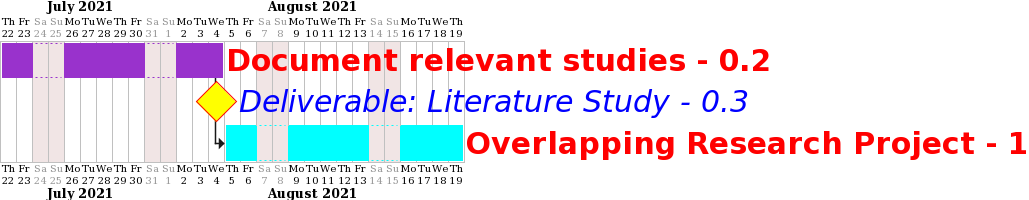

甘特图现在有很多样式选项。

@startgantt
project starts the 2021/07-22
saturday are closed
sunday are closed

<style>
ganttDiagram {
    task {
        FontName Helvetica
        FontColor red
        FontSize 18
        FontStyle bold
        BackGroundColor blue
        LineColor yellow
    }
    milestone {
        FontColor blue
        FontSize 40
        FontStyle italic
        BackGroundColor yellow
        LineColor red
    }
}
</style>

[<size:30>Document relevant studies - 0.2] as [0_2] lasts 10 days
[<size:30>Deliverable: Literature Study - 0.3] as [0_3] happens at [0_2]'s end
[<size:30>Overlapping Research Project - 1] as [1] lasts 11 days

[0_3] happens at [0_2]'s end
[1] starts at [0_2]'s end

[0_2]  is colored in DarkOrchid
[1]  is colored in Cyan
@endgantt

​

​
