无法创建员工节点的AKS

Question

在尝试创建代理后的AKS时，AKS未能在节点池中启动Worker Node，但由于连接超时错误，https://mcr.microsoft.com/ 443失败。

尝试使用以下参数，但获得错误https://registry.terraform.io/providers/hashicorp/azurerm/latest/docs/resources/kubernetes_cluster#http_proxy_config

resource "azurerm_kubernetes_cluster" "aks_cluster" {
  name                       =
  location                   =
  resource_group_name        =
  dns_prefix                 =
  kubernetes_version        =
  kubernetes_version         =
  node_resource_group        =
  private_cluster_enabled    =
  http_proxy                 =
  https_proxy                =
  no_proxy                   =

╷
│ Error: Unsupported argument
│
│   on aks_cluster.tf line 60, in resource "azurerm_kubernetes_cluster" "aks_cluster":
│   60:   http_proxy                 = "export http_proxy=http:"
│
│ An argument named "http_proxy" is not expected here.
╵
╷
│ Error: Unsupported argument
│
│   on aks_cluster.tf line 61, in resource "azurerm_kubernetes_cluster" "aks_cluster":
│   61:   https_proxy                = "export https_proxy=http://"
│
│ An argument named "https_proxy" is not expected here.
╵
╷
│ Error: Unsupported argument
│
│   on aks_cluster.tf line 62, in resource "azurerm_kubernetes_cluster" "aks_cluster":
│   62:   no_proxy                   = "localhost,"
│
│ An argument named "no_proxy" is not expected here.
╵
##[error]Terraform command 'validate' failed with exit code

Another one

│   on aks_cluster.tf line 70, in resource "azurerm_kubernetes_cluster" "aks_cluster":
│   70:     http_proxy_config     = "export https_proxy=http:///"
│
│ An argument named "http_proxy_config" is not expected here

我做了：https://learn.microsoft.com/en-us/azure/aks/http-proxy checked：https://github.com/hashicorp/terraform-provider-azurerm/pull/14177

Answer 1

您必须在http_proxy资源块中的http_proxy_config块中声明http_proxy_config、https_proxy和no_proxy。

代码如下所示:

resource "azurerm_kubernetes_cluster" "example" {
  name                = "ansuman-aks1"
  location            = data.azurerm_resource_group.example.location
  resource_group_name = data.azurerm_resource_group.example.name
  dns_prefix          = "ansumanaks1"

  default_node_pool {
    name       = "default"
    node_count = 1
    vm_size    = "Standard_D2_v2"
  }

  identity {
    type = "SystemAssigned"
  }
http_proxy_config {
    http_proxy                 = "http://myproxy.server.com:8080/"
    https_proxy                = "https://myproxy.server.com:8080/"
    no_proxy                   = ["localhost","127.0.0.1"]
}
}

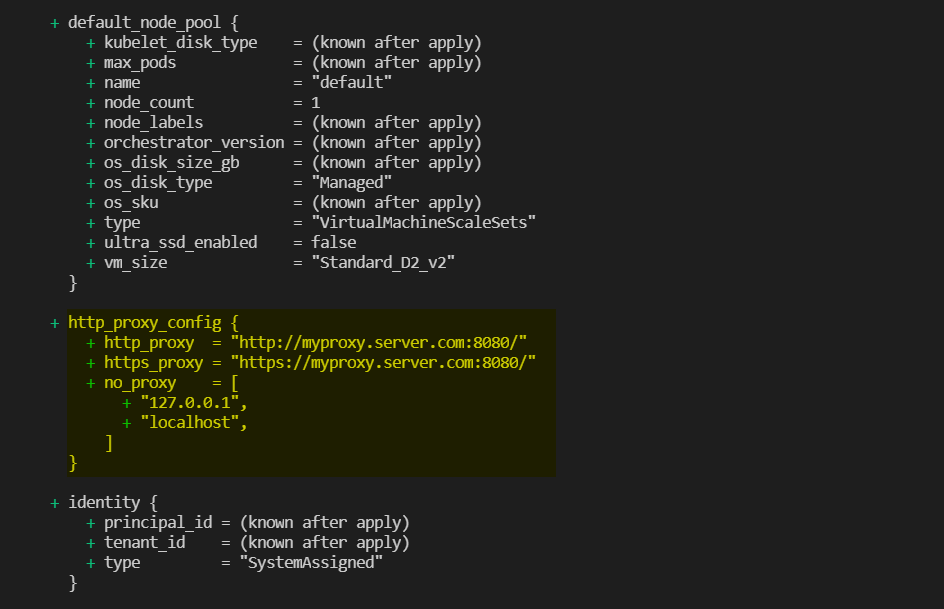

输出：

​

​

注意：请确保您已经在订阅中注册了HTTPProxyConfigPreview功能，并且在注册之后，您已经注册了提供者Microsoft.ContainerService以使该功能生效，如本.Also所述，请确保您提供了正确的代理API。
