Tekton Hub中Tekton Maven任务中的缓存Maven依赖项

Question

我们希望使用Maven构建一个基于Spring的项目。我们找到了Tekton集线器的Maven任务，并且已经有了一个正在运行的管道。在一个缩短的版本中，我们的pipeline.yml如下所示：

apiVersion: tekton.dev/v1beta1
kind: Pipeline
metadata:
  name: buildpacks-test-pipeline
spec:
  params:
    - name: SOURCE_URL
      type: string
      description: A git repo url where the source code resides.
    - name: SOURCE_REVISION
      description: The branch, tag or SHA to checkout.
      default: ""

  workspaces:
    - name: maven-settings
    - name: source-workspace
  tasks:
    - name: fetch-repository
      taskRef:
        name: git-clone
      workspaces:
        - name: output
          workspace: source-workspace
      params:
        - name: url
          value: "$(params.SOURCE_URL)"
        - name: revision
          value: "$(params.SOURCE_REVISION)"
        - name: subdirectory
          value: ""
        - name: deleteExisting
          value: "true"
    - name: maven
      taskRef:
        name: maven
      runAfter:
        - fetch-repository
      params:
        - name: GOALS
          value:
            - package
      workspaces:
        - name: source
          workspace: source-workspace
        - name: maven-settings
          workspace: maven-settings

PipelineRun被定义为：

apiVersion: tekton.dev/v1beta1
kind: PipelineRun
metadata:
  generateName: buildpacks-test-pipeline-run-
spec:
  pipelineRef:
    name: buildpacks-test-pipeline
  workspaces:
    - name: maven-settings
      emptyDir: {}
    - name: source-workspace
      subPath: source
      persistentVolumeClaim:
        claimName: source-pvc
  params:
    - name: SOURCE_URL
      value: https://gitlab.com/jonashackt/microservice-api-spring-boot
    - name: SOURCE_REVISION
      value: 3c4131f8566ef157244881bacc474543ef96755d

source-pvc PersistentVolumeClaim定义为：

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: source-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 500Mi

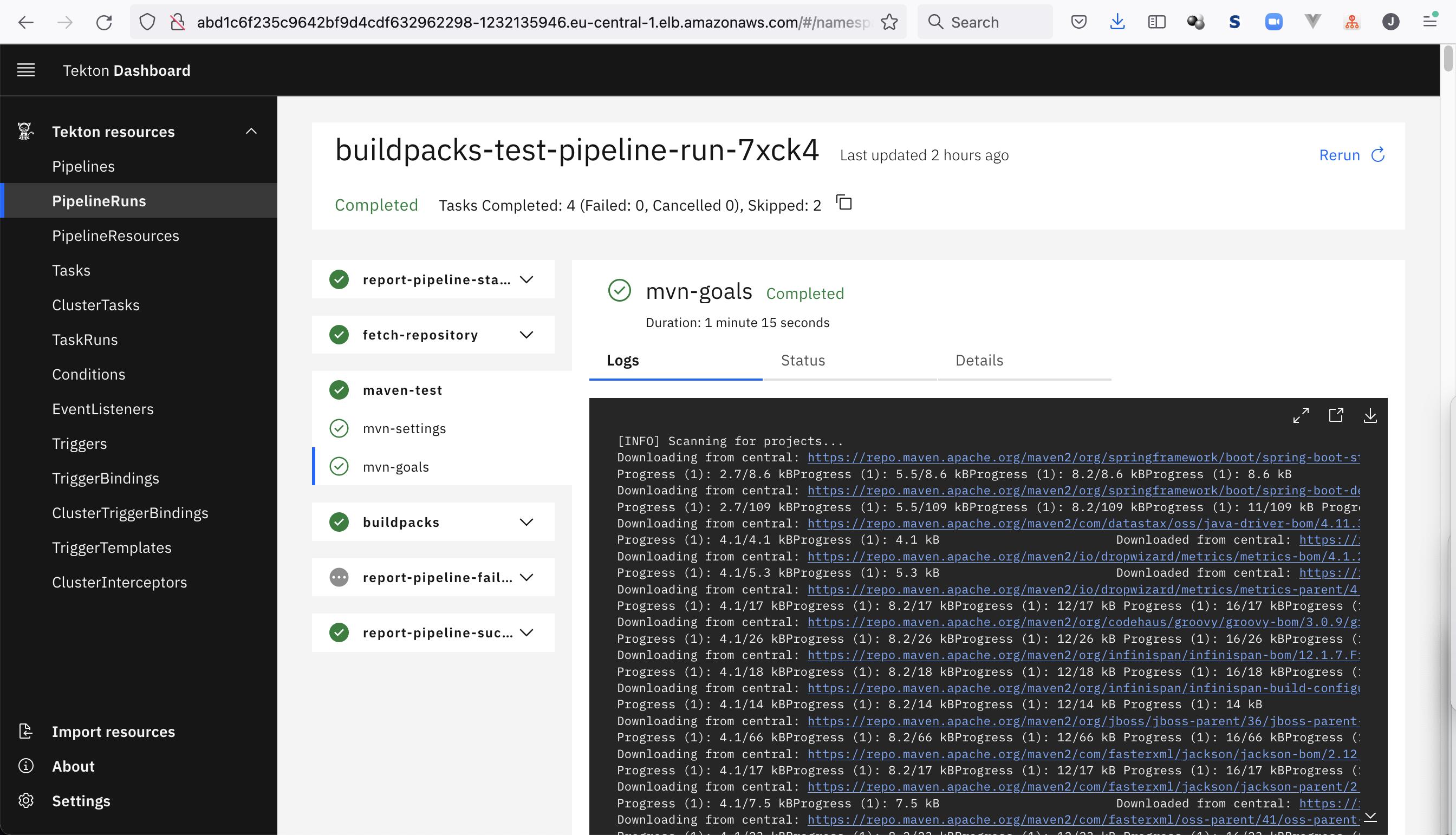

我们的项目正在构建良好，但是当我们启动另一个PipelineRun时，任务会一次又一次地下载该项目的所有Maven依赖项：

​

​

Tekton的Maven任务https://hub.tekton.dev/tekton/task/maven似乎不支持使用缓存。然而，我们如何缓存呢？

Answer 1

有一种使用Tekto的Maven任务来完成缓存的简单方法。不需要在maven-settings工作区中使用emptyDir: {}指定一个空目录，而是需要在已经定义的source-pvc PersistentVolumeClaim中创建一个新的subPath。另外，链接persistentVolumeClaim的方式与您已经将其链接到source-workspace中的方式相同。您的PipelineRun现在看起来像这样：

apiVersion: tekton.dev/v1beta1
kind: PipelineRun
metadata:
  generateName: buildpacks-test-pipeline-run-
spec:
  pipelineRef:
    name: buildpacks-test-pipeline
  workspaces:
    - name: maven-settings
      subPath: maven-repo-cache
      persistentVolumeClaim:
        claimName: source-pvc
    - name: source-workspace
      subPath: source
      persistentVolumeClaim:
        claimName: source-pvc
  params:
    - name: SOURCE_URL
      value: https://gitlab.com/jonashackt/microservice-api-spring-boot
    - name: SOURCE_REVISION
      value: 3c4131f8566ef157244881bacc474543ef96755d

现在，新的subPath已经可以通过Tekton的Maven任务(workspace right now)中的maven-settings工作区获得。我们只需要告诉Maven使用path workspaces.maven-settings.path作为缓存存储库。

因此，我们将-Dmaven.repo.local=$(workspaces.maven-settings.path)作为value添加到maven任务的GOALS参数中，如下所示：

apiVersion: tekton.dev/v1beta1
kind: Pipeline
metadata:
  name: buildpacks-test-pipeline
spec:
  params:
    - name: SOURCE_URL
      type: string
      description: A git repo url where the source code resides.
    - name: SOURCE_REVISION
      description: The branch, tag or SHA to checkout.
      default: ""

  workspaces:
    - name: maven-settings
    - name: source-workspace
  tasks:
    - name: fetch-repository # This task fetches a repository from github, using the `git-clone` task you installed
      taskRef:
        name: git-clone
      workspaces:
        - name: output
          workspace: source-workspace
      params:
        - name: url
          value: "$(params.SOURCE_URL)"
        - name: revision
          value: "$(params.SOURCE_REVISION)"
        - name: subdirectory
          value: ""
        - name: deleteExisting
          value: "true"
    - name: maven
      taskRef:
        name: maven
      runAfter:
        - fetch-repository
      params:
        - name: GOALS
          value:
            - -Dmaven.repo.local=$(workspaces.maven-settings.path)
            - verify
      workspaces:
        - name: source
          workspace: source-workspace
        - name: maven-settings
          workspace: maven-settings

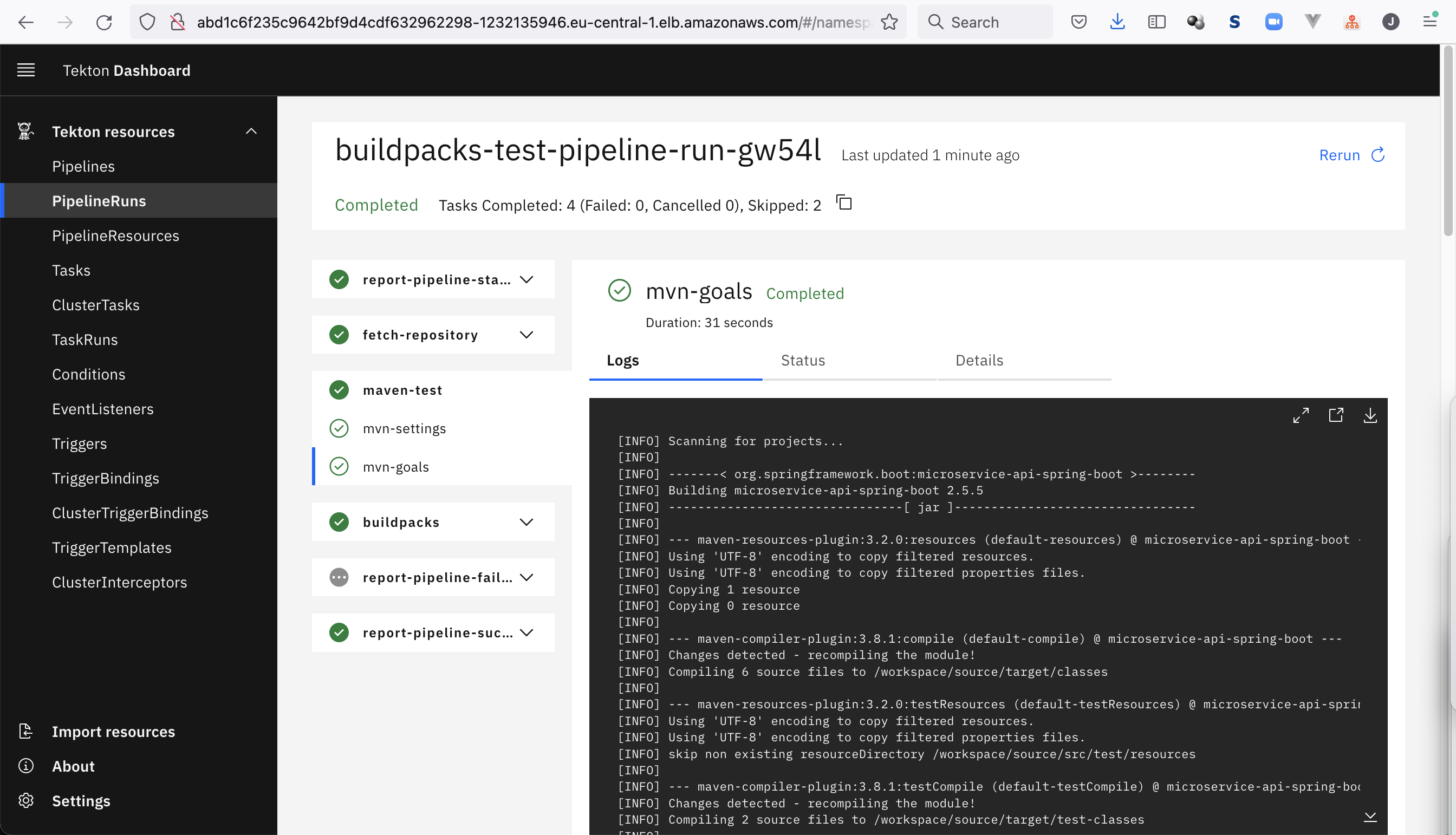

现在，在第一个管道执行之后，每次下一次运行都应该重用maven-settings工作区中的Maven存储库。这还可以防止被Maven下载语句污染的日志，并根据依赖项的数量加快管道的速度：

​

​

我们的简单示例构建的速度是以前的两倍多。
