BinSentry 自研二进制哨兵调试引擎接口规范

王瑞MVP

修改于 2026-09-25 09:11:45

BinSentry 二进制哨兵，由 LYSHARK 独立自研，是一款运行于 Windows 平台的二进制动态调试引擎。该调试引擎从零手写开发，C++ 代码 2 万余行，实现 200 + 调试方法；原生采用 CMD 命令行 HTTP 服务器架构，专为 AI Agent 打造。配合配套 AI 智能体，能够对二进制文件、木马等恶意样本进行深层次分析，是二进制样本研究的实用工具。

哨兵可以部署到任意的虚拟机沙盒之中，并可以搭载目前流行的jev等大模型产品，AI驱动速度有质的提升，是Windows平台下AI动态调试的优质项目。

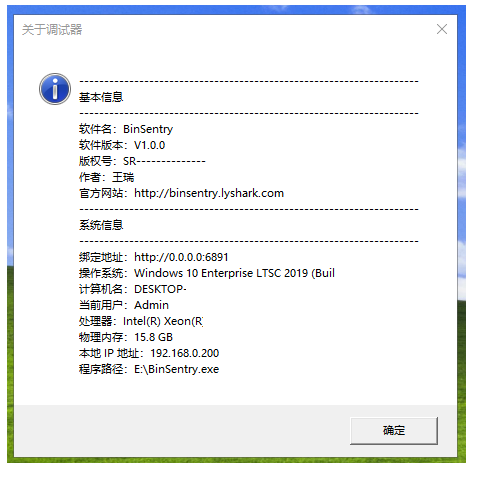

哨兵运行后会在后台，并默认侦听6891端口，且可以设置开机自启动。

无会话

	接口	params(JSON)	期望
1	`SystemInfo`	`{}`	ok=true, 返回系统信息
2	`ProcessList`	`{}`	ok=true, 进程列表
3	`EnumErrorCodes`	`{}`	ok=true, 错误码表
4	`EnumExceptions`	`{}`	ok=true, 异常码表
5	`EnumWindows`	`{"pid":4}`	ok=true, 窗口枚举完成
6	`IsProcessElevated`	`{}`	ok=true, 返回是否提权
7	`ClearLog`	`{}`	ok=true, 日志已清空
8	`SaveLog`	`{"path":"E:\LyDebugger 2.3\x86\Release\_full_log.txt"}`	ok=true, 日志已保存
9	`Logs`	`{}`	ok=true, 日志查询
10	`Help`	`{}`	ok=true
11	`GetJIT`	`{}`	ok=true, JIT配置
12	`SetJIT`	`{"path":"C:\LyDebugger\x86\LyDebugger.exe -- -p %ld -e %ld"}`	ok=true
13	`GetCommandLine`	`{}`	ok=true
14	`SetCommandLine`	`{"args":"--test-arg"}`	ok=true, 下次启动生效
15	`SetBPXOptions`	`{"option":"FASTRESUME","enable":1}`	ok=true, 位掩码
16	`SetExceptionBPX`	`{"code":"0xC0000005"}`	ok=true, 异常断点已设
17	`DelExceptionBPX`	`{"code":"0xC0000005"}`	ok=true, 已删除
18	`GetExceptionBPXList`	`{}`	ok=true, 列表
19	`SetDllBreakPoint`	`{"dll":"test.dll"}`	ok=true
20	`DelDllBreakPoint`	`{"dll":"test.dll"}`	ok=true
21	`GetDllBreakPoints`	`{}`	ok=true
22	`SetVar`	`{"name":"testvar","value":"0x1234"}`	ok=true
23	`DelVar`	`{"name":"testvar"}`	ok=true
24	`GetVars`	`{}`	ok=true, 数量
25	`AddArgument`	`{"start":"0x009015C0","end":"0x00901600","name":"func1"}`	ok=true
26	`DelArgument`	`{"start":"0x009015C0"}`	ok=true
27	`GetArguments`	`{}`	ok=true
28	`GetComments`	`{}`	ok=true
29	`GetLabels`	`{}`	ok=true
30	`GetBookMarks`	`{}`	ok=true
31	`Functions`	`{}`	ok=true
32	`ShowBreakPoint`	`{}`	ok=true, 软断点数量
33	`ShowHbreakPoint`	`{}`	ok=true, 硬断点数量
34	`ShowMemBreakPoint`	`{}`	ok=true, 内存断点数量
35	`ShowApiBreakPoint`	`{}`	ok=true, API断点数量
36	`LoadDatabase`	`{"path":"E:\LyDebugger 2.3\x86\Release\_dbg.dat"}`	ok=true
37	`SaveDatabase`	`{"path":"E:\LyDebugger 2.3\x86\Release\_dbg.dat"}`	ok=true

启动会话

	接口	params(JSON)	期望
1	`Debug`	`{"path":"E:\LyDebugger 2.3\x86\Win32Project1.exe","args":"","cwd":"E:\LyDebugger 2.3\x86\Release"}`	ok=true, 返回pid/tid
2	`SetDebug`	`"Logs"`	ok=true (params传命令字符串)
3	`RunToUserCode`	`{}`	ok=true, 设OEP断点运行到用户代码
4	`Register`	`{}`	EIP==0x009015BB

停止态-基础

	接口	params(JSON)	期望
1	`ProcessInfo`	`{}`	ok=true
2	`Threads`	`{}`	ok=true, 取第一个threadId作TID
3	`ThreadInfo`	`{"tid":<Threads返回的threadId>}`	ok=true
4	`GetActiveThread`	`{}`	ok=true
5	`SetActiveThread`	`{"tid":<Threads返回的threadId>}`	ok=true
6	`Register`	`{}`	ok=true
7	`SetRegister`	`{"reg":"eax","value":"0x12345678"}`	ok=true, 再设回0
8	`GetPageRights`	`{"address":"0x009015BB"}`	ok=true
9	`SetPageRights`	`{"address":"0x009015BB","protect":"RWX"}`	ok=true, 改后还原protect=0x20
10	`Modules`	`{}`	ok=true
11	`ModuleInfo`	`{"module":"Win32Project1.exe"}`	ok=true
12	`Sections`	`{"module":"Win32Project1.exe"}`	ok=true
13	`PEInfo`	`{"path":"E:\LyDebugger 2.3\x86\Win32Project1.exe"}`	ok=true, ImageBase=0x400000 OEP=0x15BB
14	`RichHeader`	`{"module":"Win32Project1.exe"}`	ok=true
15	`TLSCallbacks`	`{"module":"Win32Project1.exe"}`	ok=true (无TLS返回error字段)
16	`RelocationList`	`{"module":"Win32Project1.exe"}`	ok=true
17	`DebugDirectory`	`{"module":"Win32Project1.exe"}`	ok=true
18	`ImportList`	`{"module":"Win32Project1.exe"}`	ok=true
19	`ExportList`	`{"module":"kernel32.dll"}`	ok=true
20	`GetImportAddress`	`{"module":"Win32Project1.exe","name":"MessageBoxA"}`	ok=true
21	`GetExportAddress`	`{"module":"kernel32.dll","name":"LoadLibraryA"}`	ok=true
22	`AddrToModule`	`{"address":"0x009015BB"}`	ok=true
23	`GetSectionData`	`{"module":"Win32Project1.exe","name":".text"}`	ok=true
24	`GetSectionInfo`	`{"module":"Win32Project1.exe","name":".text"}`	ok=true
25	`Symbol`	`{"expr":"Win32Project1.exe+0x15BB"}`	ok=true
26	`GetSymbolInfo`	`{"address":"0x009015BB"}`	ok=true
27	`GetFunctionSize`	`{"address":"0x009015BB"}`	ok=true
28	`Heaps`	`{}`	ok=true
29	`Handles`	`{"max":20}`	ok=true
30	`SEHList`	`{}`	ok=true
31	`MemoryInfo`	`{"address":"0x009015BB"}`	ok=true
32	`Regions`	`{}`	ok=true
33	`Memory`	`{"address":"0x009015BB","size":16}`	ok=true
34	`ReadMemoryValue`	`{"address":"0x009015BB","size":4}`	ok=true
35	`WriteMemory`	`{"address":"0x009015BB","hex":"CC"}`	ok=true, 再写回E8
36	`GetString`	`{"address":"0x00901000","max":64,"type":"ascii"}`	ok=true, JSON可解析
37	`GetOpcodeSize`	`{"address":"0x009015BB"}`	ok=true
38	`DisassembleAt`	`{"address":"0x009015BB","count":5}`	ok=true
39	`Dissasembler`	`{"address":"0x009015BB","count":5}`	ok=true
40	`GetBranchTarget`	`{"address":"0x009015BB"}`	ok=true
41	`Assemble`	`{"instr":"mov eax, 1","cip":"0x009015C0"}`	ok=true
42	`AssembleAt`	`{"address":"0x00901050","instr":"nop"}`	ok=true
43	`MatchPattern`	`{"address":"0x009015BB","pattern":"E8","size":64}`	ok=true
44	`SearchMemory`	`{"pattern":"E8","start":"0x00901000","size":0x1000}`	ok=true
45	`SearchAllMemory`	`{"pattern":"E8","max":5}`	ok=true
46	`SearchStrings`	`{"address":"0x00901000","size":0x400}`	ok=true
47	`FindRef`	`{"address":"0x009015BB","max":5}`	ok=true
48	`xrefs`	`{"address":"0x009015BB","max":5}`	ok=true
49	`HashMemory`	`{"address":"0x009015BB","size":16,"algo":"md5"}`	ok=true
50	`CallStack`	`{"max":16}`	ok=true
51	`Stack`	`{"count":8}`	ok=true
52	`StackPush`	`{"value":"0x11223344"}`	ok=true
53	`StackPop`	`{}`	ok=true
54	`StackPeek`	`{"offset":0}`	ok=true
55	`SetFlag`	`{"flag":"ZF","value":0}`	ok=true
56	`Eval`	`{"expr":"eip+4"}`	ok=true
57	`AllocateMemory`	`{"size":0x1000}`	ok=true, 记下address作MEM
58	`SetMemory`	`{"address":MEM,"hex":"9090"}`	ok=true (在分配区写, 勿写代码区)
59	`FillMemory`	`{"address":MEM,"size":8,"value":"0x90"}`	ok=true
60	`Memcpy`	`{"src":"0x009015BB","dst":"0x"+(MEM+0x100),"size":5}`	ok=true
61	`FreeMemory`	`{"address":MEM}`	ok=true
62	`VaToFileOffset`	`{"address":"0x009015BB"}`	ok=true
63	`FileOffsetToVa`	`{"offset":"0x9BB"}`	ok=true
64	`minidump`	`{"path":"E:\LyDebugger 2.3\x86\Release\_full.dmp"}`	ok=true
65	`mnemonicbrief`	`{"address":"0x009015BB"}`	ok=true
66	`LastException`	`{}`	ok=true
67	`GetThreadLastError`	`{"tid":<Threads返回的threadId>}`	ok=true
68	`GetThreadPriority`	`{"tid":<Threads返回的threadId>}`	ok=true
69	`SetThreadPriority`	`{"tid":<Threads返回的threadId>,"priority":"NORMAL"}`	ok=true
70	`SetThreadName`	`{"tid":<Threads返回的threadId>,"name":"main-thread"}`	ok=true
71	`StartTraceRecord`	`{}`	ok=true
72	`GetTraceRecord`	`{"count":5}`	ok=true
73	`StopTraceRecord`	`{}`	ok=true
74	`JmpHistory`	`{}`	ok=true
75	`PatchMemory`	`{"address":"0x009015BB","hex":"CC"}`	ok=true
76	`Patches`	`{}`	ok=true
77	`RevertPatch`	`{"address":"0x009015BB"}`	ok=true
78	`DeletePatch`	`{"address":"0x009015BB"}`	ok=true
79	`ShowDebugger`	`{}`	ok=true
80	`HideDebugger`	`{}`	ok=true
81	`gpa`	`{"dll":"kernel32.dll","api":"LoadLibraryA"}`	ok=true

断点

	接口	params(JSON)	期望
1	`SetBreakPoint`	`{"address":"0x009015BB"}`	ok=true
2	`GetBreakpointInfo`	`{"address":"0x009015BB"}`	ok=true
3	`GetBreakpointType`	`{"address":"0x009015BB"}`	ok=true
4	`SetBreakpointName`	`{"address":"0x009015BB","name":"OEP"}`	ok=true
5	`SetBreakpointSingleshoot`	`{"address":"0x009015BB","enable":0}`	ok=true
6	`SetBreakpointFastResume`	`{"address":"0x009015BB","enable":0}`	ok=true
7	`SetBreakpointSilent`	`{"address":"0x009015BB","enable":0}`	ok=true
8	`SetBreakpointLog`	`{"address":"0x009015BB","text":"hit OEP"}`	ok=true
9	`SetBreakpointLogFile`	`{"address":"0x009015BB","file":"E:\LyDebugger 2.3\x86\Release\_bp.log"}`	ok=true
10	`SetBreakpointHitCount`	`{"address":"0x009015BB","count":3}`	ok=true
11	`GetBreakpointHitCount`	`{"address":"0x009015BB"}`	ok=true
12	`ResetBreakpointHitCount`	`{"address":"0x009015BB"}`	ok=true
13	`SetCondBreakPoint`	`{"address":"0x009015BB","cond":"1","thread":TID}`	ok=true
14	`DelCondBreakPoint`	`{"address":"0x009015BB"}`	ok=true
15	`SetHbreakPoint`	`{"address":"0x009015C0","len":"1","flag":"e"}`	ok=true (勿与软断点同址)
16	`DelHbreakPoint`	`{"address":"0x009015C0"}`	ok=true
17	`SetMemBreakPoint`	`{"address":"0x009015C0","flag":"e"}`	ok=true
18	`DelMemBreakPoint`	`{"address":"0x009015C0"}`	ok=true
19	`SetApiBreakPoint`	`{"dll":"kernel32.dll","api":"ExitProcess"}`	ok=true
20	`DelApiBreakPoint`	`{"dll":"kernel32.dll","api":"ExitProcess"}`	ok=true
21	`SetPageMemory`	`{"address":"0x00901000","protect":"RWX"}`	ok=true
22	`DisableBreakpoint`	`{"address":"0x009015BB"}`	ok=true
23	`EnableBreakpoint`	`{"address":"0x009015BB"}`	ok=true
24	`BreakpointCommand`	`{"address":"0x009015BB","command":""}`	ok=true
25	`DelBreakPoint`	`{"address":"0x009015BB"}`	ok=true, 清场后进P4

执行控制

	接口	params(JSON)	期望
1	`Run`	`{}`	ok=true, 发送后等停止(Status.stopped)
2	`StepIn`	`{}`	ok=true, 等停止
3	`StepOver`	`{}`	ok=true, 等停止
4	`StepOut`	`{}`	ok=true, 等停止
5	`EStepOver`	`{}`	ok=true, 等停止
6	`EStepInto`	`{}`	ok=true, 等停止(注意是EStepInto非EStepIn)
7	`EStepOut`	`{}`	ok=true, 等停止
8	`Skip`	`{"count":1}`	ok=true, 保持停止
9	`InstrUndo`	`{}`	ok=true, EIP回退一条
10	`ExecuteCommand`	`"StepOver"`	ok=true (params传字符串子命令)
11	`StepUser`	`{}`	ok=true (用户代码处返回"无需运行")
12	`RunToUserCode`	`{}`	ok=true
13	`TraceInto`	`{"count":3}`	ok=true, 等停止
14	`TraceOver`	`{"count":3}`	ok=true, 等停止
15	`TraceLine`	`{"address":"0x009015BB"}`	ok=true, 等停止
16	`ERun`	`{}`	ok=true, 等停止
17	`SERun`	`{}`	ok=true, 等停止
18	`DebugContinue`	`{"status":0}`	ok=true, 等停止
19	`RunTo`	`{"address":"0x009015BB"}`	ok=true, 临时断点命中移除

运行态

	接口	params(JSON)	期望
1	`SetBreakPoint`	`{"address":"0x009015BB"}`	ok=true
2	`Run`	`{}`	ok=true, 等停止(OEP断点命中)
3	`PauseAllThreads`	`{}`	ok=true
4	`ResumeAllThreads`	`{}`	ok=true
5	`ThreadPause`	`{"tid":次线程threadId}`	ok=true (用非活动线程)
6	`ThreadResume`	`{"tid":次线程threadId}`	ok=true
7	`DelBreakPoint`	`{"address":"0x009015BB"}`	ok=true
8	`Run`	`{}`	ok=true, 目标自由运行
9	`Pause`	`{}`	ok=true, 等停止
10	`SetBreakPoint`	`{"address":"0x009015BB"}`	ok=true
11	`AnimateInto`	`{"count":3}`	ok=true, 1.5s后
12	`AnimateStop`	`{}`	ok=true, 等停止
13	`AnimateOver`	`{"count":3}`	ok=true, 1.5s后
14	`AnimateStop`	`{}`	ok=true, 等停止
15	`Run`	`{}`	ok=true, 等停止
16	`StepSystem`	`{}`	ok=true (最后测, 会停系统代码)

会话管理

	接口	params(JSON)	期望
1	`DumpProcess`	`{"path":"E:\LyDebugger 2.3\x86\Release\_dump.bin","base":"0x00900000","size":0x2000}`	ok=true
2	`LoadConfig`	`{"module":"Win32Project1.exe"}`	ok=true
3	`SaveDatabase`	`{"path":"E:\LyDebugger 2.3\x86\Release\_dbg2.dat"}`	ok=true
4	`LoadDatabase`	`{"path":"E:\LyDebugger 2.3\x86\Release\_dbg2.dat"}`	ok=true
5	`Restart`	`{}`	ok=true, 等2.5s
6	`Stop`	`{}`	ok=true, 会话终止
7	`Debug`	`{"path":"E:\LyDebugger 2.3\x86\Win32Project1.exe","cwd":"E:\LyDebugger 2.3\x86\Release"}`	ok=true, 重启会话等2.5s
8	`Detach`	`{}`	ok=true, 分离会话

测试用例

{
    "status": "success",
    "result": {
        "sessionActive": false,
        "mode": "None",
        "pid": 0,
        "tid": 0,
        "stopped": false,
        "firstRun": true,
        "softBreakpoints": 0,
        "memoryBreakpoints": 0,
        "hardwareBreakpoints": 0,
        "apiBreakpoints": 0,
        "labels": 0,
        "comments": 0,
        "logCount": 0,
        "watches": 0,
        "bookmarks": 0,
        "variables": 0,
        "traceActive": false,
        "traceIntoActive": false,
        "traceResult": "",
        "engine": "TitanEngine",
        "interfaces": [
            {
                "interface": "Debug",
                "usage": "启动调试会话: params.path = 进程路径"
            },
            {
                "interface": "Attach",
                "usage": "附加进程: params.pid = 进程ID"
            },
            {
                "interface": "Detach",
                "usage": "分离调试会话"
            },
            {
                "interface": "Stop",
                "usage": "终止被调试进程"
            },
            {
                "interface": "Status",
                "usage": "查询调试器状态(含接口列表)"
            },
            {
                "interface": "WaitStop",
                "usage": "等待调试器停止: params.timeout = 超时秒数(默认60)"
            },
            {
                "interface": "Run",
                "usage": "继续运行程序"
            },
            {
                "interface": "StepIn",
                "usage": "单步步入(TitanEngine)"
            },
            {
                "interface": "StepOver",
                "usage": "单步步过(TitanEngine)"
            },
            {
                "interface": "StepOut",
                "usage": "单步步出(TitanEngine)"
            },
            {
                "interface": "SetBreakPoint",
                "usage": "设置软件断点: address, thread(可选), temp(可选)"
            },
            {
                "interface": "DelBreakPoint",
                "usage": "删除软件断点: address"
            },
            {
                "interface": "ShowBreakPoint",
                "usage": "显示软件断点列表"
            },
            {
                "interface": "SetMemBreakPoint",
                "usage": "设置内存断点: address, flag(r/w/e)"
            },
            {
                "interface": "DelMemBreakPoint",
                "usage": "删除内存断点: address"
            },
            {
                "interface": "ShowMemBreakPoint",
                "usage": "显示内存断点列表"
            },
            {
                "interface": "SetHbreakPoint",
                "usage": "设置硬件断点: address, len(1/2/4), flag(r/w/e)"
            },
            {
                "interface": "DelHbreakPoint",
                "usage": "删除硬件断点: dr(可选, 默认全部)"
            },
            {
                "interface": "ShowHbreakPoint",
                "usage": "显示硬件断点列表"
            },
            {
                "interface": "SetApiBreakPoint",
                "usage": "设置API断点: dll, api(可选--end为函数返回处)"
            },
            {
                "interface": "DelApiBreakPoint",
                "usage": "删除API断点: dll, api(可选--end)"
            },
            {
                "interface": "ShowApiBreakPoint",
                "usage": "显示API断点列表"
            },
            {
                "interface": "SearchMemory",
                "usage": "搜索内存: pattern(hex, ?=通配), start(可选), size(可选)"
            },
            {
                "interface": "PatchMemory",
                "usage": "内存补丁: address, hex(字节串), nop(可选)"
            },
            {
                "interface": "DumpProcess",
                "usage": "转储进程(脱壳): path, entry(可选)"
            },
            {
                "interface": "HideDebugger",
                "usage": "隐藏调试器(CheckRemoteDebuggerPresent等)"
            },
            {
                "interface": "ShowDebugger",
                "usage": "恢复调试器可见"
            },
            {
                "interface": "ThreadPause",
                "usage": "暂停线程: tid"
            },
            {
                "interface": "ThreadResume",
                "usage": "恢复线程: tid"
            },
            {
                "interface": "PauseAllThreads",
                "usage": "暂停所有线程"
            },
            {
                "interface": "ResumeAllThreads",
                "usage": "恢复所有线程"
            },
            {
                "interface": "PEInfo",
                "usage": "PE文件信息: path"
            },
            {
                "interface": "Register",
                "usage": "显示寄存器"
            },
            {
                "interface": "SetRegister",
                "usage": "修改寄存器: reg(eax/ebx/...), value"
            },
            {
                "interface": "Stack",
                "usage": "显示栈: count(可选)"
            },
            {
                "interface": "Memory",
                "usage": "显示内存: address, size(可选)"
            },
            {
                "interface": "SetMemory",
                "usage": "修改内存: address, value"
            },
            {
                "interface": "Dissasembler",
                "usage": "反汇编: address(可选, 默认EIP), size(可选)"
            },
            {
                "interface": "Modules",
                "usage": "显示模块列表"
            },
            {
                "interface": "Threads",
                "usage": "显示线程列表"
            },
            {
                "interface": "SetDebug",
                "usage": "执行调试命令字符串: params = \"命令行\" 或 {command: \"命令行\"}"
            },
            {
                "interface": "ProcessList",
                "usage": "进程列表: filter(可选, 名称模糊过滤)"
            },
            {
                "interface": "Regions",
                "usage": "内存区域列表(VirtualQueryEx)"
            },
            {
                "interface": "CallStack",
                "usage": "调用栈: count(可选, 默认32, StackWalk64+符号)"
            },
            {
                "interface": "SearchStrings",
                "usage": "搜索进程字符串: max(可选, 默认100, ASCII+Unicode)"
            },
            {
                "interface": "FillMemory",
                "usage": "内存填充: address, size, value (TitanEngine FillEx)"
            },
            {
                "interface": "SetCondBreakPoint",
                "usage": "设置条件断点: address, cond(表达式, 如 \"eax == 0x5\"), thread(可选)"
            },
            {
                "interface": "DelCondBreakPoint",
                "usage": "清除断点条件: address (转为普通断点)"
            },
            {
                "interface": "SetLabel",
                "usage": "设置标签: address, name"
            },
            {
                "interface": "DelLabel",
                "usage": "删除标签: address"
            },
            {
                "interface": "GetLabels",
                "usage": "显示标签列表"
            },
            {
                "interface": "SetComment",
                "usage": "设置注释: address, text"
            },
            {
                "interface": "DelComment",
                "usage": "删除注释: address"
            },
            {
                "interface": "GetComments",
                "usage": "显示注释列表"
            },
            {
                "interface": "Logs",
                "usage": "查询调试日志: count(可选, 默认50)"
            },
            {
                "interface": "Eval",
                "usage": "表达式求值: expr(寄存器/0x十六进制/十进制/运算, 需停止态)"
            },
            {
                "interface": "SetFlag",
                "usage": "设置标志位: flag(CF PF AF ZF SF TF IF DF OF), value(0/1)"
            },
            {
                "interface": "GetBranchTarget",
                "usage": "分支指令目标地址: address (TitanEngine GetJumpDestinationEx)"
            },
            {
                "interface": "GetArguments",
                "usage": "参数标记列表"
            },
            {
                "interface": "AddArgument",
                "usage": "添加参数标记: start, end(可选), name(可选)"
            },
            {
                "interface": "DelArgument",
                "usage": "删除参数标记: start"
            },
            {
                "interface": "RevertPatch",
                "usage": "还原补丁: address(恢复原字节并移除记录)"
            },
            {
                "interface": "DeletePatch",
                "usage": "删除补丁记录: address(不写内存)"
            },
            {
                "interface": "ReadMemoryValue",
                "usage": "读数值: address, size(1/2/4/8)"
            },
            {
                "interface": "GetThreadPriority",
                "usage": "读线程优先级: tid"
            },
            {
                "interface": "SystemInfo",
                "usage": "系统信息(架构/页大小/CPU/内存/OS版本)"
            },
            {
                "interface": "GetSectionInfo",
                "usage": "指定节详情: module, name"
            },
            {
                "interface": "GetBreakpointInfo",
                "usage": "指定地址断点详情: address (软/内存/硬件)"
            },
            {
                "interface": "InjectDll",
                "usage": "远程注入DLL: path (LoadLibraryA+CreateRemoteThread)"
            },
            {
                "interface": "HashMemory",
                "usage": "内存哈希: address, size, algo(可选 md5/sha1/crc32)"
            },
            {
                "interface": "AddrToModule",
                "usage": "地址归属模块: address (模块名+基址+RVA)"
            },
            {
                "interface": "RunTo",
                "usage": "运行到目标地址: address (临时断点, 命中自动移除)"
            },
            {
                "interface": "SetExceptionIgnore",
                "usage": "设置异常忽略: code, ignore(0/1; 断点/单步不可忽略)"
            },
            {
                "interface": "GetExceptionSettings",
                "usage": "异常忽略列表"
            },
            {
                "interface": "StartTraceRecord",
                "usage": "开始执行足迹记录(每次停止记录EIP, 上限4096)"
            },
            {
                "interface": "StopTraceRecord",
                "usage": "停止执行足迹记录"
            },
            {
                "interface": "GetTraceRecord",
                "usage": "执行足迹列表"
            },
            {
                "interface": "GetImportAddress",
                "usage": "导入函数IAT地址: module, name (或 #序号)"
            },
            {
                "interface": "GetSectionData",
                "usage": "节内容转储: module, name (hex, 限4KB)"
            },
            {
                "interface": "TraceOver",
                "usage": "步过跟踪: count(步数,可选), condition(表达式,可选); call 自动跳过"
            },
            {
                "interface": "LoadLibrary",
                "usage": "目标进程远程加载DLL: path (返回 moduleHandle)"
            },
            {
                "interface": "FreeLibrary",
                "usage": "目标进程远程卸载DLL: handle (LoadLibrary 返回值)"
            },
            {
                "interface": "gpa",
                "usage": "远程API地址解析: dll, api 或 expr(模块:函数)"
            },
            {
                "interface": "VaToFileOffset",
                "usage": "虚拟地址->文件偏移: address"
            },
            {
                "interface": "FileOffsetToVa",
                "usage": "文件偏移->虚拟地址: offset, module(可选,默认主模块)"
            },
            {
                "interface": "GetPageRights",
                "usage": "页权限查询: address (返回 rights 如 RX/RWX)"
            },
            {
                "interface": "SetPageRights",
                "usage": "页权限修改: address, protect(hex或RWX串)"
            },
            {
                "interface": "minidump",
                "usage": "生成目标进程转储: path (.dmp, 含全内存)"
            },
            {
                "interface": "xrefs",
                "usage": "代码引用查找: address, max(可选)"
            },
            {
                "interface": "mnemonicbrief",
                "usage": "指令助记符简介: address(可选,默认EIP)"
            },
            {
                "interface": "EnumWindows",
                "usage": "枚举目标进程窗口: pid(可选,默认会话进程)"
            },
            {
                "interface": "IsProcessElevated",
                "usage": "进程提权检查: pid(可选,默认本进程)"
            },
            {
                "interface": "ClearLog",
                "usage": "清空调试日志缓冲区"
            },
            {
                "interface": "SaveLog",
                "usage": "保存日志到文件: path"
            },
            {
                "interface": "EnumErrorCodes",
                "usage": "常见Win32错误码表: code(可选过滤)"
            },
            {
                "interface": "EnumExceptions",
                "usage": "常见异常码表: code(可选过滤)"
            },
            {
                "interface": "GetFunctionSize",
                "usage": "函数边界: address (函数表优先, 反汇编扫描兜底)"
            },
            {
                "interface": "BreakpointCommand",
                "usage": "断点命令: address, command (命中时自动入队执行; 空清除)"
            },
            {
                "interface": "JmpHistory",
                "usage": "跳转历史(恢复运行前记录分支指令)"
            },
            {
                "interface": "GetSymbolInfo",
                "usage": "符号详情: address (dbghelp: 名称/模块/偏移/行号)"
            },
            {
                "interface": "TCPConnections",
                "usage": "目标进程 TCP 连接列表"
            },
            {
                "interface": "StackPush",
                "usage": "栈压入: value (ESP-4 写入)"
            },
            {
                "interface": "StackPop",
                "usage": "栈弹出(读栈顶+ESP+4)"
            },
            {
                "interface": "StackPeek",
                "usage": "栈窥视: offset (ESP+offset*4)"
            },
            {
                "interface": "SetThreadName",
                "usage": "线程命名: tid, name (SetThreadDescription)"
            },
            {
                "interface": "Restart",
                "usage": "重启目标进程(分离旧会话并重新创建)"
            },
            {
                "interface": "SetJIT",
                "usage": "设置系统JIT调试器: path (HKLM AeDebug, 需管理员)"
            },
            {
                "interface": "GetJIT",
                "usage": "查询当前JIT调试器"
            },
            {
                "interface": "TraceLine",
                "usage": "单步跟踪到目标地址: address, timeout(可选, 秒)"
            },
            {
                "interface": "Handles",
                "usage": "句柄列表: max(可选, NtQuerySystemInformation+对象名)"
            },
            {
                "interface": "FindRef",
                "usage": "查找引用: address(目标地址), max(可选, 反汇编扫描代码区)"
            },
            {
                "interface": "SearchAllMemory",
                "usage": "全内存搜索: pattern(hex, ?=通配), max(可选)"
            },
            {
                "interface": "ExportList",
                "usage": "模块导出表: module(模块名)"
            },
            {
                "interface": "SetWatch",
                "usage": "添加/更新监视: name, expr(表达式, 含 $变量)"
            },
            {
                "interface": "DelWatch",
                "usage": "删除监视: id 或 name"
            },
            {
                "interface": "GetWatches",
                "usage": "查询监视(实时求值, 需停止态)"
            },
            {
                "interface": "SetVar",
                "usage": "设置用户变量: name, value (表达式 $name 引用)"
            },
            {
                "interface": "DelVar",
                "usage": "删除用户变量: name"
            },
            {
                "interface": "GetVars",
                "usage": "查询用户变量列表"
            },
            {
                "interface": "SetBookMark",
                "usage": "添加书签: address"
            },
            {
                "interface": "DelBookMark",
                "usage": "删除书签: address"
            },
            {
                "interface": "GetBookMarks",
                "usage": "查询书签列表"
            },
            {
                "interface": "Assemble",
                "usage": "汇编指令为字节码(XEDParse): instr, cip(可选)"
            },
            {
                "interface": "AssembleAt",
                "usage": "汇编并写入目标进程: address, instr, fillnop(可选)"
            },
            {
                "interface": "EnableBreakpoint",
                "usage": "启用软断点: address"
            },
            {
                "interface": "DisableBreakpoint",
                "usage": "禁用软断点: address"
            },
            {
                "interface": "SetThreadPriority",
                "usage": "设置线程优先级: tid, priority(数值或名称)"
            },
            {
                "interface": "Memcpy",
                "usage": "进程内内存复制: src, dst, size"
            },
            {
                "interface": "AllocateMemory",
                "usage": "目标进程分配内存: size, protect(可选)"
            },
            {
                "interface": "FreeMemory",
                "usage": "释放目标进程内存: address"
            },
            {
                "interface": "Symbol",
                "usage": "符号解析(模块名+偏移 或 表达式): expr"
            },
            {
                "interface": "MemoryInfo",
                "usage": "地址内存信息(区域/保护/模块归属): address"
            },
            {
                "interface": "IsValidPointer",
                "usage": "地址是否可读: address"
            },
            {
                "interface": "LastException",
                "usage": "最近一次异常信息"
            },
            {
                "interface": "Pause",
                "usage": "暂停运行中的程序(DebugBreakProcess)"
            },
            {
                "interface": "CreateRemoteThread",
                "usage": "目标进程创建远程线程: start 或 hex(shellcode), param(可选)"
            },
            {
                "interface": "TerminateThread",
                "usage": "结束线程: tid"
            },
            {
                "interface": "GetThreadLastError",
                "usage": "读取线程 TEB.LastErrorValue: tid"
            },
            {
                "interface": "WriteMemory",
                "usage": "按 hex 字节串写内存: address, hex"
            },
            {
                "interface": "GetString",
                "usage": "读取内存字符串: address, max(可选), type(ascii/unicode)"
            },
            {
                "interface": "GetOpcodeSize",
                "usage": "指令长度: address (TitanEngine LengthDisassembleEx)"
            },
            {
                "interface": "Functions",
                "usage": "函数标记列表"
            },
            {
                "interface": "AddFunction",
                "usage": "添加函数标记: start, end(可选), name(可选)"
            },
            {
                "interface": "DelFunction",
                "usage": "删除函数标记: start"
            },
            {
                "interface": "ProcessInfo",
                "usage": "进程详细信息: pid(可选, 默认会话进程)"
            },
            {
                "interface": "GetExportAddress",
                "usage": "模块导出函数地址: module, name 或 ordinal"
            },
            {
                "interface": "Help",
                "usage": "显示帮助"
            }
        ]
    },
    "timestamp": 42916062
}

本文参与腾讯云自媒体同步曝光计划，分享自作者个人站点/博客。

原始发表：2026-09-24，如有侵权请联系 cloudcommunity@tencent.com 删除

进程
