AbstractQueuedSynchronizer

// ReentrantLock.FairSync.lock()
public void lock() {
    sync.lock();
}

// ReentrantLock.Sync.lock()
final void lock() {
    if (!initialTryLock())
        acquire(1);  // AbstractQueuedSynchronizer.acquire()
}

// ReentrantLock.FairSync.initialTryLock()
final boolean initialTryLock() {
    Thread current = Thread.currentThread();
    int c = getState();  // 当前加锁状态
    if (c == 0) {  // 未加锁
        if (!hasQueuedThreads() && compareAndSetState(0, 1)) {  // 尝试CAS加锁，因为是公平锁，
            setExclusiveOwnerThread(current);  // 设置锁owner
            return true;  // 加锁成功
        }
    } else if (getExclusiveOwnerThread() == current) {  // 如果当前线程已经持有该锁
        if (++c < 0) // overflow
            throw new Error("Maximum lock count exceeded");
        setState(c);  // 锁重入次数+1
        return true;  // 加锁成功
    }
    return false;    // 加锁失败
}

// AbstractQueuedSynchronizer.acquire()
public final void acquire(int arg) {
    if (!tryAcquire(arg))  // 子类需实现tryAcquire方法尝试获取锁
        acquire(null, arg, false, false, false, 0L);  // 加锁及等待锁逻辑
}

// ReentrantLock.FairSync.tryAcquire()
protected final boolean tryAcquire(int acquires) {
    if (getState() == 0 && !hasQueuedPredecessors() &&
        compareAndSetState(0, acquires)) {  // sync queue中无等待锁的线程，且加锁成功
        setExclusiveOwnerThread(Thread.currentThread());  // 设置锁owner为当前线程
        return true;  // 加锁成功
    }
    return false;  // 加锁失败
}

// AbstractQueuedSynchronizer.acquire()
final int acquire(Node node, int arg, boolean shared,
                      boolean interruptible, boolean timed, long time) {
    /**

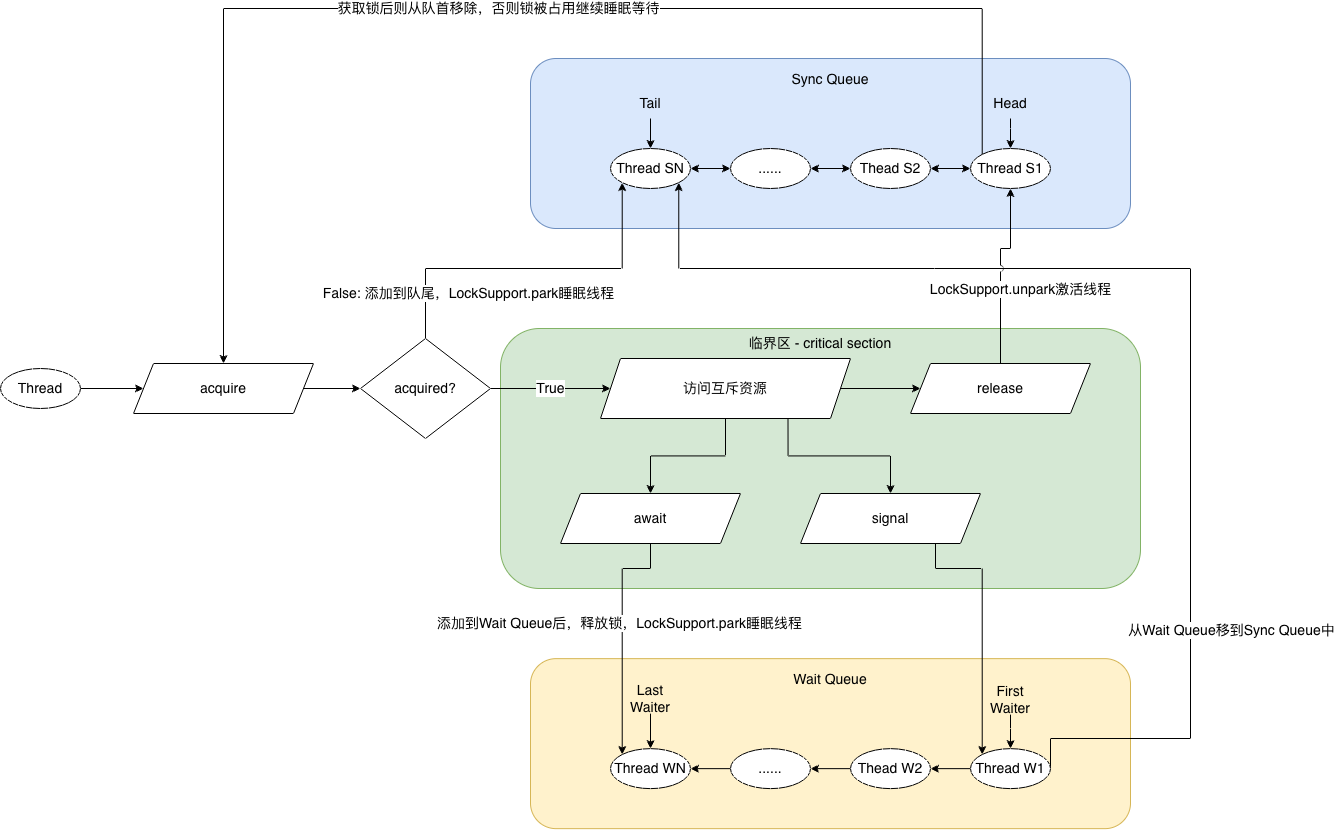

     * 不断尝试获取锁，
     * 当sync queue不为空时，把当前线程加入sync queue队尾，
     * 当前线程排在sync queue队首时，调用tryAcquire尝试加锁，
     * 当前线程不在sync queue的队首或加锁失败，则当前线程进入睡眠状态（LockSupport.park方法），
     * 其他线程释放锁后会激活sync queue的队首线程（LockSupport.unpark方法），当前线程成为队首线程并被激活后，会继续尝试加锁直到加锁成功，
     * 加锁成功后从sync queue队首移除当前线程
    */
    ...
}

// ReentrantLock.FairSync.unlock()
public void unlock() {
    sync.release(1);
}

// ReentrantLock.Sync.release()
public final boolean release(int arg) {
    if (tryRelease(arg)) {  // AbstractQueuedSynchronized的子类需实现tryRelease方法尝试释放锁
        signalNext(head);  // 激活睡眠状态下的sync queue队首线程
        return true;  // 释放锁成功
    }
    return false;  // 释放锁失败
}

// ReentrantLock.Sync.tryRelease()
protected final boolean tryRelease(int releases) {
    int c = getState() - releases;
    if (getExclusiveOwnerThread() != Thread.currentThread())  // 线程owner必需是当前线程
        throw new IllegalMonitorStateException();
    boolean free = (c == 0);
    if (free)  // 锁完全释放
        setExclusiveOwnerThread(null);
    setState(c);
    return free;
}

// AbstractQueuedSynchronizer.ConditionObject.await()
public final void await() throws InterruptedException {
    ...
    ConditionNode node = newConditionNode();  // 创建等待节点
    if (node == null)
        return;
    int savedState = enableWait(node);  // 添加到wait queue中，释放持有的锁
    ...
    while (!canReacquire(node)) {  // 当前线程是否从wait queue移到sync queue中
        ...
                    ForkJoinPool.managedBlock(node);  // LockSupport.park线程进入等待状态
        ...

    }
    ...
    acquire(node, savedState, false, false, false, 0L);  // 线程在sync queue中，尝试获取曾经释放的锁
    ...
}

// ReentrantLock.FairSync.enableWait()
private int enableWait(ConditionNode node) {
    if (isHeldExclusively()) {
        node.waiter = Thread.currentThread();
        node.setStatusRelaxed(COND | WAITING);
        ConditionNode last = lastWaiter;
        if (last == null)
            firstWaiter = node;
        else
            last.nextWaiter = node;
        lastWaiter = node;  // 加入到wait queue中
        int savedState = getState();
        if (release(savedState))  // 释放持有的所有锁
            return savedState;
    }
    node.status = CANCELLED; // lock not held or inconsistent
    throw new IllegalMonitorStateException();
}

// ReentrantLock.FairSync.signal()
public final void signal() {
    ConditionNode first = firstWaiter;
    if (!isHeldExclusively())
        throw new IllegalMonitorStateException();
    else if (first != null)
        doSignal(first, false);
}

// ReentrantLock.FairSync.doSignal()
private void doSignal(ConditionNode first, boolean all) {
    while (first != null) {
        ConditionNode next = first.nextWaiter;

        if ((firstWaiter = next) == null)  // 从wait queue中移除
            lastWaiter = null;
        else
            first.nextWaiter = null;

        if ((first.getAndUnsetStatus(COND) & COND) != 0) {
            enqueue(first);  // 加入到sync queue中
            if (!all)
                break;
        }

        first = next;
    }
}
