雷达系列 | 水凝物分类产品（HCL）的剖面怎么画

!pip install --upgrade --index-url=https://pypi.mirrors.ustc.edu.cn/simple cinrad --user

Looking in indexes: https://pypi.mirrors.ustc.edu.cn/simple
Requirement already satisfied: cinrad in /home/mw/.local/lib/python3.9/site-packages (1.9.2)
Requirement already satisfied: cinrad-data>=0.1 in /opt/conda/lib/python3.9/site-packages (from cinrad) (0.1)
Requirement already satisfied: cartopy>=0.15 in /opt/conda/lib/python3.9/site-packages (from cinrad) (0.23.0)
Requirement already satisfied: matplotlib>=2.2 in /opt/conda/lib/python3.9/site-packages (from cinrad) (3.8.3)
Requirement already satisfied: vanadis in /opt/conda/lib/python3.9/site-packages (from cinrad) (0.0.2)
Requirement already satisfied: pyshp!=2.0.0,!=2.0.1 in /opt/conda/lib/python3.9/site-packages (from cinrad) (2.3.1)
Requirement already satisfied: metpy>=0.8 in /opt/conda/lib/python3.9/site-packages (from cinrad) (1.6.1)
Requirement already satisfied: numpy>=1.21 in /opt/conda/lib/python3.9/site-packages (from cartopy>=0.15->cinrad) (1.26.4)
Requirement already satisfied: pyproj>=3.3.1 in /opt/conda/lib/python3.9/site-packages (from cartopy>=0.15->cinrad) (3.4.1)
Requirement already satisfied: packaging>=20 in /opt/conda/lib/python3.9/site-packages (from cartopy>=0.15->cinrad) (23.2)
Requirement already satisfied: shapely>=1.7 in /opt/conda/lib/python3.9/site-packages (from cartopy>=0.15->cinrad) (1.8.5.post1)
Requirement already satisfied: kiwisolver>=1.3.1 in /opt/conda/lib/python3.9/site-packages (from matplotlib>=2.2->cinrad) (1.4.2)
Requirement already satisfied: importlib-resources>=3.2.0 in /opt/conda/lib/python3.9/site-packages (from matplotlib>=2.2->cinrad) (5.7.1)
Requirement already satisfied: python-dateutil>=2.7 in /opt/conda/lib/python3.9/site-packages (from matplotlib>=2.2->cinrad) (2.8.2)
Requirement already satisfied: cycler>=0.10 in /opt/conda/lib/python3.9/site-packages (from matplotlib>=2.2->cinrad) (0.11.0)
Requirement already satisfied: contourpy>=1.0.1 in /opt/conda/lib/python3.9/site-packages (from matplotlib>=2.2->cinrad) (1.2.0)
Requirement already satisfied: pillow>=8 in /opt/conda/lib/python3.9/site-packages (from matplotlib>=2.2->cinrad) (9.4.0)
Requirement already satisfied: pyparsing>=2.3.1 in /opt/conda/lib/python3.9/site-packages (from matplotlib>=2.2->cinrad) (3.0.9)
Requirement already satisfied: fonttools>=4.22.0 in /opt/conda/lib/python3.9/site-packages (from matplotlib>=2.2->cinrad) (4.33.3)
Requirement already satisfied: pooch>=1.2.0 in /opt/conda/lib/python3.9/site-packages (from metpy>=0.8->cinrad) (1.8.1)
Requirement already satisfied: traitlets>=5.0.5 in /opt/conda/lib/python3.9/site-packages (from metpy>=0.8->cinrad) (5.2.0)
Requirement already satisfied: pandas>=1.4.0 in /opt/conda/lib/python3.9/site-packages (from metpy>=0.8->cinrad) (2.0.3)
Requirement already satisfied: pint>=0.17 in /opt/conda/lib/python3.9/site-packages (from metpy>=0.8->cinrad) (0.23)
Requirement already satisfied: scipy>=1.8.0 in /opt/conda/lib/python3.9/site-packages (from metpy>=0.8->cinrad) (1.11.4)
Requirement already satisfied: xarray>=0.21.0 in /opt/conda/lib/python3.9/site-packages (from metpy>=0.8->cinrad) (2024.2.0)
Requirement already satisfied: zipp>=3.1.0 in /opt/conda/lib/python3.9/site-packages (from importlib-resources>=3.2.0->matplotlib>=2.2->cinrad) (3.8.0)
Requirement already satisfied: pytz>=2020.1 in /opt/conda/lib/python3.9/site-packages (from pandas>=1.4.0->metpy>=0.8->cinrad) (2022.1)
Requirement already satisfied: tzdata>=2022.1 in /opt/conda/lib/python3.9/site-packages (from pandas>=1.4.0->metpy>=0.8->cinrad) (2024.1)
Requirement already satisfied: typing-extensions in /opt/conda/lib/python3.9/site-packages (from pint>=0.17->metpy>=0.8->cinrad) (4.7.1)
Requirement already satisfied: platformdirs>=2.5.0 in /opt/conda/lib/python3.9/site-packages (from pooch>=1.2.0->metpy>=0.8->cinrad) (4.2.0)
Requirement already satisfied: requests>=2.19.0 in /opt/conda/lib/python3.9/site-packages (from pooch>=1.2.0->metpy>=0.8->cinrad) (2.27.1)
Requirement already satisfied: certifi in /opt/conda/lib/python3.9/site-packages (from pyproj>=3.3.1->cartopy>=0.15->cinrad) (2024.2.2)
Requirement already satisfied: six>=1.5 in /opt/conda/lib/python3.9/site-packages (from python-dateutil>=2.7->matplotlib>=2.2->cinrad) (1.16.0)
Requirement already satisfied: charset-normalizer~=2.0.0 in /opt/conda/lib/python3.9/site-packages (from requests>=2.19.0->pooch>=1.2.0->metpy>=0.8->cinrad) (2.0.12)
Requirement already satisfied: idna<4,>=2.5 in /opt/conda/lib/python3.9/site-packages (from requests>=2.19.0->pooch>=1.2.0->metpy>=0.8->cinrad) (3.3)
Requirement already satisfied: urllib3<1.27,>=1.21.1 in /opt/conda/lib/python3.9/site-packages (from requests>=2.19.0->pooch>=1.2.0->metpy>=0.8->cinrad) (1.26.9)

import cinrad
from cinrad.io import StandardData
# 指定雷达数据路径（此处为示例路径）
PATH = '/home/mw/input/pycwr5461/Z_RADR_I_Z9898_20190828181529_O_DOR_SAD_CAP_FMT (1).bin.bz2'
f = StandardData(PATH)
f

r = 230  # 固定半径距离（km）

ref = list(f.iter_tilt(r, 'REF'))  # 反射率

zdr = list(f.iter_tilt(r, 'ZDR'))  # 差分反射率

rho = list(f.iter_tilt(r, 'RHO'))  # 相关系数

kdp = list(f.iter_tilt(r, 'KDP'))  # 差分相移

hylist = [cinrad.calc.hydro_class(ref[i], zdr[i], rho[i], kdp[i])
          for i in range(8)]  # 8个仰角层

vcs = cinrad.calc.VCS(hylist)  # 初始化垂直剖面计算
# 定义剖面线（起止经纬度）
sec = vcs.get_section(start_cart=(110, 18), end_cart=(110, 20))

from cinrad.visualize import PPI, Section

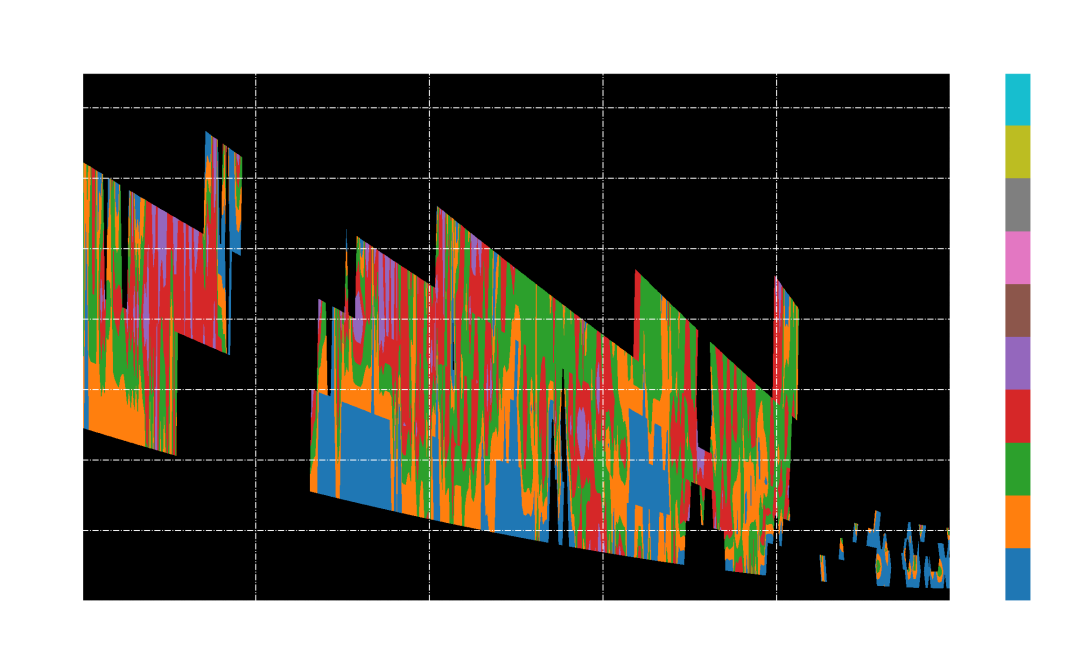

fig=cinrad.visualize.Section(sec,interpolate=True)

import matplotlib.pyplot as plt
fig = PPI(hylist[0], dpi=100)
fig.gridlines(draw_labels=True, linewidth=1, color="white")  # 用这个来画经纬度网格线
fig.settings['is_inline'] = False

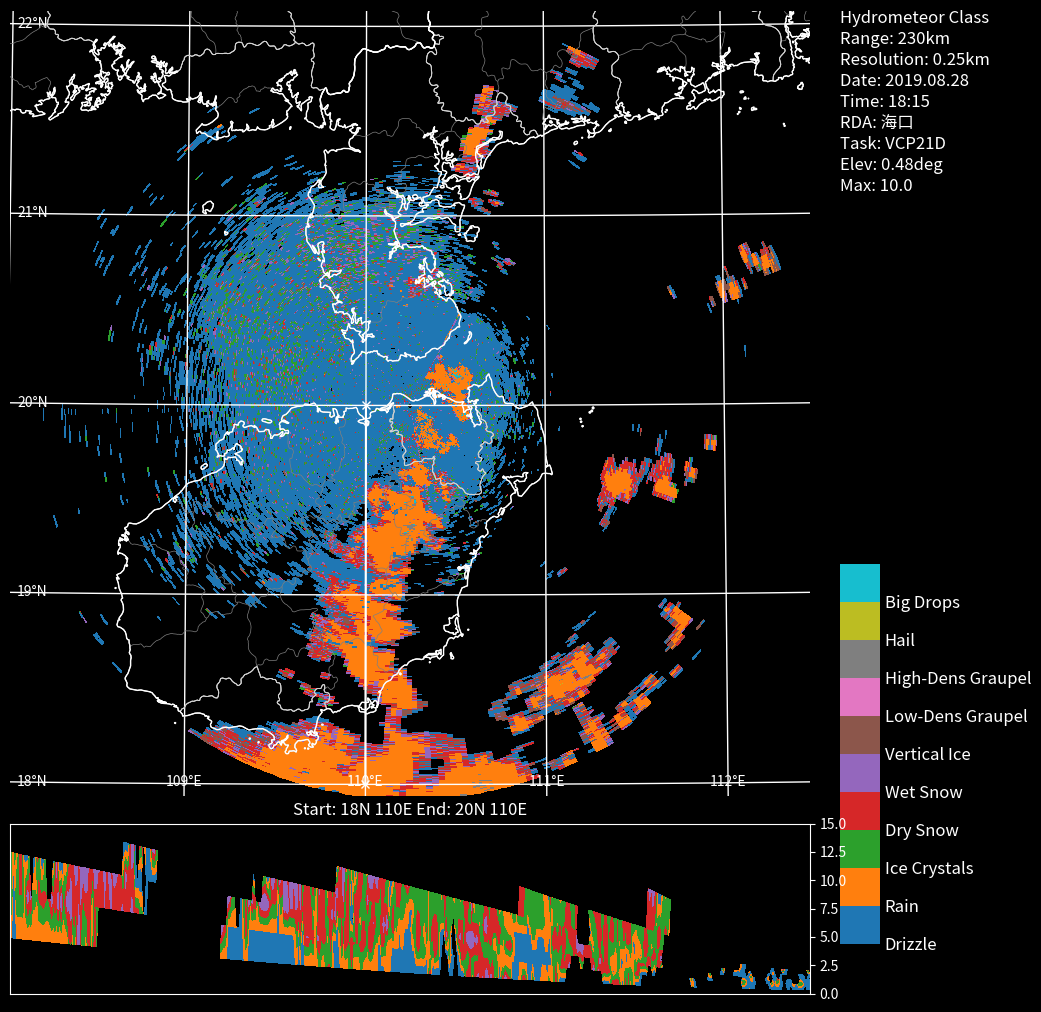

fig.plot_cross_section(sec)
plt.show()
