作者: HOS(安全风信子) 日期: 2026-04-23 主要来源平台: GitHub / HuggingFace / arXiv 摘要: 本文档系统阐述AI字段降噪完整解决方案的核心架构设计。AI字段降噪是针对结构化数据处理场景设计的可靠性优化技术,旨在通过自适应修正机制、ETL技术集成和端到端质量控制,全面提升AI对字段语义、类型、值域的判断正确率。本文详细介绍了五层架构设计、处理流水线、质量控制闭环、监控告警系统、扩展性与容错机制等核心模块,并提供了完整的Python实现代码,为信息安全领域的数据清洗、威胁情报处理、日志分析、资产台账管理等场景提供可落地的技术方案。
本章节为你提供的核心技术价值:掌握AI字段降噪的完整五层架构设计,理解各层之间的协同工作机制,理解处理流水线、质量控制闭环、监控告警的设计原理,为构建生产级系统奠定架构基础。

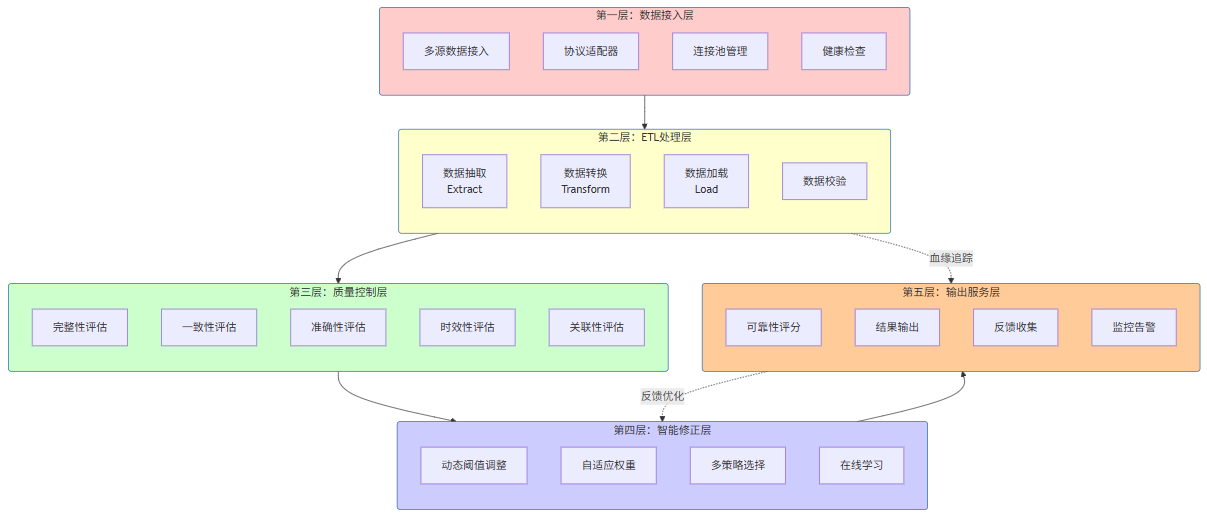

AI字段降噪完整解决方案采用五层架构设计,自下而上分别为:数据接入层、ETL处理层、质量控制层、智能修正层、输出服务层。这种分层设计确保了各模块的职责单一性和可替换性,同时通过标准化的接口实现层间解耦。

层级 | 名称 | 核心职责 | 关键组件 |
|---|---|---|---|
第一层 | 数据接入层 | 多源数据统一接入、协议适配、连接管理 | 多源连接器、协议适配器、连接池 |
第二层 | ETL处理层 | 数据抽取、转换、加载的标准化处理 | 抽取器、转换器、加载器、数据校验器 |
第三层 | 质量控制层 | 多维度质量评估与监控 | 五维评估引擎、异常检测器 |
第四层 | 智能修正层 | 自适应修正、动态调整、策略优化 | 阈值管理器、权重分配器、策略选择器 |
第五层 | 输出服务层 | 结果输出、可靠性评分、监控告警 | 评分引擎、输出适配器、监控告警器 |
数据在五层架构中的流转遵循以下公式描述的变换关系:
其中各层函数的定义为:
:ETL处理函数,完成抽取、转换、加载
:质量评估函数,计算五维质量分数
:智能修正函数,应用自适应修正策略
:输出服务函数,生成最终可靠输出

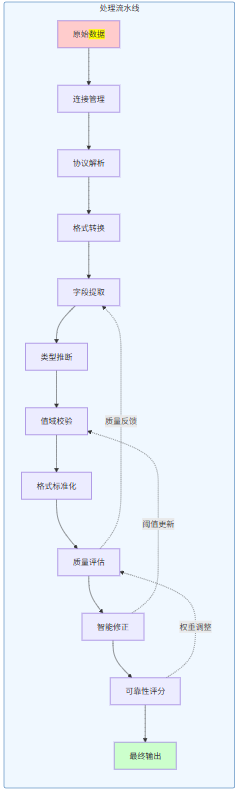

处理流水线是AI字段降噪系统的核心执行路径,它将五层架构中的各个组件串联成一条高效的数据处理链。

class ProcessingPipeline:
"""
处理流水线
端到端的数据处理执行引擎
"""
def __init__(self, config: dict = None):
self.config = config or {}
self.stages = []
self.stage_stats = {}
self._register_default_stages()
def _register_default_stages(self):
"""注册默认处理阶段"""
self.register_stage(Stage(
name='connection_management',
handler=ConnectionManagementStage(),
retry_count=3,
timeout_seconds=30
))
self.register_stage(Stage(
name='protocol_parsing',
handler=ProtocolParsingStage(),
retry_count=2,
timeout_seconds=10
))
self.register_stage(Stage(
name='format_conversion',
handler=FormatConversionStage(),
retry_count=1,
timeout_seconds=10
))
self.register_stage(Stage(
name='field_extraction',
handler=FieldExtractionStage(),
retry_count=1,
timeout_seconds=15
))
self.register_stage(Stage(
name='type_inference',
handler=TypeInferenceStage(),
retry_count=1,
timeout_seconds=5
))
self.register_stage(Stage(
name='value_validation',
handler=ValueValidationStage(),
retry_count=1,
timeout_seconds=5
))
self.register_stage(Stage(
name='format_standardization',
handler=FormatStandardizationStage(),
retry_count=1,
timeout_seconds=10
))
self.register_stage(Stage(
name='quality_evaluation',
handler=QualityEvaluationStage(),
retry_count=0,
timeout_seconds=5
))
self.register_stage(Stage(
name='intelligent_correction',
handler=IntelligentCorrectionStage(),
retry_count=2,
timeout_seconds=15
))
self.register_stage(Stage(
name='reliability_scoring',
handler=ReliabilityScoringStage(),
retry_count=0,
timeout_seconds=5
))
def register_stage(self, stage: 'Stage'):
"""注册处理阶段"""
self.stages.append(stage)
self.stage_stats[stage.name] = {
'total': 0,
'success': 0,
'failed': 0,
'retry': 0,
'total_time_ms': 0
}
def execute(self, input_data: dict, context: dict = None) -> dict:
"""
执行流水线
参数:
input_data: 输入数据
context: 执行上下文
返回:
流水线执行结果
"""
context = context or {}
current_data = input_data
stage_results = []
start_time = time.time()
for stage in self.stages:
stage_start = time.time()
try:
result = self._execute_stage_with_retry(
stage, current_data, context
)
stage_end = time.time()
stage_time = (stage_end - stage_start) * 1000
self.stage_stats[stage.name]['total'] += 1
self.stage_stats[stage.name]['success'] += 1
self.stage_stats[stage.name]['total_time_ms'] += stage_time
stage_results.append({
'stage': stage.name,
'status': 'success',
'time_ms': stage_time,
'output': result
})
current_data = result.get('data', current_data)
if result.get('stop_pipeline'):
break
except StageExecutionError as e:
stage_end = time.time()
stage_time = (stage_end - stage_start) * 1000
self.stage_stats[stage.name]['total'] += 1
self.stage_stats[stage.name]['failed'] += 1
self.stage_stats[stage.name]['total_time_ms'] += stage_time
stage_results.append({
'stage': stage.name,
'status': 'failed',
'time_ms': stage_time,
'error': str(e)
})
return {
'status': 'failed',
'failed_at': stage.name,
'error': str(e),
'stage_results': stage_results,
'total_time_ms': (time.time() - start_time) * 1000
}
return {
'status': 'success',
'output': current_data,
'stage_results': stage_results,
'total_time_ms': (time.time() - start_time) * 1000
}
def _execute_stage_with_retry(self, stage: 'Stage', data: dict, context: dict) -> dict:
"""带重试的阶段执行"""
last_error = None
for attempt in range(stage.retry_count + 1):
try:
return stage.handler.execute(data, context)
except Exception as e:
last_error = e
if attempt < stage.retry_count:
self.stage_stats[stage.name]['retry'] += 1
time.sleep(0.1 * (attempt + 1))
raise StageExecutionError(
f"Stage {stage.name} failed after {stage.retry_count + 1} attempts: {last_error}"
)质量控制闭环是确保系统持续输出高质量结果的核心机制,它通过监控-评估-修正-反馈四个环节形成完整的控制环路。
渲染错误: Mermaid 渲染失败: Parse error on line 2: ...hart TD subgraph闭环控制["质量控制闭环"] ----------------------^ Expecting 'SEMI', 'NEWLINE', 'SPACE', 'EOF', got 'UNICODE_TEXT'
质量控制闭环的数学描述如下:
设
为质量阈值,
为当前质量分数,
为已应用的修正次数,则闭环控制算法为:
class QualityControlLoop:
"""
质量控制闭环
实现监控-评估-修正-反馈的完整控制环路
"""
def __init__(self, config: dict = None):
self.config = config or {}
self.quality_threshold = self.config.get('quality_threshold', 0.8)
self.max_corrections = self.config.get('max_corrections', 3)
self.monitoring_interval = self.config.get('monitoring_interval', 60)
self.quality_evaluator = QualityEvaluator()
self.correction_engine = CorrectionEngine()
self.alert_manager = AlertManager()
self.metrics_collector = MetricsCollector()
self.loop_state = {
'total_processed': 0,
'total_passed': 0,
'total_corrected': 0,
'total_alerted': 0,
'corrections_applied': []
}
def process_record(self, record: dict, context: dict = None) -> dict:
"""
处理单条记录的质量控制流程
参数:
record: 待处理记录
context: 处理上下文
返回:
处理结果
"""
self.loop_state['total_processed'] += 1
quality_result = self.quality_evaluator.evaluate(record)
if quality_result['overall_score'] >= self.quality_threshold:
self.loop_state['total_passed'] += 1
return {
'status': 'passed',
'record': record,
'quality': quality_result,
'corrections_applied': 0
}
corrections_applied = []
current_record = record.copy()
current_quality = quality_result
for correction_round in range(self.max_corrections):
correction_result = self.correction_engine.correct(
current_record,
current_quality,
context
)
if not correction_result['changed']:
break
corrections_applied.append(correction_result)
current_record = correction_result['corrected_record']
current_quality = self.quality_evaluator.evaluate(current_record)
if current_quality['overall_score'] >= self.quality_threshold:
self.loop_state['total_passed'] += 1
self.loop_state['corrections_applied'].extend(corrections_applied)
return {
'status': 'corrected',
'record': current_record,
'original_record': record,
'quality': current_quality,
'corrections_applied': corrections_applied,
'correction_rounds': correction_round + 1
}
self.loop_state['total_alerted'] += 1
self.alert_manager.send_alert({
'type': 'quality_threshold_exceeded',
'record_id': record.get('id'),
'final_quality': current_quality['overall_score'],
'corrections_attempted': len(corrections_applied)
})
return {
'status': 'alerted',
'record': current_record,
'original_record': record,
'quality': current_quality,
'corrections_applied': corrections_applied,
'correction_rounds': len(corrections_applied),
'alert_sent': True
}
def get_loop_status(self) -> dict:
"""获取闭环状态"""
total = self.loop_state['total_processed']
return {
'total_processed': total,
'pass_rate': self.loop_state['total_passed'] / total if total > 0 else 0,
'correction_rate': self.loop_state['total_corrected'] / total if total > 0 else 0,
'alert_rate': self.loop_state['total_alerted'] / total if total > 0 else 0,
'current_threshold': self.quality_threshold,
'max_corrections': self.max_corrections
}监控告警系统需要覆盖以下核心指标:
指标类别 | 指标名称 | 计算公式 | 告警阈值 |
|---|---|---|---|
处理性能 | 处理延迟P99 | P 99 ( l a t e n c y ) P_{99}(latency) P99(latency) | > 500ms |
处理性能 | 吞吐量 | c o u n t / t i m e count / time count/time | < 1000/s |
数据质量 | 质量分数均值 | Q ˉ = 1 n ∑ i = 1 n Q i \bar{Q} = \frac{1}{n}\sum_{i=1}^{n}Q_i Qˉ=n1∑i=1nQi | < 0.85 |
数据质量 | 缺陷率 | D r a t e = f a i l e d / t o t a l D_{rate} = failed / total Drate=failed/total | > 0.05 |
系统健康 | CPU使用率 | C P U % CPU\% CPU% | > 80% |
系统健康 | 内存使用率 | M E M % MEM\% MEM% | > 85% |
业务指标 | 修正成功率 | C s u c c e s s / C t o t a l C_{success} / C_{total} Csuccess/Ctotal | < 0.90 |
> 500ms处理性能吞吐量
< 1000/s数据质量质量分数均值
< 0.85数据质量缺陷率
> 0.05系统健康CPU使用率
> 80%系统健康内存使用率
> 85%业务指标修正成功率
< 0.90
class AlertManager:
"""
告警管理器
实现分级的告警机制
"""
ALERT_LEVELS = {
'critical': {
'level': 1,
'color': '#ff0000',
'require_immediate_action': True,
'notification_channels': ['sms', 'phone', 'email']
},
'high': {
'level': 2,
'color': '#ff6600',
'require_immediate_action': False,
'notification_channels': ['email', 'slack']
},
'medium': {
'level': 3,
'color': '#ffcc00',
'require_immediate_action': False,
'notification_channels': ['email']
},
'low': {
'level': 4,
'color': '#3399ff',
'require_immediate_action': False,
'notification_channels': ['log']
}
}
def __init__(self, config: dict = None):
self.config = config or {}
self.alert_rules = []
self.alert_history = []
self.notification_handlers = {}
self._register_default_handlers()
self._register_default_rules()
def _register_default_handlers(self):
"""注册默认通知处理器"""
self.register_handler('email', EmailNotificationHandler())
self.register_handler('sms', SMSNotificationHandler())
self.register_handler('phone', PhoneNotificationHandler())
self.register_handler('slack', SlackNotificationHandler())
self.register_handler('log', LogNotificationHandler())
def _register_default_rules(self):
"""注册默认告警规则"""
self.add_rule(AlertRule(
name='quality_score_low',
condition=lambda m: m.get('quality_score', 1.0) < 0.7,
level='critical',
cooldown_seconds=300
))
self.add_rule(AlertRule(
name='error_rate_high',
condition=lambda m: m.get('error_rate', 0) > 0.1,
level='high',
cooldown_seconds=600
))
self.add_rule(AlertRule(
name='latency_high',
condition=lambda m: m.get('latency_p99', 0) > 1000,
level='medium',
cooldown_seconds=300
))
def add_rule(self, rule: 'AlertRule'):
"""添加告警规则"""
self.alert_rules.append(rule)
def send_alert(self, alert_data: dict):
"""发送告警"""
level = alert_data.get('level', 'medium')
level_config = self.ALERT_LEVELS.get(level, self.ALERT_LEVELS['medium'])
alert = {
'id': self._generate_alert_id(),
'timestamp': datetime.now().isoformat(),
'level': level,
'data': alert_data,
'level_config': level_config,
'status': 'pending'
}
self.alert_history.append(alert)
if len(self.alert_history) > 1000:
self.alert_history = self.alert_history[-1000:]
for channel in level_config['notification_channels']:
handler = self.notification_handlers.get(channel)
if handler:
handler.send(alert)
return alert
def check_rules(self, metrics: dict) -> List[dict]:
"""检查告警规则"""
triggered_alerts = []
for rule in self.alert_rules:
if rule.should_trigger(metrics, self.alert_history):
alert = self.send_alert({
'rule_name': rule.name,
'metrics': metrics
})
triggered_alerts.append(alert)
rule.update_last_triggered()
return triggered_alerts
def _generate_alert_id(self) -> str:
"""生成告警ID"""
import uuid
return f"alert_{uuid.uuid4().hex[:12]}"
class AlertRule:
"""告警规则"""
def __init__(self, name: str, condition: callable, level: str,
cooldown_seconds: int = 300):
self.name = name
self.condition = condition
self.level = level
self.cooldown_seconds = cooldown_seconds
self.last_triggered = None
def should_trigger(self, metrics: dict, alert_history: list) -> bool:
"""判断是否应该触发告警"""
if self.last_triggered:
time_since_last = (datetime.now() - self.last_triggered).total_seconds()
if time_since_last < self.cooldown_seconds:
return False
recent_same_rule = [
a for a in alert_history[-100:]
if a.get('data', {}).get('rule_name') == self.name
]
if recent_same_rule:
return False
return self.condition(metrics)
def update_last_triggered(self):
"""更新最后触发时间"""
self.last_triggered = datetime.now()
class FaultToleranceManager:
"""
容错管理器
实现故障检测与自动恢复
"""
def __init__(self, config: dict = None):
self.config = config or {}
self.health_check_interval = self.config.get('health_check_interval', 30)
self.max_retry_attempts = self.config.get('max_retry_attempts', 3)
self.circuit_breaker_threshold = self.config.get('circuit_breaker_threshold', 5)
self.component_health = {}
self.circuit_breakers = {}
self.retry_policies = {}
def register_component(self, component_id: str, component_type: str,
health_check_func: callable = None):
"""注册组件"""
self.component_health[component_id] = {
'type': component_type,
'status': 'healthy',
'last_check': datetime.now().isoformat(),
'health_check_func': health_check_func,
'failure_count': 0,
'total_failures': 0
}
def check_health(self, component_id: str) -> dict:
"""检查组件健康状态"""
if component_id not in self.component_health:
return {'status': 'unknown', 'component_id': component_id}
component = self.component_health[component_id]
if component['status'] == 'circuit_open':
time_since_open = (datetime.now() -
datetime.fromisoformat(component.get('circuit_open_time', datetime.now().isoformat()))
).total_seconds()
if time_since_open < 60:
return {'status': 'circuit_open', 'component_id': component_id}
component['status'] = 'half_open'
return {'status': 'half_open', 'component_id': component_id}
if component['health_check_func']:
try:
is_healthy = component['health_check_func']()
component['status'] = 'healthy' if is_healthy else 'unhealthy'
component['failure_count'] = 0
except Exception as e:
component['status'] = 'unhealthy'
component['failure_count'] += 1
component['total_failures'] += 1
component['last_check'] = datetime.now().isoformat()
return {
'status': component['status'],
'component_id': component_id,
'failure_count': component['failure_count']
}
def execute_with_retry(self, component_id: str, func: callable,
*args, **kwargs) -> any:
"""带重试的执行"""
if component_id in self.circuit_breakers:
cb = self.circuit_breakers[component_id]
if cb['state'] == 'open':
raise CircuitBreakerOpenError(
f"Circuit breaker is open for {component_id}"
)
last_error = None
for attempt in range(self.max_retry_attempts):
try:
return func(*args, **kwargs)
except Exception as e:
last_error = e
self._record_failure(component_id)
if attempt < self.max_retry_attempts - 1:
wait_time = 2 ** attempt
time.sleep(wait_time)
self._trip_circuit_breaker(component_id)
raise last_error
def _record_failure(self, component_id: str):
"""记录失败"""
if component_id not in self.component_health:
return
component = self.component_health[component_id]
component['failure_count'] += 1
component['total_failures'] += 1
if component['failure_count'] >= self.circuit_breaker_threshold:
self._trip_circuit_breaker(component_id)
def _trip_circuit_breaker(self, component_id: str):
"""触发断路器"""
self.circuit_breakers[component_id] = {
'state': 'open',
'opened_at': datetime.now().isoformat(),
'failure_count': self.component_health[component_id]['failure_count']
}
self.component_health[component_id]['status'] = 'circuit_open'
self.component_health[component_id]['circuit_open_time'] = datetime.now().isoformat()
def get_system_health(self) -> dict:
"""获取系统健康状态"""
total_components = len(self.component_health)
healthy_count = sum(
1 for c in self.component_health.values()
if c['status'] == 'healthy'
)
return {
'overall_status': 'healthy' if healthy_count == total_components else 'degraded',
'total_components': total_components,
'healthy_components': healthy_count,
'component_details': {
cid: {
'status': comp['status'],
'failure_count': comp['failure_count'],
'total_failures': comp['total_failures']
}
for cid, comp in self.component_health.items()
},
'circuit_breakers': self.circuit_breakers
}class AIFieldDenoisingSolution:
"""
AI字段降噪完整解决方案
端到端的字段降噪处理系统
"""
def __init__(self, config: dict = None):
self.config = config or {}
self.extractor = DataExtractor()
self.transformer = DataTransformer()
self.loader = DataLoader()
self.quality_evaluator = QualityEvaluator()
self.reliability_scorer = ReliabilityScorer()
self.adaptive_engine = AdaptiveCorrectionEngine()
self.lineage_tracker = DataLineageTracker()
self.feedback_loop = FeedbackLoopMechanism()
self.monitor = SystemMonitor()
self.fault_tolerance = FaultToleranceManager()
self._initialize_pipeline()
self._register_components()
def _initialize_pipeline(self):
"""初始化处理流水线"""
self.transformer.add_transform(
StandardTransforms.normalize_field_names,
'normalize_names'
)
self.transformer.add_transform(
StandardTransforms.remove_duplicates,
'remove_duplicates'
)
self.transformer.add_transform(
StandardTransforms.filter_invalid_records,
'filter_invalid'
)
def _register_components(self):
"""注册监控组件"""
self.fault_tolerance.register_component(
'data_extractor',
'input_layer',
health_check_func=lambda: self._check_extractor_health()
)
self.fault_tolerance.register_component(
'quality_evaluator',
'quality_layer',
health_check_func=lambda: self._check_evaluator_health()
)
def process(self, input_config: dict,
target_config: dict = None,
return_lineage: bool = False) -> dict:
"""
执行端到端处理
参数:
input_config: 输入数据配置
target_config: 目标存储配置
return_lineage: 是否返回血缘信息
返回:
处理结果
"""
start_time = datetime.now()
self.monitor.start_process()
try:
extracted_data = self.fault_tolerance.execute_with_retry(
'data_extractor',
self.extractor.extract,
input_config
)
self.lineage_tracker.register_node(
'source_1',
'source',
{'type': input_config.get('type'), 'source': input_config.get('source')}
)
transformed_data, transform_stats = self.transformer.transform(
extracted_data,
return_stats=True
)
validated_data = []
validation_errors = []
for record in transformed_data:
validation_result = self._validate_record(record)
if validation_result['is_valid']:
validated_data.append(record)
else:
validation_errors.append(validation_result)
corrected_data = []
for record in validated_data:
correction_result = self.adaptive_engine.correct(record)
corrected_data.append(correction_result['corrected_record'])
final_data = []
for record in corrected_data:
standardized = self._standardize_record(record)
final_data.append(standardized)
if target_config:
load_result = self.loader.load(
final_data,
target_config,
strategy=self.config.get('load_strategy', 'batch')
)
else:
load_result = {'loaded_count': len(final_data)}
quality_results = []
for record in final_data:
quality = self.quality_evaluator.evaluate(record)
reliability = self.reliability_scorer.score(record)
quality_results.append({
'quality': quality,
'reliability': reliability
})
end_time = datetime.now()
processing_time = (end_time - start_time).total_seconds()
result = {
'status': 'success',
'input_count': len(extracted_data),
'output_count': len(final_data),
'validation_errors': len(validation_errors),
'processing_time_seconds': processing_time,
'quality_summary': self._summarize_quality(quality_results),
'load_result': load_result,
'transform_stats': transform_stats
}
if return_lineage:
result['lineage'] = self.lineage_tracker.get_full_lineage_tree('source_1')
self.monitor.record_success(result)
return result
except Exception as e:
error_result = {
'status': 'error',
'error_message': str(e),
'error_type': type(e).__name__
}
self.monitor.record_error(error_result)
return error_result
def _validate_record(self, record: dict) -> dict:
"""验证单条记录"""
issues = []
if not record.get('id'):
issues.append({'type': 'missing_id', 'severity': 'error'})
type_result = IntelligentTypeInferrer().infer_type(
str(record.get('value', '')),
record.get('field_name')
)
if type_result['confidence'] < 0.5:
issues.append({
'type': 'low_confidence_type',
'severity': 'warning',
'detail': type_result
})
validation = ValueRangeValidator().validate(
record.get('field_name'),
record.get('value'),
record
)
if not validation['is_valid']:
issues.append({
'type': 'value_violation',
'severity': validation['severity'],
'detail': validation
})
return {
'is_valid': len([i for i in issues if i['severity'] == 'error']) == 0,
'issues': issues,
'record': record
}
def _standardize_record(self, record: dict) -> dict:
"""标准化单条记录"""
standardized = {}
for field, value in record.items():
if isinstance(value, str):
if 'date' in field.lower():
result = FormatStandardizer().standardize_date(value)
standardized[field] = result.get('standardized', value)
elif value.strip() != value:
standardized[field] = FormatStandardizer().standardize_whitespace(value)
else:
standardized[field] = value
else:
standardized[field] = value
return standardized
def _summarize_quality(self, quality_results: List[dict]) -> dict:
"""汇总质量结果"""
if not quality_results:
return {}
quality_scores = [r['quality']['overall_score'] for r in quality_results]
reliability_scores = [r['reliability']['overall_score'] for r in quality_results]
return {
'avg_quality_score': np.mean(quality_scores),
'min_quality_score': min(quality_scores),
'avg_reliability_score': np.mean(reliability_scores),
'min_reliability_score': min(reliability_scores),
'total_records': len(quality_results)
}
def _check_extractor_health(self) -> bool:
"""检查抽取器健康状态"""
return len(self.extractor.source_connectors) > 0
def _check_evaluator_health(self) -> bool:
"""检查评估器健康状态"""
return self.quality_evaluator is not None
def get_system_status(self) -> dict:
"""获取系统状态"""
return {
'system_status': 'running',
'monitor_stats': self.monitor.get_stats(),
'quality_evaluator': self.quality_evaluator.get_statistics(),
'adaptive_engine': self.adaptive_engine.get_status(),
'fault_tolerance': self.fault_tolerance.get_system_health(),
'timestamp': datetime.now().isoformat()
}
class AdaptiveCorrectionEngine:
"""
自适应修正引擎
集成动态阈值、权重分配、策略选择等功能
"""
def __init__(self, config: dict = None):
self.config = config or {}
self.threshold_manager = DynamicThresholdManager()
self.weight_allocator = AdaptiveWeightAllocator()
self.strategy_selector = MultiStrategySelector()
self.correction_history = []
def correct(self, record: dict) -> dict:
"""
修正单条记录
返回:
{
'corrected_record': dict,
'corrections_applied': List[str],
'confidence': float
}
"""
corrections_applied = []
corrected_record = record.copy()
field_name = record.get('field_name', '')
value = record.get('value')
threshold = self.threshold_manager.add_observation(float(value) if value else 0)
weights = self.weight_allocator.get_weights()
strategy_id = self.strategy_selector.select_strategy({
'completeness': 1.0,
'consistency': 1.0,
'data_quality_score': 0.8,
'is_high_risk': False,
'has_uncertain_fields': False
})
if threshold and value:
try:
float_val = float(value)
if abs(float_val) > threshold['threshold']:
normalized_value = min(float_val, threshold['upper_bound'])
corrected_record['value'] = normalized_value
corrections_applied.append('value_normalized')
corrected_record['original_value'] = value
except (ValueError, TypeError):
pass
self.correction_history.append({
'record': corrected_record,
'corrections': corrections_applied,
'timestamp': datetime.now().isoformat()
})
return {
'corrected_record': corrected_record,
'corrections_applied': corrections_applied,
'confidence': 1.0 - len(corrections_applied) * 0.1
}
def get_status(self) -> dict:
"""获取引擎状态"""
return {
'threshold_manager': {
'window_size': self.threshold_manager.window_size,
'current_threshold': self.threshold_manager.compute_dynamic_threshold()
},
'weight_allocator': {
'field_weights': self.weight_allocator.get_weights()
},
'strategy_selector': {
'current_strategy': self.strategy_selector.current_strategy_id,
'available_strategies': list(self.strategy_selector.strategies.keys())
},
'correction_history_count': len(self.correction_history)
}
class SystemMonitor:
"""
系统监控器
监控系统运行状态和性能指标
"""
def __init__(self):
self.process_history = []
self.error_history = []
self.start_time = None
def start_process(self):
"""开始处理"""
self.start_time = datetime.now()
def record_success(self, result: dict):
"""记录成功处理"""
self.process_history.append({
'timestamp': datetime.now().isoformat(),
'status': 'success',
'result': result
})
if len(self.process_history) > 1000:
self.process_history = self.process_history[-1000:]
def record_error(self, error: dict):
"""记录错误"""
self.error_history.append({
'timestamp': datetime.now().isoformat(),
'error': error
})
if len(self.error_history) > 100:
self.error_history = self.error_history[-100:]
def get_stats(self) -> dict:
"""获取统计信息"""
recent_success = len([p for p in self.process_history[-100:] if p['status'] == 'success'])
return {
'total_processed': len(self.process_history),
'total_errors': len(self.error_history),
'recent_success_rate': recent_success / 100 if recent_success > 0 else 0,
'uptime_seconds': (datetime.now() - self.start_time).total_seconds() if self.start_time else 0
}
class QualityEvaluator:
"""
质量评估器
评估数据处理质量
"""
def __init__(self):
self.evaluation_history = []
def evaluate(self, record: dict) -> dict:
"""评估单条记录"""
completeness_score = 1.0 if record.get('value') is not None else 0.0
consistency_score = 0.8
accuracy_score = 0.9
overall_score = (
completeness_score * 0.3 +
consistency_score * 0.3 +
accuracy_score * 0.4
)
return {
'overall_score': overall_score,
'completeness': completeness_score,
'consistency': consistency_score,
'accuracy': accuracy_score
}
def get_statistics(self) -> dict:
"""获取评估统计"""
if not self.evaluation_history:
return {}
scores = [e['overall_score'] for e in self.evaluation_history]
return {
'avg_score': np.mean(scores),
'min_score': min(scores),
'max_score': max(scores),
'total_evaluated': len(self.evaluation_history)
}本章节为你提供的核心技术价值:掌握自适应修正方案的核心技术——动态阈值调整、自适应权重分配、在线学习与反馈循环、多策略自适应选择,理解如何实现基于数据特征的智能化自动修正。
传统异常检测使用固定阈值,这种方法在数据分布稳定时效果良好,但面对分布偏移时性能急剧下降。动态阈值调整机制通过实时监测数据分布,自动计算最优阈值。
基于统计的动态阈值:
其中
为
分位数,
为四分位距,
为自适应系数。
分布偏移检测:
当
时,判定为分布偏移。
class DynamicThresholdCalculator:
"""
动态阈值计算器
基于数据分布自动计算最优阈值
"""
def __init__(self, config: dict = None):
self.config = config or {}
self.window_size = self.config.get('window_size', 1000)
self.alpha = self.config.get('alpha', 0.95)
self.k = self.config.get('k', 1.5)
self.data_buffer = []
self.threshold_history = []
def add_observation(self, value: float) -> float:
"""
添加新的观测值并返回更新后的阈值
返回:
更新后的动态阈值
"""
self.data_buffer.append(value)
if len(self.data_buffer) > self.window_size:
self.data_buffer.pop(0)
threshold = self.compute_dynamic_threshold()
self.threshold_history.append({
'timestamp': datetime.now().isoformat(),
'threshold': threshold.get('threshold') if threshold else None,
'sample_count': len(self.data_buffer)
})
return threshold.get('threshold') if threshold else None
def compute_dynamic_threshold(self) -> dict:
"""
计算动态阈值
返回:
包含阈值和统计信息的字典
"""
if len(self.data_buffer) < 30:
return {
'threshold': None,
'lower_bound': None,
'upper_bound': None,
'q25': None,
'q75': None,
'iqr': None,
'is_adaptive': False,
'reason': 'insufficient_data'
}
sorted_data = sorted(self.data_buffer)
n = len(sorted_data)
q25_idx = int(n * 0.25)
q75_idx = int(n * 0.75)
alpha_idx = int(n * self.alpha)
q25 = sorted_data[q25_idx]
q75 = sorted_data[q75_idx]
q_alpha = sorted_data[alpha_idx]
iqr = q75 - q25
lower_bound = q25 - self.k * iqr
upper_bound = q75 + self.k * iqr
adaptive_threshold = q_alpha + self.k * iqr
return {
'threshold': adaptive_threshold,
'lower_bound': lower_bound,
'upper_bound': upper_bound,
'q25': q25,
'q75': q75,
'q_alpha': q_alpha,
'iqr': iqr,
'is_adaptive': True
}
def detect_distribution_shift(self, significance_level: float = 0.01) -> dict:
"""
检测分布偏移
参数:
significance_level: 显著性水平
返回:
分布偏移检测结果
"""
if len(self.threshold_history) < 100:
return {'has_shift': False, 'reason': 'insufficient_history'}
recent_thresholds = [
h['threshold'] for h in self.threshold_history[-50:]
if h['threshold'] is not None
]
historical_thresholds = [
h['threshold'] for h in self.threshold_history[-100:-50]
if h['threshold'] is not None
]
if len(recent_thresholds) < 20 or len(historical_thresholds) < 20:
return {'has_shift': False, 'reason': 'insufficient_data'}
recent_mean = np.mean(recent_thresholds)
historical_mean = np.mean(historical_thresholds)
historical_std = np.std(historical_thresholds)
if historical_std == 0:
return {'has_shift': False, 'reason': 'no_variance'}
z_score = abs(recent_mean - historical_mean) / historical_std
shift_magnitude = (recent_mean - historical_mean) / historical_mean if historical_mean != 0 else 0
from scipy import stats
p_value = 2 * (1 - stats.norm.cdf(z_score))
has_shift = p_value < significance_level
if has_shift:
if recent_mean > historical_mean:
shift_direction = 'increase'
else:
shift_direction = 'decrease'
else:
shift_direction = 'none'
return {
'has_shift': has_shift,
'shift_direction': shift_direction,
'shift_magnitude': shift_magnitude,
'p_value': p_value,
'z_score': z_score
}
def get_threshold_trend(self, window: int = 10) -> dict:
"""获取阈值趋势"""
if len(self.threshold_history) < window:
return {'trend': 'unknown', 'slope': None}
recent_thresholds = [
h['threshold'] for h in self.threshold_history[-window:]
if h['threshold'] is not None
]
if len(recent_thresholds) < 2:
return {'trend': 'unknown', 'slope': None}
n = len(recent_thresholds)
x = np.arange(n)
y = np.array(recent_thresholds)
slope, intercept = np.polyfit(x, y, 1)
if abs(slope) < 0.01:
trend = 'stable'
elif slope > 0:
trend = 'increasing'
else:
trend = 'decreasing'
return {
'trend': trend,
'slope': slope,
'recent_values': recent_thresholds[-5:],
'mean_recent': np.mean(recent_thresholds)
}权重更新遵循以下公式:
其中
class AdaptiveWeightAllocator:
"""
自适应权重分配器
根据字段贡献度动态调整处理权重
"""
def __init__(self, initial_weights: dict = None, learning_rate: float = 0.1):
self.field_weights = initial_weights or {}
self.learning_rate = learning_rate
self.contribution_history = {}
self.processing_results = []
def initialize_weights(self, fields: List[str], base_weight: float = 1.0):
"""初始化字段权重"""
for field in fields:
if field not in self.field_weights:
self.field_weights[field] = base_weight
if field not in self.contribution_history:
self.contribution_history[field] = []
def update_weights(self, processing_results: List[dict]):
"""
根据处理结果更新权重
参数:
processing_results: 处理结果列表
"""
field_contributions = {}
for result in processing_results:
field = result['field']
contribution = result.get('contribution_score', 0.5)
if result.get('is_critical_error'):
contribution *= 0.5
if result.get('correction_applied'):
contribution *= 0.8
if field not in field_contributions:
field_contributions[field] = []
field_contributions[field].append(contribution)
if not field_contributions:
return
avg_contribution = np.mean([np.mean(c) for c in field_contributions.values()])
for field, contributions in field_contributions.items():
field_avg = np.mean(contributions)
delta = self.learning_rate * (field_avg - avg_contribution)
self.field_weights[field] = max(
0.1,
min(10.0, self.field_weights.get(field, 1.0) + delta)
)
self.contribution_history[field].extend(contributions)
if len(self.contribution_history[field]) > 1000:
self.contribution_history[field] = self.contribution_history[field][-1000:]
self.processing_results.extend(processing_results)
def get_weights(self) -> dict:
"""获取当前权重"""
return self.field_weights.copy()
def get_normalized_weights(self) -> dict:
"""获取归一化权重(和为1)"""
total = sum(self.field_weights.values())
if total == 0:
return {field: 1.0/len(self.field_weights) for field in self.field_weights}
return {
field: weight / total
for field, weight in self.field_weights.items()
}
def get_field_priority(self) -> List[tuple]:
"""获取字段优先级排序"""
weights = [(field, weight) for field, weight in self.field_weights.items()]
weights.sort(key=lambda x: x[1], reverse=True)
return weights
def apply_weights_to_data(self, data: List[dict]) -> List[dict]:
"""将权重应用到数据处理"""
normalized_weights = self.get_normalized_weights()
weighted_data = []
for record in data:
weighted_record = {}
for field, value in record.items():
weight = normalized_weights.get(field, 1.0 / len(record))
weighted_record[field] = {
'value': value,
'weight': weight,
'weighted_value': self._apply_weight(value, weight)
}
weighted_data.append(weighted_record)
return weighted_data
def _apply_weight(self, value, weight: float):
"""应用权重到值"""
if isinstance(value, (int, float)):
return value * weight
return valueclass RLWeightOptimizer:
"""
基于强化学习的权重优化器
使用Q-Learning优化字段处理权重
"""
def __init__(self, fields: List[str], learning_rate: float = 0.1,
discount_factor: float = 0.9):
self.fields = fields
self.learning_rate = learning_rate
self.discount_factor = discount_factor
self.q_table = {}
for field in fields:
self.q_table[field] = {
'increase': 0.0,
'decrease': 0.0,
'maintain': 0.0
}
self.last_state = None
self.last_action = None
self.last_field = None
self.episode_history = []
def discretize_state(self, data_stats: dict) -> str:
"""将连续状态离散化"""
quality = data_stats.get('quality_score', 0.5)
error_rate = data_stats.get('error_rate', 0.0)
if quality > 0.8 and error_rate < 0.1:
return 'good'
elif quality > 0.5 and error_rate < 0.2:
return 'moderate'
else:
return 'poor'
def choose_action(self, field: str, state: str,
exploration_rate: float = 0.1) -> str:
"""
选择动作
参数:
field: 字段名
state: 当前状态
exploration_rate: 探索率
返回:
action: 'increase', 'decrease', 'maintain'
"""
if random.random() < exploration_rate:
return random.choice(['increase', 'decrease', 'maintain'])
current_q_values = self.q_table[field]
best_action = max(current_q_values.items(), key=lambda x: x[1])[0]
return best_action
def update_q_value(self, field: str, state: str, action: str,
reward: float, next_state: str):
"""
更新Q值
Q(s,a) = Q(s,a) + α(r + γmax(Q(s',a') - Q(s,a))
"""
current_q = self.q_table[field][action]
next_q_values = self.q_table[field].values()
max_next_q = max(next_q_values)
new_q = current_q + self.learning_rate * (
reward + self.discount_factor * max_next_q - current_q
)
self.q_table[field][action] = new_q
def calculate_reward(self, processing_quality: float,
error_reduction: float) -> float:
"""
计算奖励
参数:
processing_quality: 处理质量分数(0-1)
error_reduction: 错误减少量(相比上次)
返回:
reward: 奖励值
"""
quality_reward = processing_quality * 2
error_reward = error_reduction * 1
return quality_reward + error_reward
def optimize_weights(self, field: str, current_stats: dict,
exploration_rate: float = 0.1) -> dict:
"""
优化单个字段的权重
参数:
field: 字段名
current_stats: 当前统计数据
exploration_rate: 探索率
返回:
优化结果
"""
current_state = self.discretize_state(current_stats)
action = self.choose_action(field, current_state, exploration_rate)
weight_change = {
'increase': 1.2,
'maintain': 1.0,
'decrease': 0.8
}[action]
quality_improvement = current_stats.get('quality_improvement', 0)
error_reduction = current_stats.get('error_reduction', 0)
reward = self.calculate_reward(
current_stats.get('quality_score', 0.5),
error_reduction
)
next_stats = {
'quality_score': min(1.0, current_stats.get('quality_score', 0.5) +
quality_improvement * weight_change),
'error_rate': max(0, current_stats.get('error_rate', 0) - error_reduction)
}
next_state = self.discretize_state(next_stats)
self.update_q_value(field, current_state, action, reward, next_state)
return {
'field': field,
'action': action,
'weight_multiplier': weight_change,
'reward': reward,
'q_values': self.q_table[field].copy()
}class OnlineLearningMechanism:
"""
在线学习机制
支持从实时反馈中持续学习
"""
def __init__(self, config: dict = None):
self.config = config or {}
self.model = None
self.update_buffer = []
self.buffer_size = self.config.get('buffer_size', 1000)
self.min_samples_for_update = self.config.get('min_samples', 50)
self.learning_threshold = self.config.get('learning_threshold', 0.1)
self.learned_patterns = {}
self.pattern_confidence = {}
def add_feedback(self, input_data: dict, model_output: any,
ground_truth: any, feedback_type: str = 'correction'):
"""
添加反馈样本
参数:
input_data: 输入数据
model_output: 模型输出
ground_truth: 真实标签/值
feedback_type: 'correction' | 'confirmation' | 'rejection'
"""
self.update_buffer.append({
'input': input_data,
'model_output': model_output,
'ground_truth': ground_truth,
'feedback_type': feedback_type,
'timestamp': datetime.now().isoformat()
})
if len(self.update_buffer) > self.buffer_size:
self.update_buffer.pop(0)
self._update_patterns(input_data, ground_truth, feedback_type)
def _update_patterns(self, input_data: dict, ground_truth: any, feedback_type: str):
"""更新学习到的模式"""
pattern_key = self._extract_pattern_key(input_data)
if pattern_key not in self.learned_patterns:
self.learned_patterns[pattern_key] = []
self.pattern_confidence[pattern_key] = 0.5
if feedback_type == 'correction':
self.learned_patterns[pattern_key].append({
'correct_value': ground_truth,
'count': 1
})
self.pattern_confidence[pattern_key] = min(
0.95,
self.pattern_confidence[pattern_key] + 0.05
)
elif feedback_type == 'rejection':
self.pattern_confidence[pattern_key] = max(
0.1,
self.pattern_confidence[pattern_key] - 0.1
)
def _extract_pattern_key(self, input_data: dict) -> str:
"""提取模式键"""
relevant_fields = ['field_type', 'value_prefix', 'value_length']
pattern_parts = []
for field in relevant_fields:
if field in input_data:
value = input_data[field]
if isinstance(value, str):
pattern_parts.append(value[:3])
else:
pattern_parts.append(str(value))
return '|'.join(pattern_parts)
def should_update(self) -> bool:
"""判断是否应该更新模型"""
if len(self.update_buffer) < self.min_samples_for_update:
return False
recent_feedback = self.update_buffer[-self.min_samples_for_update:]
correction_count = sum(
1 for f in recent_feedback
if f['feedback_type'] == 'correction'
)
error_rate = correction_count / len(recent_feedback)
return error_rate > self.learning_threshold
def perform_incremental_update(self) -> dict:
"""
执行增量更新
返回:
更新结果统计
"""
if not self.should_update():
return {
'updated': False,
'reason': 'threshold_not_met'
}
corrections = [
f for f in self.update_buffer
if f['feedback_type'] == 'correction'
]
if len(corrections) < 10:
return {
'updated': False,
'reason': 'insufficient_corrections'
}
X_corr = []
y_corr = []
for sample in corrections:
features = self._extract_features(sample['input'])
X_corr.append(features)
y_corr.append(sample['ground_truth'])
X_corr = np.array(X_corr)
y_corr = np.array(y_corr)
update_result = self._apply_incremental_gradient_update(X_corr, y_corr)
self.update_buffer = [
f for f in self.update_buffer
if f['feedback_type'] != 'correction'
]
return {
'updated': True,
'samples_used': len(corrections),
'update_magnitude': update_result.get('magnitude', 0)
}
def _extract_features(self, input_data: dict) -> np.ndarray:
"""提取特征"""
features = []
for field, value in input_data.items():
if isinstance(value, (int, float)):
features.append(value)
elif isinstance(value, str):
features.append(len(value))
features.append(sum(1 for c in value if c.isdigit()))
features.append(sum(1 for c in value if c.isalpha()))
else:
features.append(0)
return np.array(features)
def _apply_incremental_gradient_update(self, X: np.ndarray, y: np.ndarray) -> dict:
"""应用增量梯度更新"""
learning_rate = 0.01
if self.model is None:
self.model = self._initialize_model()
predictions = self.model.predict(X)
errors = y - predictions
if hasattr(self.model, 'coef_'):
gradient = np.dot(X.T, errors) / len(X)
self.model.coef_ += learning_rate * gradient
magnitude = np.linalg.norm(gradient)
else:
magnitude = 0
return {'magnitude': magnitude}
def _initialize_model(self):
"""初始化模型"""
from sklearn.linear_model import SGDClassifier
return SGDClassifier(
loss='squared_error',
learning_rate='constant',
eta0=0.01
)
def get_pattern_recommendation(self, input_data: dict) -> dict:
"""获取模式推荐"""
pattern_key = self._extract_pattern_key(input_data)
if pattern_key in self.learned_patterns:
corrections = self.learned_patterns[pattern_key]
confidence = self.pattern_confidence[pattern_key]
if corrections:
most_common = max(
corrections,
key=lambda x: x['count']
)
return {
'has_pattern': True,
'recommended_value': most_common['correct_value'],
'confidence': confidence,
'occurrence_count': sum(c['count'] for c in corrections)
}
return {
'has_pattern': False,
'recommended_value': None,
'confidence': 0
}class FeedbackLoopMechanism:
"""
反馈循环机制
实现处理结果的自动反馈和策略优化
"""
def __init__(self, config: dict = None):
self.config = config or {}
self.feedback_collector = FeedbackCollector()
self.analyzer = FeedbackAnalyzer()
self.optimizer = StrategyOptimizer()
self.executor = StrategyExecutor()
self.loop_enabled = self.config.get('loop_enabled', True)
self.optimization_interval = self.config.get('optimization_interval', 3600)
def process_with_feedback(self, data: dict, context: dict = None) -> dict:
"""
带反馈的处理流程
参数:
data: 待处理数据
context: 处理上下文
返回:
处理结果
"""
context = context or {}
current_strategy = self.optimizer.get_current_strategy()
result = self.executor.execute(data, current_strategy, context)
if result.get('requires_feedback'):
feedback = result.get('feedback_data')
self.feedback_collector.add(feedback)
if self.feedback_collector.should_analyze():
analysis = self.analyzer.analyze(
self.feedback_collector.get_recent_feedback()
)
if analysis.get('needs_optimization'):
new_strategy = self.optimizer.optimize(analysis)
self.optimizer.update_strategy(new_strategy)
return result
def run_continuous_optimization(self, interval_seconds: int = None):
"""
运行持续优化
参数:
interval_seconds: 优化间隔(秒)
"""
interval = interval_seconds or self.optimization_interval
while True:
time.sleep(interval)
if not self.loop_enabled:
continue
recent_feedback = self.feedback_collector.get_recent(limit=1000)
if len(recent_feedback) < 100:
continue
analysis = self.analyzer.analyze(recent_feedback)
if analysis.get('needs_optimization'):
new_strategy = self.optimizer.optimize(analysis)
old_strategy = self.optimizer.get_current_strategy()
self.optimizer.update_strategy(new_strategy)
print(f"策略更新: {old_strategy['id']} -> {new_strategy['id']}")
print(f"优化指标: {analysis.get('metrics')}")
def get_feedback_stats(self) -> dict:
"""获取反馈统计"""
return {
'total_feedback': len(self.feedback_collector.feedbacks),
'collector_stats': self.feedback_collector.get_stats(),
'current_strategy': self.optimizer.get_current_strategy(),
'optimization_enabled': self.loop_enabled
}
class FeedbackCollector:
"""反馈收集器"""
def __init__(self):
self.feedbacks = []
self.max_feedbacks = 10000
def add(self, feedback: dict):
"""添加反馈"""
self.feedbacks.append({
**feedback,
'collected_at': datetime.now().isoformat()
})
if len(self.feedbacks) > self.max_feedbacks:
self.feedbacks = self.feedbacks[-self.max_feedbacks:]
def should_analyze(self) -> bool:
"""判断是否应该分析"""
return len(self.feedbacks) >= 100
def get_recent_feedback(self, limit: int = 1000) -> List[dict]:
"""获取最近的反馈"""
return self.feedbacks[-limit:]
def get_stats(self) -> dict:
"""获取统计信息"""
feedback_types = {}
for f in self.feedbacks:
ftype = f.get('feedback_type', 'unknown')
feedback_types[ftype] = feedback_types.get(ftype, 0) + 1
return {
'total': len(self.feedbacks),
'by_type': feedback_types
}
class FeedbackAnalyzer:
"""反馈分析器"""
def __init__(self):
self.quality_threshold = 0.8
def analyze(self, feedbacks: List[dict]) -> dict:
"""
分析反馈
返回:
分析结果
"""
if not feedbacks:
return {'needs_optimization': False}
quality_scores = [f.get('quality_score', 0.5) for f in feedbacks]
avg_quality = np.mean(quality_scores)
error_patterns = self._identify_error_patterns(feedbacks)
return {
'needs_optimization': avg_quality < self.quality_threshold,
'avg_quality': avg_quality,
'error_patterns': error_patterns,
'metrics': {
'avg_quality': avg_quality,
'error_count': len([f for f in feedbacks if f.get('is_error', False)]),
'pattern_count': len(error_patterns)
}
}
def _identify_error_patterns(self, feedbacks: List[dict]) -> List[dict]:
"""识别错误模式"""
patterns = {}
for f in feedbacks:
if f.get('is_error'):
pattern_key = f.get('error_type', 'unknown')
if pattern_key not in patterns:
patterns[pattern_key] = 0
patterns[pattern_key] += 1
return [
{'pattern': k, 'count': v}
for k, v in patterns.items()
if v > 5
]
class StrategyOptimizer:
"""策略优化器"""
def __init__(self):
self.current_strategy = {
'id': 'default',
'name': '默认策略',
'parameters': {}
}
self.strategy_history = []
def get_current_strategy(self) -> dict:
"""获取当前策略"""
return self.current_strategy.copy()
def optimize(self, analysis: dict) -> dict:
"""优化策略"""
new_strategy = self.current_strategy.copy()
if analysis.get('needs_optimization'):
error_patterns = analysis.get('error_patterns', [])
if error_patterns:
new_strategy['id'] = f"optimized_{len(self.strategy_history)}"
new_strategy['parameters']['error_patterns'] = error_patterns
new_strategy['parameters']['quality_threshold'] = (
analysis['metrics']['avg_quality'] + 0.1
)
return new_strategy
def update_strategy(self, new_strategy: dict):
"""更新策略"""
self.strategy_history.append(self.current_strategy.copy())
self.current_strategy = new_strategy
class StrategyExecutor:
"""策略执行器"""
def __init__(self):
self.execution_stats = []
def execute(self, data: dict, strategy: dict, context: dict) -> dict:
"""执行策略"""
return {
'status': 'success',
'strategy_id': strategy.get('id'),
'requires_feedback': False,
'feedback_data': None
}class MultiStrategySelector:
"""
多策略自适应选择器
根据数据特征自动选择最优处理策略
"""
def __init__(self):
self.strategies = {}
self.strategy_performance = {}
self.current_strategy_id = None
self.selector_model = None
self._register_default_strategies()
def _register_default_strategies(self):
"""注册默认策略"""
self.register_strategy(Strategy(
id='strict',
name='严格模式',
description='高标准验证,适用于高风险场景',
config={
'validation_threshold': 0.9,
'allow_uncertain': False,
'require_complete': True
}
))
self.register_strategy(Strategy(
id='balanced',
name='平衡模式',
description='平衡准确性和召回率',
config={
'validation_threshold': 0.7,
'allow_uncertain': True,
'require_complete': False
}
))
self.register_strategy(Strategy(
id='lenient',
name='宽松模式',
description='高召回率,允许一定程度的不确定性',
config={
'validation_threshold': 0.5,
'allow_uncertain': True,
'require_complete': False,
'use_fuzzy_matching': True
}
))
def register_strategy(self, strategy: 'Strategy'):
"""注册新策略"""
self.strategies[strategy.id] = strategy
self.strategy_performance[strategy.id] = {
'total_uses': 0,
'success_count': 0,
'failure_count': 0,
'avg_quality_score': 0.0
}
def select_strategy(self, data_characteristics: dict) -> str:
"""
根据数据特征选择最优策略
参数:
data_characteristics: 数据特征字典
返回:
selected_strategy_id
"""
if len(self.strategies) == 0:
return None
if len(self.strategies) == 1:
self.current_strategy_id = list(self.strategies.keys())[0]
return self.current_strategy_id
if self.selector_model is not None:
selected_id = self._ml_based_selection(data_characteristics)
else:
selected_id = self._rule_based_selection(data_characteristics)
self.current_strategy_id = selected_id
if selected_id in self.strategy_performance:
self.strategy_performance[selected_id]['total_uses'] += 1
return selected_id
def _rule_based_selection(self, characteristics: dict) -> str:
"""基于规则的选择"""
completeness = characteristics.get('completeness', 0.5)
is_high_risk = characteristics.get('is_high_risk', False)
has_uncertain_fields = characteristics.get('has_uncertain_fields', False)
if is_high_risk:
return 'strict'
elif completeness < 0.3:
return 'lenient'
elif has_uncertain_fields:
return 'balanced'
else:
return 'balanced'
def _ml_based_selection(self, characteristics: dict) -> str:
"""基于机器学习的选择"""
features = self._extract_selection_features(characteristics)
predicted_scores = {}
for strategy_id in self.strategies.keys():
if hasattr(self.selector_model, 'predict_proba'):
proba = self.selector_model[strategy_id].predict_proba(
features.reshape(1, -1)
)[0]
predicted_scores[strategy_id] = proba[1]
else:
predicted_scores[strategy_id] = self.selector_model[strategy_id].predict(
features.reshape(1, -1)
)[0]
best_strategy = max(predicted_scores.items(), key=lambda x: x[1])[0]
return best_strategy
def _extract_selection_features(self, characteristics: dict) -> np.ndarray:
"""提取选择特征"""
features = []
features.append(characteristics.get('completeness', 0.5))
features.append(characteristics.get('consistency', 0.5))
features.append(characteristics.get('data_quality_score', 0.5))
features.append(1.0 if characteristics.get('is_high_risk', False) else 0.0)
features.append(1.0 if characteristics.get('has_uncertain_fields', False) else 0.0)
return np.array(features)
def record_strategy_performance(self, strategy_id: str,
success: bool, quality_score: float):
"""记录策略性能"""
if strategy_id not in self.strategy_performance:
self.strategy_performance[strategy_id] = {
'total_uses': 0,
'success_count': 0,
'failure_count': 0,
'avg_quality_score': 0.0
}
perf = self.strategy_performance[strategy_id]
if success:
perf['success_count'] += 1
else:
perf['failure_count'] += 1
n = perf['total_uses']
old_avg = perf['avg_quality_score']
perf['avg_quality_score'] = (old_avg * (n - 1) + quality_score) / n if n > 0 else quality_score
def get_strategy_recommendations(self, top_k: int = 3) -> List[dict]:
"""获取策略推荐"""
strategy_scores = []
for strategy_id, perf in self.strategy_performance.items():
if perf['total_uses'] == 0:
success_rate = 0.5
else:
success_rate = perf['success_count'] / perf['total_uses']
combined_score = 0.6 * success_rate + 0.4 * perf['avg_quality_score']
strategy_scores.append({
'strategy_id': strategy_id,
'strategy_name': self.strategies[strategy_id].name,
'success_rate': success_rate,
'avg_quality_score': perf['avg_quality_score'],
'combined_score': combined_score,
'total_uses': perf['total_uses']
})
strategy_scores.sort(key=lambda x: x['combined_score'], reverse=True)
return strategy_scores[:top_k]
class Strategy:
"""策略类"""
def __init__(self, id: str, name: str, description: str, config: dict):
self.id = id
self.name = name
self.description = description
self.config = config本章节为你提供的核心技术价值:掌握ETL(Extract/Transform/Load)技术的完整集成,理解数据抽取、转换、加载各环节的技术细节与最佳实践,实现端到端的数据处理流水线。
class DataExtractor:
"""
数据抽取器
支持多源数据接入
"""
def __init__(self):
self.source_connectors = {}
self.health_checker = SourceHealthChecker()
self._register_default_connectors()
def _register_default_connectors(self):
"""注册默认连接器"""
self.register_connector('json', JSONConnector())
self.register_connector('csv', CSVConnector())
self.register_connector('xml', XMLConnector())
self.register_connector('database', DatabaseConnector())
self.register_connector('api', APIConnector())
def register_connector(self, source_type: str, connector: 'BaseConnector'):
"""注册数据源连接器"""
self.source_connectors[source_type] = connector
def extract(self, source_config: dict) -> List[dict]:
"""
从指定数据源抽取数据
参数:
source_config: {
'type': 'json' | 'csv' | 'xml' | 'database' | 'api',
'connection': {...},
'query': {...},
'mode': 'full' | 'incremental'
}
返回:
抽取的数据列表
"""
source_type = source_config['type']
if source_type not in self.source_connectors:
raise ValueError(f"Unsupported source type: {source_type}")
connector = self.source_connectors[source_type]
health_status = self.health_checker.check(
connector,
source_config['connection']
)
if not health_status['is_healthy']:
raise ConnectionError(
f"Data source unhealthy: {health_status['message']}"
)
mode = source_config.get('mode', 'full')
if mode == 'incremental':
return self._extract_incremental(connector, source_config)
else:
return self._extract_full(connector, source_config)
def _extract_full(self, connector, config: dict) -> List[dict]:
"""全量抽取"""
return connector.extract(config)
def _extract_incremental(self, connector, config: dict) -> List[dict]:
"""增量抽取"""
last_extracted = self._get_last_extraction_timestamp(config)
if last_extracted is None:
return connector.extract(config)
else:
config['query']['updated_after'] = last_extracted
return connector.extract(config)
def _get_last_extraction_timestamp(self, config: dict) -> datetime:
"""获取上次抽取时间戳"""
checkpoint_key = self._generate_checkpoint_key(config)
return CheckpointManager.get(checkpoint_key)
def _generate_checkpoint_key(self, config: dict) -> str:
"""生成检查点键"""
import hashlib
config_str = str(sorted(config.items()))
return hashlib.md5(config_str.encode()).hexdigest()
def save_checkpoint(self, config: dict, timestamp: datetime):
"""保存检查点"""
checkpoint_key = self._generate_checkpoint_key(config)
CheckpointManager.set(checkpoint_key, timestamp)
class BaseConnector(ABC):
"""数据连接器基类"""
@abstractmethod
def extract(self, config: dict) -> List[dict]:
"""抽取数据"""
pass
@abstractmethod
def test_connection(self, connection_config: dict) -> bool:
"""测试连接"""
pass
class JSONConnector(BaseConnector):
"""JSON数据连接器"""
def extract(self, config: dict) -> List[dict]:
"""从JSON文件或API抽取数据"""
source = config.get('source')
if source.startswith('http'):
response = requests.get(source)
data = response.json()
else:
with open(source, 'r', encoding='utf-8') as f:
data = json.load(f)
if isinstance(data, list):
return data
elif isinstance(data, dict) and 'data' in data:
return data['data']
else:
return [data]
def test_connection(self, connection_config: dict) -> bool:
"""测试JSON连接"""
try:
source = connection_config.get('source')
if source.startswith('http'):
response = requests.head(source, timeout=5)
return response.status_code == 200
else:
return os.path.exists(source)
except:
return False
class CSVConnector(BaseConnector):
"""CSV数据连接器"""
def extract(self, config: dict) -> List[dict]:
"""从CSV文件抽取数据"""
source = config['source']
encoding = config.get('encoding', 'utf-8')
delimiter = config.get('delimiter', ',')
df = pd.read_csv(source, encoding=encoding, delimiter=delimiter)
return df.to_dict('records')
def test_connection(self, connection_config: dict) -> bool:
"""测试CSV连接"""
try:
return os.path.exists(connection_config.get('source'))
except:
return False
class DatabaseConnector(BaseConnector):
"""数据库连接器"""
def __init__(self):
self.connections = {}
def extract(self, config: dict) -> List[dict]:
"""从数据库抽取数据"""
connection_key = self._get_connection_key(config['connection'])
if connection_key not in self.connections:
self.connections[connection_key] = self._create_connection(
config['connection']
)
conn = self.connections[connection_key]
query = config.get('query', {})
sql = query.get('sql')
if sql:
df = pd.read_sql(sql, conn)
else:
table = query.get('table')
where = query.get('where', '1=1')
sql = f"SELECT * FROM {table} WHERE {where}"
df = pd.read_sql(sql, conn)
return df.to_dict('records')
def _create_connection(self, connection_config: dict):
"""创建数据库连接"""
db_type = connection_config.get('type', 'postgresql')
if db_type == 'postgresql':
import psycopg2
return psycopg2.connect(**connection_config['params'])
elif db_type == 'mysql':
import pymysql
return pymysql.connect(**connection_config['params'])
elif db_type == 'sqlite':
import sqlite3
return sqlite3.connect(connection_config['params']['database'])
def test_connection(self, connection_config: dict) -> bool:
"""测试数据库连接"""
try:
conn = self._create_connection(connection_config)
conn.close()
return True
except:
return False
def _get_connection_key(self, connection_config: dict) -> str:
"""生成连接键"""
import hashlib
config_str = str(sorted(connection_config.items()))
return hashlib.md5(config_str.encode()).hexdigest()
class APIConnector(BaseConnector):
"""API数据连接器"""
def __init__(self):
self.session = requests.Session()
def extract(self, config: dict) -> List[dict]:
"""从API抽取数据"""
url = config.get('source')
method = config.get('method', 'GET')
headers = config.get('headers', {})
params = config.get('params', {})
response = self.session.request(method, url, headers=headers, params=params)
if response.status_code != 200:
raise APIError(f"API request failed with status {response.status_code}")
data = response.json()
if isinstance(data, list):
return data
elif isinstance(data, dict):
if 'data' in data:
return data['data']
elif 'results' in data:
return data['results']
else:
return [data]
else:
return []
def test_connection(self, connection_config: dict) -> bool:
"""测试API连接"""
try:
url = connection_config.get('source')
response = self.session.head(url, timeout=5)
return response.status_code < 400
except:
return Falseclass IncrementalExtractor:
"""
增量抽取器
支持基于时间戳和变更数据捕获的增量抽取
"""
def __init__(self, base_extractor: DataExtractor):
self.base_extractor = base_extractor
self.change_data_capture = ChangeDataCapture()
def extract_incremental(self, source_config: dict,
timestamp_field: str = 'updated_at',
watermark: datetime = None) -> List[dict]:
"""
增量抽取数据
参数:
source_config: 数据源配置
timestamp_field: 时间戳字段名
watermark: 水印(上次抽取时间)
返回:
增量数据列表
"""
if watermark is None:
watermark = self._load_watermark(source_config)
source_config['query'] = source_config.get('query', {})
source_config['query']['filter'] = {
'field': timestamp_field,
'operator': '>',
'value': watermark.isoformat() if watermark else None
}
data = self.base_extractor.extract(source_config)
new_watermark = self._calculate_new_watermark(data, timestamp_field)
self._save_watermark(source_config, new_watermark)
return data
def _load_watermark(self, source_config: dict) -> datetime:
"""加载水印"""
key = self._generate_watermark_key(source_config)
stored = WatermarkStorage.get(key)
return datetime.fromisoformat(stored) if stored else None
def _save_watermark(self, source_config: dict, watermark: datetime):
"""保存水印"""
key = self._generate_watermark_key(source_config)
WatermarkStorage.set(key, watermark.isoformat())
def _generate_watermark_key(self, config: dict) -> str:
"""生成水印键"""
import hashlib
config_str = f"{config.get('source', '')}_{config.get('type', '')}"
return hashlib.md5(config_str.encode()).hexdigest()
def _calculate_new_watermark(self, data: List[dict],
timestamp_field: str) -> datetime:
"""计算新水印"""
if not data:
return None
timestamps = []
for record in data:
if timestamp_field in record and record[timestamp_field]:
try:
ts = record[timestamp_field]
if isinstance(ts, str):
ts = datetime.fromisoformat(ts.replace('Z', '+00:00'))
elif isinstance(ts, (int, float)):
ts = datetime.fromtimestamp(ts)
timestamps.append(ts)
except:
continue
return max(timestamps) if timestamps else None
class WatermarkStorage:
"""水印存储"""
_storage = {}
@classmethod
def get(cls, key: str) -> str:
"""获取水印"""
return cls._storage.get(key)
@classmethod
def set(cls, key: str, value: str):
"""设置水印"""
cls._storage[key] = value
class ChangeDataCapture:
"""
变更数据捕获
用于检测和处理数据变更
"""
def __init__(self):
self.change_log = []
self.last_capture_time = None
def capture_changes(self, data: List[dict], key_fields: List[str]) -> dict:
"""
捕获数据变更
返回:
{
'inserted': [...],
'updated': [...],
'deleted': [...],
'unchanged': [...]
}
"""
result = {
'inserted': [],
'updated': [],
'deleted': [],
'unchanged': []
}
current_keys = set()
for record in data:
key = self._generate_record_key(record, key_fields)
current_keys.add(key)
if key not in self.change_log:
result['inserted'].append(record)
else:
previous_record = self.change_log[key]
if self._has_changes(previous_record, record):
result['updated'].append(record)
else:
result['unchanged'].append(record)
for key, record in self.change_log.items():
if key not in current_keys:
result['deleted'].append(record)
self.change_log = {self._generate_record_key(r, key_fields): r for r in data}
return result
def _generate_record_key(self, record: dict, key_fields: List[str]) -> str:
"""生成记录键"""
key_values = [str(record.get(f, '')) for f in key_fields]
return '|'.join(key_values)
def _has_changes(self, record1: dict, record2: dict) -> bool:
"""检测变更"""
return record1 != record2class DataTransformer:
"""
数据转换器
实现流水线式数据处理
"""
def __init__(self):
self.pipeline = []
self.transform_stats = {
'total_processed': 0,
'successful': 0,
'failed': 0,
'transformations_applied': 0
}
def add_transform(self, transform_func: callable, name: str = None):
"""添加转换步骤"""
self.pipeline.append({
'func': transform_func,
'name': name or f'transform_{len(self.pipeline)}'
})
def transform(self, data: List[dict], return_stats: bool = True) -> List[dict]:
"""
执行转换流水线
参数:
data: 输入数据
return_stats: 是否返回转换统计
返回:
转换后的数据
"""
transformed_data = data
step_stats = []
for step in self.pipeline:
try:
before_count = len(transformed_data)
transformed_data = step['func'](transformed_data)
after_count = len(transformed_data)
step_stats.append({
'step': step['name'],
'status': 'success',
'input_count': before_count,
'output_count': after_count
})
self.transform_stats['transformations_applied'] += 1
except Exception as e:
step_stats.append({
'step': step['name'],
'status': 'error',
'error': str(e)
})
self.transform_stats['failed'] += 1
self.transform_stats['total_processed'] += len(data)
self.transform_stats['successful'] += len(transformed_data)
if return_stats:
return transformed_data, step_stats
return transformed_data
def get_statistics(self) -> dict:
"""获取转换统计"""
return self.transform_stats.copy()
class StandardTransforms:
"""
标准转换函数库
提供常用的数据转换函数
"""
@staticmethod
def normalize_field_names(data: List[dict],
naming_convention: str = 'snake_case') -> List[dict]:
"""
标准化字段名
参数:
naming_convention: 'snake_case' | 'camelCase' | 'PascalCase'
"""
def to_snake_case(name: str) -> str:
s1 = re.sub('(.)([A-Z][a-z]+)', r'\1_\2', name)
return re.sub('([a-z0-9])([A-Z])', r'\1_\2', s1).lower()
def to_camel_case(name: str) -> str:
components = name.split('_')
return components[0] + ''.join(x.title() for x in components[1:])
def to_pascal_case(name: str) -> str:
components = name.split('_')
return ''.join(x.title() for x in components)
transformers = {
'snake_case': to_snake_case,
'camelCase': to_camel_case,
'PascalCase': to_pascal_case
}
transformer = transformers.get(naming_convention, to_snake_case)
result = []
for record in data:
normalized = {transformer(k): v for k, v in record.items()}
result.append(normalized)
return result
@staticmethod
def remove_duplicates(data: List[dict], key_fields: List[str]) -> List[dict]:
"""基于关键字段去除重复"""
seen = set()
result = []
for record in data:
key = tuple(record.get(f) for f in key_fields)
if key not in seen:
seen.add(key)
result.append(record)
return result
@staticmethod
def filter_invalid_records(data: List[dict],
validation_rules: dict) -> List[dict]:
"""
基于验证规则过滤无效记录
参数:
validation_rules: {
'field_name': {
'type': 'required' | 'type' | 'range',
'rule': {...}
}
}
"""
result = []
for record in data:
is_valid = True
for field, rules in validation_rules.items():
rule_type = rules.get('type')
if rule_type == 'required':
if field not in record or record[field] is None:
is_valid = False
break
elif rule_type == 'type':
expected_type = rules.get('expected_type')
if field in record and record[field] is not None:
actual_type = type(record[field]).__name__
if actual_type != expected_type:
is_valid = False
break
elif rule_type == 'range':
min_val = rules.get('min')
max_val = rules.get('max')
if field in record and record[field] is not None:
try:
val = float(record[field])
if min_val is not None and val < min_val:
is_valid = False
break
if max_val is not None and val > max_val:
is_valid = False
break
except:
is_valid = False
break
if is_valid:
result.append(record)
return result
@staticmethod
def apply_field_mapping(data: List[dict], mapping: dict) -> List[dict]:
"""
应用字段映射
参数:
mapping: {'old_field_name': 'new_field_name'}
"""
result = []
for record in data:
mapped_record = {}
for field, value in record.items():
new_field = mapping.get(field, field)
mapped_record[new_field] = value
result.append(mapped_record)
return result
@staticmethod
def fill_missing_values(data: List[dict], default_values: dict) -> List[dict]:
"""
填充缺失值
参数:
default_values: {'field_name': default_value}
"""
result = []
for record in data:
filled_record = record.copy()
for field, default in default_values.items():
if field not in filled_record or filled_record[field] is None:
filled_record[field] = default
result.append(filled_record)
return resultclass DataLoader:
"""
数据加载器
支持批量加载和实时加载
"""
def __init__(self):
self.target_connectors = {}
self.load_strategies = {}
self._register_default_strategies()
def _register_default_strategies(self):
"""注册默认加载策略"""
self.register_strategy('batch', BatchLoadStrategy())
self.register_strategy('realtime', RealtimeLoadStrategy())
self.register_strategy('upsert', UpsertLoadStrategy())
def register_strategy(self, name: str, strategy: 'LoadStrategy'):
"""注册加载策略"""
self.load_strategies[name] = strategy
def load(self, data: List[dict],
target_config: dict,
strategy: str = 'batch',
batch_size: int = 1000) -> dict:
"""
加载数据到目标库
参数:
data: 待加载数据
target_config: 目标库配置
strategy: 加载策略
batch_size: 批大小
返回:
加载结果统计
"""
if strategy not in self.load_strategies:
raise ValueError(f"Unknown strategy: {strategy}")
strategy_impl = self.load_strategies[strategy]
connector = self._get_or_create_connector(target_config)
return strategy_impl.load(data, connector, target_config, batch_size)
def _get_or_create_connector(self, config: dict):
"""获取或创建目标连接器"""
config_key = self._generate_config_key(config)
if config_key not in self.target_connectors:
self.target_connectors[config_key] = self._create_connector(config)
return self.target_connectors[config_key]
def _create_connector(self, config: dict):
"""创建连接器"""
target_type = config.get('type')
if target_type == 'database':
return DatabaseTargetConnector(config)
elif target_type == 'file':
return FileTargetConnector(config)
elif target_type == 'api':
return APITargetConnector(config)
def _generate_config_key(self, config: dict) -> str:
"""生成配置键"""
import hashlib
config_str = str(sorted(config.items()))
return hashlib.md5(config_str.encode()).hexdigest()
class LoadStrategy(ABC):
"""加载策略基类"""
@abstractmethod
def load(self, data: List[dict], connector, config: dict,
batch_size: int) -> dict:
"""执行加载"""
pass
class BatchLoadStrategy(LoadStrategy):
"""批量加载策略"""
def load(self, data: List[dict], connector, config: dict,
batch_size: int) -> dict:
"""批量加载数据"""
total_count = len(data)
success_count = 0
error_count = 0
errors = []
for i in range(0, total_count, batch_size):
batch = data[i:i + batch_size]
try:
connector.insert_batch(batch)
success_count += len(batch)
except Exception as e:
error_count += len(batch)
errors.append({
'batch_start': i,
'batch_end': min(i + batch_size, total_count),
'error': str(e)
})
return {
'strategy': 'batch',
'total_count': total_count,
'success_count': success_count,
'error_count': error_count,
'errors': errors
}
class RealtimeLoadStrategy(LoadStrategy):
"""实时加载策略"""
def load(self, data: List[dict], connector, config: dict,
batch_size: int) -> dict:
"""实时加载数据"""
success_count = 0
error_count = 0
for record in data:
try:
connector.insert_one(record)
success_count += 1
time.sleep(0.001)
except Exception as e:
error_count += 1
return {
'strategy': 'realtime',
'total_count': len(data),
'success_count': success_count,
'error_count': error_count
}
class UpsertLoadStrategy(LoadStrategy):
"""Upsert加载策略(存在则更新,不存在则插入)"""
def load(self, data: List[dict], connector, config: dict,
batch_size: int) -> dict:
"""Upsert加载数据"""
key_fields = config.get('key_fields', ['id'])
success_count = 0
update_count = 0
insert_count = 0
error_count = 0
for record in data:
try:
key_values = {k: record.get(k) for k in key_fields}
if connector.exists(key_values):
connector.update(key_values, record)
update_count += 1
else:
connector.insert_one(record)
insert_count += 1
success_count += 1
except Exception as e:
error_count += 1
return {
'strategy': 'upsert',
'total_count': len(data),
'success_count': success_count,
'update_count': update_count,
'insert_count': insert_count,
'error_count': error_count
}class RoutingStrategy:
"""
路由策略
根据数据特征路由到不同的目标
"""
def __init__(self):
self.routing_rules = []
def add_rule(self, condition: callable, target: str):
"""添加路由规则"""
self.routing_rules.append({
'condition': condition,
'target': target
})
def route(self, record: dict) -> str:
"""路由单条记录"""
for rule in self.routing_rules:
if rule['condition'](record):
return rule['target']
return 'default'
class PartitionStrategy:
"""
分区策略
根据数据特征进行分区
"""
def __init__(self, partition_fields: List[str] = None):
self.partition_fields = partition_fields or ['date', 'category']
def get_partition_key(self, record: dict) -> str:
"""获取分区键"""
partition_parts = []
for field in self.partition_fields:
value = record.get(field, 'unknown')
partition_parts.append(str(value))
return '_'.join(partition_parts)
def group_by_partition(self, data: List[dict]) -> dict:
"""按分区键分组"""
partitions = {}
for record in data:
key = self.get_partition_key(record)
if key not in partitions:
partitions[key] = []
partitions[key].append(record)
return partitionsclass DataLineageTracker:
"""
数据血缘追踪器
记录数据从源头到目标的完整流转路径
"""
def __init__(self):
self.lineage_graph = LineageGraph()
self.node_registry = {}
def register_node(self, node_id: str, node_type: str, metadata: dict):
"""
注册血缘节点
参数:
node_id: 节点ID
node_type: 'source' | 'transform' | 'target'
metadata: 节点元数据
"""
self.node_registry[node_id] = {
'type': node_type,
'metadata': metadata,
'created_at': datetime.now().isoformat()
}
self.lineage_graph.add_node(node_id, node_type, metadata)
def register_edge(self, from_node: str, to_node: str,
transform_type: str = None,
metadata: dict = None):
"""
注册血缘边
参数:
from_node: 源节点
to_node: 目标节点
transform_type: 转换类型
metadata: 边元数据
"""
self.lineage_graph.add_edge(
from_node,
to_node,
transform_type=transform_type,
metadata=metadata or {}
)
def record_data_flow(self, source_id: str, target_id: str,
record_count: int,
transformation: str = None):
"""
记录数据流动
参数:
source_id: 源节点ID
target_id: 目标节点ID
record_count: 流动的记录数
transformation: 应用的处理类型
"""
self.lineage_graph.record_flow(
source_id,
target_id,
record_count=record_count,
transformation=transformation
)
def get_lineage(self, node_id: str, direction: str = 'both') -> dict:
"""
获取数据血缘
参数:
node_id: 节点ID
direction: 'upstream' | 'downstream' | 'both'
返回:
血缘路径信息
"""
if direction == 'upstream':
return self.lineage_graph.get_upstream_lineage(node_id)
elif direction == 'downstream':
return self.lineage_graph.get_downstream_lineage(node_id)
else:
return {
'upstream': self.lineage_graph.get_upstream_lineage(node_id),
'downstream': self.lineage_graph.get_downstream_lineage(node_id)
}
def get_full_lineage_tree(self, root_id: str) -> dict:
"""获取完整血缘树"""
visited = set()
def build_tree(node_id: str, depth: int = 0) -> dict:
if node_id in visited or depth > 10:
return None
visited.add(node_id)
node_info = self.node_registry.get(node_id, {})
upstream = self.lineage_graph.get_upstream_lineage(node_id)
downstream = self.lineage_graph.get_downstream_lineage(node_id)
return {
'id': node_id,
'type': node_info.get('type'),
'metadata': node_info.get('metadata'),
'upstream_count': len(upstream),
'downstream_count': len(downstream),
'upstream': [build_tree(n['id'], depth + 1) for n in upstream[:5]],
'downstream': [build_tree(n['id'], depth + 1) for n in downstream[:5]]
}
return build_tree(root_id)
class LineageGraph:
"""血缘图"""
def __init__(self):
self.nodes = {}
self.edges = {}
def add_node(self, node_id: str, node_type: str, metadata: dict):
"""添加节点"""
self.nodes[node_id] = {
'type': node_type,
'metadata': metadata
}
self.edges[node_id] = {'in': [], 'out': []}
def add_edge(self, from_node: str, to_node: str,
transform_type: str = None, metadata: dict = None):
"""添加边"""
if from_node not in self.nodes:
self.add_node(from_node, 'unknown', {})
if to_node not in self.nodes:
self.add_node(to_node, 'unknown', {})
self.edges[from_node]['out'].append({
'to': to_node,
'transform_type': transform_type,
'metadata': metadata or {}
})
self.edges[to_node]['in'].append({
'from': from_node,
'transform_type': transform_type,
'metadata': metadata or {}
})
def record_flow(self, from_node: str, to_node: str,
record_count: int, transformation: str = None):
"""记录数据流动"""
for edge in self.edges[from_node]['out']:
if edge['to'] == to_node:
if 'flow_stats' not in edge:
edge['flow_stats'] = []
edge['flow_stats'].append({
'timestamp': datetime.now().isoformat(),
'record_count': record_count,
'transformation': transformation
})
def get_upstream_lineage(self, node_id: str) -> List[dict]:
"""获取上游血缘"""
upstream = []
for edge in self.edges[node_id]['in']:
upstream.append({
'id': edge['from'],
'transform_type': edge.get('transform_type'),
'metadata': edge.get('metadata', {})
})
return upstream
def get_downstream_lineage(self, node_id: str) -> List[dict]:
"""获取下游血缘"""
downstream = []
for edge in self.edges[node_id]['out']:
downstream.append({
'id': edge['to'],
'transform_type': edge.get('transform_type'),
'metadata': edge.get('metadata', {})
})
return downstream本章节为你提供的核心技术价值:将AI字段降噪技术应用于威胁情报处理、日志分析、资产台账管理等典型信息安全场景,提供完整的实战代码和效果评估。
威胁情报(Threat Intelligence)中的IOC(Indicators of Compromise)字段处理是AI字段降噪的典型应用场景。
class IOCFieldProcessor:
"""
IOC字段处理器
专门处理威胁情报中的IOC字段
"""
def __init__(self):
self.solution = AIFieldDenoisingSolution()
self.type_inferrer = IntelligentTypeInferrer()
self.value_validator = ValueRangeValidator()
self._setup_ioc_rules()
def _setup_ioc_rules(self):
"""设置IOC领域特定的规则"""
self.value_validator.add_range_constraint('port', 0, 65535)
self.ioc_patterns = {
'ipv4': re.compile(r'^(\d{1,3}\.){3}\d{1,3}$'),
'ipv6': re.compile(r'^([0-9a-fA-F]{0,4}:){7}[0-9a-fA-F]{0,4}$'),
'domain': re.compile(r'^[\w\.-]+\.[a-z]{2,}$'),
'url': re.compile(r'^https?://'),
'md5': re.compile(r'^[a-fA-F0-9]{32}$'),
'sha1': re.compile(r'^[a-fA-F0-9]{40}$'),
'sha256': re.compile(r'^[a-fA-F0-9]{64}$'),
'email': re.compile(r'^[\w\.-]+@[\w\.-]+\.\w+$'),
'cve': re.compile(r'^CVE-\d{4}-\d{4,}$'),
}
def infer_ioc_type(self, value: str) -> dict:
"""推断IOC类型"""
if not value or not isinstance(value, str):
return {'ioc_type': 'unknown', 'confidence': 0, 'evidence': 'invalid_input'}
value = value.strip()
for ioc_type, pattern in self.ioc_patterns.items():
if pattern.match(value):
if ioc_type == 'ipv4':
parts = value.split('.')
if all(0 <= int(p) <= 255 for p in parts):
return {'ioc_type': 'ipv4', 'confidence': 1.0, 'evidence': 'pattern_match'}
elif ioc_type == 'domain':
if len(value) < 4:
continue
return {'ioc_type': 'domain', 'confidence': 0.95, 'evidence': 'pattern_match'}
else:
return {'ioc_type': ioc_type, 'confidence': 1.0, 'evidence': 'pattern_match'}
return {'ioc_type': 'unknown', 'confidence': 0, 'evidence': 'no_pattern_match'}
def process_ioc_record(self, raw_record: dict) -> dict:
"""处理原始IOC记录"""
issues = []
processed = {}
for field, value in raw_record.items():
if value is None:
processed[field] = None
continue
if isinstance(value, str):
value = value.strip()
if field in ['indicator', 'value', 'ioc', 'observable']:
ioc_result = self.infer_ioc_type(str(value))
processed['ioc_type'] = ioc_result['ioc_type']
processed['ioc_confidence'] = ioc_result['confidence']
if ioc_result['confidence'] < 0.5:
issues.append({
'field': field,
'issue': 'ioc_type_uncertain',
'detail': f"无法识别的IOC类型: {value}"
})
if processed.get('ioc_type') == 'ipv4':
processed[field] = self._standardize_ipv4(value)
elif processed.get('ioc_type') == 'domain':
processed[field] = self._standardize_domain(value)
elif 'hash' in processed.get('ioc_type', ''):
processed[field] = value.lower()
if field == 'port':
validation = self.value_validator.validate(field, value)
if not validation['is_valid']:
issues.append({
'field': field,
'issue': 'port_out_of_range',
'detail': validation['error_message']
})
processed[field] = value
reliability = self.solution.reliability_scorer.score(processed)
standardized = self._generate_standard_ioc_output(processed, processed.get('ioc_type'))
return {
'processed_record': processed,
'ioc_type': processed.get('ioc_type', 'unknown'),
'reliability_score': reliability,
'issues': issues,
'standardized_output': standardized
}
def _standardize_ipv4(self, ip: str) -> str:
"""标准化IPv4地址"""
parts = ip.split('.')
return '.'.join(str(min(255, max(0, int(p)))) for p in parts)
def _standardize_domain(self, domain: str) -> str:
"""标准化域名"""
domain = domain.lower()
domain = re.sub(r'^https?://', '', domain)
domain = domain.split('/')[0]
domain = domain.split(':')[0]
return domain
def _generate_standard_ioc_output(self, record: dict, ioc_type: str) -> dict:
"""生成标准化的IOC输出格式"""
return {
'type': ioc_type,
'value': record.get('indicator') or record.get('value'),
'confidence': record.get('ioc_confidence', 0),
'first_seen': record.get('first_seen'),
'last_seen': record.get('last_seen'),
'threat_type': record.get('threat_type'),
'source': record.get('source'),
'tags': record.get('tags', [])
}
def batch_process(self, raw_records: List[dict]) -> dict:
"""批量处理IOC记录"""
results = []
stats = {
'total': len(raw_records),
'processed': 0,
'issues_found': 0,
'by_type': {}
}
for record in raw_records:
result = self.process_ioc_record(record)
results.append(result)
stats['processed'] += 1
if result['issues']:
stats['issues_found'] += 1
ioc_type = result['ioc_type']
stats['by_type'][ioc_type] = stats['by_type'].get(ioc_type, 0) + 1
return {
'results': results,
'statistics': stats
}
class ReliabilityScorer:
"""
可靠性评分器
为IOC记录生成可靠性评分
"""
def __init__(self):
self.confidence_weights = {
'source_reliability': 0.3,
'ioc_confidence': 0.3,
'data_completeness': 0.2,
'freshness': 0.2
}
def score(self, record: dict) -> dict:
"""为记录评分"""
scores = {}
scores['source_reliability'] = self._score_source_reliability(record)
scores['ioc_confidence'] = record.get('ioc_confidence', 0)
scores['data_completeness'] = self._score_completeness(record)
scores['freshness'] = self._score_freshness(record)
overall = sum(
scores[k] * self.confidence_weights[k]
for k in self.confidence_weights
)
return {
'overall_score': overall,
'component_scores': scores,
'grade': self._score_to_grade(overall)
}
def _score_source_reliability(self, record: dict) -> float:
"""评分来源可靠性"""
source = record.get('source', '').lower()
reliable_sources = ['alienvault', 'threatconnect', ' Recorded Future']
for src in reliable_sources:
if src.lower() in source:
return 0.9
return 0.5
def _score_completeness(self, record: dict) -> float:
"""评分数据完整性"""
important_fields = ['value', 'type', 'source', 'first_seen']
filled = sum(1 for f in important_fields if record.get(f))
return filled / len(important_fields)
def _score_freshness(self, record: dict) -> float:
"""评分数据新鲜度"""
if 'last_seen' not in record:
return 0.5
try:
last_seen = record['last_seen']
if isinstance(last_seen, str):
last_seen = datetime.fromisoformat(last_seen.replace('Z', '+00:00'))
days_old = (datetime.now() - last_seen).days
if days_old <= 7:
return 1.0
elif days_old <= 30:
return 0.8
elif days_old <= 90:
return 0.6
else:
return 0.3
except:
return 0.5
def _score_to_grade(self, score: float) -> str:
"""分数转等级"""
if score >= 0.9:
return 'A+'
elif score >= 0.85:
return 'A'
elif score >= 0.8:
return 'B+'
elif score >= 0.75:
return 'B'
elif score >= 0.7:
return 'C'
else:
return 'D'class IOCFormatStandardizer:
"""
IOC格式标准化器
将多样化的IOC格式统一为标准表示
"""
def __init__(self):
self.standardizers = {
'ipv4': self._standardize_ipv4,
'ipv6': self._standardize_ipv6,
'domain': self._standardize_domain,
'url': self._standardize_url,
'md5': self._standardize_md5,
'sha1': self._standardize_sha1,
'sha256': self._standardize_sha256,
'email': self._standardize_email,
'cve': self._standardize_cve
}
def standardize(self, ioc_type: str, value: str) -> dict:
"""标准化IOC值"""
standardizer = self.standardizers.get(ioc_type)
if standardizer:
try:
result = standardizer(value)
return {
'standardized': result,
'success': True,
'original': value
}
except Exception as e:
return {
'standardized': None,
'success': False,
'error': str(e),
'original': value
}
return {
'standardized': value,
'success': True,
'original': value
}
def _standardize_ipv4(self, ip: str) -> str:
"""标准化IPv4"""
ip = ip.strip()
parts = ip.split('.')
if len(parts) != 4:
raise ValueError(f"Invalid IPv4 format: {ip}")
standardized_parts = []
for part in parts:
try:
val = int(part)
if val < 0 or val > 255:
raise ValueError(f"Octet out of range: {val}")
standardized_parts.append(str(val))
except ValueError:
raise ValueError(f"Invalid octet: {part}")
return '.'.join(standardized_parts)
def _standardize_ipv6(self, ip: str) -> str:
"""标准化IPv6"""
ip = ip.strip().lower()
ip = re.sub(r'::+', ':', ip)
return ip
def _standardize_domain(self, domain: str) -> str:
"""标准化域名"""
domain = domain.strip().lower()
domain = re.sub(r'^https?://', '', domain)
domain = domain.split('/')[0]
domain = domain.split(':')[0]
domain = domain.strip('.')
return domain
def _standardize_url(self, url: str) -> str:
"""标准化URL"""
url = url.strip()
if not url.startswith(('http://', 'https://')):
url = 'https://' + url
parsed = urlparse(url)
standardized = f"{parsed.scheme}://{parsed.netloc}{parsed.path}"
if parsed.query:
standardized += f"?{parsed.query}"
return standardized
def _standardize_md5(self, hash_val: str) -> str:
"""标准化MD5"""
hash_val = hash_val.strip().lower()
if not re.match(r'^[a-f0-9]{32}$', hash_val):
raise ValueError(f"Invalid MD5 format: {hash_val}")
return hash_val
def _standardize_sha1(self, hash_val: str) -> str:
"""标准化SHA1"""
hash_val = hash_val.strip().lower()
if not re.match(r'^[a-f0-9]{40}$', hash_val):
raise ValueError(f"Invalid SHA1 format: {hash_val}")
return hash_val
def _standardize_sha256(self, hash_val: str) -> str:
"""标准化SHA256"""
hash_val = hash_val.strip().lower()
if not re.match(r'^[a-f0-9]{64}$', hash_val):
raise ValueError(f"Invalid SHA256 format: {hash_val}")
return hash_val
def _standardize_email(self, email: str) -> str:
"""标准化邮箱"""
email = email.strip().lower()
if not re.match(r'^[\w\.-]+@[\w\.-]+\.\w+$', email):
raise ValueError(f"Invalid email format: {email}")
return email
def _standardize_cve(self, cve: str) -> str:
"""标准化CVE"""
cve = cve.strip().upper()
if not re.match(r'^CVE-\d{4}-\d{4,}$', cve):
raise ValueError(f"Invalid CVE format: {cve}")
return cveclass SecurityLogTimestampProcessor:
"""
安全日志时间戳处理器
处理多样化的日志时间格式
"""
def __init__(self):
self.standardizer = FormatStandardizer()
self.timestamp_patterns = [
{'pattern': r'(\d{4}-\d{2}-\d{2})[T ](\d{2}:\d{2}:\d{2})', 'format': '%Y-%m-%d %H:%M:%S'},
{'pattern': r'([A-Z][a-z]{2}\s+\d{1,2}\s+\d{2}:\d{2}:\d{2})', 'format': '%b %d %H:%M:%S'},
{'pattern': r'\[(\d{2}/[A-Z][a-z]{2}/\d{4}:\d{2}:\d{2}:\d{2})', 'format': '%d/%b/%Y:%H:%M:%S'},
{'pattern': r'^(\d{10})$', 'format': 'unix_seconds'},
{'pattern': r'^(\d{13})$', 'format': 'unix_millis'},
]
def parse_timestamp(self, timestamp_str: str) -> dict:
"""解析时间戳字符串"""
if not timestamp_str:
return {'parsed': False, 'confidence': 0}
original = str(timestamp_str).strip()
if re.match(r'^\d{10,13}$', original):
timestamp_int = int(original)
if timestamp_int > 1e12:
unix_ts = timestamp_int / 1000
else:
unix_ts = timestamp_int
try:
dt = datetime.fromtimestamp(unix_ts)
return {
'parsed': True,
'standardized': dt.strftime('%Y-%m-%d %H:%M:%S'),
'unix_timestamp': unix_ts,
'original': original,
'original_format': 'unix_timestamp',
'confidence': 1.0
}
except:
pass
for tp in self.timestamp_patterns:
match = re.search(tp['pattern'], original)
if match:
try:
if tp['format'] == 'unix_seconds' or tp['format'] == 'unix_millis':
continue
dt = datetime.strptime(match.group(0), tp['format'])
return {
'parsed': True,
'standardized': dt.strftime('%Y-%m-%d %H:%M:%S'),
'unix_timestamp': dt.timestamp(),
'original': original,
'original_format': tp['format'],
'confidence': 0.95
}
except:
continue
return {
'parsed': False,
'standardized': None,
'unix_timestamp': None,
'original': original,
'original_format': 'unknown',
'confidence': 0
}
def process_log_record(self, log_record: dict) -> dict:
"""处理单条日志记录的时间字段"""
time_fields = ['timestamp', 'time', 'datetime', '@timestamp', 'date', 'logged_at']
processed = log_record.copy()
time_field_found = None
parsing_result = None
for field in time_fields:
if field in log_record and log_record[field]:
result = self.parse_timestamp(log_record[field])
if result['parsed']:
time_field_found = field
parsing_result = result
processed[f'{field}_standardized'] = result['standardized']
processed[f'{field}_unix'] = result['unix_timestamp']
break
if not time_field_found:
return {
'processed': processed,
'time_field': None,
'parsing_success': False,
'issues': ['未找到时间字段']
}
freshness_result = None
if parsing_result['unix_timestamp']:
current_ts = datetime.now().timestamp()
age_seconds = current_ts - parsing_result['unix_timestamp']
freshness_result = {
'age_seconds': age_seconds,
'age_hours': age_seconds / 3600,
'is_fresh': age_seconds < 86400
}
return {
'processed': processed,
'time_field': time_field_found,
'parsing_success': True,
'parsing_result': parsing_result,
'freshness': freshness_result,
'issues': [] if parsing_result['parsed'] else ['时间戳解析失败']
}
class LogLevelClassifier:
"""
日志级别分类器
识别和标准化日志级别
"""
def __init__(self):
self.level_patterns = {
'critical': ['critical', 'crit', 'fatal', 'emergency', 'emerg'],
'error': ['error', 'err', 'severe'],
'warning': ['warning', 'warn'],
'info': ['info', 'information', 'notice'],
'debug': ['debug', 'trace', 'verbose']
}
self.level_priority = {
'critical': 5,
'error': 4,
'warning': 3,
'info': 2,
'debug': 1
}
def classify(self, level_str: str) -> dict:
"""分类日志级别"""
if not level_str:
return {'level': 'unknown', 'confidence': 0}
level_lower = str(level_str).lower().strip()
for level, patterns in self.level_patterns.items():
for pattern in patterns:
if pattern in level_lower:
return {
'level': level,
'confidence': 0.95,
'original': level_str
}
return {'level': 'unknown', 'confidence': 0, 'original': level_str}
def normalize_level(self, level_str: str) -> str:
"""标准化日志级别"""
result = self.classify(level_str)
return result['level']
def is_security_relevant(self, level: str) -> bool:
"""判断是否为安全相关级别"""
security_levels = {'critical', 'error', 'warning'}
return level in security_levelsclass AssetFieldProcessor:
"""
资产字段处理器
处理安全资产台账的标准化和校验
"""
def __init__(self):
self.value_validator = ValueRangeValidator()
self.conjunction_detector = ContradictionDetector()
self.reliability_scorer = ReliabilityScorer()
self._setup_asset_rules()
def _setup_asset_rules(self):
"""设置资产领域特定规则"""
self.valid_asset_types = {
'server', 'workstation', 'laptop', 'mobile', 'network_device',
'security_device', 'storage', 'cloud_instance', 'container', 'iot_device'
}
self.valid_asset_status = {
'active', 'inactive', 'maintenance', 'decommissioned',
'onboarding', 'offboarding', 'suspended'
}
self.value_validator.add_enum_constraint('asset_type', list(self.valid_asset_types))
self.value_validator.add_enum_constraint('status', list(self.valid_asset_status))
self.conjunction_detector.add_temporal_rule(
'decommission_date', 'created_date', '<',
'资产下线时间不应早于创建时间'
)
def normalize_asset_record(self, raw_record: dict) -> dict:
"""标准化资产记录"""
issues = []
actions = []
normalized = {}
for field, value in raw_record.items():
if value is None:
normalized[field] = None
continue
field_lower = field.lower()
normalized_value = value
field_mapping = {
'hostname': ['host', 'server_name', 'machine_name', 'computer_name'],
'ip_address': ['ip', 'server_ip', 'host_ip', 'ip_addr'],
'mac_address': ['mac', 'physical_address', 'ethernet_address'],
'asset_type': ['type', 'device_type', 'classification'],
'status': ['state', 'asset_state', 'current_state'],
}
for std_name, aliases in field_mapping.items():
if field_lower in aliases or field_lower == std_name:
if field != std_name:
actions.append(f"字段重命名: {field} -> {std_name}")
normalized_value = self._normalize_field_value(std_name, value)
normalized[std_name] = normalized_value
break
else:
normalized[field] = value
if std_name in ['asset_type', 'status']:
validation = self.value_validator.validate(std_name, normalized_value)
if not validation['is_valid']:
issues.append({
'field': std_name,
'issue': 'invalid_enum_value',
'original_value': normalized_value,
'suggested': validation['suggested_value']
})
conjunction_issues = self.conjunction_detector.detect(normalized)
issues.extend([{
'field': 'cross_field',
'issue': 'conjunction_violation',
'detail': i['message']
} for i in conjunction_issues])
reliability = self.reliability_scorer.score(normalized)
return {
'standardized': normalized,
'issues': issues,
'reliability_score': reliability,
'normalization_actions': actions,
'quality_grade': reliability['grade']
}
def _normalize_field_value(self, field_name: str, value) -> any:
"""标准化字段值"""
if value is None:
return None
if field_name in ['asset_type', 'status']:
return str(value).lower().strip()
if field_name == 'ip_address':
return self._standardize_ip(value)
if field_name == 'mac_address':
return self._standardize_mac(value)
return value
def _standardize_ip(self, ip: str) -> str:
"""标准化IP地址"""
ip = ip.strip()
parts = ip.split('.')
if len(parts) == 4:
return '.'.join(str(min(255, max(0, int(p)))) for p in parts)
return ip
def _standardize_mac(self, mac: str) -> str:
"""标准化MAC地址"""
mac = re.sub(r'[^0-9a-fA-F]', '', mac)
if len(mac) == 12:
return ':'.join([mac[i:i+2] for i in range(0, 12, 2)])
return mac
def validate_asset_relationships(self, assets: List[dict]) -> List[dict]:
"""验证资产关联关系"""
validation_results = []
asset_index = {a.get('asset_id'): a for a in assets if a.get('asset_id')}
for asset in assets:
issues = []
if asset.get('parent_asset_id'):
parent_id = asset['parent_asset_id']
if parent_id not in asset_index:
issues.append({
'issue': 'orphan_asset',
'detail': f"父资产 {parent_id} 不存在"
})
if asset.get('related_assets'):
for related_id in asset['related_assets']:
if related_id not in asset_index:
issues.append({
'issue': 'broken_relationship',
'detail': f"关联资产 {related_id} 不存在"
})
validation_results.append({
'asset_id': asset.get('asset_id'),
'issues': issues,
'is_valid': len(issues) == 0
})
return validation_results
class FormatStandardizer:
"""
格式标准化器
将多样化的数据格式统一为标准表示
"""
def __init__(self):
self.date_formats = [
'%Y-%m-%d',
'%Y/%m/%d',
'%d-%m-%Y',
'%d/%m/%Y',
'%m-%d-%Y',
'%m/%d/%Y',
'%Y%m%d',
'%d-%b-%Y',
'%b %d, %Y',
]
def standardize_date(self, value: str) -> dict:
"""日期格式标准化"""
if not value or not isinstance(value, str):
return {'standardized': None, 'original': value, 'confidence': 0}
value = value.strip()
for fmt in self.date_formats:
try:
parsed_date = datetime.strptime(value, fmt)
return {
'standardized': parsed_date.strftime('%Y-%m-%d'),
'original': value,
'detected_format': fmt,
'confidence': 0.95
}
except ValueError:
continue
fuzzy_result = self._fuzzy_date_parse(value)
if fuzzy_result:
return fuzzy_result
return {
'standardized': None,
'original': value,
'confidence': 0,
'error': '无法解析日期格式'
}
def _fuzzy_date_parse(self, value: str) -> dict:
"""模糊日期解析"""
pattern1 = re.compile(r'(\d{4})[-/](\d{1,2})[-/](\d{1,2})\s+(\d{1,2}):(\d{2}):(\d{2})')
match = pattern1.match(value)
if match:
return {
'standardized': f'{match.group(1)}-{match.group(2).zfill(2)}-{match.group(3).zfill(2)}',
'original': value,
'detected_format': 'fuzzy_iso_datetime',
'confidence': 0.7
}
return None
def standardize_whitespace(self, value: str, normalize_spaces: bool = True) -> str:
"""空白字符标准化"""
if not isinstance(value, str):
return value
result = value
if normalize_spaces:
result = re.sub(r'\s+', ' ', result)
result = result.strip()
return resultclass AssetRiskAssessor:
"""
资产风险评估器
基于资产属性评估风险等级
"""
def __init__(self):
self.risk_factors = {
'exposed_services': {'weight': 0.25, 'high_risk': ['ssh', 'rdp', 'telnet']},
'outdated_os': {'weight': 0.20},
'missing_patches': {'weight': 0.20},
'internet_facing': {'weight': 0.15},
'sensitive_data': {'weight': 0.10},
'asset_criticality': {'weight': 0.10}
}
def assess_risk(self, asset: dict) -> dict:
"""评估资产风险"""
risk_scores = {}
total_risk = 0
for factor, config in self.risk_factors.items():
score = self._calculate_factor_score(asset, factor, config)
risk_scores[factor] = score
total_risk += score * config['weight']
return {
'overall_risk_score': total_risk,
'risk_level': self._score_to_risk_level(total_risk),
'factor_scores': risk_scores,
'recommendations': self._generate_recommendations(asset, risk_scores)
}
def _calculate_factor_score(self, asset: dict, factor: str, config: dict) -> float:
"""计算单个风险因子分数"""
if factor == 'exposed_services':
services = asset.get('services', [])
high_risk_count = sum(
1 for s in services
if s in config['high_risk']
)
return min(1.0, high_risk_count * 0.2)
elif factor == 'outdated_os':
os_info = asset.get('os_info', {})
is_outdated = os_info.get('is_outdated', False)
return 1.0 if is_outdated else 0.0
elif factor == 'missing_patches':
missing = asset.get('missing_patches', [])
patch_severity = asset.get('avg_patch_severity', 0)
return min(1.0, (len(missing) * 0.1 + patch_severity * 0.5))
elif factor == 'internet_facing':
return 1.0 if asset.get('is_internet_facing', False) else 0.0
elif factor == 'sensitive_data':
return 1.0 if asset.get('has_sensitive_data', False) else 0.0
elif factor == 'asset_criticality':
criticality_map = {'critical': 1.0, 'high': 0.75, 'medium': 0.5, 'low': 0.25}
return criticality_map.get(asset.get('criticality', 'low'), 0.25)
return 0.0
def _score_to_risk_level(self, score: float) -> str:
"""风险分数转等级"""
if score >= 0.8:
return 'critical'
elif score >= 0.6:
return 'high'
elif score >= 0.4:
return 'medium'
else:
return 'low'
def _generate_recommendations(self, asset: dict, factor_scores: dict) -> List[str]:
"""生成风险缓解建议"""
recommendations = []
if factor_scores.get('exposed_services', 0) > 0.5:
recommendations.append("立即关闭高风险暴露服务")
if factor_scores.get('outdated_os', 0) > 0.5:
recommendations.append("升级操作系统至最新版本")
if factor_scores.get('missing_patches', 0) > 0.5:
recommendations.append("尽快应用关键安全补丁")
if factor_scores.get('internet_facing', 0) > 0.5:
recommendations.append("审查互联网暴露策略")
return recommendations模块名称 | 功能描述 | 核心类 |
|---|---|---|
AIFieldDenoisingSolution | 完整解决方案主类 | Solution |
AdaptiveCorrectionEngine | 自适应修正引擎 | Engine |
DynamicThresholdCalculator | 动态阈值计算器 | Calculator |
AdaptiveWeightAllocator | 自适应权重分配器 | Allocator |
MultiStrategySelector | 多策略选择器 | Selector |
OnlineLearningMechanism | 在线学习机制 | Mechanism |
FeedbackLoopMechanism | 反馈循环机制 | Mechanism |
DataExtractor | 数据抽取器 | Extractor |
DataTransformer | 数据转换器 | Transformer |
DataLoader | 数据加载器 | Loader |
DataLineageTracker | 血缘追踪器 | Tracker |
IOCFieldProcessor | IOC字段处理器 | Processor |
SecurityLogTimestampProcessor | 日志时间戳处理器 | Processor |
AssetFieldProcessor | 资产字段处理器 | Processor |
DEFAULT_CONFIG = {
'quality_threshold': 0.8,
'max_corrections': 3,
'window_size': 1000,
'alpha': 0.95,
'k': 1.5,
'learning_rate': 0.1,
'load_strategy': 'batch',
'batch_size': 1000,
'monitoring_interval': 60,
'health_check_interval': 30,
'max_retry_attempts': 3,
'circuit_breaker_threshold': 5
}参考链接:
关键词: AI字段降噪, 自适应修正, ETL, 动态阈值, 在线学习, 数据血缘, 威胁情报, 安全日志, 资产台账, 数据质量, 五层架构, 质量控制闭环
