[SCL] 西门子基本控制库LBC学习1 双向执行器 LBC_TwoWayActuator

TYPE "LBC_typeTwoWayActuatorProcessValues"
VERSION : 0.1
   STRUCT
      enable { ExternalWritable := 'False'} : Bool;
      commandHomePos { ExternalWritable := 'False'} : Bool;
      commandWorkPos { ExternalWritable := 'False'} : Bool;
      feedbackHomePos { ExternalWritable := 'False'} : Bool;
      feedbackWorkPos { ExternalWritable := 'False'} : Bool;
      goToHomePos { ExternalWritable := 'False'} : Bool;
      goToWorkPos { ExternalWritable := 'False'} : Bool;
      inHomePos { ExternalWritable := 'False'} : Bool;
      inWorkPos { ExternalWritable := 'False'} : Bool;
      error { ExternalWritable := 'False'} : Bool;
   END_STRUCT;

END_TYPE

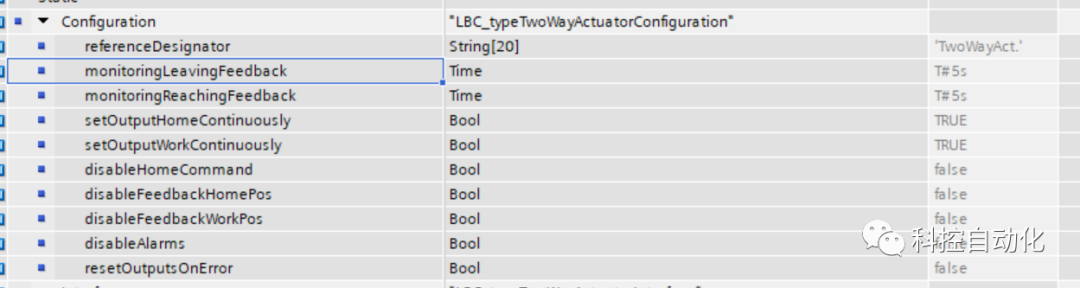

TYPE "LBC_typeTwoWayActuatorConfiguration"
VERSION : 0.1
   STRUCT
      referenceDesignator { S7_SetPoint := 'True'} : String[20] := 'TwoWayAct.';
      monitoringLeavingFeedback { S7_SetPoint := 'True'} : Time := T#5s;
      monitoringReachingFeedback { S7_SetPoint := 'True'} : Time := T#5s;
      setOutputHomeContinuously { S7_SetPoint := 'True'} : Bool := TRUE;

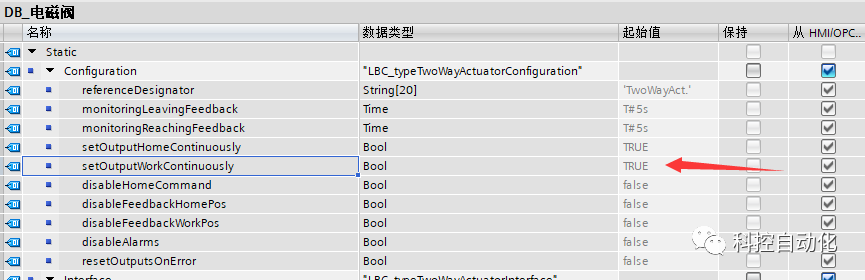

      setOutputWorkContinuously { S7_SetPoint := 'True'} : Bool := TRUE;
      disableHomeCommand { S7_SetPoint := 'True'} : Bool;
      disableFeedbackHomePos { S7_SetPoint := 'True'} : Bool;
      disableFeedbackWorkPos { S7_SetPoint := 'True'} : Bool;
      disableAlarms { S7_SetPoint := 'True'} : Bool;
      resetOutputsOnError { S7_SetPoint := 'True'} : Bool;
   END_STRUCT;

END_TYPE

TYPE "LBC_typeDiagnostics"
VERSION : 0.1
   STRUCT
      status { ExternalWritable := 'False'} : Word;
      subfunctionStatus { ExternalWritable := 'False'} : Word;
      stateNumber { ExternalWritable := 'False'} : DInt;
   END_STRUCT;

END_TYPE

TYPE "LBC_typeInterfaceCommands"
VERSION : 0.1
   STRUCT
      refreshConfiguration : Bool;
      editConfiguration : Bool;
      saveConfiguration : Bool;
      acknowledge : Bool;
   END_STRUCT;

END_TYPE

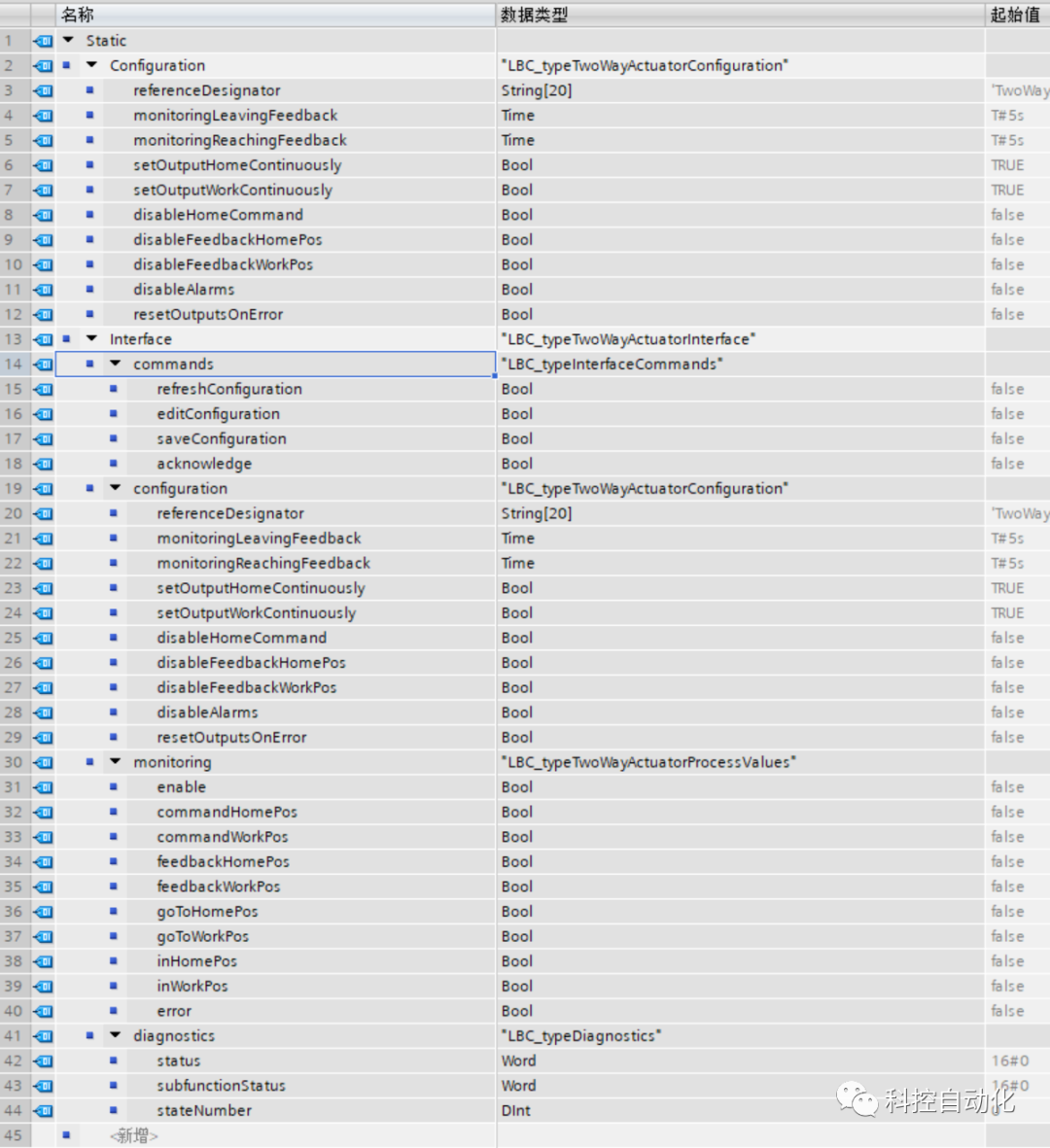

TYPE "LBC_typeTwoWayActuatorInterface"
VERSION : 0.1
   STRUCT
      commands { S7_SetPoint := 'False'} : "LBC_typeInterfaceCommands";
      configuration { S7_SetPoint := 'False'} : "LBC_typeTwoWayActuatorConfiguration";
      monitoring { ExternalWritable := 'False'; S7_SetPoint := 'False'} : "LBC_typeTwoWayActuatorProcessValues";
      diagnostics { ExternalWritable := 'False'; S7_SetPoint := 'False'} : "LBC_typeDiagnostics";
   END_STRUCT;

END_TYPE

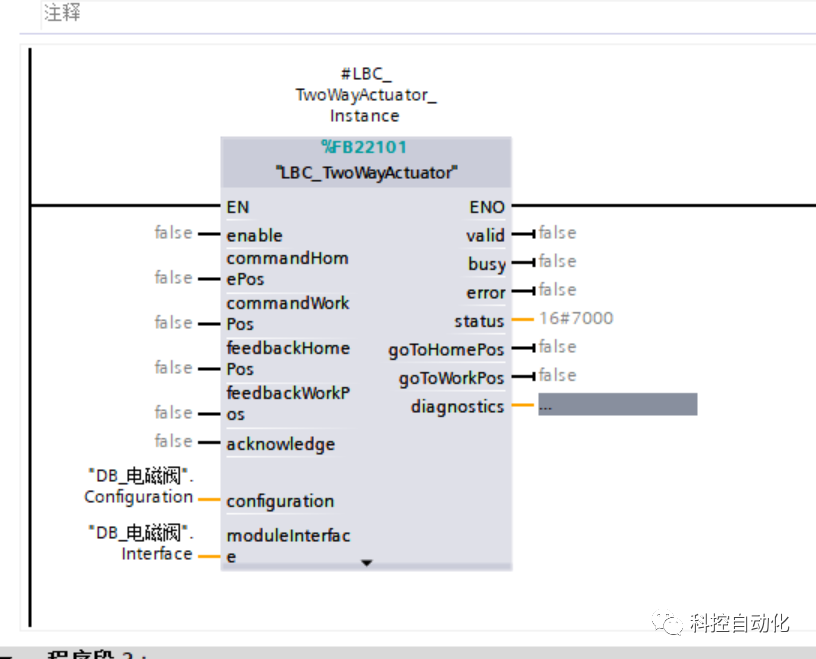

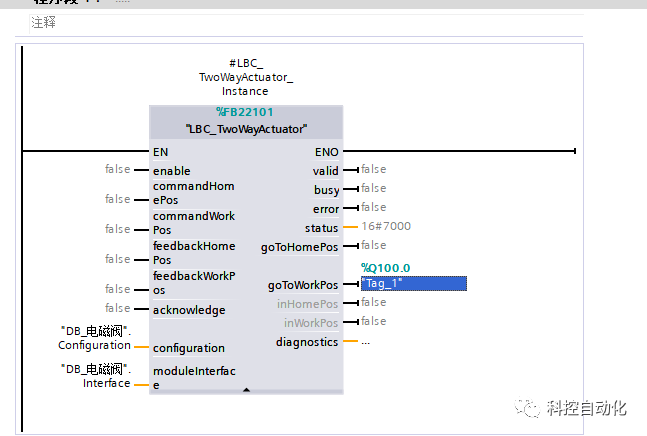

FUNCTION_BLOCK "LBC_TwoWayActuator"
{ S7_Optimized_Access := 'TRUE' }
AUTHOR : Siemens_Digital_Industry
FAMILY : LBC
NAME : LBC_TwoWayActuator
   VAR_INPUT
      enable : Bool;
      commandHomePos : Bool;
      commandWorkPos : Bool;
      feedbackHomePos : Bool;
      feedbackWorkPos : Bool;
      acknowledge : Bool;
   END_VAR

   VAR_OUTPUT
      valid { ExternalWritable := 'False'} : Bool;
      busy { ExternalWritable := 'False'} : Bool;
      error { ExternalWritable := 'False'} : Bool;
      status { ExternalWritable := 'False'} : Word := #STATUS_NO_CALL;
      goToHomePos { ExternalWritable := 'False'; S7_HiddenAssignment := 'Show'} : Bool;
      goToWorkPos { ExternalWritable := 'False'} : Bool;
      inHomePos { ExternalWritable := 'False'; S7_HiddenAssignment := 'HideIfNoParamAssigned'} : Bool;
      inWorkPos { ExternalWritable := 'False'; S7_HiddenAssignment := 'HideIfNoParamAssigned'} : Bool;
      diagnostics { ExternalWritable := 'False'} : "LBC_typeDiagnostics";
   END_VAR

   VAR_IN_OUT
      configuration : "LBC_typeTwoWayActuatorConfiguration";
      moduleInterface : "LBC_typeTwoWayActuatorInterface";
   END_VAR

   VAR
      statProcessValues { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'; S7_SetPoint := 'False'} : "LBC_typeTwoWayActuatorProcessValues";
      statDiagnostics { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'; S7_SetPoint := 'False'} : "LBC_typeDiagnostics" := (#STATUS_NO_CALL, (), ());
      statEmptyDiagnostics { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'; S7_SetPoint := 'False'} : "LBC_typeDiagnostics";
      instTimerReachPos {InstructionName := 'IEC_TIMER'; LibVersion := '1.0'; ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'; S7_SetPoint := 'False'} : IEC_TIMER;
      instTimerLeavePos {InstructionName := 'IEC_TIMER'; LibVersion := '1.0'; ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'; S7_SetPoint := 'False'} : IEC_TIMER;
      statReferenceDesignator { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : String[20];
      statDisableAlarms { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Bool;
      statEnablePrevious { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Bool;
      statAckPrevious { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Bool;
      statCmdHomePrevious { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Bool;
      statCmdWorkPrevious { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Bool;
      statValid { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Bool;
      statBusy { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Bool;
      statError { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Bool;
      statFbState { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : DInt := #FB_STATE_NO_PROCESSING;
      statFbStatePrevious { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : DInt := #FB_STATE_NO_PROCESSING;
      statErrorUserCleared { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Bool;
      statErrorAutoCleared { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Bool;
      statDisablingCompleted { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Bool;
   END_VAR

   VAR_TEMP
      tempCmdHomeRisingEdge : Bool;
      tempCmdWorkRisingEdge : Bool;
      tempMoreThanOneCommandPresent : Bool;
   END_VAR

   VAR CONSTANT
      FB_STATE_NO_PROCESSING : Int := 0;
      FB_STATE_POSITION_NOT_DEFINED : Int := 50;
      FB_STATE_IN_HOME_POSITION : Int := 51;
      FB_STATE_TO_WORK_POSITION : Int := 52;
      FB_STATE_IN_WORK_POSITION : Int := 53;
      FB_STATE_TO_HOME_POSITION : Int := 54;
      FB_STATE_ERROR_HANDLER : Int := 80;
      FB_STATE_DISABLING : Int := 90;
      STATUS_NO_ERROR_OCCURRED : Word := 16#0000;
      STATUS_NO_CALL : Word := 16#7000;
      STATUS_FIRST_CALL : Word := 16#7001;
      STATUS_SUBSEQUENT_CALL : Word := 16#7002;
      STATUS_POSITION_NOT_DEFINED : Word := 16#7003;
      STATUS_IN_HOME_POSITION : Word := 16#7004;
      STATUS_MOVE_TO_WORK_POSITION : Word := 16#7005;
      STATUS_IN_WORK_POSITION : Word := 16#7006;
      STATUS_MOVE_TO_HOME_POSITION : Word := 16#7007;
      SUB_STATUS_NO_ERROR : Word := 16#0000;
      ERR_CONFIGURATION_LEAVE_FEEDBACK_TIME_NEGATIVE : Word := 16#8201;
      ERR_CONFIGURATION_REACH_FEEDBACK_TIME_NEGATIVE : Word := 16#8202;
      ERR_MORE_THAN_ONE_CMD_PRESENT_AT_SAME_TIME : Word := 16#8400;
      ERR_MORE_THAN_ONE_FEEDBACK_PRESENT_AT_SAME_TIME : Word := 16#8401;
      ERR_TIMEOUT_HOME_POSITION : Word := 16#8402;
      ERR_TIMEOUT_WORK_POSITION : Word := 16#8403;
      ERR_INCORRECT_FEEDBACK_WORK_POSITION : Word := 16#8404;
      ERR_INCORRECT_FEEDBACK_HOME_POSITION : Word := 16#8405;
      ERR_MISSING_FEEDBACK_WORK_POSITION : Word := 16#8406;
      ERR_MISSING_FEEDBACK_HOME_POSITION : Word := 16#8407;
      ERR_NOT_LEAVING_HOME_POSITION : Word := 16#8408;
      ERR_NOT_LEAVING_WORK_POSITION : Word := 16#8409;
      ERR_UNDEFINED_STATE : Word := 16#8600;
      NEGATIVE_TIME_NOT_ALLOWED : Time := T#0s;
   END_VAR


BEGIN
  REGION BLOCK INFO HEADER
    //===============================================================================
    // Siemens AG / (c)Copyright 2020
    //-------------------------------------------------------------------------------
    // Title:            LBC_TwoWayActuator_TwoCmd
    // Comment/Function: Controls an actuator between two states (e.g. positions of a valve) with two or one control commands.
    //                   For bi stable state devices.
    // Library/Family:   LBC - Library of Basic Control modules
    // Author:           Siemens Digital Industries
    // Tested with:      S7-PLCSIM Advanced 3.0
    // Engineering:      TIA Portal V16
    // Restrictions:     ENO mechanism is not used - forced to TRUE.
    // Requirements:     PLC (S7-1200 / S7-1500)
    //-------------------------------------------------------------------------------
    // Change log table:
    // Version  | Date       | Expert in charge        | Changes applied
    //----------|------------|-------------------------|-----------------------------
    // 01.00.00 | 15.02.2021 | SIMATIC Systems Support | First released version
    //===============================================================================
  END_REGION BLOCK INFO HEADER

  REGION DESCRIPTION
  (/**/)
  END_REGION DESCRIPTION

  REGION PROCESS INPUT SIGNALS
    // Assign and initialize internal variables
    #statProcessValues.enable := #enable;
    #statProcessValues.commandHomePos := #commandHomePos;
    #statProcessValues.commandWorkPos := #commandWorkPos;
    #statProcessValues.feedbackHomePos := #feedbackHomePos;
    #statProcessValues.feedbackWorkPos := #feedbackWorkPos;

    // Positive edges
    #tempCmdHomeRisingEdge := #statProcessValues.commandHomePos AND NOT #statCmdHomePrevious;
    #tempCmdWorkRisingEdge := #statProcessValues.commandWorkPos AND NOT #statCmdWorkPrevious;
    // Save old values
    #statCmdHomePrevious := #statProcessValues.commandHomePos;
    #statCmdWorkPrevious := #statProcessValues.commandWorkPos;
    // Set temp tag to TRUE if more than one command is present
    #tempMoreThanOneCommandPresent := #statProcessValues.commandWorkPos AND (#statProcessValues.commandHomePos AND NOT #configuration.disableHomeCommand);
    // Copy configuration to static for usage in supervision
    #statDisableAlarms := #configuration.disableAlarms;
  END_REGION PROCESS INPUT SIGNALS

  REGION ALARM ACK
    // Resetting alarms on positive edge of the "ack" bit
    IF (#acknowledge OR #moduleInterface.commands.acknowledge) AND NOT #statAckPrevious AND #statErrorAutoCleared THEN
      #statDiagnostics := #statEmptyDiagnostics;
      #diagnostics := #statEmptyDiagnostics;
      #statFbState := #FB_STATE_POSITION_NOT_DEFINED;
      #statErrorAutoCleared := FALSE;
    END_IF;
    #statAckPrevious := (#acknowledge OR #moduleInterface.commands.acknowledge);
  END_REGION ALARM ACK

  REGION PARAMETER CHECK
    // Check parameter if block is enabled
    IF #statProcessValues.enable THEN
      IF #configuration.monitoringLeavingFeedback < #NEGATIVE_TIME_NOT_ALLOWED THEN
        #statDiagnostics.status := #ERR_CONFIGURATION_LEAVE_FEEDBACK_TIME_NEGATIVE;
        #statDiagnostics.stateNumber := #statFbState;
        #statErrorAutoCleared := TRUE;
        #statFbState := #FB_STATE_ERROR_HANDLER;

      ELSIF #configuration.monitoringReachingFeedback < #NEGATIVE_TIME_NOT_ALLOWED THEN
        #statDiagnostics.status := #ERR_CONFIGURATION_REACH_FEEDBACK_TIME_NEGATIVE;
        #statDiagnostics.stateNumber := #statFbState;
        #statErrorAutoCleared := TRUE;
        #statFbState := #FB_STATE_ERROR_HANDLER;
      END_IF;
    END_IF;
  END_REGION PARAMETER CHECK

  REGION ENABLING/DISABLING
    IF #statProcessValues.enable AND #statDiagnostics.status = #STATUS_NO_CALL THEN // Enable FB
      // First call; initialize FB
      #statValid := TRUE;
      #statBusy := TRUE;
      #statError := FALSE;
      #statErrorUserCleared := FALSE;
      #statErrorAutoCleared := FALSE;
      #statDiagnostics.status := #STATUS_FIRST_CALL;
      #statDiagnostics.subfunctionStatus := #SUB_STATUS_NO_ERROR;
      #statDiagnostics.stateNumber := 0;
      #diagnostics := #statEmptyDiagnostics;
      #statDisablingCompleted := FALSE;

      // Copy configuration to static for usage in associated value of supervision
      #statReferenceDesignator := #configuration.referenceDesignator;

      // Initializes moduleInterface configuration with process configuration
      #moduleInterface.configuration := #configuration;

      // Reset timers
      #instTimerLeavePos.TON(IN := FALSE,
                             PT := #configuration.monitoringLeavingFeedback);
      #instTimerReachPos.TON(IN := FALSE,
                             PT := #configuration.monitoringReachingFeedback);

      // State machine - start functionality
      #statFbState := #FB_STATE_POSITION_NOT_DEFINED;

    ELSIF NOT #statProcessValues.enable AND #statEnablePrevious THEN // Disable FB
      #statFbState := #FB_STATE_DISABLING;

    ELSIF #statDiagnostics.status = #STATUS_FIRST_CALL THEN // Set status identifier of subsequent call
      #statDiagnostics.status := #STATUS_SUBSEQUENT_CALL;
    END_IF;

    // Edge detection 'enable' input
    #statEnablePrevious := #statProcessValues.enable;
  END_REGION ENABLING/DISABLING

  REGION STATE MACHINE
    REPEAT
      #statFbStatePrevious := #statFbState;

      CASE #statFbState OF // State machine of FB
        #FB_STATE_NO_PROCESSING: // No processing active
          REGION No Processing
            ; // No processing active (Note: this state must always be present and left empty)
          END_REGION No Processing

        #FB_STATE_POSITION_NOT_DEFINED: // If block is enabled move to valid state
          REGION Position/State of the actuator not defined
            // Evaluate commands - only one allowed to be present at the same time
            IF #tempMoreThanOneCommandPresent THEN
              // Write message and stay here - no progress
              #statDiagnostics.status := #ERR_MORE_THAN_ONE_CMD_PRESENT_AT_SAME_TIME;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

              // Only one of n can be checked by using XOR for all of them together
            ELSIF ((#statProcessValues.feedbackHomePos AND NOT #configuration.disableFeedbackHomePos)
              AND (#statProcessValues.feedbackWorkPos AND NOT #configuration.disableFeedbackWorkPos))
            THEN
              // Write message and stay here - no progress
              #statDiagnostics.status := #ERR_MORE_THAN_ONE_FEEDBACK_PRESENT_AT_SAME_TIME;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

              // Checking aa first step the feedbacks
            ELSIF #statProcessValues.feedbackHomePos AND NOT #configuration.disableFeedbackHomePos THEN
              // Set next state
              #statFbState := #FB_STATE_IN_HOME_POSITION;

            ELSIF #statProcessValues.feedbackWorkPos AND NOT #configuration.disableFeedbackWorkPos THEN
              // Set next state
              #statFbState := #FB_STATE_IN_WORK_POSITION;

              // Checking for control commands or position feedback
            ELSIF (#statProcessValues.commandHomePos OR #configuration.disableHomeCommand)
              AND NOT #statProcessValues.commandWorkPos
            THEN
              // Set next state
              #statFbState := #FB_STATE_TO_HOME_POSITION;

            ELSIF #statProcessValues.commandWorkPos
              AND (NOT #statProcessValues.commandHomePos OR #configuration.disableHomeCommand)
            THEN
              // Set next state
              #statFbState := #FB_STATE_TO_WORK_POSITION;

            ELSE // Stay in state and set message
              #statDiagnostics.status := #STATUS_POSITION_NOT_DEFINED;
            END_IF;
          END_REGION Position/State of the actuator not defined

        #FB_STATE_IN_HOME_POSITION: // Actuator is at home position
          REGION In home pos
            #statErrorAutoCleared := FALSE;
            // Set output commands
            #statProcessValues.goToHomePos := #configuration.setOutputHomeContinuously;
            #statProcessValues.goToWorkPos := FALSE;

            // Evaluate commands - only one allowed to be present at the same time
            IF #tempMoreThanOneCommandPresent THEN
              // Write message and stay here - no progress
              #statDiagnostics.status := #ERR_MORE_THAN_ONE_CMD_PRESENT_AT_SAME_TIME;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

              // Go to Work position - rising edge on command
            ELSIF #tempCmdWorkRisingEdge AND (NOT #statProcessValues.commandHomePos OR #configuration.disableHomeCommand) THEN
              // Set next state
              #statFbState := #FB_STATE_TO_WORK_POSITION;

              // Missing feedback for home position
            ELSIF NOT #statProcessValues.feedbackHomePos AND NOT #configuration.disableFeedbackHomePos THEN
              #statDiagnostics.status := #ERR_MISSING_FEEDBACK_HOME_POSITION;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

              // Opposite feedback work appeared
            ELSIF #statProcessValues.feedbackWorkPos AND NOT #configuration.disableFeedbackWorkPos THEN
              #statDiagnostics.status := #ERR_INCORRECT_FEEDBACK_WORK_POSITION;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

            ELSE // Stay in state and set message
              #statDiagnostics.status := #STATUS_IN_HOME_POSITION;
            END_IF;
          END_REGION In home pos

        #FB_STATE_TO_WORK_POSITION: // Moving the actuator towards "work" position
          REGION To work pos
            #statErrorAutoCleared := FALSE;
            // Set output commands
            #statProcessValues.goToHomePos := FALSE;
            #statProcessValues.goToWorkPos := TRUE;

            // Start monitoring leaving home position
            #instTimerLeavePos.TON(IN := NOT #configuration.disableFeedbackHomePos,
                                   PT := #configuration.monitoringLeavingFeedback);
            // Start monitoring reaching work position
            #instTimerReachPos.TON(IN := TRUE,
                                   PT := #configuration.monitoringReachingFeedback);

            // Arriving at Work position - feedback present OR feedback disabled and time has expired
            IF (#statProcessValues.feedbackWorkPos AND NOT #configuration.disableFeedbackWorkPos) OR
              (#instTimerReachPos.Q AND #configuration.disableFeedbackWorkPos)
            THEN
              // Set next state
              #statFbState := #FB_STATE_IN_WORK_POSITION;

              // Evaluate commands - only one allowed to be present at the same time
            ELSIF #tempMoreThanOneCommandPresent THEN
              // Write message and stay here - no progress
              #statDiagnostics.status := #ERR_MORE_THAN_ONE_CMD_PRESENT_AT_SAME_TIME;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

              // Cancel of go to work position command
              // Program goes back to home position if home command is deactivated
            ELSIF NOT #statProcessValues.commandWorkPos
              AND (#tempCmdHomeRisingEdge OR #configuration.disableHomeCommand)
            THEN
              // Set next state
              #statFbState := #FB_STATE_TO_HOME_POSITION;

              // Time expired for leaving Home position
            ELSIF #statProcessValues.feedbackHomePos AND #instTimerLeavePos.Q THEN
              // Set state and status
              #statDiagnostics.status := #ERR_NOT_LEAVING_HOME_POSITION;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

              // Time expired for reaching Work position
            ELSIF NOT #statProcessValues.feedbackWorkPos AND #instTimerReachPos.Q THEN
              // Set state and status
              #statDiagnostics.status := #ERR_TIMEOUT_WORK_POSITION;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

            ELSE // Stay in state and set message
              #statDiagnostics.status := #STATUS_MOVE_TO_WORK_POSITION;
            END_IF;
          END_REGION To work pos

        #FB_STATE_IN_WORK_POSITION: // Actuator is at work position
          REGION In work pos
            #statErrorAutoCleared := FALSE;
            // Set output commands
            #statProcessValues.goToHomePos := FALSE;
            #statProcessValues.goToWorkPos := #configuration.setOutputWorkContinuously;

            // Evaluate commands - both can't be present at the same time
            IF #tempMoreThanOneCommandPresent THEN
              // Write message and stay here - no progress
              #statDiagnostics.status := #ERR_MORE_THAN_ONE_CMD_PRESENT_AT_SAME_TIME;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

              // Go to Home position command
            ELSIF (NOT #statProcessValues.commandWorkPos AND (#tempCmdHomeRisingEdge OR #configuration.disableHomeCommand)) THEN
              // Set next state
              #statFbState := #FB_STATE_TO_HOME_POSITION;

              // Missing feedback for work position
            ELSIF NOT #statProcessValues.feedbackWorkPos AND NOT #configuration.disableFeedbackWorkPos THEN
              #statDiagnostics.status := #ERR_MISSING_FEEDBACK_WORK_POSITION;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

              // Opposite feedback home appeared
            ELSIF #statProcessValues.feedbackHomePos AND NOT #configuration.disableFeedbackHomePos THEN
              #statDiagnostics.status := #ERR_INCORRECT_FEEDBACK_HOME_POSITION;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

            ELSE // Stay in state and set message
              #statDiagnostics.status := #STATUS_IN_WORK_POSITION;
            END_IF;
          END_REGION In work pos

        #FB_STATE_TO_HOME_POSITION: // Moving the actuator towards home position
          REGION To home pos
            #statErrorAutoCleared := FALSE;
            // Set output commands
            #statProcessValues.goToHomePos := TRUE;
            #statProcessValues.goToWorkPos := FALSE;

            // Start monitoring leaving home position
            #instTimerLeavePos.TON(IN := NOT #configuration.disableFeedbackWorkPos,
                                   PT := #configuration.monitoringLeavingFeedback);
            // Start monitoring reaching work position
            #instTimerReachPos.TON(IN := TRUE,
                                   PT := #configuration.monitoringReachingFeedback);

            // Arriving at Home position - feedback present -OR feedback disabled and Time has expired
            IF (#statProcessValues.feedbackHomePos AND NOT #configuration.disableFeedbackHomePos) OR
              (#instTimerReachPos.Q AND #configuration.disableFeedbackHomePos)
            THEN
              // Set next state
              #statFbState := #FB_STATE_IN_HOME_POSITION;

              // Evaluate commands - only one allowed to be present at the same time
            ELSIF #tempMoreThanOneCommandPresent THEN
              // Write message and stay here - no progress
              #statDiagnostics.status := #ERR_MORE_THAN_ONE_CMD_PRESENT_AT_SAME_TIME;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

              // Command work position has rising edge
            ELSIF #tempCmdWorkRisingEdge
              AND (NOT #statProcessValues.commandHomePos OR #configuration.disableHomeCommand) THEN
              // Set next state
              #statFbState := #FB_STATE_TO_WORK_POSITION;

              // Time expired for leaving Work position
            ELSIF #statProcessValues.feedbackWorkPos AND #instTimerLeavePos.Q THEN
              // Set state and status
              #statDiagnostics.status := #ERR_NOT_LEAVING_WORK_POSITION;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

              // Time expired for reaching Home position
            ELSIF NOT #statProcessValues.feedbackHomePos AND #instTimerReachPos.Q THEN
              // Set state and status
              #statDiagnostics.status := #ERR_TIMEOUT_HOME_POSITION;
              #statDiagnostics.stateNumber := #statFbState;
              #statErrorAutoCleared := TRUE;

            ELSE // Stay in state and set message
              #statDiagnostics.status := #STATUS_MOVE_TO_HOME_POSITION;
            END_IF;
          END_REGION To home pos

        #FB_STATE_ERROR_HANDLER: // Error handling state
          REGION Error handling
            // Stay here until error is acknowledged
            #statErrorAutoCleared := TRUE;
            // Reset the outputs
            #statProcessValues.goToHomePos := FALSE;
            #statProcessValues.goToWorkPos := FALSE;
          END_REGION Error handling

        #FB_STATE_DISABLING: // Disabling active
          REGION Disabling
            // Switch off control outputs
            #statProcessValues.goToHomePos := FALSE;
            #statProcessValues.goToWorkPos := FALSE;

            #statDisablingCompleted := TRUE;
          END_REGION Disabling

        ELSE // Undefined state in state machine reached
          REGION Undefined state
            #statDiagnostics.status := #ERR_UNDEFINED_STATE;
            #statDiagnostics.stateNumber := #statFbState;
            #statErrorUserCleared := TRUE;
          END_REGION Undefined state
      END_CASE;

      REGION State change handling
        // Reset the timers if state has changed
        IF #statFbStatePrevious <> #statFbState THEN
          #instTimerLeavePos.TON(IN := FALSE,
                                 PT := #configuration.monitoringLeavingFeedback);
          #instTimerReachPos.TON(IN := FALSE,
                                 PT := #configuration.monitoringReachingFeedback);
        END_IF;
      END_REGION State change handling

      REGION Reset outputs on error
        // Check if the condition for error must be acknowledged - then move to error handler state
        IF #configuration.resetOutputsOnError AND #statDiagnostics.status.%X15
          AND #statDiagnostics.status <> #ERR_MORE_THAN_ONE_CMD_PRESENT_AT_SAME_TIME
          AND #statDiagnostics.status <> #ERR_UNDEFINED_STATE
          AND #statFbState <> #FB_STATE_ERROR_HANDLER
        THEN
          #statFbState := #FB_STATE_ERROR_HANDLER;
        END_IF;
      END_REGION Reset outputs on error

      // Leave state machine if state has not changed or error is present
      // Stay in state machine if state has changed and no error is present
    UNTIL (#statFbStatePrevious = #statFbState OR #statDiagnostics.status.%X15)
    END_REPEAT;
  END_REGION STATE MACHINE

  REGION CONFIGURATION HANDLING
    // Refresh module interface configuration with process configuration
    IF #moduleInterface.commands.refreshConfiguration AND NOT #moduleInterface.commands.editConfiguration THEN
      #moduleInterface.configuration := #configuration;
    END_IF;
    #moduleInterface.commands.refreshConfiguration := FALSE;

    // Save module interface configuration to process configuration
    IF #moduleInterface.commands.saveConfiguration AND #moduleInterface.commands.editConfiguration THEN
      #configuration := #moduleInterface.configuration;
      #statReferenceDesignator := #configuration.referenceDesignator;
      #moduleInterface.commands.saveConfiguration := FALSE;
    END_IF;
  END_REGION CONFIGURATION HANDLING

  REGION PROCESS OUTPUT SIGNALS
    // Write outputs
    IF #statDisablingCompleted THEN
      REGION Disabling
        // Reset outputs if disabling completed
        #statValid := FALSE;
        #statBusy := FALSE;
        #statError := FALSE;
        #statErrorUserCleared := FALSE;
        #statErrorAutoCleared := FALSE;
        #statDiagnostics.status := #STATUS_NO_CALL;
        // Execution finished --> set state no processing
        #statFbState := #FB_STATE_NO_PROCESSING;
      END_REGION Disabling

    ELSIF #statErrorUserCleared AND NOT #statError THEN
      REGION Error user cleared
        // Error can only be cleared by user; rising edge at enable input is needed to continue
        #statValid := FALSE;
        #statBusy := FALSE;
        #statError := TRUE;
        // Write diagnostics
        #diagnostics := #statDiagnostics;
        // Execution aborted --> set state no processing
        #statFbState := #FB_STATE_NO_PROCESSING;

        // switch off control outputs
        #statProcessValues.goToHomePos := FALSE;
        #statProcessValues.goToWorkPos := FALSE;
      END_REGION Error user cleared

    ELSIF #statErrorAutoCleared AND NOT #statError THEN
      REGION Error auto cleared
        // Error can be reset by FB automatically
        #statValid := FALSE;
        #statBusy := TRUE;
        #statError := TRUE;
        // Write diagnostics
        #diagnostics := #statDiagnostics;
      END_REGION Error auto cleared

    ELSIF NOT #statErrorAutoCleared AND NOT #statErrorUserCleared AND #statError THEN
      REGION After user/auto cleared
        // If auto cleared error is acknowledged
        #statValid := TRUE;
        #statBusy := TRUE;
        #statError := FALSE;
      END_REGION After user/auto cleared
    END_IF;

    REGION Write monitoring structure
      #statProcessValues.inHomePos := #statFbState = #FB_STATE_IN_HOME_POSITION;
      #statProcessValues.inWorkPos := #statFbState = #FB_STATE_IN_WORK_POSITION;
    END_REGION Write monitoring structure

    REGION Write Process data to module interface
      #statProcessValues.error := #statError;
      #moduleInterface.monitoring := #statProcessValues;
      #moduleInterface.diagnostics := #statDiagnostics;
    END_REGION

    REGION Write work data to interface and outputs
      // Function status
      #goToHomePos := #statProcessValues.goToHomePos;
      #goToWorkPos := #statProcessValues.goToWorkPos;

      #inHomePos := #statProcessValues.inHomePos;
      #inWorkPos := #statProcessValues.inWorkPos;

      // Write status outputs
      #valid := #statValid;
      #busy := #statBusy;
      #error := #statError;
      #status := #statDiagnostics.status;
      // ENO mechanism disabled, ENO - forced to TRUE
      ENO := TRUE;
    END_REGION Write static values to outputs
  END_REGION PROCESS OUTPUT SIGNALS

END_FUNCTION_BLOCK
