Kubelet 删除 Pod 前要做什么

// NewSourceApiserver creates a config source that watches and pulls from the apiserver.
func NewSourceApiserver(c clientset.Interface, nodeName types.NodeName, nodeHasSynced func() bool, updates chan<- interface{}) {
    lw := cache.NewListWatchFromClient(c.CoreV1().RESTClient(), "pods", metav1.NamespaceAll, fields.OneTermEqualSelector("spec.nodeName", string(nodeName)))

    // The Reflector responsible for watching pods at the apiserver should be run only after
    // the node sync with the apiserver has completed.
    klog.InfoS("Waiting for node sync before watching apiserver pods")
    gofunc() {
        for {
            if nodeHasSynced() {
                klog.V(4).InfoS("node sync completed")
                break
            }
            time.Sleep(WaitForAPIServerSyncPeriod)
            klog.V(4).InfoS("node sync has not completed yet")
        }
        klog.InfoS("Watching apiserver")
        newSourceApiserverFromLW(lw, updates)
    }()
}

func (s *podStorage) merge(source string, change interface{}) (adds, updates, deletes, removes, reconciles *kubetypes.PodUpdate) {
    s.podLock.Lock()
    defer s.podLock.Unlock()

    addPods := []*v1.Pod{}
    updatePods := []*v1.Pod{}
    deletePods := []*v1.Pod{}
    removePods := []*v1.Pod{}
    reconcilePods := []*v1.Pod{}

    pods := s.pods[source]
    if pods == nil {
        pods = make(map[types.UID]*v1.Pod)
    }

    // updatePodFunc is the local function which updates the pod cache *oldPods* with new pods *newPods*.
    // After updated, new pod will be stored in the pod cache *pods*.
    // Notice that *pods* and *oldPods* could be the same cache.
    updatePodsFunc := func(newPods []*v1.Pod, oldPods, pods map[types.UID]*v1.Pod) {
        filtered := filterInvalidPods(newPods, source, s.recorder)
        for _, ref := range filtered {
            // Annotate the pod with the source before any comparison.
            if ref.Annotations == nil {
                ref.Annotations = make(map[string]string)
            }
            ref.Annotations[kubetypes.ConfigSourceAnnotationKey] = source
            // ignore static pods
            if !kubetypes.IsStaticPod(ref) {
                s.startupSLIObserver.ObservedPodOnWatch(ref, time.Now())
            }
            if existing, found := oldPods[ref.UID]; found {
                pods[ref.UID] = existing
                needUpdate, needReconcile, needGracefulDelete := checkAndUpdatePod(existing, ref)
                if needUpdate {
                    updatePods = append(updatePods, existing)
                } elseif needReconcile {
                    reconcilePods = append(reconcilePods, existing)
                } elseif needGracefulDelete {
                    deletePods =append(deletePods, existing)
                }
                continue
            }
            recordFirstSeenTime(ref)
            pods[ref.UID] = ref
            addPods = append(addPods, ref)
        }
    }

    update := change.(kubetypes.PodUpdate)
    switch update.Op {
    // 省略部分内容

    case kubetypes.SET:
        klog.V(4).InfoS("Setting pods for source","source", source)
        s.markSourceSet(source)
        // Clear the old map entries by just creating a new map
        oldPods := pods
        pods = make(map[types.UID]*v1.Pod)
        updatePodsFunc(update.Pods, oldPods, pods)
        for uid, existing := range oldPods {
            if _, found := pods[uid]; !found {
                // this is a delete
                removePods = append(removePods, existing)
            }
        }

    default:
        klog.InfoS("Received invalid update type", "type", update)

    }

    s.pods[source] = pods

    //省略部分逻辑
    deletes = &kubetypes.PodUpdate{Op: kubetypes.DELETE, Pods: copyPods(deletePods), Source: source}

    return adds, updates, deletes, removes, reconciles
}

// checkAndUpdatePod updates existing, and:
//   - if ref makes a meaningful change, returns needUpdate=true
//   - if ref makes a meaningful change, and this change is graceful deletion, returns needGracefulDelete=true
//   - if ref makes no meaningful change, but changes the pod status, returns needReconcile=true
//   - else return all false
//     Now, needUpdate, needGracefulDelete and needReconcile should never be both true
func checkAndUpdatePod(existing, ref *v1.Pod) (needUpdate, needReconcile, needGracefulDelete bool) {

    // 省略部分内容

    // 2. this is an graceful delete
    if ref.DeletionTimestamp !=nil {
        needGracefulDelete =true
    } else {
        // 3. this is an update
        needUpdate = true
    }

    return
}

Sep 02 16:43:25 iv-ye2vaomk8wwh2yp48s1p kubelet[376496]: I0902 16:43:25.113416  376496 kubelet.go:2484] "SyncLoop DELETE" source="api" pods=["default/ebs-dp-5c9c948759-86xtq"]

// HandlePodUpdates is the callback in the SyncHandler interface for pods
// being updated from a config source.
func (kl *Kubelet) HandlePodUpdates(pods []*v1.Pod) {
    start := kl.clock.Now()
    for _, pod := range pods {
        kl.podManager.UpdatePod(pod)

        pod, mirrorPod, wasMirror := kl.podManager.GetPodAndMirrorPod(pod)
        if wasMirror {
            if pod == nil {
                klog.V(2).InfoS("Unable to find pod for mirror pod, skipping", "mirrorPod", klog.KObj(mirrorPod), "mirrorPodUID", mirrorPod.UID)
                continue
            }
        }

        kl.podWorkers.UpdatePod(UpdatePodOptions{
            Pod:        pod,
            MirrorPod:  mirrorPod,
            UpdateType: kubetypes.SyncPodUpdate,
            StartTime:  start,
        })
    }
}

// UpdatePod notifies the pod worker of a change to a pod, which will then
// be processed in FIFO order by a goroutine per pod UID. The state of the
// pod will be passed to the syncPod method until either the pod is marked
// as deleted, it reaches a terminal phase (Succeeded/Failed), or the pod
// is evicted by the kubelet. Once that occurs the syncTerminatingPod method
// will be called until it exits successfully, and after that all further
// UpdatePod() calls will be ignored for that pod until it has been forgotten
// due to significant time passing. A pod that is terminated will never be
// restarted.
UpdatePod(options UpdatePodOptions)

// UpdatePodOptions is an options struct to pass to a UpdatePod operation.
type UpdatePodOptions struct {
    // The type of update (create, update, sync, kill).
    UpdateType kubetypes.SyncPodType
    // StartTime is an optional timestamp for when this update was created. If set,
    // when this update is fully realized by the pod worker it will be recorded in
    // the PodWorkerDuration metric.
    StartTime time.Time
    // Pod to update. Required.
    Pod *v1.Pod
    // MirrorPod is the mirror pod if Pod is a static pod. Optional when UpdateType
    // is kill or terminated.
    MirrorPod *v1.Pod
    // RunningPod is a runtime pod that is no longer present in config. Required
    // if Pod is nil, ignored if Pod is set.
    RunningPod *kubecontainer.Pod
    // KillPodOptions is used to override the default termination behavior of the
    // pod or to update the pod status after an operation is completed. Since a
    // pod can be killed for multiple reasons, PodStatusFunc is invoked in order
    // and later kills have an opportunity to override the status (i.e. a preemption
    // may be later turned into an eviction).
    KillPodOptions *KillPodOptions
}

func (p *podWorkers) UpdatePod(options UpdatePodOptions) {
    var isRuntimePod bool
    var uid types.UID
    var name, ns string
    if runningPod := options.RunningPod; runningPod != nil {
        if options.Pod == nil {
            // the sythetic pod created here is used only as a placeholder and not tracked
            if options.UpdateType != kubetypes.SyncPodKill {
                klog.InfoS("Pod update is ignored, runtime pods can only be killed", "pod", klog.KRef(runningPod.Namespace, runningPod.Name), "podUID", runningPod.ID, "updateType", options.UpdateType)
                return
            }
            uid, ns, name = runningPod.ID, runningPod.Namespace, runningPod.Name
            isRuntimePod = true
        } else {
            options.RunningPod = nil
            uid, ns, name = options.Pod.UID, options.Pod.Namespace, options.Pod.Name
            klog.InfoS("Pod update included RunningPod which is only valid when Pod is not specified", "pod", klog.KRef(ns, name), "podUID", uid, "updateType", options.UpdateType)
        }
    } else {
        uid, ns, name = options.Pod.UID, options.Pod.Namespace, options.Pod.Name
    }
    // 省略部分内容
}

type podWorkers struct {
    // 省略部分内容

    // Tracks by UID the termination status of a pod - syncing, terminating,
    // terminated, and evicted.
    podSyncStatuses map[types.UID]*podSyncStatus
    // 省略部分内容
}

func (p *podWorkers) UpdatePod(options UpdatePodOptions) {
    status, ok := p.podSyncStatuses[uid]
    if !ok {
        klog.V(4).InfoS("Pod is being synced for the first time", "pod", klog.KRef(ns, name), "podUID", uid, "updateType", options.UpdateType)
        firstTime = true
        status = &podSyncStatus{
            syncedAt: now,
            fullname: kubecontainer.BuildPodFullName(name, ns),
        }
        // if this pod is being synced for the first time, we need to make sure it is an active pod
        if options.Pod != nil && (options.Pod.Status.Phase == v1.PodFailed || options.Pod.Status.Phase == v1.PodSucceeded) {
            // Check to see if the pod is not running and the pod is terminal; if this succeeds then record in the podWorker that it is terminated.
            // This is needed because after a kubelet restart, we need to ensure terminal pods will NOT be considered active in Pod Admission. See http://issues.k8s.io/105523
            // However, `filterOutInactivePods`, considers pods that are actively terminating as active. As a result, `IsPodKnownTerminated()` needs to return true and thus `terminatedAt` needs to be set.
            if statusCache, err := p.podCache.Get(uid); err == nil {
                if isPodStatusCacheTerminal(statusCache) {
                    // At this point we know:
                    // (1) The pod is terminal based on the config source.
                    // (2) The pod is terminal based on the runtime cache.
                    // This implies that this pod had already completed `SyncTerminatingPod` sometime in the past. The pod is likely being synced for the first time due to a kubelet restart.
                    // These pods need to complete SyncTerminatedPod to ensure that all resources are cleaned and that the status manager makes the final status updates for the pod.
                    // As a result, set finished: false, to ensure a Terminated event will be sent and `SyncTerminatedPod` will run.
                    status = &podSyncStatus{
                        terminatedAt:       now,
                        terminatingAt:      now,
                        syncedAt:           now,
                        startedTerminating: true,
                        finished:           false,
                        fullname:           kubecontainer.BuildPodFullName(name, ns),
                    }
                }
            }
        }
        p.podSyncStatuses[uid] = status
    }
    // 省略部分内容
}

func (p *podWorkers) UpdatePod(options UpdatePodOptions) {
    // check for a transition to terminating
    var becameTerminating bool
    if !status.IsTerminationRequested() {
        switch {
        case isRuntimePod:
            klog.V(4).InfoS("Pod is orphaned and must be torn down", "pod", klog.KRef(ns, name), "podUID", uid, "updateType", options.UpdateType)
            status.deleted = true
            status.terminatingAt = now
            becameTerminating = true
        case pod.DeletionTimestamp != nil:
            klog.V(4).InfoS("Pod is marked for graceful deletion, begin teardown", "pod", klog.KRef(ns, name), "podUID", uid, "updateType", options.UpdateType)
            status.deleted = true
            status.terminatingAt = now
            becameTerminating = true
        case pod.Status.Phase == v1.PodFailed, pod.Status.Phase == v1.PodSucceeded:
            klog.V(4).InfoS("Pod is in a terminal phase (success/failed), begin teardown", "pod", klog.KRef(ns, name), "podUID", uid, "updateType", options.UpdateType)
            status.terminatingAt = now
            becameTerminating = true
        case options.UpdateType == kubetypes.SyncPodKill:
            if options.KillPodOptions != nil && options.KillPodOptions.Evict {
                klog.V(4).InfoS("Pod is being evicted by the kubelet, begin teardown", "pod", klog.KRef(ns, name), "podUID", uid, "updateType", options.UpdateType)
                status.evicted = true
            } else {
                klog.V(4).InfoS("Pod is being removed by the kubelet, begin teardown", "pod", klog.KRef(ns, name), "podUID", uid, "updateType", options.UpdateType)
            }
            status.terminatingAt = now
            becameTerminating = true
        }
    }
    // 省略部分内容
}

Sep 05 14:33:07 iv-ye2t6bkyrkqc6ilj5ztn kubelet[2194045]: I0905 14:33:07.036644 2194045 pod_workers.go:854] "Pod is marked for graceful deletion, begin teardown" pod="default/ebs-dp-78bc4957b8-57kbs" podUID="8bd2d0ac-f534-45b8-afc2-bc68d1b48caf" updateType="update"

func (p *podWorkers) UpdatePod(options UpdatePodOptions) {
    // once a pod is terminating, all updates are kills and the grace period can only decrease
    var wasGracePeriodShortened bool
    switch {
    case status.IsTerminated():
        // A terminated pod may still be waiting for cleanup - if we receive a runtime pod kill request
        // due to housekeeping seeing an older cached version of the runtime pod simply ignore it until
        // after the pod worker completes.
        if isRuntimePod {
            klog.V(3).InfoS("Pod is waiting for termination, ignoring runtime-only kill until after pod worker is fully terminated", "pod", klog.KRef(ns, name), "podUID", uid, "updateType", options.UpdateType)
            return
        }

        if options.KillPodOptions != nil {
            if ch := options.KillPodOptions.CompletedCh; ch != nil {
                close(ch)
            }
        }
        options.KillPodOptions = nil

    case status.IsTerminationRequested():
        if options.KillPodOptions == nil {
            options.KillPodOptions = &KillPodOptions{}
        }

        if ch := options.KillPodOptions.CompletedCh; ch != nil {
            status.notifyPostTerminating = append(status.notifyPostTerminating, ch)
        }
        if fn := options.KillPodOptions.PodStatusFunc; fn != nil {
            status.statusPostTerminating = append(status.statusPostTerminating, fn)
        }

        gracePeriod, gracePeriodShortened := calculateEffectiveGracePeriod(status, pod, options.KillPodOptions)

        wasGracePeriodShortened = gracePeriodShortened
        status.gracePeriod = gracePeriod
        // always set the grace period for syncTerminatingPod so we don't have to recalculate,
        // will never be zero.
        options.KillPodOptions.PodTerminationGracePeriodSecondsOverride = &gracePeriod

    default:
        // KillPodOptions is not valid for sync actions outside of the terminating phase
        if options.KillPodOptions != nil {
            if ch := options.KillPodOptions.CompletedCh; ch != nil {
                close(ch)
            }
            options.KillPodOptions = nil
        }
    }
    // 省略部分内容
}

// calculateEffectiveGracePeriod sets the initial grace period for a newly terminating pod or allows a
// shorter grace period to be provided, returning the desired value.
func calculateEffectiveGracePeriod(status *podSyncStatus, pod *v1.Pod, options *KillPodOptions) (int64, bool) {
    // enforce the restriction that a grace period can only decrease and track whatever our value is,
    // then ensure a calculated value is passed down to lower levels
    gracePeriod := status.gracePeriod
    // this value is bedrock truth - the apiserver owns telling us this value calculated by apiserver
    if override := pod.DeletionGracePeriodSeconds; override != nil {
        if gracePeriod == 0 || *override < gracePeriod {
            gracePeriod = *override
        }
    }
    // we allow other parts of the kubelet (namely eviction) to request this pod be terminated faster
    if options != nil {
        if override := options.PodTerminationGracePeriodSecondsOverride; override != nil {
            if gracePeriod == 0 || *override < gracePeriod {
                gracePeriod = *override
            }
        }
    }
    // make a best effort to default this value to the pod's desired intent, in the event
    // the kubelet provided no requested value (graceful termination?)
    if gracePeriod == 0 && pod.Spec.TerminationGracePeriodSeconds != nil {
        gracePeriod = *pod.Spec.TerminationGracePeriodSeconds
    }
    // no matter what, we always supply a grace period of 1
    if gracePeriod < 1 {
        gracePeriod = 1
    }
    return gracePeriod, status.gracePeriod != 0 && status.gracePeriod != gracePeriod
}

func (p *podWorkers) UpdatePod(options UpdatePodOptions) {
    // start the pod worker goroutine if it doesn't exist
    podUpdates, exists := p.podUpdates[uid]
    if !exists {
        // buffer the channel to avoid blocking this method
        podUpdates = make(chanstruct{}, 1)
        p.podUpdates[uid] = podUpdates

        // ensure that static pods start in the order they are received by UpdatePod
        if kubetypes.IsStaticPod(pod) {
            p.waitingToStartStaticPodsByFullname[status.fullname] =
                append(p.waitingToStartStaticPodsByFullname[status.fullname], uid)
        }

        // allow testing of delays in the pod update channel
        var outCh <-chanstruct{}
        if p.workerChannelFn != nil {
            outCh = p.workerChannelFn(uid, podUpdates)
        } else {
            outCh = podUpdates
        }

        // spawn a pod worker
        gofunc() {
            // TODO: this should be a wait.Until with backoff to handle panics, and
            // accept a context for shutdown
            defer runtime.HandleCrash()
            defer klog.V(3).InfoS("Pod worker has stopped", "podUID", uid)
            p.podWorkerLoop(uid, outCh)
        }()
    }
    // 省略部分内容
}

func (p *podWorkers) UpdatePod(options UpdatePodOptions) {
    // notify the pod worker there is a pending update
    status.pendingUpdate = &options
    status.working = true
    klog.V(4).InfoS("Notifying pod of pending update", "pod", klog.KRef(ns, name), "podUID", uid, "workType", status.WorkType())
    select {
    case podUpdates <- struct{}{}:
    default:
    }
    // 省略部分内容
}

Sep 05 14:33:07 iv-ye2t6bkyrkqc6ilj5ztn kubelet[2194045]: I0905 14:33:07.036659 2194045 pod_workers.go:963] "Notifying pod of pending update" pod="default/ebs-dp-78bc4957b8-57kbs" podUID="8bd2d0ac-f534-45b8-afc2-bc68d1b48caf" workType="terminating"

// podWorkerLoop manages sequential state updates to a pod in a goroutine, exiting once the final
// state is reached. The loop is responsible for driving the pod through four main phases:
//
// 1. Wait to start, guaranteeing no two pods with the same UID or same fullname are running at the same time
// 2. Sync, orchestrating pod setup by reconciling the desired pod spec with the runtime state of the pod
// 3. Terminating, ensuring all running containers in the pod are stopped
// 4. Terminated, cleaning up any resources that must be released before the pod can be deleted
//
// The podWorkerLoop is driven by updates delivered to UpdatePod and by SyncKnownPods. If a particular
// sync method fails, p.workerQueue is updated with backoff but it is the responsibility of the kubelet
// to trigger new UpdatePod calls. SyncKnownPods will only retry pods that are no longer known to the
// caller. When a pod transitions working->terminating or terminating->terminated, the next update is
// queued immediately and no kubelet action is required.

func (p *podWorkers) podWorkerLoop(podUID types.UID, podUpdates <-chan struct{}) {
    var lastSyncTime time.Time
    forrange podUpdates {
        ctx, update, canStart, canEverStart, ok := p.startPodSync(podUID)
        // If we had no update waiting, it means someone initialized the channel without filling out pendingUpdate.
        if !ok {
            continue
        }
        // If the pod was terminated prior to the pod being allowed to start, we exit the loop.
        if !canEverStart {
            return
        }
        // If the pod is not yet ready to start, continue and wait for more updates.
        if !canStart {
            continue
        }
        // 省略部分内容
    }
}

// startPodSync is invoked by each pod worker goroutine when a message arrives on the pod update channel.
// This method consumes a pending update, initializes a context, decides whether the pod is already started
// or can be started, and updates the cached pod state so that downstream components can observe what the
// pod worker goroutine is currently attempting to do. If ok is false, there is no available event. If any
// of the boolean values is false, ensure the appropriate cleanup happens before returning.
//
// This method should ensure that either status.pendingUpdate is cleared and merged into status.activeUpdate,
// or when a pod cannot be started status.pendingUpdate remains the same. Pods that have not been started
// should never have an activeUpdate because that is exposed to downstream components on started pods.

func (p *podWorkers) startPodSync(podUID types.UID) (ctx context.Context, update podWork, canStart, canEverStart, ok bool) {
    p.podLock.Lock()
    defer p.podLock.Unlock()

    // verify we are known to the pod worker still
    status, ok := p.podSyncStatuses[podUID]
    if !ok {
        // pod status has disappeared, the worker should exit
        klog.V(4).InfoS("Pod worker no longer has status, worker should exit", "podUID", podUID)
        returnnil, update, false, false, false
    }
    if !status.working {
        // working is used by unit tests to observe whether a worker is currently acting on this pod
        klog.V(4).InfoS("Pod should be marked as working by the pod worker, programmer error", "podUID", podUID)
    }
    if status.pendingUpdate == nil {
        // no update available, this means we were queued without work being added or there is a
        // race condition, both of which are unexpected
        status.working = false
        klog.V(4).InfoS("Pod worker received no pending work, programmer error?", "podUID", podUID)
        returnnil, update, false, false, false
    }

    // consume the pending update
    update.WorkType = status.WorkType()
    update.Options = *status.pendingUpdate
    status.pendingUpdate = nil
    select {
    case <-p.podUpdates[podUID]:
        // ensure the pod update channel is empty (it is only ever written to under lock)
    default:
    }
    // 省略部分内容
}

func (s *podSyncStatus) IsTerminationRequested() bool { return !s.terminatingAt.IsZero() }
func (s *podSyncStatus) IsTerminated() bool           { return !s.terminatedAt.IsZero() }

// WorkType returns this pods' current state of the pod in pod lifecycle state machine.
func (s *podSyncStatus) WorkType() PodWorkerState {
    if s.IsTerminated() {
        return TerminatedPod
    }
    if s.IsTerminationRequested() {
        return TerminatingPod
    }
    return SyncPod
}

// podSyncer describes the core lifecyle operations of the pod state machine. A pod is first
// synced until it naturally reaches termination (true is returned) or an external agent decides
// the pod should be terminated. Once a pod should be terminating, SyncTerminatingPod is invoked
// until it returns no error. Then the SyncTerminatedPod method is invoked until it exits without
// error, and the pod is considered terminal. Implementations of this interface must be threadsafe
// for simultaneous invocation of these methods for multiple pods.
type podSyncer interface {
    // SyncPod configures the pod and starts and restarts all containers. If it returns true, the
    // pod has reached a terminal state and the presence of the error indicates succeeded or failed.
    // If an error is returned, the sync was not successful and should be rerun in the future. This
    // is a long running method and should exit early with context.Canceled if the context is canceled.
    SyncPod(ctx context.Context, updateType kubetypes.SyncPodType, pod *v1.Pod, mirrorPod *v1.Pod, podStatus *kubecontainer.PodStatus) (bool, error)
    // SyncTerminatingPod attempts to ensure the pod's containers are no longer running and to collect
    // any final status. This method is repeatedly invoked with diminishing grace periods until it exits
    // without error. Once this method exits with no error other components are allowed to tear down
    // supporting resources like volumes and devices. If the context is canceled, the method should
    // return context.Canceled unless it has successfully finished, which may occur when a shorter
    // grace period is detected.
    SyncTerminatingPod(ctx context.Context, pod *v1.Pod, podStatus *kubecontainer.PodStatus, gracePeriod *int64, podStatusFn func(*v1.PodStatus)) error
    // SyncTerminatingRuntimePod is invoked when running containers are found that correspond to
    // a pod that is no longer known to the kubelet to terminate those containers. It should not
    // exit without error unless all containers are known to be stopped.
    SyncTerminatingRuntimePod(ctx context.Context, runningPod *kubecontainer.Pod) error
    // SyncTerminatedPod is invoked after all running containers are stopped and is responsible
    // for releasing resources that should be executed right away rather than in the background.
    // Once it exits without error the pod is considered finished on the node.
    SyncTerminatedPod(ctx context.Context, pod *v1.Pod, podStatus *kubecontainer.PodStatus) error
}

// SyncPod is the transaction script for the sync of a single pod (setting up)
// a pod. This method is reentrant and expected to converge a pod towards the
// desired state of the spec. The reverse (teardown) is handled in
// SyncTerminatingPod and SyncTerminatedPod. If SyncPod exits without error,
// then the pod runtime state is in sync with the desired configuration state
// (pod is running). If SyncPod exits with a transient error, the next
// invocation of SyncPod is expected to make progress towards reaching the
// desired state. SyncPod exits with isTerminal when the pod was detected to
// have reached a terminal lifecycle phase due to container exits (for
// RestartNever or RestartOnFailure) and the next method invoked will be
// SyncTerminatingPod. If the pod terminates for any other reason, SyncPod
// will receive a context cancellation and should exit as soon as possible.
//
// Arguments:
//
// updateType - whether this is a create (first time) or an update, should
// only be used for metrics since this method must be reentrant
//
// pod - the pod that is being set up
//
// mirrorPod - the mirror pod known to the kubelet for this pod, if any
//
// podStatus - the most recent pod status observed for this pod which can
// be used to determine the set of actions that should be taken during
// this loop of SyncPod
//
// The workflow is:
//   - If the pod is being created, record pod worker start latency
//   - Call generateAPIPodStatus to prepare an v1.PodStatus for the pod
//   - If the pod is being seen as running for the first time, record pod
//     start latency
//   - Update the status of the pod in the status manager
//   - Stop the pod's containers if it should not be running due to soft
//     admission
//   - Ensure any background tracking for a runnable pod is started
//   - Create a mirror pod if the pod is a static pod, and does not
//     already have a mirror pod
//   - Create the data directories for the pod if they do not exist
//   - Wait for volumes to attach/mount
//   - Fetch the pull secrets for the pod
//   - Call the container runtime's SyncPod callback
//   - Update the traffic shaping for the pod's ingress and egress limits
//
// If any step of this workflow errors, the error is returned, and is repeated
// on the next SyncPod call.
//
// This operation writes all events that are dispatched in order to provide
// the most accurate information possible about an error situation to aid debugging.
// Callers should not write an event if this operation returns an error.

func (kl *Kubelet) SyncPod(ctx context.Context, updateType kubetypes.SyncPodType, pod, mirrorPod *v1.Pod, podStatus *kubecontainer.PodStatus) (isTerminal bool, err error) {
    // 省略其它内容
    // If the pod is terminal, we don't need to continue to setup the pod
    if apiPodStatus.Phase == v1.PodSucceeded || apiPodStatus.Phase == v1.PodFailed {
        kl.statusManager.SetPodStatus(pod, apiPodStatus)
        isTerminal = true
        return isTerminal, nil
    }
    // 省略其它内容
}

// SyncTerminatingPod is expected to terminate all running containers in a pod. Once this method
// returns without error, the pod is considered to be terminated and it will be safe to clean up any
// pod state that is tied to the lifetime of running containers. The next method invoked will be
// SyncTerminatedPod. This method is expected to return with the grace period provided and the
// provided context may be cancelled if the duration is exceeded. The method may also be interrupted
// with a context cancellation if the grace period is shortened by the user or the kubelet (such as
// during eviction). This method is not guaranteed to be called if a pod is force deleted from the
// configuration and the kubelet is restarted - SyncTerminatingRuntimePod handles those orphaned
// pods.

Sep 28 17:24:44 iv-ye2t6bkyrkqc6ilj5ztn kubelet[2194045]: I0928 17:24:44.002936 2194045 kubelet.go:2060] "SyncTerminatingPod enter" pod="default/ebs-dp-78bc4957b8-m7v4v" podUID="6a94fb3a-ea69-4776-8f55-437b52e7cbb4"

func (kl *Kubelet) SyncTerminatingPod(_ context.Context, pod *v1.Pod, podStatus *kubecontainer.PodStatus, gracePeriod *int64, podStatusFn func(*v1.PodStatus)) error {
    // 省略部分内容
    apiPodStatus := kl.generateAPIPodStatus(pod, podStatus, false)
    if podStatusFn != nil {
        podStatusFn(&apiPodStatus)
    }
    kl.statusManager.SetPodStatus(pod, apiPodStatus)
    // 省略部分内容
}

// syncPod syncs the given status with the API server. The caller must not hold the status lock.
func (m *manager) syncPod(uid types.UID, status versionedPodStatus) {
    // 省略部分内容
    newPod, patchBytes, unchanged, err := statusutil.PatchPodStatus(context.TODO(), m.kubeClient, pod.Namespace, pod.Name, pod.UID, pod.Status, mergedStatus)
    klog.V(3).InfoS("Patch status for pod", "pod", klog.KObj(pod), "podUID", uid, "patch", string(patchBytes))
    // 省略部分内容
}

func (kl *Kubelet) SyncTerminatingPod(_ context.Context, pod *v1.Pod, podStatus *kubecontainer.PodStatus, gracePeriod *int64, podStatusFn func(*v1.PodStatus)) error {
    // 省略部分内容
    p := kubecontainer.ConvertPodStatusToRunningPod(kl.getRuntime().Type(), podStatus)
    if err := kl.killPod(ctx, pod, p, gracePeriod); err != nil {
        kl.recorder.Eventf(pod, v1.EventTypeWarning, events.FailedToKillPod, "error killing pod: %v", err)
        // there was an error killing the pod, so we return that error directly
        utilruntime.HandleError(err)
        return err
    }
    // 省略部分内容
}

// killPod instructs the container runtime to kill the pod. This method requires that
// the pod status contains the result of the last syncPod, otherwise it may fail to
// terminate newly created containers and sandboxes.
func (kl *Kubelet) killPod(ctx context.Context, pod *v1.Pod, p kubecontainer.Pod, gracePeriodOverride *int64) error {
    // Call the container runtime KillPod method which stops all known running containers of the pod
    if err := kl.containerRuntime.KillPod(ctx, pod, p, gracePeriodOverride); err != nil {
        return err
    }
    if err := kl.containerManager.UpdateQOSCgroups(); err != nil {
        klog.V(2).InfoS("Failed to update QoS cgroups while killing pod", "err", err)
    }
    return nil
}

// KillPod kills all the containers of a pod. Pod may be nil, running pod must not be.
// gracePeriodOverride if specified allows the caller to override the pod default grace period.
// only hard kill paths are allowed to specify a gracePeriodOverride in the kubelet in order to not corrupt user data.
// it is useful when doing SIGKILL for hard eviction scenarios, or max grace period during soft eviction scenarios.
func (m *kubeGenericRuntimeManager) KillPod(ctx context.Context, pod *v1.Pod, runningPod kubecontainer.Pod, gracePeriodOverride *int64) error {
    err := m.killPodWithSyncResult(ctx, pod, runningPod, gracePeriodOverride)
    return err.Error()
}

// killPodWithSyncResult kills a runningPod and returns SyncResult.
// Note: The pod passed in could be *nil* when kubelet restarted.
func (m *kubeGenericRuntimeManager) killPodWithSyncResult(ctx context.Context, pod *v1.Pod, runningPod kubecontainer.Pod, gracePeriodOverride *int64) (result kubecontainer.PodSyncResult) {
    killContainerResults := m.killContainersWithSyncResult(ctx, pod, runningPod, gracePeriodOverride)
    for _, containerResult := range killContainerResults {
        result.AddSyncResult(containerResult)
    }

    // stop sandbox, the sandbox will be removed in GarbageCollect
    killSandboxResult := kubecontainer.NewSyncResult(kubecontainer.KillPodSandbox, runningPod.ID)
    result.AddSyncResult(killSandboxResult)
    // Stop all sandboxes belongs to same pod
    for _, podSandbox := range runningPod.Sandboxes {
        if err := m.runtimeService.StopPodSandbox(ctx, podSandbox.ID.ID); err != nil && !crierror.IsNotFound(err) {
            killSandboxResult.Fail(kubecontainer.ErrKillPodSandbox, err.Error())
            klog.ErrorS(nil, "Failed to stop sandbox", "podSandboxID", podSandbox.ID)
        }
    }

    return
}

// killContainersWithSyncResult kills all pod's containers with sync results.
func (m *kubeGenericRuntimeManager) killContainersWithSyncResult(ctx context.Context, pod *v1.Pod, runningPod kubecontainer.Pod, gracePeriodOverride *int64) (syncResults []*kubecontainer.SyncResult) {
    containerResults := make(chan *kubecontainer.SyncResult, len(runningPod.Containers))
    wg := sync.WaitGroup{}

    wg.Add(len(runningPod.Containers))
    var termOrdering *terminationOrdering
    // we only care about container termination ordering if the sidecars feature is enabled
    if utilfeature.DefaultFeatureGate.Enabled(features.SidecarContainers) && types.HasRestartableInitContainer(pod) {
        var runningContainerNames []string
        for _, container := range runningPod.Containers {
            runningContainerNames = append(runningContainerNames, container.Name)
        }
        termOrdering = newTerminationOrdering(pod, runningContainerNames)
    }
    for _, container := range runningPod.Containers {
        gofunc(container *kubecontainer.Container) {
            defer utilruntime.HandleCrash()
            defer wg.Done()

            killContainerResult := kubecontainer.NewSyncResult(kubecontainer.KillContainer, container.Name)
            if err := m.killContainer(ctx, pod, container.ID, container.Name, "", reasonUnknown, gracePeriodOverride, termOrdering); err != nil {
                killContainerResult.Fail(kubecontainer.ErrKillContainer, err.Error())
                // Use runningPod for logging as the pod passed in could be *nil*.
                klog.ErrorS(err, "Kill container failed", "pod", klog.KRef(runningPod.Namespace, runningPod.Name), "podUID", runningPod.ID,
                    "containerName", container.Name, "containerID", container.ID)
            }
            containerResults <- killContainerResult
        }(container)
    }
    wg.Wait()
    close(containerResults)

    for containerResult := range containerResults {
        syncResults = append(syncResults, containerResult)
    }
    return
}

// killContainer kills a container through the following steps:
// * Run the pre-stop lifecycle hooks (if applicable).
// * Stop the container.
func (m *kubeGenericRuntimeManager) killContainer(ctx context.Context, pod *v1.Pod, containerID kubecontainer.ContainerID, containerName string, message string, reason containerKillReason, gracePeriodOverride *int64, ordering *terminationOrdering) error {
    // 省略部分内容
    klog.V(2).InfoS("Killing container with a grace period", "pod", klog.KObj(pod), "podUID", pod.UID,
        "containerName", containerName, "containerID", containerID.String(), "gracePeriod", gracePeriod)

    err := m.runtimeService.StopContainer(ctx, containerID.ID, gracePeriod)
    if err != nil && !crierror.IsNotFound(err) {
        klog.ErrorS(err, "Container termination failed with gracePeriod", "pod", klog.KObj(pod), "podUID", pod.UID,
            "containerName", containerName, "containerID", containerID.String(), "gracePeriod", gracePeriod)
        return err
    }
    klog.V(3).InfoS("Container exited normally", "pod", klog.KObj(pod), "podUID", pod.UID,
        "containerName", containerName, "containerID", containerID.String())
    // 省略部分内容
}

func (m *kubeGenericRuntimeManager) killContainer(ctx context.Context, pod *v1.Pod, containerID kubecontainer.ContainerID, containerName string, message string, reason containerKillReason, gracePeriodOverride *int64, ordering *terminationOrdering) error {
    // 省略部分内容
    // Run the pre-stop lifecycle hooks if applicable and if there is enough time to run it
    if containerSpec.Lifecycle != nil && containerSpec.Lifecycle.PreStop != nil && gracePeriod > 0 {
        gracePeriod = gracePeriod - m.executePreStopHook(ctx, pod, containerID, containerSpec, gracePeriod)
    }
    // 省略部分内容
}

const (
    // A minimal shutdown window for avoiding unnecessary SIGKILLs
    minimumGracePeriodInSeconds = 2
)

func (m *kubeGenericRuntimeManager) killContainer(ctx context.Context, pod *v1.Pod, containerID kubecontainer.ContainerID, containerName string, message string, reason containerKillReason, gracePeriodOverride *int64, ordering *terminationOrdering) error {
    // 省略部分内容
    // always give containers a minimal shutdown window to avoid unnecessary SIGKILLs
    if gracePeriod < minimumGracePeriodInSeconds {
        gracePeriod = minimumGracePeriodInSeconds
    }
    // 省略部分内容
}

// StopContainer stops a running container with a grace period (i.e., timeout).
func (c *criService) StopContainer(ctx context.Context, r *runtime.StopContainerRequest) (*runtime.StopContainerResponse, error) {
    start := time.Now()
    // Get container config from container store.
    container, err := c.containerStore.Get(r.GetContainerId())
    if err != nil {
        if !errdefs.IsNotFound(err) {
            returnnil, fmt.Errorf("an error occurred when try to find container %q: %w", r.GetContainerId(), err)
        }

        // The StopContainer RPC is idempotent, and must not return an error if
        // the container has already been stopped. Ref:
        // https://github.com/kubernetes/cri-api/blob/c20fa40/pkg/apis/runtime/v1/api.proto#L67-L68
        return &runtime.StopContainerResponse{}, nil
    }

    if err := c.stopContainer(ctx, container, time.Duration(r.GetTimeout())*time.Second); err != nil {
        returnnil, err
    }
    // 省略部分内容

    return &runtime.StopContainerResponse{}, nil
}

// stopContainer stops a container based on the container metadata.
func (c *criService) stopContainer(ctx context.Context, container containerstore.Container, timeout time.Duration) error {
    id := container.ID

    // 省略部分内容

    // We only need to kill the task. The event handler will Delete the
    // task from containerd after it handles the Exited event.
    if timeout > 0 {
        stopSignal := "SIGTERM"
        if container.StopSignal != "" {
            stopSignal = container.StopSignal
        } else {
            // The image may have been deleted, and the `StopSignal` field is
            // just introduced to handle that.
            // However, for containers created before the `StopSignal` field is
            // introduced, still try to get the stop signal from the image config.
            // If the image has been deleted, logging an error and using the
            // default SIGTERM is still better than returning error and leaving
            // the container unstoppable. (See issue #990)
            // TODO(random-liu): Remove this logic when containerd 1.2 is deprecated.
            image, err := c.imageStore.Get(container.ImageRef)
            if err != nil {
                if !errdefs.IsNotFound(err) {
                    return fmt.Errorf("failed to get image %q: %w", container.ImageRef, err)
                }
                log.G(ctx).Warningf("Image %q not found, stop container with signal %q", container.ImageRef, stopSignal)
            } else {
                if image.ImageSpec.Config.StopSignal != "" {
                    stopSignal = image.ImageSpec.Config.StopSignal
                }
            }
        }
        sig, err := signal.ParseSignal(stopSignal)
        if err != nil {
            return fmt.Errorf("failed to parse stop signal %q: %w", stopSignal, err)
        }

        var sswt bool
        if container.IsStopSignaledWithTimeout == nil {
            log.G(ctx).Infof("unable to ensure stop signal %v was not sent twice to container %v", sig, id)
            sswt = true
        } else {
            sswt = atomic.CompareAndSwapUint32(container.IsStopSignaledWithTimeout, 0, 1)
        }

        if sswt {
            log.G(ctx).Infof("Stop container %q with signal %v", id, sig)
            if err = task.Kill(ctx, sig); err != nil && !errdefs.IsNotFound(err) {
                return fmt.Errorf("failed to stop container %q: %w", id, err)
            }
        } else {
            log.G(ctx).Infof("Skipping the sending of signal %v to container %q because a prior stop with timeout>0 request already sent the signal", sig, id)
        }

        sigTermCtx, sigTermCtxCancel := context.WithTimeout(ctx, timeout)
        defer sigTermCtxCancel()
        err = c.waitContainerStop(sigTermCtx, container)
        if err == nil {
            // SIFTERM 成功，直接返回
            // Container stopped on first signal no need for SIGKILL
            returnnil
        }
        // If the parent context was cancelled or exceeded return immediately
        if ctx.Err() != nil {
            return ctx.Err()
        }
        // sigTermCtx was exceeded. Send SIGKILL
        log.G(ctx).Debugf("Stop container %q with signal %v timed out", id, sig)
    }

    // SIFTERM 失败，尝试 SIGKILL
    log.G(ctx).Infof("Kill container %q", id)
    if err = task.Kill(ctx, syscall.SIGKILL); err != nil && !errdefs.IsNotFound(err) {
        return fmt.Errorf("failed to kill container %q: %w", id, err)
    }

    // Wait for a fixed timeout until container stop is observed by event monitor.
    err = c.waitContainerStop(ctx, container)
    if err != nil {
        return fmt.Errorf("an error occurs during waiting for container %q to be killed: %w", id, err)
    }
    returnnil
}

func (c *criService) stopPodSandbox(ctx context.Context, sandbox sandboxstore.Sandbox) error {
    // Use the full sandbox id.
    id := sandbox.ID

    //省略部分内容
    if err := c.cleanupSandboxFiles(id, sandbox.Config); err != nil {
        return fmt.Errorf("failed to cleanup sandbox files: %w", err)
    }

    // Only stop sandbox container when it's running or unknown.
    state := sandbox.Status.Get().State
    if state == sandboxstore.StateReady || state == sandboxstore.StateUnknown {
        if err := c.stopSandboxContainer(ctx, sandbox); err != nil {
            return fmt.Errorf("failed to stop sandbox container %q in %q state: %w", id, state, err)
        }
    }
    sandboxRuntimeStopTimer.WithValues(sandbox.RuntimeHandler).UpdateSince(stop)

    // Teardown network for sandbox.
    if sandbox.NetNS != nil {
        netStop := time.Now()
        // Use empty netns path if netns is not available. This is defined in:
        // https://github.com/containernetworking/cni/blob/v0.7.0-alpha1/SPEC.md
        if closed, err := sandbox.NetNS.Closed(); err != nil {
            return fmt.Errorf("failed to check network namespace closed: %w", err)
        } elseif closed {
            sandbox.NetNSPath = ""
        }
        if sandbox.CNIResult != nil {
            if err := c.teardownPodNetwork(ctx, sandbox); err != nil {
                return fmt.Errorf("failed to destroy network for sandbox %q: %w", id, err)
            }
        }
        if err := sandbox.NetNS.Remove(); err != nil {
            return fmt.Errorf("failed to remove network namespace for sandbox %q: %w", id, err)
        }
        sandboxDeleteNetwork.UpdateSince(netStop)
    }

    log.G(ctx).Infof("TearDown network for sandbox %q successfully", id)

    returnnil
}

func (kl *Kubelet) SyncTerminatingPod(_ context.Context, pod *v1.Pod, podStatus *kubecontainer.PodStatus, gracePeriod *int64, podStatusFn func(*v1.PodStatus)) error {
    // 省略部分内容
    // Once the containers are stopped, we can stop probing for liveness and readiness.
    // TODO: once a pod is terminal, certain probes (liveness exec) could be stopped immediately after
    //   the detection of a container shutdown or (for readiness) after the first failure. Tracked as
    //   https://github.com/kubernetes/kubernetes/issues/107894 although may not be worth optimizing.
    kl.probeManager.RemovePod(pod)
    // 省略部分内容
}

func (p *podWorkers) completeTerminating(podUID types.UID) {
    p.podLock.Lock()
    defer p.podLock.Unlock()

    klog.V(4).InfoS("Pod terminated all containers successfully", "podUID", podUID)

    status, ok := p.podSyncStatuses[podUID]
    if !ok {
        return
    }

    // update the status of the pod
    if status.terminatingAt.IsZero() {
        klog.V(4).InfoS("Pod worker was terminated but did not have terminatingAt set, likely programmer error", "podUID", podUID)
    }
    status.terminatedAt = p.clock.Now()
    for _, ch := range status.notifyPostTerminating {
        close(ch)
    }
    status.notifyPostTerminating = nil
    status.statusPostTerminating = nil

    // the pod has now transitioned to terminated and we want to run syncTerminatedPod
    // as soon as possible, so if no update is already waiting queue a synthetic update
    p.requeueLastPodUpdate(podUID, status)
}

// SyncTerminatingRuntimePod is expected to terminate running containers in a pod that we have no
// configuration for. Once this method returns without error, any remaining local state can be safely
// cleaned up by background processes in each subsystem. Unlike syncTerminatingPod, we lack
// knowledge of the full pod spec and so cannot perform lifecycle related operations, only ensure
// that the remnant of the running pod is terminated and allow garbage collection to proceed. We do
// not update the status of the pod because with the source of configuration removed, we have no
// place to send that status.

func (kl *Kubelet) SyncTerminatingRuntimePod(_ context.Context, runningPod *kubecontainer.Pod) error {
    // TODO(#113606): connect this with the incoming context parameter, which comes from the pod worker.
    // Currently, using that context causes test failures.
    ctx := context.Background()
    pod := runningPod.ToAPIPod()
    klog.V(4).InfoS("SyncTerminatingRuntimePod enter", "pod", klog.KObj(pod), "podUID", pod.UID)
    defer klog.V(4).InfoS("SyncTerminatingRuntimePod exit", "pod", klog.KObj(pod), "podUID", pod.UID)

    // we kill the pod directly since we have lost all other information about the pod.
    klog.V(4).InfoS("Orphaned running pod terminating without grace period", "pod", klog.KObj(pod), "podUID", pod.UID)
    // TODO: this should probably be zero, to bypass any waiting (needs fixes in container runtime)
    gracePeriod := int64(1)
    if err := kl.killPod(ctx, pod, *runningPod, &gracePeriod); err != nil {
        kl.recorder.Eventf(pod, v1.EventTypeWarning, events.FailedToKillPod, "error killing pod: %v", err)
        // there was an error killing the pod, so we return that error directly
        utilruntime.HandleError(err)
        return err
    }
    klog.V(4).InfoS("Pod termination stopped all running orphaned containers", "pod", klog.KObj(pod), "podUID", pod.UID)
    returnnil
}

func (s *podSyncStatus) IsTerminated() bool           { return !s.terminatedAt.IsZero() }

// WorkType returns this pods' current state of the pod in pod lifecycle state machine.
func (s *podSyncStatus) WorkType() PodWorkerState {
    if s.IsTerminated() {
        return TerminatedPod
    }
    if s.IsTerminationRequested() {
        return TerminatingPod
    }
    return SyncPod
}

func (kl *Kubelet) SyncTerminatedPod(ctx context.Context, pod *v1.Pod, podStatus *kubecontainer.PodStatus) error {
    //省略部分内容
    // volumes are unmounted after the pod worker reports ShouldPodRuntimeBeRemoved (which is satisfied
    // before syncTerminatedPod is invoked)
    if err := kl.volumeManager.WaitForUnmount(ctx, pod); err != nil {
        return err
    }
    klog.V(4).InfoS("Pod termination unmounted volumes", "pod", klog.KObj(pod), "podUID", pod.UID)
    //省略部分内容
}

func (vm *volumeManager) WaitForUnmount(ctx context.Context, pod *v1.Pod) error {
    if pod == nil {
        returnnil
    }

    klog.V(3).InfoS("Waiting for volumes to unmount for pod", "pod", klog.KObj(pod))
    uniquePodName := util.GetUniquePodName(pod)

    vm.desiredStateOfWorldPopulator.ReprocessPod(uniquePodName)

    err := wait.PollUntilContextTimeout(
        ctx,
        podAttachAndMountRetryInterval,
        podAttachAndMountTimeout,
        true,
        vm.verifyVolumesUnmountedFunc(uniquePodName))

    if err != nil {
        var mountedVolumes []string
        for _, v := range vm.actualStateOfWorld.GetMountedVolumesForPod(uniquePodName) {
            mountedVolumes = append(mountedVolumes, v.OuterVolumeSpecName)
        }
        iflen(mountedVolumes) == 0 {
            returnnil
        }

        slices.Sort(mountedVolumes)
        return fmt.Errorf(
            "mounted volumes=%v: %w",
            mountedVolumes,
            err)
    }

    klog.V(3).InfoS("All volumes are unmounted for pod", "pod", klog.KObj(pod))
    returnnil
}

// verifyVolumesUnmountedFunc returns a method that is true when there are no mounted volumes for this
// pod.
func (vm *volumeManager) verifyVolumesUnmountedFunc(podName types.UniquePodName) wait.ConditionWithContextFunc {
    returnfunc(_ context.Context) (done bool, err error) {
        if errs := vm.desiredStateOfWorld.PopPodErrors(podName); len(errs) > 0 {
            returntrue, errors.New(strings.Join(errs, "; "))
        }
        return !vm.actualStateOfWorld.PodHasMountedVolumes(podName), nil
    }
}

func (asw *actualStateOfWorld) PodHasMountedVolumes(podName volumetypes.UniquePodName) bool {
    asw.RLock()
    defer asw.RUnlock()
    for _, volumeObj := range asw.attachedVolumes {
        if podObj, hasPod := volumeObj.mountedPods[podName]; hasPod {
            if podObj.volumeMountStateForPod == operationexecutor.VolumeMounted {
                returntrue
            }
        }
    }

    returnfalse
}

func (kl *Kubelet) SyncTerminatedPod(ctx context.Context, pod *v1.Pod, podStatus *kubecontainer.PodStatus) error {
    //省略部分内容
    // This waiting loop relies on the background cleanup which starts after pod workers respond
    // true for ShouldPodRuntimeBeRemoved, which happens after `SyncTerminatingPod` is completed.
    if err := wait.PollUntilContextCancel(ctx, 100*time.Millisecond, true, func(ctx context.Context) (bool, error) {
        volumesExist := kl.podVolumesExist(pod.UID)
        if volumesExist {
            klog.V(3).InfoS("Pod is terminated, but some volumes have not been cleaned up", "pod", klog.KObj(pod), "podUID", pod.UID)
        }
        return !volumesExist, nil
    }); err != nil {
        return err
    }
    klog.V(3).InfoS("Pod termination cleaned up volume paths", "pod", klog.KObj(pod), "podUID", pod.UID)
    //省略部分内容
}

// podVolumesExist checks with the volume manager and returns true any of the
// pods for the specified volume are mounted or are uncertain.
func (kl *Kubelet) podVolumesExist(podUID types.UID) bool {
    if mountedVolumes :=
        kl.volumeManager.GetPossiblyMountedVolumesForPod(
            volumetypes.UniquePodName(podUID)); len(mountedVolumes) > 0 {
        returntrue
    }
    // TODO: This checks pod volume paths and whether they are mounted. If checking returns error, podVolumesExist will return true
    // which means we consider volumes might exist and requires further checking.
    // There are some volume plugins such as flexvolume might not have mounts. See issue #61229
    volumePaths, err := kl.getMountedVolumePathListFromDisk(podUID)
    if err != nil {
        klog.ErrorS(err, "Pod found, but error occurred during checking mounted volumes from disk", "podUID", podUID)
        returntrue
    }
    iflen(volumePaths) > 0 {
        klog.V(4).InfoS("Pod found, but volumes are still mounted on disk", "podUID", podUID, "paths", volumePaths)
        returntrue
    }

    returnfalse
}

func (kl *Kubelet) getMountedVolumePathListFromDisk(podUID types.UID) ([]string, error) {
    mountedVolumes := []string{}
    volumePaths, err := kl.getPodVolumePathListFromDisk(podUID)
    if err != nil {
        return mountedVolumes, err
    }
    // Only use IsLikelyNotMountPoint to check might not cover all cases. For CSI volumes that
    // either: 1) don't mount or 2) bind mount in the rootfs, the mount check will not work as expected.
    // We plan to remove this mountpoint check as a condition before deleting pods since it is
    // not reliable and the condition might be different for different types of volumes. But it requires
    // a reliable way to clean up unused volume dir to avoid problems during pod deletion. See discussion in issue #74650
    for _, volumePath := range volumePaths {
        isNotMount, err := kl.mounter.IsLikelyNotMountPoint(volumePath)
        if err != nil {
            return mountedVolumes, fmt.Errorf("fail to check mount point %q: %v", volumePath, err)
        }
        if !isNotMount {
            mountedVolumes = append(mountedVolumes, volumePath)
        }
    }
    return mountedVolumes, nil
}

func (kl *Kubelet) SyncTerminatedPod(ctx context.Context, pod *v1.Pod, podStatus *kubecontainer.PodStatus) error {
    //省略部分内容
    // After volume unmount is complete, let the secret and configmap managers know we're done with this pod
    if kl.secretManager != nil {
        kl.secretManager.UnregisterPod(pod)
    }
    if kl.configMapManager != nil {
        kl.configMapManager.UnregisterPod(pod)
    }
    //省略部分内容
}

func (kl *Kubelet) SyncTerminatedPod(ctx context.Context, pod *v1.Pod, podStatus *kubecontainer.PodStatus) error {
    //省略部分内容
    // remove any cgroups in the hierarchy for pods that are no longer running.
    if kl.cgroupsPerQOS {
        pcm := kl.containerManager.NewPodContainerManager()
        name, _ := pcm.GetPodContainerName(pod)
        if err := pcm.Destroy(name); err != nil {
            return err
        }
        klog.V(4).InfoS("Pod termination removed cgroups", "pod", klog.KObj(pod), "podUID", pod.UID)
    }
    //省略部分内容
}

// Destroy destroys the pod container cgroup paths
func (m *podContainerManagerImpl) Destroy(podCgroup CgroupName) error {
    // Try killing all the processes attached to the pod cgroup
    if err := m.tryKillingCgroupProcesses(podCgroup); err != nil {
        klog.InfoS("Failed to kill all the processes attached to cgroup", "cgroupName", podCgroup, "err", err)
        return fmt.Errorf("failed to kill all the processes attached to the %v cgroups : %v", podCgroup, err)
    }

    // Now its safe to remove the pod's cgroup
    containerConfig := &CgroupConfig{
        Name:               podCgroup,
        ResourceParameters: &ResourceConfig{},
    }
    if err := m.cgroupManager.Destroy(containerConfig); err != nil {
        klog.InfoS("Failed to delete cgroup paths", "cgroupName", podCgroup, "err", err)
        return fmt.Errorf("failed to delete cgroup paths for %v : %v", podCgroup, err)
    }
    returnnil
}

func (kl *Kubelet) SyncTerminatedPod(ctx context.Context, pod *v1.Pod, podStatus *kubecontainer.PodStatus) error {
    //省略部分内容
    kl.usernsManager.Release(pod.UID)
    //省略部分内容
}

func (kl *Kubelet) SyncTerminatedPod(ctx context.Context, pod *v1.Pod, podStatus *kubecontainer.PodStatus) error {
    //省略部分内容
    kl.statusManager.TerminatePod(pod)
    //省略部分内容
}

// TerminatePod ensures that the status of containers is properly defaulted at the end of the pod
// lifecycle. As the Kubelet must reconcile with the container runtime to observe container status
// there is always the possibility we are unable to retrieve one or more container statuses due to
// garbage collection, admin action, or loss of temporary data on a restart. This method ensures
// that any absent container status is treated as a failure so that we do not incorrectly describe
// the pod as successful. If we have not yet initialized the pod in the presence of init containers,
// the init container failure status is sufficient to describe the pod as failing, and we do not need
// to override waiting containers (unless there is evidence the pod previously started those containers).
// It also makes sure that pods are transitioned to a terminal phase (Failed or Succeeded) before
// their deletion.

func (m *manager) TerminatePod(pod *v1.Pod) {
    //省略部分内容
    m.updateStatusInternal(pod, status, true, true)
}

func (m *manager) updateStatusInternal(pod *v1.Pod, status v1.PodStatus, forceUpdate, podIsFinished bool) {
    //省略部分内容
    newStatus := versionedPodStatus{
        status:        status,
        version:       cachedStatus.version + 1,
        podName:       pod.Name,
        podNamespace:  pod.Namespace,
        podIsFinished: podIsFinished,
    }

    // Multiple status updates can be generated before we update the API server,
    // so we track the time from the first status update until we retire it to
    // the API.
    if cachedStatus.at.IsZero() {
        newStatus.at = time.Now()
    } else {
        newStatus.at = cachedStatus.at
    }

    m.podStatuses[pod.UID] = newStatus

    select {
    case m.podStatusChannel <- struct{}{}:
    default:
        // there's already a status update pending
    }
}

func (m *manager) Start() {
    // 省略部分内容

    // syncPod and syncBatch share the same go routine to avoid sync races.
    go wait.Forever(func() {
        for {
            select {
            case <-m.podStatusChannel:
                klog.V(4).InfoS("Syncing updated statuses")
                m.syncBatch(false)
            case <-syncTicker:
                klog.V(4).InfoS("Syncing all statuses")
                m.syncBatch(true)
            }
        }
    }, 0)
}

func (m *manager) syncBatch(all bool) int {
    type podSync struct {
        podUID    types.UID
        statusUID kubetypes.MirrorPodUID
        status    versionedPodStatus
    }

    //省略部分内容

    for _, update := range updatedStatuses {
        klog.V(5).InfoS("Sync pod status", "podUID", update.podUID, "statusUID", update.statusUID, "version", update.status.version)
        m.syncPod(update.podUID, update.status)
    }

    returnlen(updatedStatuses)
}

func (m *manager) syncPod(uid types.UID, status versionedPodStatus) {
    // TODO: make me easier to express from client code
    pod, err := m.kubeClient.CoreV1().Pods(status.podNamespace).Get(context.TODO(), status.podName, metav1.GetOptions{})
    if errors.IsNotFound(err) {
        klog.V(3).InfoS("Pod does not exist on the server",
            "podUID", uid,
            "pod", klog.KRef(status.podNamespace, status.podName))
        // If the Pod is deleted the status will be cleared in
        // RemoveOrphanedStatuses, so we just ignore the update here.
        return
    }
    if err != nil {
        klog.InfoS("Failed to get status for pod",
            "podUID", uid,
            "pod", klog.KRef(status.podNamespace, status.podName),
            "err", err)
        return
    }

    // 省略部分内容

    mergedStatus := mergePodStatus(pod.Status, status.status, m.podDeletionSafety.PodCouldHaveRunningContainers(pod))

    newPod, patchBytes, unchanged, err := statusutil.PatchPodStatus(context.TODO(), m.kubeClient, pod.Namespace, pod.Name, pod.UID, pod.Status, mergedStatus)
    klog.V(3).InfoS("Patch status for pod", "pod", klog.KObj(pod), "podUID", uid, "patch", string(patchBytes))

    // 省略部分内容

    // We don't handle graceful deletion of mirror pods.

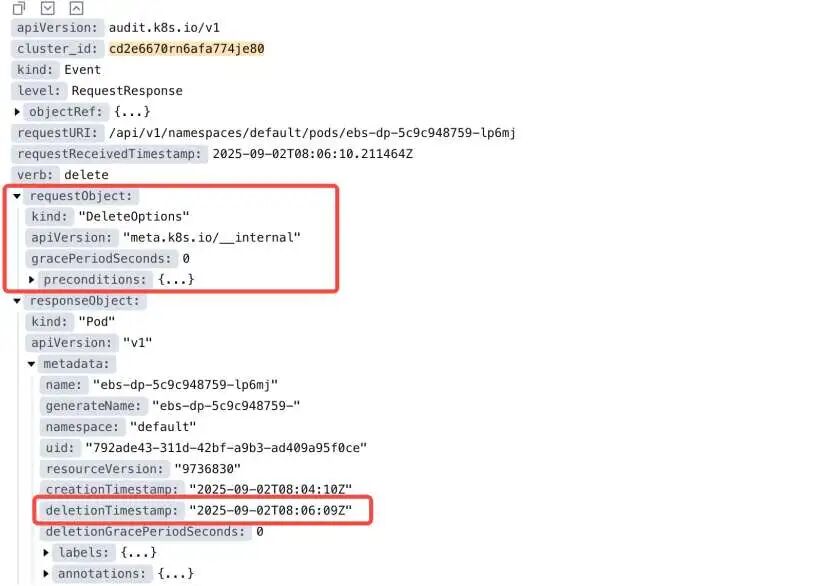

    if m.canBeDeleted(pod, status.status, status.podIsFinished) {
        deleteOptions := metav1.DeleteOptions{
            GracePeriodSeconds: new(int64),
            // Use the pod UID as the precondition for deletion to prevent deleting a
            // newly created pod with the same name and namespace.
            Preconditions: metav1.NewUIDPreconditions(string(pod.UID)),
        }
        err = m.kubeClient.CoreV1().Pods(pod.Namespace).Delete(context.TODO(), pod.Name, deleteOptions)
        if err != nil {
            klog.InfoS("Failed to delete status for pod", "pod", klog.KObj(pod), "err", err)
            return
        }
        klog.V(3).InfoS("Pod fully terminated and removed from etcd", "pod", klog.KObj(pod))
        m.deletePodStatus(uid)
    }
}

func (m *manager) canBeDeleted(pod *v1.Pod, status v1.PodStatus, podIsFinished bool) bool {
    if pod.DeletionTimestamp == nil || kubetypes.IsMirrorPod(pod) {
        returnfalse
    }
    // Delay deletion of pods until the phase is terminal, based on pod.Status
    // which comes from pod manager.
    if !podutil.IsPodPhaseTerminal(pod.Status.Phase) {
        // For debugging purposes we also log the kubelet's local phase, when the deletion is delayed.
        klog.V(3).InfoS("Delaying pod deletion as the phase is non-terminal", "phase", pod.Status.Phase, "localPhase", status.Phase, "pod", klog.KObj(pod), "podUID", pod.UID)
        returnfalse
    }
    // If this is an update completing pod termination then we know the pod termination is finished.
    if podIsFinished {
        klog.V(3).InfoS("The pod termination is finished as SyncTerminatedPod completes its execution", "phase", pod.Status.Phase, "localPhase", status.Phase, "pod", klog.KObj(pod), "podUID", pod.UID)
        returntrue
    }
    returnfalse
}
