我最近在设计一个亮度计，在做传感器选型的时候发现了一个性能不错的东西，在使用过程中做了一些仿真工作，现在分享出来：

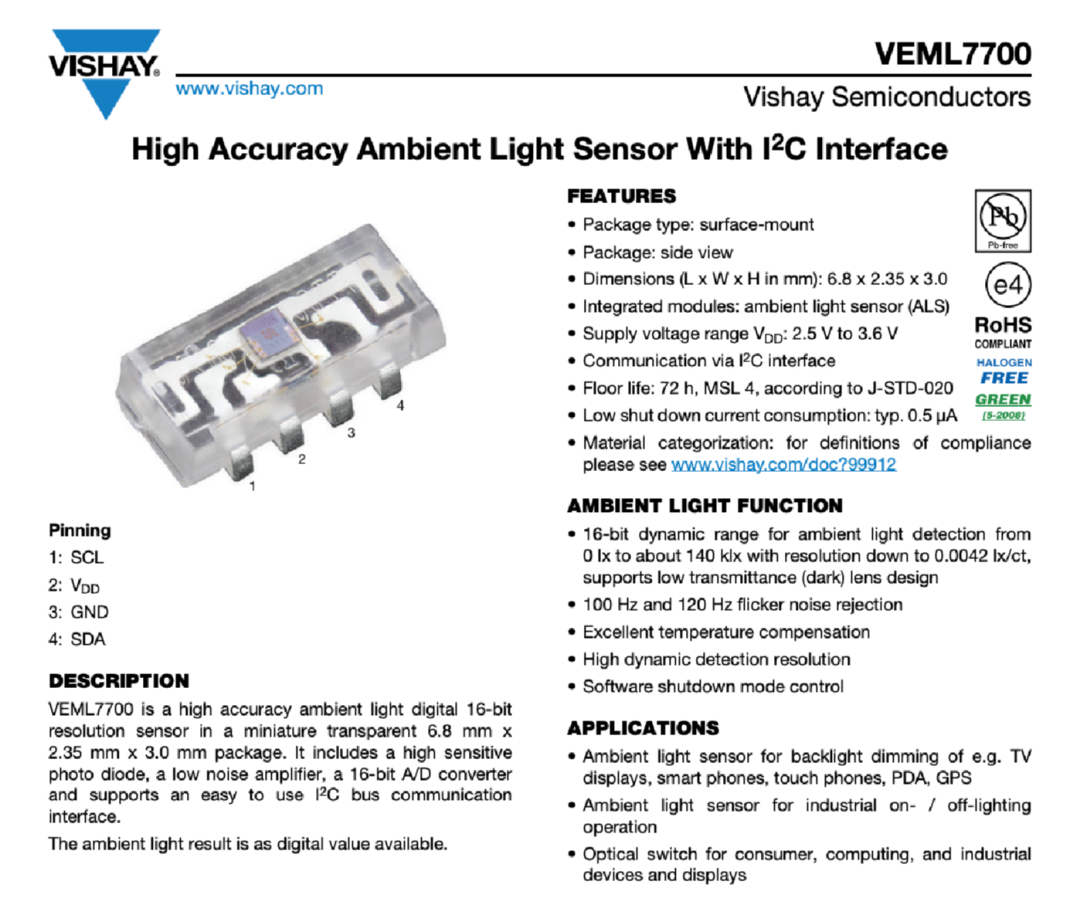

没想到到吧？是它家的东西

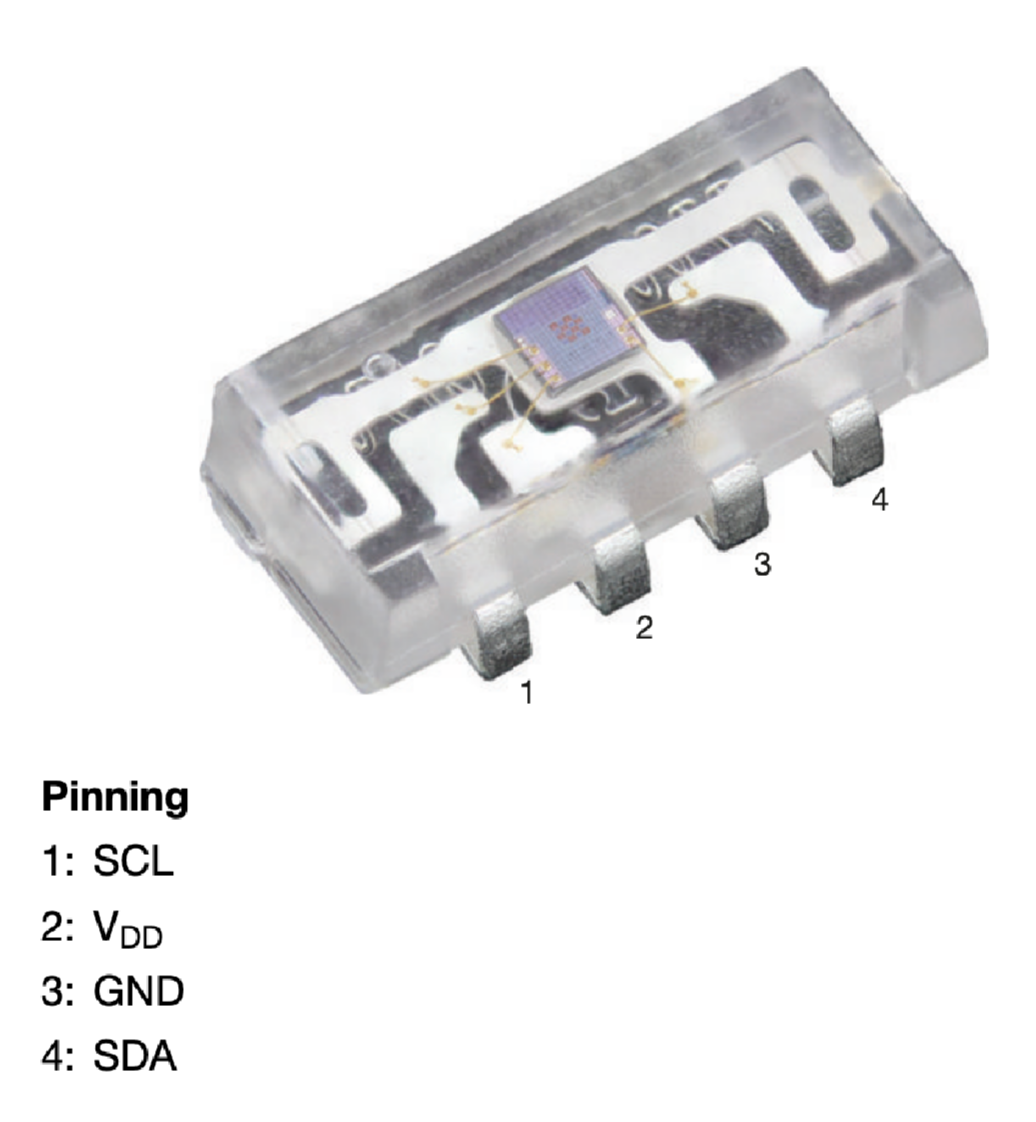

东西很小：

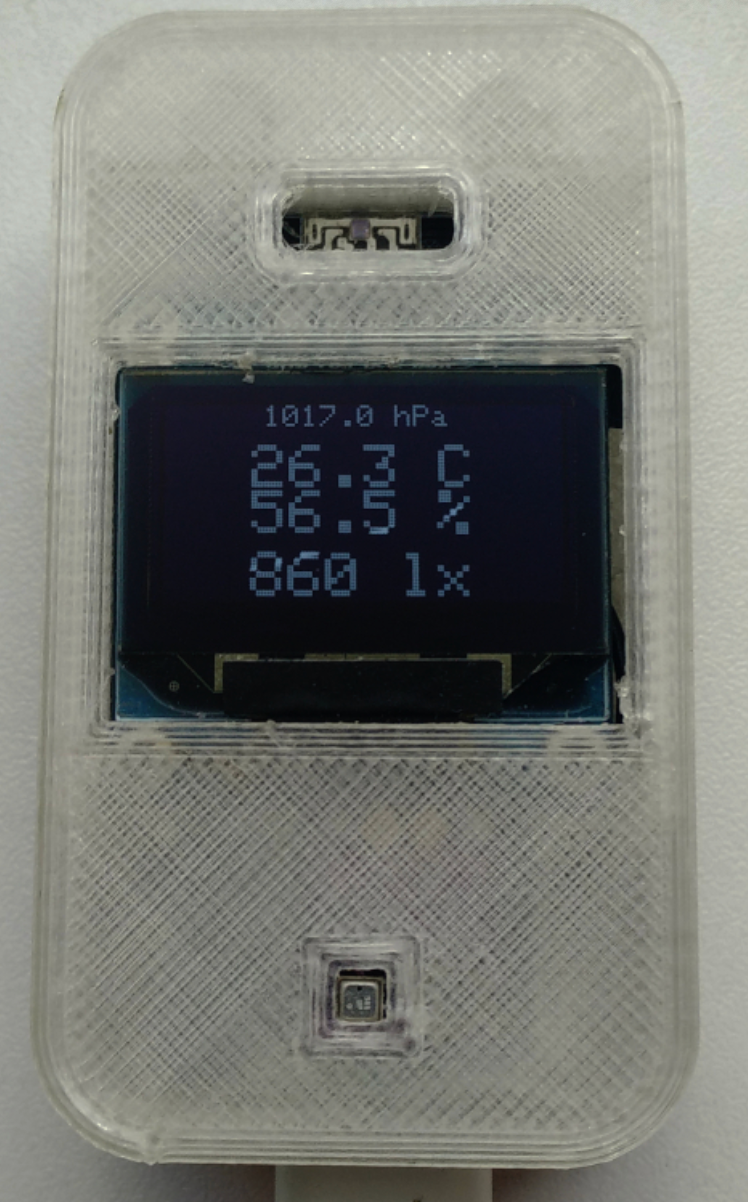

性能也很好

VEML7700 = 光电二极管 + 低噪声放大器 + 积分型 ADC + I2C 数字接口

不是模拟输出，而是：

光强 → 模拟前端积分 → 16bit ADC → I2C 直接读 Lux

它的动态范围非常出色！

测量范围：0 ~ 140,000 lx

分辨率最低：0.0042 lx/bit

ADC 分辨率：16 bit

说明：16 bit = 65536 级

结合增益和积分时间可以覆盖：微光环境（暗屏调光），强光环境（阳光直射）

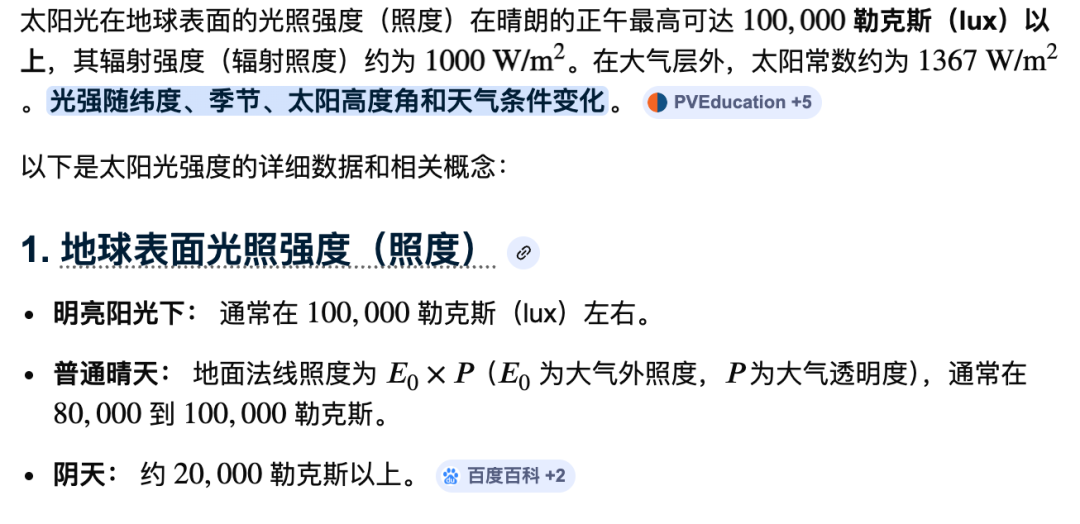

随便查了一下，最强也就 10w，咱们 14w 非常稳妥

啊哈？

注意到：

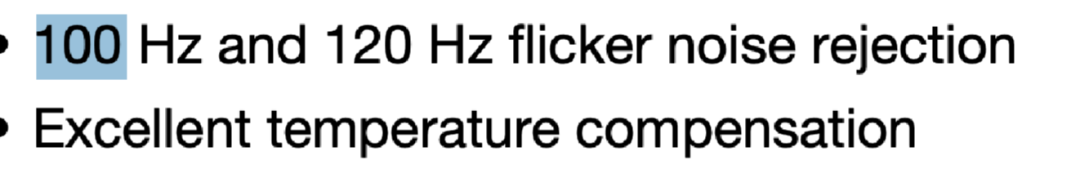

居然有工频干扰

那我问你，里面的 ADC 类型是什么？

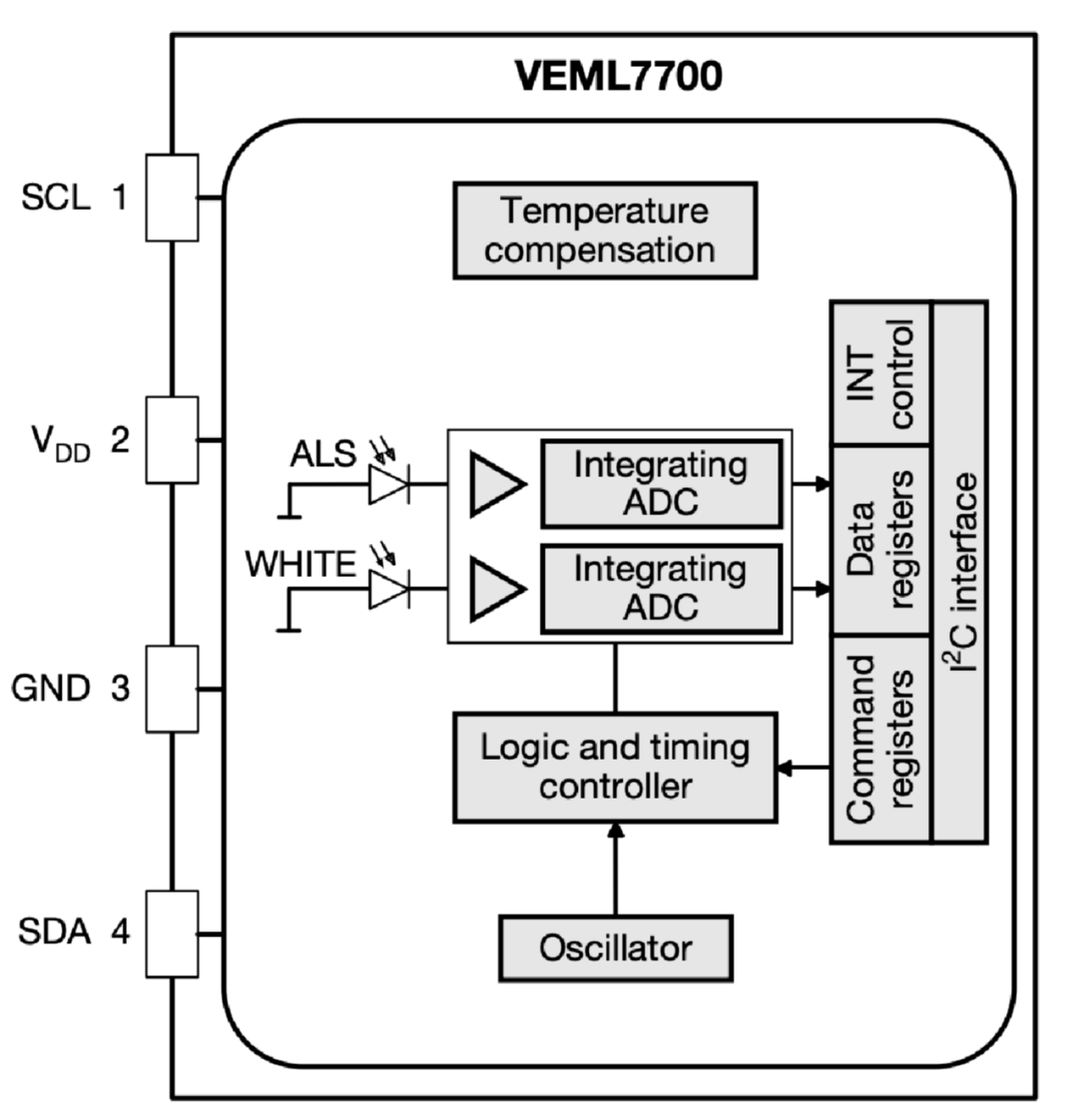

结构为：

光电二极管
    ↓
低噪声放大器
    ↓
积分型 ADC
    ↓
数字滤波
    ↓
I2C接口

它是典型的 积分式 ADC 架构（类似 ΔΣ 前端思路）。

当然了，这个东西的寄存器也很简单，是讲 IIC 协议的绝佳好东西，日后课程就讲这个。

详细推导其 100Hz 抑制原理

100 Hz（以及 120 Hz）闪烁抑制，本质来自 VEML7700 的 积分式测量（integrating ADC / integrating measurement），它天然等效于一个“矩形窗平均滤波器”，在频域上就是 sinc（梳状零点），只要积分时间选得合适，就能把 100/120 Hz 压到很低甚至理论为 0；芯片也明确写了支持 100 Hz 与 120 Hz flicker noise rejection。（因为这个内容可以迁移，就建模了）

关于对“讨人厌工频干扰”的测量

LHE7668-工频干扰抑制性能

先把“光闪烁”写成数学模型

LED/室内灯的亮度常见会有随电源产生的调制（很多驱动是整流/纹波），最典型频率就是：

50 Hz 市电 → 亮度纹波常在 100 Hz

60 Hz 市电 → 亮度纹波常在 120 Hz

把入射光照（或等效光电流）写成：

其中可能是 100 Hz 或 120 Hz。

积分式 ADC 等效“时间平均”

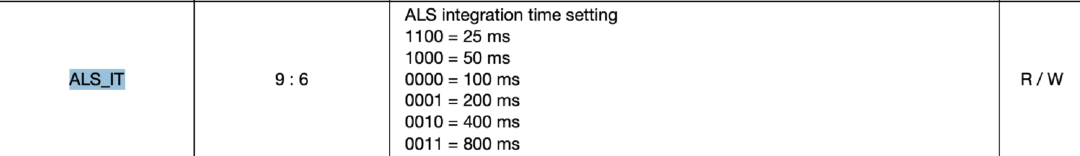

VEML7700 的 ALS 测量设置里有积分时间 ALS_IT（25/50/100/200/400/800 ms）。

在此

积分测量可以抽象成：在一个采样周期里把信号做平均（或积分再归一化）：

把代进去：

常数项积分就是。关键是余弦项：

整理成幅度形式，会得到一个与起始相位有关的项乘上一个“频率响应包络”。对“抑制能力”最关键的是幅度上界（相位最坏情况）满足：

残留

也就是经典的 sinc：

结论：积分时间越长，且如果，该频率分量会被“理论完全抑制（零点）”。

为什么能“卡死”100 Hz 和 120 Hz

sinc 的零点条件是：

也就是：

对 100 Hz：

对 120 Hz：

现在看 VEML7700 的积分时间选项：25/50/100/200/400/800 ms。

50 ms = 5×10 ms，同时也是 6×8.333 ms→ 对 100 Hz、120 Hz 都是“整数周期积分”，理论零点。

100/200/400/800 ms 同理：

100 ms = 10×10 ms = 12×8.333 ms

200 ms = 20×10 ms = 24×8.333 ms

400 ms = 40×10 ms = 48×8.333 ms

800 ms = 80×10 ms = 96×8.333 ms→ 对 100/120 Hz 都会落在 sinc 零点上

所以 只要 ALS_IT 选 50 ms 或更长这些“整倍数”选项，100/120 Hz 闪烁分量在理想矩形积分模型下会被强力压制（理论为 0）。

那 25 ms 为什么也能“抑制”（但不一定是零点）

25 ms = 2.5×10 ms（对 100 Hz 不是整数周期），所以 100 Hz 不会是严格零点，但 sinc 仍会给出衰减：

对应约 -17.9 dB 的幅度衰减（功率约 -35.8 dB）；而对 120 Hz：120×25 ms = 3（整数），则是零点；因此会看到：短积分时间也有抑制，但最佳 notch 来自“整周期积分”。

怎么选 ALS_IT？

要最强的 100/120 Hz 抑制，优先 ALS_IT = 50 / 100 / 200 / 400 / 800 ms（这些对 100/120 都是整周期积分）；如果要更快响应又想有一定抑制：25 ms 也能压，但对 100 Hz 不是“完全消除”；这也和 datasheet 给出的 ALS_IT 可选值以及“100/120 Hz flicker noise rejection”特性相一致。

更近一步

我继续把这个 sinc 推导扩展成“完整离散采样链”版本：包含 积分窗口 + 刷新周期（refresh time） 对频谱的影响（会出现更复杂的梳状谱），并给出在不同 ALS_IT 下对 100/120 Hz 的理论衰减量对比表；100/120 Hz 抑制主要由“积分窗口”决定（sinc 零点），而“刷新周期 Ts（refresh time）”主要决定残余闪烁在输出序列里会变成什么“表观频率”（alias 到低频/直流），但不会把已经被积分削弱的幅度再放大。

思路是：推导 → 离散化 → 刷新采样/混叠 → 仿真验证

连续时间：积分窗口 = 矩形窗平均滤波

把光照（或光电流）写成“直流 + 闪烁”：

传感器对每次测量做“积分平均”（积分型 ADC/积分测量等效）：

其中。

把余弦项积分出来（核心一步）：

用三角恒等式整理（把相位相关的那部分提出来）后，可得到余弦分量的幅度被一个频率响应系数乘上：

这就是矩形窗平均的 sinc 频响（零点在）。

100/120 Hz 为什么能被“消到零”（关键是 T 选得对）

零点条件：

对 100 Hz：周期 10 ms，所以只要是 10 ms 的整数倍就能“理论全消”

对 120 Hz：周期 8.333… ms，只要是 8.333… ms 的整数倍就能“理论全消”

VEML7700 给的 ALS_IT 选项里：50/100/200/400/800 ms 都同时满足：

100 Hz：个周期

120 Hz：个周期因此 100/120 Hz 都落在 sinc 零点上（理想模型下）。

而 25 ms：

对 120 Hz：（零点，理论全消）

对 100 Hz：（不是整数周期，只能衰减）其幅度衰减：

离散采样：加入 refresh time Ts（输出每 Ts 更新一次）

真实输出不是连续的，而是每隔 refresh time 输出一次：

这相当于先用积分窗口滤波（sinc 衰减 100/120），再以采样输出

对单一正弦闪烁分量：

幅度：仍然是，与 Ts 无关（Ts 只改变相位/采样点）

表观频率：采样会把混叠到

所以 100 Hz 很可能在输出序列里变成“超低频漂移”甚至“接近直流”；这解释了在低刷新率（power saving）下可能看到：即使灯在 100 Hz 闪，输出里也只表现为慢慢抖/慢漂（alias），而不是 100 Hz 的快速抖动。

仿真验证

先用闭式积分公式直接算（不靠高采样离散近似），对 datasheet power saving 表中的多个（ALS_IT, PSM mode, refresh time）组合，分别对 100/120 Hz：

计算理论衰减

仿真得到输出 AC 的 RMS（去均值后的 rms）

计算 alias 后的表观频率

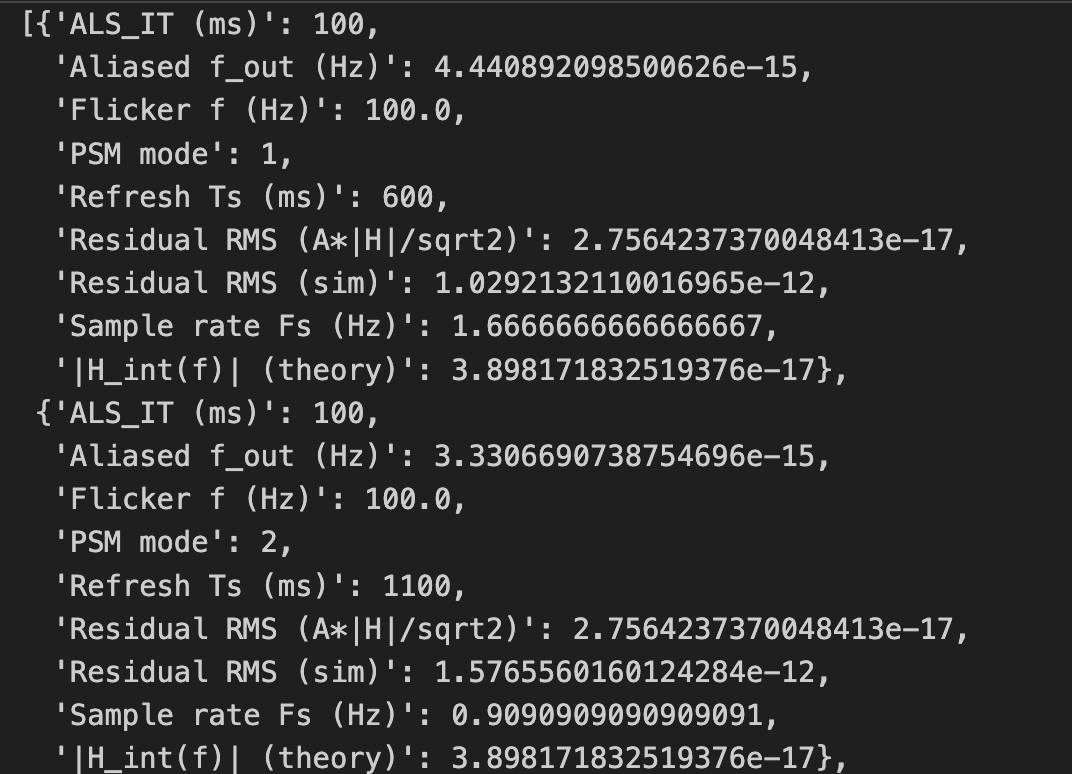

VEML7700 100/120Hz flicker rejection (integration + refresh sampling)

太长了，放最后。

图 1

随 ALS_IT 的变化（100/120 Hz）

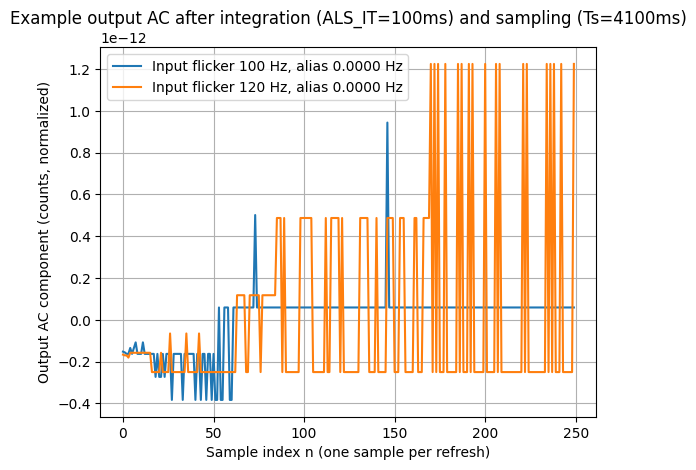

图二

（ALS_IT=100ms, Ts=4100ms）输出 AC 几乎为 0（因为 100/120 都在零点上，只剩数值误差量级）；这与“积分整周期会把 100/120 卡到零点”的推导完全一致。

[{'ALS_IT (ms)': 100,
'Aliased f_out (Hz)': 4.440892098500626e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 1,
'Refresh Ts (ms)': 600,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 1.0292132110016965e-12,
'Sample rate Fs (Hz)': 1.6666666666666667,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 100,
'Aliased f_out (Hz)': 3.3306690738754696e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 2,
'Refresh Ts (ms)': 1100,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 1.5765560160124284e-12,
'Sample rate Fs (Hz)': 0.9090909090909091,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 100,
'Aliased f_out (Hz)': 5.551115123125783e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 3,
'Refresh Ts (ms)': 2100,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 3.38815681875831e-12,
'Sample rate Fs (Hz)': 0.47619047619047616,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 100,
'Aliased f_out (Hz)': 9.159339953157541e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 4,
'Refresh Ts (ms)': 4100,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 7.003769644029207e-12,
'Sample rate Fs (Hz)': 0.24390243902439027,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 200,
'Aliased f_out (Hz)': 2.220446049250313e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 1,
'Refresh Ts (ms)': 700,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 6.631849509652089e-13,
'Sample rate Fs (Hz)': 1.4285714285714286,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 200,
'Aliased f_out (Hz)': 4.440892098500626e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 2,
'Refresh Ts (ms)': 1200,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 2.7962493131201986e-13,
'Sample rate Fs (Hz)': 0.8333333333333334,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 200,
'Aliased f_out (Hz)': 3.3306690738754696e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 3,
'Refresh Ts (ms)': 2200,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 1.796050142148529e-12,
'Sample rate Fs (Hz)': 0.45454545454545453,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 200,
'Aliased f_out (Hz)': 5.551115123125783e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 4,
'Refresh Ts (ms)': 4200,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 3.4456600945190602e-12,
'Sample rate Fs (Hz)': 0.23809523809523808,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 400,
'Aliased f_out (Hz)': 4.440892098500626e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 1,
'Refresh Ts (ms)': 900,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 1.4840777570411563e-13,
'Sample rate Fs (Hz)': 1.1111111111111112,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 400,
'Aliased f_out (Hz)': 2.220446049250313e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 2,
'Refresh Ts (ms)': 1400,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 1.2013635062764906e-13,
'Sample rate Fs (Hz)': 0.7142857142857143,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 400,
'Aliased f_out (Hz)': 4.440892098500626e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 3,
'Refresh Ts (ms)': 2400,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 1.0690675190600384e-12,
'Sample rate Fs (Hz)': 0.4166666666666667,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 400,
'Aliased f_out (Hz)': 3.3306690738754696e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 4,
'Refresh Ts (ms)': 4400,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 1.916262794144013e-12,
'Sample rate Fs (Hz)': 0.22727272727272727,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 800,
'Aliased f_out (Hz)': 8.881784197001252e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 1,
'Refresh Ts (ms)': 1300,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 1.211411191229325e-13,
'Sample rate Fs (Hz)': 0.7692307692307692,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 800,
'Aliased f_out (Hz)': 4.440892098500626e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 2,
'Refresh Ts (ms)': 1800,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 9.305829788260955e-14,
'Sample rate Fs (Hz)': 0.5555555555555556,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 800,
'Aliased f_out (Hz)': 2.220446049250313e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 3,
'Refresh Ts (ms)': 2800,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 6.744487182985767e-13,
'Sample rate Fs (Hz)': 0.35714285714285715,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 800,
'Aliased f_out (Hz)': 4.440892098500626e-15,
'Flicker f (Hz)': 100.0,
'PSM mode': 4,
'Refresh Ts (ms)': 4800,
'Residual RMS (A*|H|/sqrt2)': 2.7564237370048413e-17,
'Residual RMS (sim)': 9.854802457162338e-14,
'Sample rate Fs (Hz)': 0.20833333333333334,
'|H_int(f)| (theory)': 3.898171832519376e-17},
 {'ALS_IT (ms)': 100,
'Aliased f_out (Hz)': 5.329070518200751e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 1,
'Refresh Ts (ms)': 600,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 2.345822114388084e-13,
'Sample rate Fs (Hz)': 1.6666666666666667,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 100,
'Aliased f_out (Hz)': 3.9968028886505635e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 2,
'Refresh Ts (ms)': 1100,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 1.7921556589833297e-12,
'Sample rate Fs (Hz)': 0.9090909090909091,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 100,
'Aliased f_out (Hz)': 6.661338147750939e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 3,
'Refresh Ts (ms)': 2100,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 2.6547579978994212e-12,
'Sample rate Fs (Hz)': 0.47619047619047616,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 100,
'Aliased f_out (Hz)': 1.099120794378905e-14,
'Flicker f (Hz)': 120.0,
'PSM mode': 4,
'Refresh Ts (ms)': 4100,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 5.895750347530821e-12,
'Sample rate Fs (Hz)': 0.24390243902439027,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 200,
'Aliased f_out (Hz)': 2.6645352591003757e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 1,
'Refresh Ts (ms)': 700,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 5.450190209624567e-13,
'Sample rate Fs (Hz)': 1.4285714285714286,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 200,
'Aliased f_out (Hz)': 5.329070518200751e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 2,
'Refresh Ts (ms)': 1200,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 1.0645791361968601e-12,
'Sample rate Fs (Hz)': 0.8333333333333334,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 200,
'Aliased f_out (Hz)': 3.9968028886505635e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 3,
'Refresh Ts (ms)': 2200,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 1.6661758038683603e-12,
'Sample rate Fs (Hz)': 0.45454545454545453,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 200,
'Aliased f_out (Hz)': 6.661338147750939e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 4,
'Refresh Ts (ms)': 4200,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 3.7249748066843815e-12,
'Sample rate Fs (Hz)': 0.23809523809523808,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 400,
'Aliased f_out (Hz)': 5.329070518200751e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 1,
'Refresh Ts (ms)': 900,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 2.0013185800332077e-13,
'Sample rate Fs (Hz)': 1.1111111111111112,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 400,
'Aliased f_out (Hz)': 2.6645352591003757e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 2,
'Refresh Ts (ms)': 1400,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 5.01898682545424e-13,
'Sample rate Fs (Hz)': 0.7142857142857143,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 400,
'Aliased f_out (Hz)': 5.329070518200751e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 3,
'Refresh Ts (ms)': 2400,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 3.286798044931687e-13,
'Sample rate Fs (Hz)': 0.4166666666666667,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 400,
'Aliased f_out (Hz)': 3.9968028886505635e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 4,
'Refresh Ts (ms)': 4400,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 3.5579182447460383e-13,
'Sample rate Fs (Hz)': 0.22727272727272727,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 800,
'Aliased f_out (Hz)': 1.0658141036401503e-14,
'Flicker f (Hz)': 120.0,
'PSM mode': 1,
'Refresh Ts (ms)': 1300,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 1.916018930536057e-13,
'Sample rate Fs (Hz)': 0.7692307692307692,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 800,
'Aliased f_out (Hz)': 5.329070518200751e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 2,
'Refresh Ts (ms)': 1800,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 3.7895292157526576e-13,
'Sample rate Fs (Hz)': 0.5555555555555556,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 800,
'Aliased f_out (Hz)': 2.6645352591003757e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 3,
'Refresh Ts (ms)': 2800,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 6.30280040835984e-13,
'Sample rate Fs (Hz)': 0.35714285714285715,
'|H_int(f)| (theory)': 3.8981718325193755e-17},
 {'ALS_IT (ms)': 800,
'Aliased f_out (Hz)': 5.329070518200751e-15,
'Flicker f (Hz)': 120.0,
'PSM mode': 4,
'Refresh Ts (ms)': 4800,
'Residual RMS (A*|H|/sqrt2)': 2.756423737004841e-17,
'Residual RMS (sim)': 1.6358238563673158e-13,
'Sample rate Fs (Hz)': 0.20833333333333334,
'|H_int(f)| (theory)': 3.8981718325193755e-17}]

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

# -----------------------------
# VEML7700 flicker rejection simulation
# Model: y[n] = (1/Tint) * ∫_{n*Ts}^{n*Ts+Tint} x(t) dt
# where x(t) = E0 + A*cos(2π f t + φ0)
# This is an "integrate-and-dump" (rectangular window average) sampled every Ts (refresh time).
#
# Theoretical magnitude attenuation at flicker frequency f:
# |H_int(f)| = |sin(π f Tint) / (π f Tint)|  = |sinc(f*Tint)|  (normalized sinc with π inside)
#
# Sampling maps the residual sinusoid to a discrete-time (possibly aliased) frequency,
# but does NOT change its magnitude (only its apparent frequency in the output sequence).
# -----------------------------

def sinc_pi(x):
    """sinc with π inside: sin(πx)/(πx), with sinc(0)=1"""
    x = np.asarray(x, dtype=float)
    y = np.ones_like(x)
    nz = np.abs(x) > 1e-15
    y[nz] = np.sin(np.pi * x[nz]) / (np.pi * x[nz])
    return y

def integrate_average_over_window(f, Tint, t0, phi0, E0=1.0, A=1.0):
    """
    Closed-form window average of E0 + A*cos(2π f t + phi0)
    over [t0, t0+Tint], divided by Tint.
    """
    # Average of constant:
    y = E0
    # Average of cosine:
    # (A/Tint) * ∫ cos(2π f t + phi0) dt = (A/(2π f Tint)) * [sin(2π f t + phi0)]_{t0}^{t0+Tint}
    if f == 0:
        y += A * np.cos(phi0)  # degenerate
    else:
        y += (A / (2 * np.pi * f * Tint)) * (
            np.sin(2 * np.pi * f * (t0 + Tint) + phi0) - np.sin(2 * np.pi * f * t0 + phi0)
        )
    return y

def simulate_sequence(f, Tint, Ts, N=5000, phi0=None, E0=1.0, A=1.0):
    """
    Simulate y[n] for N samples with window average, using closed-form integration.
    """
    if phi0 is None:
        phi0 = np.random.uniform(0, 2*np.pi)
    t0 = np.arange(N) * Ts
    y = np.array([integrate_average_over_window(f, Tint, t, phi0, E0=E0, A=A) for t in t0])
    return y, phi0

def alias_frequency(f, Fs):
    """
    Map analog frequency f (Hz) to aliased frequency in [0, Fs/2] for real-valued sampling.
    """
    if Fs <= 0:
        return np.nan
    # Wrap to [0, Fs)
    f_mod = np.mod(f, Fs)
    # Fold to [0, Fs/2]
    return min(f_mod, Fs - f_mod)

# -----------------------------
# Use refresh-time table from the VEML7700 datasheet (for ALS_GAIN = x2, power-saving enabled):
# ALS_IT: 100/200/400/800 ms, PSM Mode 1..4 -> refresh time as listed.
# -----------------------------
refresh_table_ms = {
    100: {1: 600, 2: 1100, 3: 2100, 4: 4100},
    200: {1: 700, 2: 1200, 3: 2200, 4: 4200},
    400: {1: 900, 2: 1400, 3: 2400, 4: 4400},
    800: {1: 1300, 2: 1800, 3: 2800, 4: 4800},
}

# Flicker frequencies of interest
f_list = [100.0, 120.0]

# Build a comparison table
rows = []
np.random.seed(0)

for Tint_ms, modes in refresh_table_ms.items():
    Tint = Tint_ms / 1000.0
    for mode, Ts_ms in modes.items():
        Ts = Ts_ms / 1000.0
        Fs = 1.0 / Ts
        for f in f_list:
            # Theoretical attenuation magnitude for the integrate window
            att = abs(sinc_pi(f * Tint))  # |sin(pi f Tint)/(pi f Tint)|

            # Simulate and measure residual RMS (after removing mean)
            y, phi0 = simulate_sequence(f, Tint, Ts, N=4000, phi0=None, E0=10.0, A=1.0)
            y_ac = y - np.mean(y)
            rms = np.sqrt(np.mean(y_ac**2))

            # Expected RMS for a sinusoid of amplitude (A*att) is (A*att)/sqrt(2)
            expected_rms = (1.0 * att) / np.sqrt(2)

            rows.append({
                "ALS_IT (ms)": Tint_ms,
                "PSM mode": mode,
                "Refresh Ts (ms)": Ts_ms,
                "Sample rate Fs (Hz)": Fs,
                "Flicker f (Hz)": f,
                "Aliased f_out (Hz)": alias_frequency(f, Fs),
                "|H_int(f)| (theory)": att,
                "Residual RMS (sim)": rms,
                "Residual RMS (A*|H|/sqrt2)": expected_rms,
            })

df = pd.DataFrame(rows)

# Sort for readability
df = df.sort_values(["Flicker f (Hz)", "ALS_IT (ms)", "PSM mode"]).reset_index(drop=True)

# Show the table
# from caas_jupyter_tools import display_dataframe_to_user
# display_dataframe_to_user("VEML7700 100/120Hz flicker rejection (integration + refresh sampling)", df)
import pprint
pprint.pprint(df.to_dict(orient='records'))
# -----------------------------
# Plot 1: Theoretical attenuation |H_int(f)| vs integration time for 100 and 120 Hz
# -----------------------------
Tint_ms_grid = np.array([25, 50, 100, 200, 400, 800])
Tint_grid = Tint_ms_grid / 1000.0

plt.figure()
for f in f_list:
    att_grid = abs(sinc_pi(f * Tint_grid))
    plt.plot(Tint_ms_grid, att_grid, marker='o', label=f"f = {int(f)} Hz")
plt.xlabel("Integration time ALS_IT (ms)")
plt.ylabel("|H_int(f)| = |sin(π f T)/(π f T)|")
plt.title("Theoretical flicker attenuation from window integration (rectangular average)")
plt.grid(True)
plt.legend()
plt.show()

# -----------------------------
# Plot 2: Example time-domain output showing aliasing frequency (same magnitude, different apparent frequency)
# Choose a configuration where Fs is low enough that 100Hz aliases to a small frequency.
# Example: ALS_IT=100ms, Mode 4 -> Ts=4100ms -> Fs≈0.244Hz, so 100Hz aliases near ~0.0..0.122Hz.
# -----------------------------
Tint_ms = 100
mode = 4
Ts_ms = refresh_table_ms[Tint_ms][mode]
Tint = Tint_ms/1000.0
Ts = Ts_ms/1000.0
Fs = 1.0/Ts

plt.figure()
for f in f_list:
    y, phi0 = simulate_sequence(f, Tint, Ts, N=250, phi0=0.3, E0=10.0, A=1.0)
    y_ac = y - np.mean(y)
    plt.plot(y_ac, label=f"Input flicker {int(f)} Hz, alias {alias_frequency(f, Fs):.4f} Hz")
plt.xlabel("Sample index n (one sample per refresh)")
plt.ylabel("Output AC component (counts, normalized)")
plt.title(f"Example output AC after integration (ALS_IT={Tint_ms}ms) and sampling (Ts={Ts_ms}ms)")
plt.grid(True)
plt.legend()
plt.show()

本文参与腾讯云自媒体同步曝光计划，分享自微信公众号。

原始发表：2026-03-03，如有侵权请联系 cloudcommunity@tencent.com 删除

refresh
