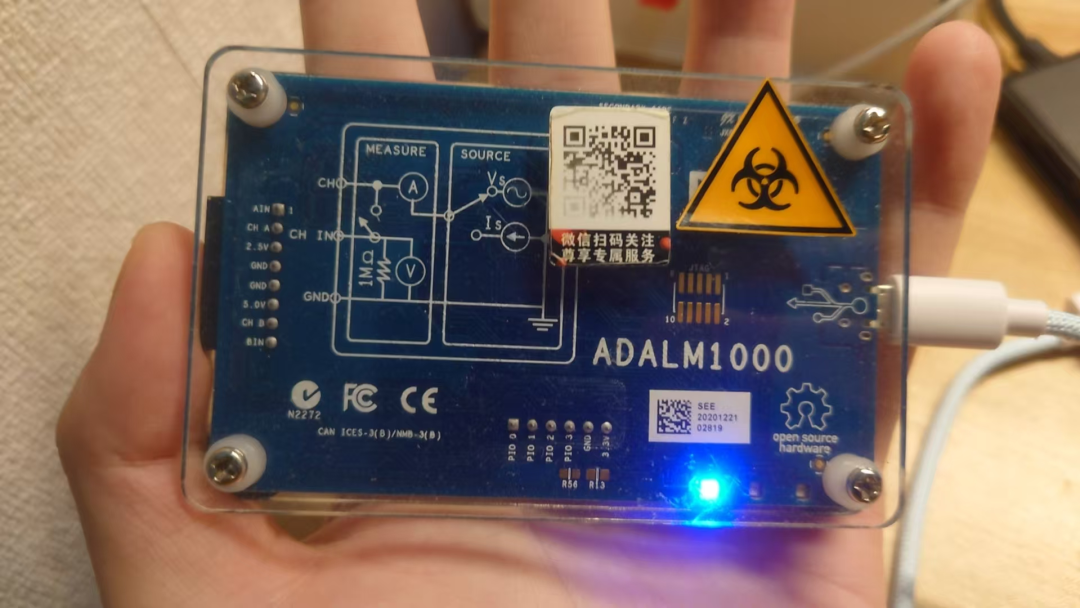

为ADALM1000写一个专业数据分析工具(开源版）

pip install numpy pandas matplotlib scipy pysmu

# 进入示例目录
cd c:\Users\Administrator\Downloads\libsmu-master\bindings\python\examples

# 运行专业分析工具
python professional_analysis_english.py

# 在 run_professional_analysis() 方法中
sample_count = 2000  # 采样数量 (默认: 2000)
sample_rate = 100000  # 采样率 (默认: 100kHz)

# 通道A配置 (电压源模式)
target_voltage_a = idx % 6  # 目标电压 (0-5V)
dev.channels['A'].mode = Mode.SVMI  # 源电压测电流模式

# 通道B配置 (电流源模式)
target_current_b = 0.05  # 目标电流 (默认: 50mA)
dev.channels['B'].mode = Mode.SIMV  # 源电流测电压模式

# 稳定性分析窗口大小
window_size = 100  # 滑动窗口大小 (默认: 100)

# 异常检测阈值
threshold = 3  # Z-score阈值 (默认: 3)

# 频域分析参数
fundamental_freq = None  # 基频 (自动检测)

# 输出目录
output_dir = "analysis_results"  # 默认输出目录

# 图表分辨率
dpi = 300  # 图表DPI (默认: 300)

# 显示样本数
display_samples = 1000  # 图表显示的样本数 (默认: 1000)

# 创建自定义分析器
analyzer = ProfessionalAnalyzer(output_dir="my_analysis")

# 修改采样参数
# 在 run_professional_analysis() 中修改:
sample_count = 5000# 增加采样数量

# 修改通道配置
target_voltage_a = 2.5# 设置固定电压
target_current_b = 0.1   # 增加电流到100mA

# 修改分析参数
window_size = 200       # 增加窗口大小
threshold = 2.5         # 降低异常检测阈值

analysis_results/
├── csv_data/
│   ├── device_0_raw_data_YYYYMMDD_HHMMSS.csv
│   └── device_0_analysis_YYYYMMDD_HHMMSS.csv
├── plots/
│   └── device_0_analysis_YYYYMMDD_HHMMSS.png
└── reports/
    ├── device_0_report_YYYYMMDD_HHMMSS.pdf
    └── summary_report_YYYYMMDD_HHMMSS.json

Error: No devices detected

Missing dependencies: No module named 'pandas'

pip install pandas scipy matplotlib

Data acquisition failed: timeout

# 减少采样数量
sample_count = 1000  # 从2000减少到1000

# 减少分析复杂度
window_size = 50     # 减少窗口大小

# 增加采样数量
sample_count = 5000  # 增加到5000

# 增加窗口大小
window_size = 200    # 增加窗口大小

# 降低图表分辨率
dpi = 150            # 从300降低到150

# 减少原始数据保存
# 注释掉不需要的CSV保存代码

def custom_analysis(self, signal_data):
    """
    自定义分析函数
    """
    # 添加您的分析逻辑
    result = np.custom_function(signal_data)
    return {'custom_metric': result}

# 在 advanced_voltage_analysis 中调用
custom_result = self.custom_analysis(voltages)

# 添加Excel输出
def save_excel_report(self, device_idx, analysis_results):
    filename = f"device_{device_idx}_report_{self.timestamp}.xlsx"
    # 实现Excel保存逻辑

# 实时数据流处理
def real_time_analysis(self):
    while True:
        samples = session.get_samples(100)
        # 实时分析逻辑
        time.sleep(0.1)

Font configuration set
pysmu Professional Data Analysis Tool
==================================================
Detected 1 device(s)

Configuring device 0: serial 2032205054383031323130323130323 : fw 2.17 : hw F
  Channel A: SVMI mode, target voltage 0V
  Channel B: SIMV mode, target current 0.05A

Starting professional data acquisition...
Successfully acquired 2000 samples

============================================================
Device 0 Professional Data Analysis
============================================================
Raw data saved: analysis_results\csv_data\device_0_raw_data_20250823_110101.csv

Performing advanced data analysis...
Analysis results saved: analysis_results\csv_data\device_0_analysis_20250823_110101.csv

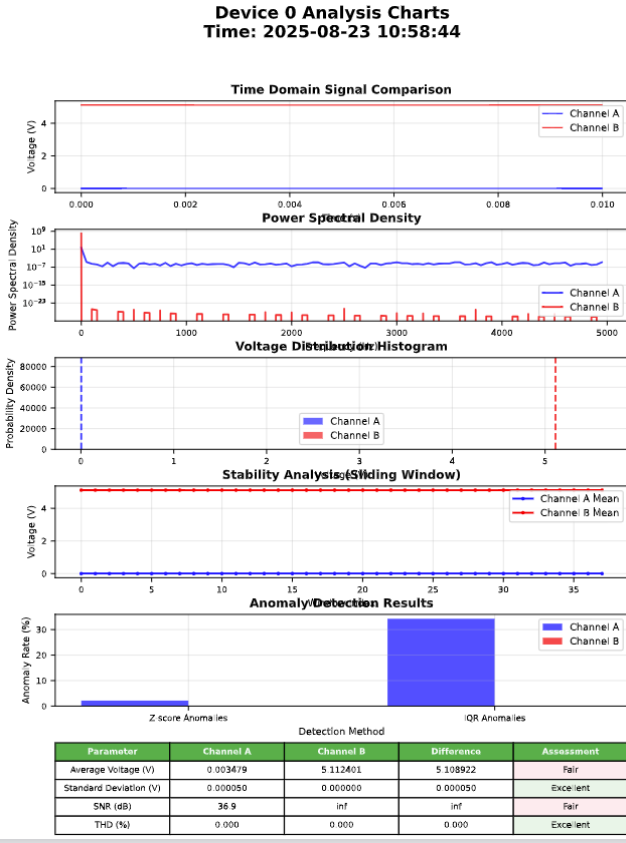

Generating professional charts...
Analysis chart saved: analysis_results\plots\device_0_analysis_20250823_110101.png

Generating PDF report...
PDF report generated: analysis_results\reports\device_0_report_20250823_110101.pdf

=== Key Analysis Results ===
Channel A - Average Voltage: 0.003477V, SNR: 37.0dB, THD: 0.000%
Channel B - Average Voltage: 5.112401V, SNR: infdB, THD: 0.000%

=== Output Files ===

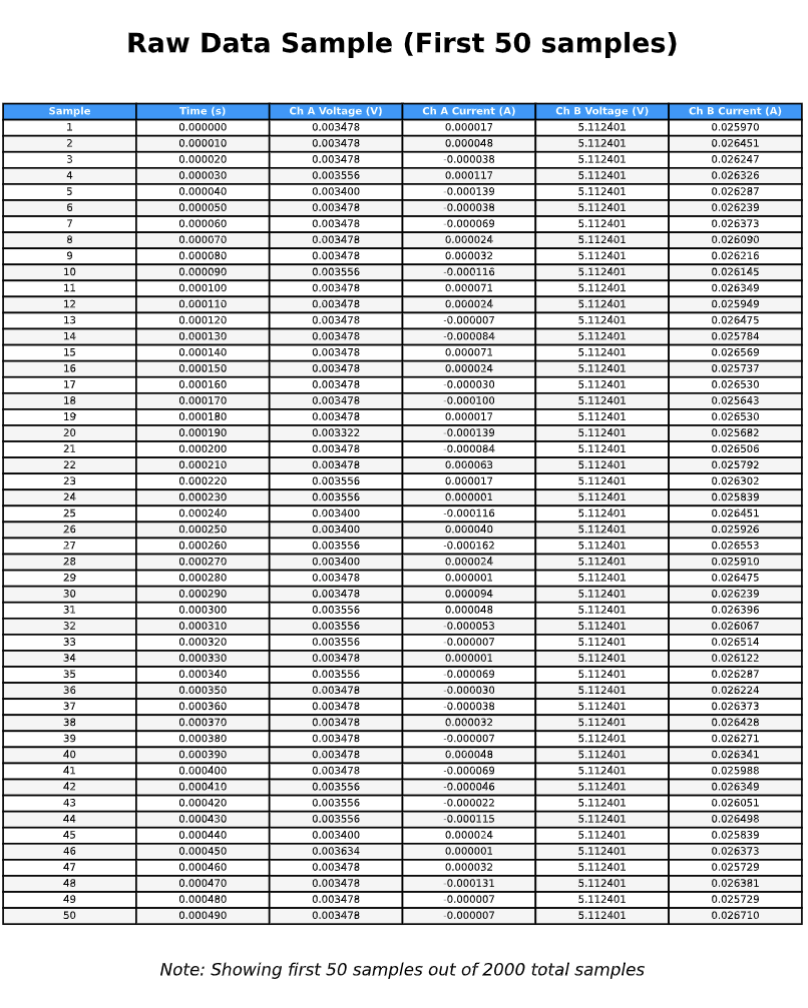

Raw data: analysis_results\csv_data\device_0_raw_data_20250823_110101.csv
Analysis results: analysis_results\csv_data\device_0_analysis_20250823_110101.csv
Analysis charts: analysis_results\plots\device_0_analysis_20250823_110101.png
PDF report: analysis_results\reports\device_0_report_20250823_110101.pdf

Professional analysis completed! All files saved in: analysis_results
Summary report saved: analysis_results\reports\summary_report_20250823_110101.json

#!/usr/bin/env python
# -*- coding: utf-8 -*-
"""
pysmu Professional Data Analysis Tool (English Version)

Features:
1. Advanced statistical analysis (including frequency domain analysis, correlation analysis, etc.)
2. Data export (CSV, Excel formats)
3. PDF report generation (with charts and detailed analysis)
4. Professional visualization (multiple chart types)
5. Data quality assessment and anomaly detection
6. Calibration recommendations and maintenance reminders
7. Batch device testing support
"""

from __future__ import print_function
import sys
import os
import csv
import json
from datetime import datetime, timedelta
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.patches as patches
from matplotlib.backends.backend_pdf import PdfPages
from scipy import stats, signal
from scipy.fft import fft, fftfreq
import warnings
warnings.filterwarnings('ignore')

# Set font configuration
import matplotlib
matplotlib.rcParams['font.sans-serif'] = ['DejaVu Sans', 'Arial']
matplotlib.rcParams['axes.unicode_minus'] = False
print("Font configuration set")

try:
    from pysmu import Session, Mode
except ImportError:
    print("Error: Cannot import pysmu library")
    print("Please ensure pysmu and libsmu are properly installed")
    sys.exit(1)

class ProfessionalAnalyzer:
    """
    Professional Data Analyzer Class
    """

    def __init__(self, output_dir="analysis_results"):
        """
        Initialize analyzer

        Args:
            output_dir: Output directory
        """
        self.output_dir = output_dir
        self.timestamp = datetime.now().strftime('%Y%m%d_%H%M%S')
        self.create_output_directory()

        # Analysis results storage
        self.analysis_results = {}
        self.device_info = {}
        self.raw_data = {}

    def create_output_directory(self):
        """
        Create output directory structure
        """
        dirs = [
            self.output_dir,
            os.path.join(self.output_dir, 'csv_data'),
            os.path.join(self.output_dir, 'plots'),
            os.path.join(self.output_dir, 'reports')
        ]

        for dir_path in dirs:
            ifnot os.path.exists(dir_path):
                os.makedirs(dir_path)
                print(f"Created directory: {dir_path}")

    def advanced_voltage_analysis(self, samples, channel_name, sample_rate=100000):
        """
        Advanced voltage data analysis

        Args:
            samples: Sample data
            channel_name: Channel name
            sample_rate: Sampling rate

        Returns:
            dict: Detailed analysis results
        """
        if channel_name == 'A':
            voltages = np.array([x[0][0] for x in samples])
            currents = np.array([x[0][1] for x in samples])
        else:
            voltages = np.array([x[1][0] for x in samples])
            currents = np.array([x[1][1] for x in samples])

        # Basic statistics
        basic_stats = {
            'mean': np.mean(voltages),
            'std': np.std(voltages),
            'var': np.var(voltages),
            'min': np.min(voltages),
            'max': np.max(voltages),
            'range': np.ptp(voltages),
            'median': np.median(voltages),
            'q25': np.percentile(voltages, 25),
            'q75': np.percentile(voltages, 75),
            'iqr': np.percentile(voltages, 75) - np.percentile(voltages, 25),
            'rms': np.sqrt(np.mean(voltages**2)),
            'peak_to_peak': np.ptp(voltages),
            'count': len(voltages)
        }

        # Advanced statistics
        advanced_stats = {
            'skewness': stats.skew(voltages),
            'kurtosis': stats.kurtosis(voltages),
            'cv': basic_stats['std'] / abs(basic_stats['mean']) * 100if basic_stats['mean'] != 0else float('inf'),
            'snr_db': 20 * np.log10(abs(basic_stats['mean']) / basic_stats['std']) if basic_stats['std'] != 0else float('inf'),
            'thd': self.calculate_thd(voltages, sample_rate),
            'crest_factor': basic_stats['max'] / basic_stats['rms'] if basic_stats['rms'] != 0else float('inf')
        }

        # Frequency domain analysis
        freq_analysis = self.frequency_domain_analysis(voltages, sample_rate)

        # Stability analysis
        stability_analysis = self.stability_analysis(voltages)

        # Anomaly detection
        anomaly_detection = self.detect_anomalies(voltages)

        # Power analysis (if current data available)
        power_analysis = self.power_analysis(voltages, currents)

        return {
            'basic_stats': basic_stats,
            'advanced_stats': advanced_stats,
            'frequency_analysis': freq_analysis,
            'stability_analysis': stability_analysis,
            'anomaly_detection': anomaly_detection,
            'power_analysis': power_analysis,
            'raw_voltages': voltages,
            'raw_currents': currents
        }

    def calculate_thd(self, signal_data, sample_rate, fundamental_freq=None):
        """
        Calculate Total Harmonic Distortion (THD)

        Args:
            signal_data: Signal data
            sample_rate: Sampling rate
            fundamental_freq: Fundamental frequency (auto-detect if None)

        Returns:
            float: THD value (%)
        """
        try:
            # FFT analysis
            fft_data = np.abs(fft(signal_data))
            freqs = fftfreq(len(signal_data), 1/sample_rate)

            # Take positive frequency part only
            positive_freqs = freqs[:len(freqs)//2]
            positive_fft = fft_data[:len(fft_data)//2]

            if fundamental_freq isNone:
                # Auto-detect fundamental frequency
                fundamental_idx = np.argmax(positive_fft[1:]) + 1# Exclude DC component
                fundamental_freq = positive_freqs[fundamental_idx]

            # Calculate fundamental and harmonic amplitudes
            fundamental_amplitude = np.max(positive_fft)

            # Calculate energy of first 5 harmonics
            harmonic_energy = 0
            for i in range(2, 6):  # 2nd to 5th harmonics
                harmonic_freq = fundamental_freq * i
                if harmonic_freq < np.max(positive_freqs):
                    harmonic_idx = np.argmin(np.abs(positive_freqs - harmonic_freq))
                    harmonic_energy += positive_fft[harmonic_idx]**2

            # THD calculation
            thd = np.sqrt(harmonic_energy) / fundamental_amplitude * 100
            return thd

        except Exception:
            return0.0

    def frequency_domain_analysis(self, signal_data, sample_rate):
        """
        Frequency domain analysis

        Args:
            signal_data: Signal data
            sample_rate: Sampling rate

        Returns:
            dict: Frequency domain analysis results
        """
        try:
            # FFT analysis
            fft_data = fft(signal_data)
            freqs = fftfreq(len(signal_data), 1/sample_rate)

            # Power spectral density
            psd = np.abs(fft_data)**2

            # Take positive frequency part only
            positive_freqs = freqs[:len(freqs)//2]
            positive_psd = psd[:len(psd)//2]

            # Dominant frequency components
            dominant_freq_idx = np.argmax(positive_psd[1:]) + 1# Exclude DC
            dominant_freq = positive_freqs[dominant_freq_idx]

            # Bandwidth analysis
            total_power = np.sum(positive_psd)
            half_power = total_power / 2

            # 3dB bandwidth
            max_power_idx = np.argmax(positive_psd)
            half_max_power = positive_psd[max_power_idx] / 2

            bandwidth_3db = 0
            for i in range(1, len(positive_psd)):
                if positive_psd[i] >= half_max_power:
                    bandwidth_3db = positive_freqs[i]
                    break

            return {
                'dominant_frequency': dominant_freq,
                'bandwidth_3db': bandwidth_3db,
                'total_power': total_power,
                'dc_component': positive_psd[0],
                'ac_power': total_power - positive_psd[0],
                'frequencies': positive_freqs,
                'psd': positive_psd
            }

        except Exception as e:
            return {
                'dominant_frequency': 0,
                'bandwidth_3db': 0,
                'total_power': 0,
                'dc_component': 0,
                'ac_power': 0,
                'error': str(e)
            }

    def stability_analysis(self, signal_data, window_size=100):
        """
        Stability analysis

        Args:
            signal_data: Signal data
            window_size: Sliding window size

        Returns:
            dict: Stability analysis results
        """
        try:
            # Sliding window statistics
            windowed_means = []
            windowed_stds = []

            for i in range(0, len(signal_data) - window_size, window_size//2):
                window = signal_data[i:i+window_size]
                windowed_means.append(np.mean(window))
                windowed_stds.append(np.std(window))

            windowed_means = np.array(windowed_means)
            windowed_stds = np.array(windowed_stds)

            # Stability indicators
            mean_stability = np.std(windowed_means) / np.mean(np.abs(windowed_means)) * 100if np.mean(np.abs(windowed_means)) != 0else float('inf')
            std_stability = np.std(windowed_stds) / np.mean(windowed_stds) * 100if np.mean(windowed_stds) != 0else float('inf')

            # Trend analysis
            time_indices = np.arange(len(windowed_means))
            slope, intercept, r_value, p_value, std_err = stats.linregress(time_indices, windowed_means)

            return {
                'mean_stability_percent': mean_stability,
                'std_stability_percent': std_stability,
                'trend_slope': slope,
                'trend_r_squared': r_value**2,
                'trend_p_value': p_value,
                'windowed_means': windowed_means,
                'windowed_stds': windowed_stds
            }

        except Exception as e:
            return {
                'mean_stability_percent': float('inf'),
                'std_stability_percent': float('inf'),
                'trend_slope': 0,
                'trend_r_squared': 0,
                'trend_p_value': 1,
                'error': str(e)
            }

    def detect_anomalies(self, signal_data, threshold=3):
        """
        Anomaly detection

        Args:
            signal_data: Signal data
            threshold: Z-score threshold

        Returns:
            dict: Anomaly detection results
        """
        try:
            # Z-score anomaly detection
            z_scores = np.abs(stats.zscore(signal_data))
            anomaly_indices = np.where(z_scores > threshold)[0]

            # IQR anomaly detection
            q25, q75 = np.percentile(signal_data, [25, 75])
            iqr = q75 - q25
            lower_bound = q25 - 1.5 * iqr
            upper_bound = q75 + 1.5 * iqr

            iqr_anomaly_indices = np.where((signal_data < lower_bound) | (signal_data > upper_bound))[0]

            return {
                'zscore_anomalies': len(anomaly_indices),
                'zscore_anomaly_rate': len(anomaly_indices) / len(signal_data) * 100,
                'zscore_anomaly_indices': anomaly_indices.tolist(),
                'iqr_anomalies': len(iqr_anomaly_indices),
                'iqr_anomaly_rate': len(iqr_anomaly_indices) / len(signal_data) * 100,
                'iqr_anomaly_indices': iqr_anomaly_indices.tolist(),
                'iqr_bounds': {'lower': lower_bound, 'upper': upper_bound}
            }

        except Exception as e:
            return {
                'zscore_anomalies': 0,
                'zscore_anomaly_rate': 0,
                'iqr_anomalies': 0,
                'iqr_anomaly_rate': 0,
                'error': str(e)
            }

    def power_analysis(self, voltages, currents):
        """
        Power analysis

        Args:
            voltages: Voltage data
            currents: Current data

        Returns:
            dict: Power analysis results
        """
        try:
            # Instantaneous power
            instantaneous_power = voltages * currents

            # Average power
            average_power = np.mean(instantaneous_power)

            # RMS power
            rms_voltage = np.sqrt(np.mean(voltages**2))
            rms_current = np.sqrt(np.mean(currents**2))
            apparent_power = rms_voltage * rms_current

            # Power factor
            power_factor = average_power / apparent_power if apparent_power != 0else0

            # Resistance calculation
            resistance = rms_voltage / rms_current if rms_current != 0else float('inf')

            return {
                'average_power': average_power,
                'apparent_power': apparent_power,
                'power_factor': power_factor,
                'rms_voltage': rms_voltage,
                'rms_current': rms_current,
                'resistance': resistance,
                'instantaneous_power': instantaneous_power
            }

        except Exception as e:
            return {
                'average_power': 0,
                'apparent_power': 0,
                'power_factor': 0,
                'rms_voltage': 0,
                'rms_current': 0,
                'resistance': float('inf'),
                'error': str(e)
            }

    def save_raw_data_csv(self, device_idx, samples):
        """
        Save raw data to CSV file

        Args:
            device_idx: Device index
            samples: Sample data
        """
        filename = f"device_{device_idx}_raw_data_{self.timestamp}.csv"
        filepath = os.path.join(self.output_dir, 'csv_data', filename)

        # Prepare data
        data = []
        for i, sample in enumerate(samples):
            data.append({
                'Sample_Index': i + 1,
                'Timestamp': i / 100000,  # Assume 100kHz sampling rate
                'Channel_A_Voltage': sample[0][0],
                'Channel_A_Current': sample[0][1],
                'Channel_B_Voltage': sample[1][0],
                'Channel_B_Current': sample[1][1],
                'Channel_A_Power': sample[0][0] * sample[0][1],
                'Channel_B_Power': sample[1][0] * sample[1][1]
            })

        # Save to CSV
        df = pd.DataFrame(data)
        df.to_csv(filepath, index=False, encoding='utf-8-sig')
        print(f"Raw data saved: {filepath}")

        return filepath

    def save_analysis_results_csv(self, device_idx, analysis_results):
        """
        Save analysis results to CSV file

        Args:
            device_idx: Device index
            analysis_results: Analysis results
        """
        filename = f"device_{device_idx}_analysis_{self.timestamp}.csv"
        filepath = os.path.join(self.output_dir, 'csv_data', filename)

        # Prepare analysis results data
        results_data = []

        for channel in ['A', 'B']:
            if channel in analysis_results:
                result = analysis_results[channel]

                # Basic statistics
                for key, value in result['basic_stats'].items():
                    results_data.append({
                        'Device': device_idx,
                        'Channel': channel,
                        'Category': 'Basic_Statistics',
                        'Parameter': key,
                        'Value': value,
                        'Unit': 'V'if'voltage'in key.lower() or key in ['mean', 'std', 'min', 'max', 'range', 'median', 'rms'] else''
                    })

                # Advanced statistics
                for key, value in result['advanced_stats'].items():
                    unit = ''
                    if key == 'cv':
                        unit = '%'
                    elif key == 'snr_db':
                        unit = 'dB'
                    elif key == 'thd':
                        unit = '%'

                    results_data.append({
                        'Device': device_idx,
                        'Channel': channel,
                        'Category': 'Advanced_Statistics',
                        'Parameter': key,
                        'Value': value,
                        'Unit': unit
                    })

                # Frequency domain analysis
                for key, value in result['frequency_analysis'].items():
                    if key notin ['frequencies', 'psd', 'error']:
                        unit = 'Hz'if'freq'in key.lower() else'W'if'power'in key.lower() else''
                        results_data.append({
                            'Device': device_idx,
                            'Channel': channel,
                            'Category': 'Frequency_Analysis',
                            'Parameter': key,
                            'Value': value,
                            'Unit': unit
                        })

        # Save to CSV
        df = pd.DataFrame(results_data)
        df.to_csv(filepath, index=False, encoding='utf-8-sig')
        print(f"Analysis results saved: {filepath}")

        return filepath

    def create_professional_plots(self, device_idx, analysis_results):
        """
        Create professional charts

        Args:
            device_idx: Device index
            analysis_results: Analysis results
        """
        # Set chart style - use clean default style
        plt.style.use('default')

        # Create large chart
        fig = plt.figure(figsize=(20, 16))
        gs = fig.add_gridspec(4, 4, hspace=0.3, wspace=0.3)

        # Chart title
        fig.suptitle(f'Device {device_idx} Professional Data Analysis Report\nTime: {datetime.now().strftime("%Y-%m-%d %H:%M:%S")}',
                     fontsize=16, fontweight='bold')

        # 1. Time domain signal comparison (2x2)
        ax1 = fig.add_subplot(gs[0:2, 0:2])
        voltages_a = analysis_results['A']['raw_voltages'][:1000]  # Limit display points
        voltages_b = analysis_results['B']['raw_voltages'][:1000]
        time_axis = np.arange(len(voltages_a)) / 100000# Assume 100kHz sampling rate

        ax1.plot(time_axis, voltages_a, 'b-', linewidth=1, alpha=0.8, label='Channel A')
        ax1.plot(time_axis, voltages_b, 'r-', linewidth=1, alpha=0.8, label='Channel B')
        ax1.set_title('Time Domain Signal Comparison', fontsize=14, fontweight='bold')
        ax1.set_xlabel('Time (s)')
        ax1.set_ylabel('Voltage (V)')
        ax1.legend()
        ax1.grid(True, alpha=0.3)

        # 2. Frequency spectrum analysis (top right)
        ax2 = fig.add_subplot(gs[0, 2:])
        freq_a = analysis_results['A']['frequency_analysis']
        freq_b = analysis_results['B']['frequency_analysis']

        if'frequencies'in freq_a and'psd'in freq_a:
            freqs_a = freq_a['frequencies'][:len(freq_a['frequencies'])//10]  # Limit display range
            psd_a = freq_a['psd'][:len(freq_a['psd'])//10]
            ax2.semilogy(freqs_a, psd_a, 'b-', alpha=0.8, label='Channel A')

        if'frequencies'in freq_b and'psd'in freq_b:
            freqs_b = freq_b['frequencies'][:len(freq_b['frequencies'])//10]
            psd_b = freq_b['psd'][:len(freq_b['psd'])//10]
            ax2.semilogy(freqs_b, psd_b, 'r-', alpha=0.8, label='Channel B')

        ax2.set_title('Power Spectral Density', fontsize=12, fontweight='bold')
        ax2.set_xlabel('Frequency (Hz)')
        ax2.set_ylabel('Power Spectral Density')
        ax2.legend()
        ax2.grid(True, alpha=0.3)

        # 3. Statistical distribution comparison (right middle)
        ax3 = fig.add_subplot(gs[1, 2:])
        ax3.hist(voltages_a, bins=50, alpha=0.6, color='blue', label='Channel A', density=True)
        ax3.hist(voltages_b, bins=50, alpha=0.6, color='red', label='Channel B', density=True)
        ax3.axvline(np.mean(voltages_a), color='blue', linestyle='--', alpha=0.8)
        ax3.axvline(np.mean(voltages_b), color='red', linestyle='--', alpha=0.8)
        ax3.set_title('Voltage Distribution Histogram', fontsize=12, fontweight='bold')
        ax3.set_xlabel('Voltage (V)')
        ax3.set_ylabel('Probability Density')
        ax3.legend()
        ax3.grid(True, alpha=0.3)

        # 4. Stability analysis (bottom left)
        ax4 = fig.add_subplot(gs[2, 0:2])
        stability_a = analysis_results['A']['stability_analysis']
        stability_b = analysis_results['B']['stability_analysis']

        if'windowed_means'in stability_a:
            window_indices = np.arange(len(stability_a['windowed_means']))
            ax4.plot(window_indices, stability_a['windowed_means'], 'b-o', markersize=3, label='Channel A Mean')
            ax4.fill_between(window_indices,
                           stability_a['windowed_means'] - stability_a['windowed_stds'],
                           stability_a['windowed_means'] + stability_a['windowed_stds'],
                           alpha=0.2, color='blue')

        if'windowed_means'in stability_b:
            window_indices = np.arange(len(stability_b['windowed_means']))
            ax4.plot(window_indices, stability_b['windowed_means'], 'r-o', markersize=3, label='Channel B Mean')
            ax4.fill_between(window_indices,
                           stability_b['windowed_means'] - stability_b['windowed_stds'],
                           stability_b['windowed_means'] + stability_b['windowed_stds'],
                           alpha=0.2, color='red')

        ax4.set_title('Stability Analysis (Sliding Window)', fontsize=12, fontweight='bold')
        ax4.set_xlabel('Window Index')
        ax4.set_ylabel('Voltage (V)')
        ax4.legend()
        ax4.grid(True, alpha=0.3)

        # 5. Anomaly detection (bottom right)
        ax5 = fig.add_subplot(gs[2, 2:])
        anomaly_a = analysis_results['A']['anomaly_detection']
        anomaly_b = analysis_results['B']['anomaly_detection']

        categories = ['Z-score Anomalies', 'IQR Anomalies']
        anomaly_rates_a = [anomaly_a.get('zscore_anomaly_rate', 0), anomaly_a.get('iqr_anomaly_rate', 0)]
        anomaly_rates_b = [anomaly_b.get('zscore_anomaly_rate', 0), anomaly_b.get('iqr_anomaly_rate', 0)]

        x = np.arange(len(categories))
        width = 0.35

        ax5.bar(x - width/2, anomaly_rates_a, width, label='Channel A', color='blue', alpha=0.7)
        ax5.bar(x + width/2, anomaly_rates_b, width, label='Channel B', color='red', alpha=0.7)

        ax5.set_title('Anomaly Detection Results', fontsize=12, fontweight='bold')
        ax5.set_xlabel('Detection Method')
        ax5.set_ylabel('Anomaly Rate (%)')
        ax5.set_xticks(x)
        ax5.set_xticklabels(categories)
        ax5.legend()
        ax5.grid(True, alpha=0.3)

        # 6. Key metrics dashboard (bottom)
        ax6 = fig.add_subplot(gs[3, :])
        ax6.axis('off')

        # Create metrics table
        metrics_data = []
        metrics_data.append(['Parameter', 'Channel A', 'Channel B', 'Difference', 'Assessment'])

        # Average voltage
        mean_a = analysis_results['A']['basic_stats']['mean']
        mean_b = analysis_results['B']['basic_stats']['mean']
        diff_mean = abs(mean_a - mean_b)
        eval_mean = 'Excellent'if diff_mean < 0.001else'Good'if diff_mean < 0.01else'Fair'
        metrics_data.append(['Average Voltage (V)', f'{mean_a:.6f}', f'{mean_b:.6f}', f'{diff_mean:.6f}', eval_mean])

        # Standard deviation
        std_a = analysis_results['A']['basic_stats']['std']
        std_b = analysis_results['B']['basic_stats']['std']
        diff_std = abs(std_a - std_b)
        eval_std = 'Excellent'if max(std_a, std_b) < 0.0001else'Good'if max(std_a, std_b) < 0.001else'Fair'
        metrics_data.append(['Standard Deviation (V)', f'{std_a:.6f}', f'{std_b:.6f}', f'{diff_std:.6f}', eval_std])

        # Signal-to-noise ratio
        snr_a = analysis_results['A']['advanced_stats']['snr_db']
        snr_b = analysis_results['B']['advanced_stats']['snr_db']
        diff_snr = abs(snr_a - snr_b)
        eval_snr = 'Excellent'if min(snr_a, snr_b) > 60else'Good'if min(snr_a, snr_b) > 40else'Fair'
        metrics_data.append(['SNR (dB)', f'{snr_a:.1f}', f'{snr_b:.1f}', f'{diff_snr:.1f}', eval_snr])

        # THD
        thd_a = analysis_results['A']['advanced_stats']['thd']
        thd_b = analysis_results['B']['advanced_stats']['thd']
        diff_thd = abs(thd_a - thd_b)
        eval_thd = 'Excellent'if max(thd_a, thd_b) < 1else'Good'if max(thd_a, thd_b) < 5else'Fair'
        metrics_data.append(['THD (%)', f'{thd_a:.3f}', f'{thd_b:.3f}', f'{diff_thd:.3f}', eval_thd])

        # Create table
        table = ax6.table(cellText=metrics_data[1:], colLabels=metrics_data[0],
                         cellLoc='center', loc='center', bbox=[0, 0, 1, 1])
        table.auto_set_font_size(False)
        table.set_fontsize(10)
        table.scale(1, 2)

        # Set table style
        for i in range(len(metrics_data)):
            for j in range(len(metrics_data[0])):
                cell = table[(i, j)]
                if i == 0:  # Header
                    cell.set_facecolor('#4CAF50')
                    cell.set_text_props(weight='bold', color='white')
                elif j == 4:  # Assessment column
                    if i > 0:
                        eval_text = metrics_data[i][j]
                        if eval_text == 'Excellent':
                            cell.set_facecolor('#E8F5E8')
                        elif eval_text == 'Good':
                            cell.set_facecolor('#FFF3E0')
                        else:
                            cell.set_facecolor('#FFEBEE')

        # Save chart with high resolution
        plot_filename = f"device_{device_idx}_analysis_{self.timestamp}.png"
        plot_filepath = os.path.join(self.output_dir, 'plots', plot_filename)
        plt.savefig(plot_filepath, dpi=300, bbox_inches='tight', facecolor='white', edgecolor='none')
        print(f"Analysis chart saved: {plot_filepath}")

        # Display chart (non-blocking)
        plt.show(block=False)
        plt.pause(0.1)  # Brief pause to ensure display

        # Close chart to free memory
        plt.close(fig)

        return plot_filepath

    def generate_pdf_report(self, device_idx, analysis_results, device_info):
        """
        Generate PDF report

        Args:
            device_idx: Device index
            analysis_results: Analysis results
            device_info: Device information
        """
        report_filename = f"device_{device_idx}_report_{self.timestamp}.pdf"
        report_filepath = os.path.join(self.output_dir, 'reports', report_filename)

        with PdfPages(report_filepath) as pdf:
            # First page: Cover and summary
            fig, ax = plt.subplots(figsize=(8.5, 11))
            ax.axis('off')

            # Title
            ax.text(0.5, 0.9, 'pysmu Professional Data Analysis Report',
                   horizontalalignment='center', fontsize=24, fontweight='bold')

            # Device information
            ax.text(0.5, 0.8, f'Device {device_idx}',
                   horizontalalignment='center', fontsize=18)

            ax.text(0.5, 0.75, f'Serial Number: {device_info.get("serial", "Unknown")}',
                   horizontalalignment='center', fontsize=14)

            ax.text(0.5, 0.7, f'Firmware Version: {device_info.get("fwver", "Unknown")}',
                   horizontalalignment='center', fontsize=14)

            ax.text(0.5, 0.65, f'Hardware Version: {device_info.get("hwver", "Unknown")}',
                   horizontalalignment='center', fontsize=14)

            # Test time
            ax.text(0.5, 0.55, f'Test Time: {datetime.now().strftime("%Y-%m-%d %H:%M:%S")}',
                   horizontalalignment='center', fontsize=14)

            # Summary information
            ax.text(0.1, 0.45, 'Test Summary:', fontsize=16, fontweight='bold')

            summary_text = f"""
• Sample Count: {analysis_results['A']['basic_stats']['count']} samples
• Channel A Average Voltage: {analysis_results['A']['basic_stats']['mean']:.6f} V
• Channel B Average Voltage: {analysis_results['B']['basic_stats']['mean']:.6f} V
• Channel A SNR: {analysis_results['A']['advanced_stats']['snr_db']:.1f} dB
• Channel B SNR: {analysis_results['B']['advanced_stats']['snr_db']:.1f} dB
• Channel A THD: {analysis_results['A']['advanced_stats']['thd']:.3f} %
• Channel B THD: {analysis_results['B']['advanced_stats']['thd']:.3f} %
            """

            ax.text(0.1, 0.35, summary_text, fontsize=12, verticalalignment='top')

            # Quality assessment
            ax.text(0.1, 0.15, 'Overall Assessment:', fontsize=16, fontweight='bold')

            # Simple quality assessment logic
            snr_avg = (analysis_results['A']['advanced_stats']['snr_db'] +
                      analysis_results['B']['advanced_stats']['snr_db']) / 2
            thd_max = max(analysis_results['A']['advanced_stats']['thd'],
                         analysis_results['B']['advanced_stats']['thd'])

            if snr_avg > 60and thd_max < 1:
                quality = "Excellent - Device performance is outstanding"
            elif snr_avg > 40and thd_max < 5:
                quality = "Good - Device performance meets requirements"
            else:
                quality = "Fair - Recommend checking device calibration"

            ax.text(0.1, 0.1, quality, fontsize=14, color='green'if'Excellent'in quality else'orange'if'Good'in quality else'red')

            pdf.savefig(fig, bbox_inches='tight')
            plt.close(fig)

            # Second page: Analysis charts with row layout
            fig = plt.figure(figsize=(8.5, 11))
            gs = fig.add_gridspec(6, 1, hspace=0.4)

            # Chart title
            fig.suptitle(f'Device {device_idx} Analysis Charts\nTime: {datetime.now().strftime("%Y-%m-%d %H:%M:%S")}',
                         fontsize=14, fontweight='bold')

            # 1. Time domain signal comparison (Row 1)
            ax1 = fig.add_subplot(gs[0])
            voltages_a = analysis_results['A']['raw_voltages'][:1000]
            voltages_b = analysis_results['B']['raw_voltages'][:1000]
            time_axis = np.arange(len(voltages_a)) / 100000

            ax1.plot(time_axis, voltages_a, 'b-', linewidth=1, alpha=0.8, label='Channel A')
            ax1.plot(time_axis, voltages_b, 'r-', linewidth=1, alpha=0.8, label='Channel B')
            ax1.set_title('Time Domain Signal Comparison', fontsize=10, fontweight='bold')
            ax1.set_xlabel('Time (s)', fontsize=8)
            ax1.set_ylabel('Voltage (V)', fontsize=8)
            ax1.legend(fontsize=8)
            ax1.grid(True, alpha=0.3)
            ax1.tick_params(labelsize=7)

            # 2. Frequency spectrum analysis (Row 2)
            ax2 = fig.add_subplot(gs[1])
            freq_a = analysis_results['A']['frequency_analysis']
            freq_b = analysis_results['B']['frequency_analysis']

            if'frequencies'in freq_a and'psd'in freq_a:
                freqs_a = freq_a['frequencies'][:len(freq_a['frequencies'])//10]
                psd_a = freq_a['psd'][:len(freq_a['psd'])//10]
                ax2.semilogy(freqs_a, psd_a, 'b-', alpha=0.8, label='Channel A')

            if'frequencies'in freq_b and'psd'in freq_b:
                freqs_b = freq_b['frequencies'][:len(freq_b['frequencies'])//10]
                psd_b = freq_b['psd'][:len(freq_b['psd'])//10]
                ax2.semilogy(freqs_b, psd_b, 'r-', alpha=0.8, label='Channel B')

            ax2.set_title('Power Spectral Density', fontsize=10, fontweight='bold')
            ax2.set_xlabel('Frequency (Hz)', fontsize=8)
            ax2.set_ylabel('Power Spectral Density', fontsize=8)
            ax2.legend(fontsize=8)
            ax2.grid(True, alpha=0.3)
            ax2.tick_params(labelsize=7)

            # 3. Statistical distribution comparison (Row 3)
            ax3 = fig.add_subplot(gs[2])
            ax3.hist(voltages_a, bins=50, alpha=0.6, color='blue', label='Channel A', density=True)
            ax3.hist(voltages_b, bins=50, alpha=0.6, color='red', label='Channel B', density=True)
            ax3.axvline(np.mean(voltages_a), color='blue', linestyle='--', alpha=0.8)
            ax3.axvline(np.mean(voltages_b), color='red', linestyle='--', alpha=0.8)
            ax3.set_title('Voltage Distribution Histogram', fontsize=10, fontweight='bold')
            ax3.set_xlabel('Voltage (V)', fontsize=8)
            ax3.set_ylabel('Probability Density', fontsize=8)
            ax3.legend(fontsize=8)
            ax3.grid(True, alpha=0.3)
            ax3.tick_params(labelsize=7)

            # 4. Stability analysis (Row 4)
            ax4 = fig.add_subplot(gs[3])
            stability_a = analysis_results['A']['stability_analysis']
            stability_b = analysis_results['B']['stability_analysis']

            if'windowed_means'in stability_a:
                window_indices = np.arange(len(stability_a['windowed_means']))
                ax4.plot(window_indices, stability_a['windowed_means'], 'b-o', markersize=2, label='Channel A Mean')
                ax4.fill_between(window_indices,
                               stability_a['windowed_means'] - stability_a['windowed_stds'],
                               stability_a['windowed_means'] + stability_a['windowed_stds'],
                               alpha=0.2, color='blue')

            if'windowed_means'in stability_b:
                window_indices = np.arange(len(stability_b['windowed_means']))
                ax4.plot(window_indices, stability_b['windowed_means'], 'r-o', markersize=2, label='Channel B Mean')
                ax4.fill_between(window_indices,
                               stability_b['windowed_means'] - stability_b['windowed_stds'],
                               stability_b['windowed_means'] + stability_b['windowed_stds'],
                               alpha=0.2, color='red')

            ax4.set_title('Stability Analysis (Sliding Window)', fontsize=10, fontweight='bold')
            ax4.set_xlabel('Window Index', fontsize=8)
            ax4.set_ylabel('Voltage (V)', fontsize=8)
            ax4.legend(fontsize=8)
            ax4.grid(True, alpha=0.3)
            ax4.tick_params(labelsize=7)

            # 5. Anomaly detection (Row 5)
            ax5 = fig.add_subplot(gs[4])
            anomaly_a = analysis_results['A']['anomaly_detection']
            anomaly_b = analysis_results['B']['anomaly_detection']

            categories = ['Z-score Anomalies', 'IQR Anomalies']
            anomaly_rates_a = [anomaly_a.get('zscore_anomaly_rate', 0), anomaly_a.get('iqr_anomaly_rate', 0)]
            anomaly_rates_b = [anomaly_b.get('zscore_anomaly_rate', 0), anomaly_b.get('iqr_anomaly_rate', 0)]

            x = np.arange(len(categories))
            width = 0.35

            ax5.bar(x - width/2, anomaly_rates_a, width, label='Channel A', color='blue', alpha=0.7)
            ax5.bar(x + width/2, anomaly_rates_b, width, label='Channel B', color='red', alpha=0.7)

            ax5.set_title('Anomaly Detection Results', fontsize=10, fontweight='bold')
            ax5.set_xlabel('Detection Method', fontsize=8)
            ax5.set_ylabel('Anomaly Rate (%)', fontsize=8)
            ax5.set_xticks(x)
            ax5.set_xticklabels(categories, fontsize=7)
            ax5.legend(fontsize=8)
            ax5.grid(True, alpha=0.3)
            ax5.tick_params(labelsize=7)

            # 6. Key metrics dashboard (Row 6)
            ax6 = fig.add_subplot(gs[5])
            ax6.axis('off')

            # Create metrics table
            metrics_data = []
            metrics_data.append(['Parameter', 'Channel A', 'Channel B', 'Difference', 'Assessment'])

            # Average voltage
            mean_a = analysis_results['A']['basic_stats']['mean']
            mean_b = analysis_results['B']['basic_stats']['mean']
            diff_mean = abs(mean_a - mean_b)
            eval_mean = 'Excellent'if diff_mean < 0.001else'Good'if diff_mean < 0.01else'Fair'
            metrics_data.append(['Average Voltage (V)', f'{mean_a:.6f}', f'{mean_b:.6f}', f'{diff_mean:.6f}', eval_mean])

            # Standard deviation
            std_a = analysis_results['A']['basic_stats']['std']
            std_b = analysis_results['B']['basic_stats']['std']
            diff_std = abs(std_a - std_b)
            eval_std = 'Excellent'if max(std_a, std_b) < 0.0001else'Good'if max(std_a, std_b) < 0.001else'Fair'
            metrics_data.append(['Standard Deviation (V)', f'{std_a:.6f}', f'{std_b:.6f}', f'{diff_std:.6f}', eval_std])

            # Signal-to-noise ratio
            snr_a = analysis_results['A']['advanced_stats']['snr_db']
            snr_b = analysis_results['B']['advanced_stats']['snr_db']
            diff_snr = abs(snr_a - snr_b)
            eval_snr = 'Excellent'if min(snr_a, snr_b) > 60else'Good'if min(snr_a, snr_b) > 40else'Fair'
            metrics_data.append(['SNR (dB)', f'{snr_a:.1f}', f'{snr_b:.1f}', f'{diff_snr:.1f}', eval_snr])

            # THD
            thd_a = analysis_results['A']['advanced_stats']['thd']
            thd_b = analysis_results['B']['advanced_stats']['thd']
            diff_thd = abs(thd_a - thd_b)
            eval_thd = 'Excellent'if max(thd_a, thd_b) < 1else'Good'if max(thd_a, thd_b) < 5else'Fair'
            metrics_data.append(['THD (%)', f'{thd_a:.3f}', f'{thd_b:.3f}', f'{diff_thd:.3f}', eval_thd])

            # Create table
            table = ax6.table(cellText=metrics_data[1:], colLabels=metrics_data[0],
                             cellLoc='center', loc='center', bbox=[0, 0, 1, 1])
            table.auto_set_font_size(False)
            table.set_fontsize(7)
            table.scale(1, 1.2)

            # Set table style
            for i in range(len(metrics_data)):
                for j in range(len(metrics_data[0])):
                    cell = table[(i, j)]
                    if i == 0:  # Header
                        cell.set_facecolor('#4CAF50')
                        cell.set_text_props(weight='bold', color='white')
                    elif j == 4:  # Assessment column
                        if i > 0:
                            eval_text = metrics_data[i][j]
                            if eval_text == 'Excellent':
                                cell.set_facecolor('#E8F5E8')
                            elif eval_text == 'Good':
                                cell.set_facecolor('#FFF3E0')
                            else:
                                cell.set_facecolor('#FFEBEE')

            # Save to PDF with high resolution
            pdf.savefig(fig, dpi=300, bbox_inches='tight')
            plt.close(fig)

            # Third page: Detailed data tables
            fig, ax = plt.subplots(figsize=(8.5, 11))
            ax.axis('off')

            ax.text(0.5, 0.95, 'Detailed Analysis Data',
                   horizontalalignment='center', fontsize=18, fontweight='bold')

            # Create detailed data table
            detailed_data = []
            detailed_data.append(['Category', 'Parameter', 'Channel A', 'Channel B', 'Unit'])

            # Basic statistical data
            basic_params = [
                ('Mean', 'mean', 'V'),
                ('Std Dev', 'std', 'V'),
                ('Minimum', 'min', 'V'),
                ('Maximum', 'max', 'V'),
                ('Median', 'median', 'V'),
                ('RMS', 'rms', 'V')
            ]

            for param_name, param_key, unit in basic_params:
                val_a = analysis_results['A']['basic_stats'][param_key]
                val_b = analysis_results['B']['basic_stats'][param_key]
                detailed_data.append(['Basic Stats', param_name, f'{val_a:.6f}', f'{val_b:.6f}', unit])

            # Advanced statistical data
            advanced_params = [
                ('Skewness', 'skewness', ''),
                ('Kurtosis', 'kurtosis', ''),
                ('CV', 'cv', '%'),
                ('SNR', 'snr_db', 'dB'),
                ('THD', 'thd', '%'),
                ('Crest Factor', 'crest_factor', '')
            ]

            for param_name, param_key, unit in advanced_params:
                val_a = analysis_results['A']['advanced_stats'][param_key]
                val_b = analysis_results['B']['advanced_stats'][param_key]
                if param_key in ['cv', 'thd']:
                    detailed_data.append(['Advanced Stats', param_name, f'{val_a:.3f}', f'{val_b:.3f}', unit])
                elif param_key == 'snr_db':
                    detailed_data.append(['Advanced Stats', param_name, f'{val_a:.1f}', f'{val_b:.1f}', unit])
                else:
                    detailed_data.append(['Advanced Stats', param_name, f'{val_a:.4f}', f'{val_b:.4f}', unit])

            # Create table
            table = ax.table(cellText=detailed_data[1:], colLabels=detailed_data[0],
                           cellLoc='center', loc='center', bbox=[0, 0.1, 1, 0.8])
            table.auto_set_font_size(False)
            table.set_fontsize(9)
            table.scale(1, 1.5)

            # Set table style
            for i in range(len(detailed_data)):
                for j in range(len(detailed_data[0])):
                    cell = table[(i, j)]
                    if i == 0:  # Header
                        cell.set_facecolor('#2196F3')
                        cell.set_text_props(weight='bold', color='white')
                    elif j == 0:  # Category column
                        cell.set_facecolor('#E3F2FD')
                        cell.set_text_props(weight='bold')

            pdf.savefig(fig, bbox_inches='tight')
            plt.close(fig)

            # Fourth page: Raw data display
            fig, ax = plt.subplots(figsize=(8.5, 11))
            ax.axis('off')

            ax.text(0.5, 0.95, 'Raw Data Sample (First 50 samples)',
                   horizontalalignment='center', fontsize=16, fontweight='bold')

            # Create raw data table
            raw_data_samples = self.raw_data[device_idx][:50]  # Show first 50 samples
            raw_data_table = []
            raw_data_table.append(['Sample', 'Time (s)', 'Ch A Voltage (V)', 'Ch A Current (A)', 'Ch B Voltage (V)', 'Ch B Current (A)'])

            for i, sample in enumerate(raw_data_samples):
                raw_data_table.append([
                    str(i + 1),
                    f'{i / 100000:.6f}',
                    f'{sample[0][0]:.6f}',
                    f'{sample[0][1]:.6f}',
                    f'{sample[1][0]:.6f}',
                    f'{sample[1][1]:.6f}'
                ])

            # Create table with smaller font for more data
            table = ax.table(cellText=raw_data_table[1:], colLabels=raw_data_table[0],
                           cellLoc='center', loc='center', bbox=[0, 0.1, 1, 0.8])
            table.auto_set_font_size(False)
            table.set_fontsize(6)
            table.scale(1, 0.8)

            # Set table style
            for i in range(len(raw_data_table)):
                for j in range(len(raw_data_table[0])):
                    cell = table[(i, j)]
                    if i == 0:  # Header
                        cell.set_facecolor('#2196F3')
                        cell.set_text_props(weight='bold', color='white')
                    elif i % 2 == 0:  # Alternate row colors
                        cell.set_facecolor('#F5F5F5')

            # Add note
            ax.text(0.5, 0.05, f'Note: Showing first 50 samples out of {len(self.raw_data[device_idx])} total samples',
                   horizontalalignment='center', fontsize=10, style='italic')

            pdf.savefig(fig, bbox_inches='tight')
            plt.close(fig)

        print(f"PDF report generated: {report_filepath}")
        return report_filepath

    def run_professional_analysis(self):
        """
        Run professional analysis workflow
        """
        print("pysmu Professional Data Analysis Tool")
        print("=" * 50)

        # Create session
        try:
            session = Session()
        except Exception as e:
            print(f"Failed to create session: {e}")
            return

        # Check devices
        ifnot session.devices:
            print("Error: No devices detected")
            print("Please ensure:")
            print("1. ADALM1000 device is connected")
            print("2. Drivers are properly installed")
            print("3. libsmu C++ library is installed")
            return

        print(f"Detected {len(session.devices)} device(s)")

        # Configure devices
        for idx, dev in enumerate(session.devices):
            print(f"\nConfiguring device {idx}: {dev}")

            # Save device information
            self.device_info[idx] = {
                'serial': dev.serial,
                'fwver': dev.fwver,
                'hwver': dev.hwver
            }

            # Channel A: Source voltage mode
            target_voltage_a = idx % 6
            dev.channels['A'].mode = Mode.SVMI
            dev.channels['A'].constant(target_voltage_a)
            print(f"  Channel A: SVMI mode, target voltage {target_voltage_a}V")

            # Channel B: Source current mode
            target_current_b = 0.05
            dev.channels['B'].mode = Mode.SIMV
            dev.channels['B'].constant(target_current_b)
            print(f"  Channel B: SIMV mode, target current {target_current_b}A")

        # Data acquisition
        print("\nStarting professional data acquisition...")
        sample_count = 2000# Increase sample count for better analysis precision

        try:
            all_samples = session.get_samples(sample_count)
            print(f"Successfully acquired {sample_count} samples")
        except Exception as e:
            print(f"Data acquisition failed: {e}")
            return

        # Analyze data for each device
        for dev_idx, samples in enumerate(all_samples):
            print(f"\n{'='*60}")
            print(f"Device {dev_idx} Professional Data Analysis")
            print(f"{'='*60}")

            # Save raw data
            self.raw_data[dev_idx] = samples
            csv_filepath = self.save_raw_data_csv(dev_idx, samples)

            # Perform advanced analysis
            print("\nPerforming advanced data analysis...")
            analysis_a = self.advanced_voltage_analysis(samples, 'A')
            analysis_b = self.advanced_voltage_analysis(samples, 'B')

            self.analysis_results[dev_idx] = {
                'A': analysis_a,
                'B': analysis_b
            }

            # Save analysis results
            analysis_csv_filepath = self.save_analysis_results_csv(dev_idx, self.analysis_results[dev_idx])

            # Generate charts
            print("\nGenerating professional charts...")
            plot_filepath = self.create_professional_plots(dev_idx, self.analysis_results[dev_idx])

            # Generate PDF report
            print("\nGenerating PDF report...")
            pdf_filepath = self.generate_pdf_report(dev_idx, self.analysis_results[dev_idx], self.device_info[dev_idx])

            # Print key results
            print("\n=== Key Analysis Results ===")
            print(f"Channel A - Average Voltage: {analysis_a['basic_stats']['mean']:.6f}V, SNR: {analysis_a['advanced_stats']['snr_db']:.1f}dB, THD: {analysis_a['advanced_stats']['thd']:.3f}%")
            print(f"Channel B - Average Voltage: {analysis_b['basic_stats']['mean']:.6f}V, SNR: {analysis_b['advanced_stats']['snr_db']:.1f}dB, THD: {analysis_b['advanced_stats']['thd']:.3f}%")

            print(f"\n=== Output Files ===")
            print(f"Raw data: {csv_filepath}")
            print(f"Analysis results: {analysis_csv_filepath}")
            print(f"Analysis charts: {plot_filepath}")
            print(f"PDF report: {pdf_filepath}")

        print(f"\nProfessional analysis completed! All files saved in: {self.output_dir}")

        # Generate summary report
        self.generate_summary_report()

    def generate_summary_report(self):
        """
        Generate summary report
        """
        summary_filename = f"summary_report_{self.timestamp}.json"
        summary_filepath = os.path.join(self.output_dir, 'reports', summary_filename)

        summary_data = {
            'timestamp': self.timestamp,
            'analysis_time': datetime.now().isoformat(),
            'devices_analyzed': len(self.analysis_results),
            'device_info': self.device_info,
            'analysis_summary': {}
        }

        for dev_idx, results in self.analysis_results.items():
            summary_data['analysis_summary'][dev_idx] = {
                'channel_A': {
                    'mean_voltage': results['A']['basic_stats']['mean'],
                    'std_voltage': results['A']['basic_stats']['std'],
                    'snr_db': results['A']['advanced_stats']['snr_db'],
                    'thd_percent': results['A']['advanced_stats']['thd']
                },
                'channel_B': {
                    'mean_voltage': results['B']['basic_stats']['mean'],
                    'std_voltage': results['B']['basic_stats']['std'],
                    'snr_db': results['B']['advanced_stats']['snr_db'],
                    'thd_percent': results['B']['advanced_stats']['thd']
                }
            }

        with open(summary_filepath, 'w', encoding='utf-8') as f:
            json.dump(summary_data, f, indent=2, ensure_ascii=False)

        print(f"Summary report saved: {summary_filepath}")

def main():
    """
    Main function
    """
    # Check dependencies
    try:
        import pandas as pd
        from scipy import stats, signal
    except ImportError as e:
        print(f"Missing dependencies: {e}")
        print("Please install: pip install pandas scipy")
        return

    # Create analyzer and run
    analyzer = ProfessionalAnalyzer()
    analyzer.run_professional_analysis()

if __name__ == '__main__':
    main()
