A more effective method for searching for the filling range of the target

原创

Swing Dunn

发布于 2025-10-20 11:18:30

1330

文章被收录于专栏：Some studies in imgsSome studies in imgs

Reference: An Algorithm for Identifying Objective Questions on Answer Sheets - Yao Shuli, Wang Shaorong, Gai Meng, Wang Zhen

Appropriate expansion can include the target filling area, but it will inevitably introduce interference factors that affect the accuracy of the final result.From this paper "An Algorithm for Identifying Objective Questions on Answer Sheets - Yao Shuli, Wang Shaorong, Gai Meng, Wang Zhen", we can obtain a more accurate method for marking the filling areas.And it can also accommodate situations where students deviate from the answer options area on the test paper and compatible with the minor positional deviations that have been corrected.

1.Read the image and convert it into a grayscale image

    ori_img = cv2.imread(img_path, cv2.IMREAD_ANYCOLOR)
    display_img = ori_img.copy()

    gray = cv2.cvtColor(ori_img, cv2.COLOR_BGR2GRAY)

2.Traverse the coordinates of each option, and appropriately expand the area of the option region as the search window area for the target.


    for i in range(len(template_block_pos)):
        temp_block_ltpt = template_block_pos[i]

        ex_block_ltpt = (temp_block_ltpt[0] - 10, temp_block_ltpt[1] - 5)
        ex_block_size = template_block_size[0] + 20, template_block_size[1] + 10
        ex_block_rbpt = ex_block_ltpt[0] + ex_block_size[0], ex_block_ltpt[1] + ex_block_size[1]

        window_img = gray[ex_block_ltpt[1]: ex_block_rbpt[1], ex_block_ltpt[0] :ex_block_rbpt[0]]
        display_window_img  = cv2.cvtColor(window_img, cv2.COLOR_GRAY2BGR)
        #img_show(window_img)

3.The smaller the pixels within the area, the higher the overall filling rate.Based on this, we can simultaneously perform the search for the minimum pixel sum in the x-direction and y-direction, with the sliding window size being the size of the option blocks provided by the template.

        block_width = template_block_size[0]
        block_height = template_block_size[1]

31.Search for pixels in the X direction and the smallest range

        max_sumpixels = sys.maxsize
        h_targer_start = 0
        for col in range(0, ex_block_size[0] - block_width):
            h_target_img = window_img[: , col : col + block_width]
            sum_pixls = np.sum(h_target_img)
            if sum_pixls < max_sumpixels:
                max_sumpixels = sum_pixls
                h_targer_start = col

        cv2.rectangle(display_window_img,(h_targer_start,0) ,(h_targer_start + block_width, ex_block_size[1]), (0,255,255),2)
        #display_img[ex_block_ltpt[1]: ex_block_rbpt[1],ex_block_ltpt[0]: ex_block_rbpt[0]] = display_window_img
        #img_show(display_window_img)

The result of the single-option search for the target area in the X direction(yellow range):

The result of all-options search for the target area in the X direction:

3.2.Search for pixels in the Y direction and the smallest range

        max_sumpixels = sys.maxsize
        v_target_start = 0
        for row in range(0, ex_block_size[1] - block_height):
            v_target_img = window_img[row : row + block_height, h_targer_start : h_targer_start + block_width]
            sum_pixls = np.sum(v_target_img)
            if sum_pixls < max_sumpixels:
                max_sumpixels = sum_pixls
                v_target_start = row

        cv2.rectangle(display_window_img,(h_targer_start,v_target_start) ,(h_targer_start + block_width, v_target_start + block_height), (255,0,0),1)
        #img_show(display_window_img)
        #display_img[ex_block_ltpt[1]: ex_block_rbpt[1],ex_block_ltpt[0]: ex_block_rbpt[0]] = display_window_img

The result of the single-option search for the target area in the X direction(blue range):

The result of all-options search for the target area in the X direction:

4.In this way, we used the coordinates and ranges provided in the template to identify a general target area.

 rough_valid_filling_area = window_img[v_target_start : v_target_start + block_height , h_targer_start : h_targer_start + block_width]

However, due to some errors, there might still be a few white borders around the target area. Removing these borders can further enhance the accuracy of the target area.

Calculate the average pixel value of the target area, and then successively reduce the boundary in each direction. If the average pixel value of the reduced target area is lower than that of the previous one, it indicates that the reduced target area is overall darker and the operation of narrowing the boundary is effective; otherwise, stop the operation of narrowing the boundary.

gray_average = np.sum(rough_valid_filling_area) / rough_valid_filling_area.size

        #边缘上的空白边框宽度
        l_scaled_level = 0
        t_scaled_level = 0
        r_scaled_level = 0
        b_scaled_level = 0
        #去除左边界的空白边缘
        for i in  range(0,2):
            target_range_height = rough_valid_filling_area.shape[0]
            target_range_width = rough_valid_filling_area.shape[1]
            l_scaled_img = rough_valid_filling_area[0: target_range_height, 1: target_range_width]
            l_scaled_img_average = np.sum(l_scaled_img) / l_scaled_img.size
            if(l_scaled_img_average < gray_average):
                gray_average = l_scaled_img_average
                rough_valid_filling_area = l_scaled_img.copy()
                l_scaled_level = i

        #去除上边界的空白边缘
        for i in  range(0,2):
            target_range_height = rough_valid_filling_area.shape[0]
            target_range_width = rough_valid_filling_area.shape[1]
            l_scaled_img = rough_valid_filling_area[1: target_range_height, 0: target_range_width]
            l_scaled_img_average = np.sum(l_scaled_img) / l_scaled_img.size
            if(l_scaled_img_average < gray_average):
                gray_average = l_scaled_img_average
                rough_valid_filling_area = l_scaled_img.copy()
                t_scaled_level = i

        #去除右边界的空白边缘
        for i in  range(0,2):
            target_range_height = rough_valid_filling_area.shape[0]
            target_range_width = rough_valid_filling_area.shape[1]
            l_scaled_img = rough_valid_filling_area[0: target_range_height, 0: target_range_width - 1]
            l_scaled_img_average = np.sum(l_scaled_img) / l_scaled_img.size
            if(l_scaled_img_average < gray_average):
                gray_average = l_scaled_img_average
                rough_valid_filling_area = l_scaled_img.copy()
                r_scaled_level = i

        #去除下边界的空白边缘
        for i in  range(0,2):
            target_range_height = rough_valid_filling_area.shape[0]
            target_range_width = rough_valid_filling_area.shape[1]
            l_scaled_img = rough_valid_filling_area[0: target_range_height - 1, 0: target_range_width]
            l_scaled_img_average = np.sum(l_scaled_img) / l_scaled_img.size
            if(l_scaled_img_average < gray_average):
                gray_average = l_scaled_img_average
                rough_valid_filling_area = l_scaled_img.copy()
                b_scaled_level = i

        final_start_x = h_targer_start + l_scaled_level
        final_start_y = v_target_start + t_scaled_level

        final_end_x = h_targer_start + block_width - r_scaled_level
        finale_end_y = v_target_start + block_height - b_scaled_level

Effective reduction of margin for single-choice options:

The whole page:

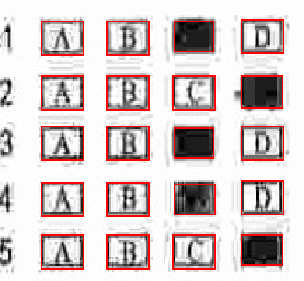

5.Draw the final search results.

cv2.rectangle(ori_img,(ex_block_ltpt[0] +final_start_x,ex_block_ltpt[1] + final_start_y) ,(ex_block_ltpt[0] + final_end_x, ex_block_ltpt[1]+ finale_end_y), (0,0,255),1)

source code:

import cv2
import sys
import numpy as np
import matplotlib.pyplot as plt

img_path = './img7/1.jpg'
template_block_pos = [(30,11), (77,11), (124, 11), (172, 11),
                      (30,41), (77,41), (124, 41), (172, 41),
                      (30,68), (77,68), (124, 68), (172, 68),
                      (30,97), (77,97), (124, 97), (172, 97),
                      (30,126), (77,126), (124, 126), (172, 126)]
template_block_size =(30,18)

def img_show(img):
    cv2.namedWindow("default", cv2.WINDOW_FREERATIO)
    cv2.imshow("default", img)
    cv2.waitKey(0)
    cv2.destroyWindow("default")

def main():
    ori_img = cv2.imread(img_path, cv2.IMREAD_ANYCOLOR)
    display_img = ori_img.copy()

    gray = cv2.cvtColor(ori_img, cv2.COLOR_BGR2GRAY)

    #img_show(gray)

    # 二值化处理，使用OTSU自动阈值
    g_threshold, binary = cv2.threshold(gray, 0, 255, cv2.THRESH_BINARY_INV + cv2.THRESH_OTSU)
    #img_show(binary)

    for i in range(len(template_block_pos)):
        temp_block_ltpt = template_block_pos[i]

        ex_block_ltpt = (temp_block_ltpt[0] - 10, temp_block_ltpt[1] - 5)
        ex_block_size = template_block_size[0] + 20, template_block_size[1] + 10
        ex_block_rbpt = ex_block_ltpt[0] + ex_block_size[0], ex_block_ltpt[1] + ex_block_size[1]

        window_img = gray[ex_block_ltpt[1]: ex_block_rbpt[1], ex_block_ltpt[0] :ex_block_rbpt[0]]
        display_window_img  = cv2.cvtColor(window_img, cv2.COLOR_GRAY2BGR)
        #img_show(window_img)

        block_width = template_block_size[0]
        block_height = template_block_size[1]

        max_sumpixels = sys.maxsize
        h_targer_start = 0
        for col in range(0, ex_block_size[0] - block_width):
            h_target_img = window_img[: , col : col + block_width]
            sum_pixls = np.sum(h_target_img)
            if sum_pixls < max_sumpixels:
                max_sumpixels = sum_pixls
                h_targer_start = col

        cv2.rectangle(display_window_img,(h_targer_start,0) ,(h_targer_start + block_width, ex_block_size[1]), (0,255,255),2)
        display_img[ex_block_ltpt[1]: ex_block_rbpt[1],ex_block_ltpt[0]: ex_block_rbpt[0]] = display_window_img
        #img_show(display_window_img)

        max_sumpixels = sys.maxsize
        v_target_start = 0
        for row in range(0, ex_block_size[1] - block_height):
            v_target_img = window_img[row : row + block_height, h_targer_start : h_targer_start + block_width]
            sum_pixls = np.sum(v_target_img)
            if sum_pixls < max_sumpixels:
                max_sumpixels = sum_pixls
                v_target_start = row

        cv2.rectangle(display_window_img,(h_targer_start,v_target_start) ,(h_targer_start + block_width, v_target_start + block_height), (255,0,0),1)
        #img_show(display_window_img)
        display_img[ex_block_ltpt[1]: ex_block_rbpt[1],ex_block_ltpt[0]: ex_block_rbpt[0]] = display_window_img

        rough_valid_filling_area = window_img[v_target_start : v_target_start + block_height , h_targer_start : h_targer_start + block_width]
       #img_show(rough_valid_filling_area)

        gray_average = np.sum(rough_valid_filling_area) / rough_valid_filling_area.size

        #边缘上的空白边框宽度
        l_scaled_level = 0
        t_scaled_level = 0
        r_scaled_level = 0
        b_scaled_level = 0
        #去除左边界的空白边缘
        for i in  range(0,2):
            target_range_height = rough_valid_filling_area.shape[0]
            target_range_width = rough_valid_filling_area.shape[1]
            l_scaled_img = rough_valid_filling_area[0: target_range_height, 1: target_range_width]
            l_scaled_img_average = np.sum(l_scaled_img) / l_scaled_img.size
            if(l_scaled_img_average < gray_average):
                gray_average = l_scaled_img_average
                rough_valid_filling_area = l_scaled_img.copy()
                l_scaled_level = i

        #去除上边界的空白边缘
        for i in  range(0,2):
            target_range_height = rough_valid_filling_area.shape[0]
            target_range_width = rough_valid_filling_area.shape[1]
            l_scaled_img = rough_valid_filling_area[1: target_range_height, 0: target_range_width]
            l_scaled_img_average = np.sum(l_scaled_img) / l_scaled_img.size
            if(l_scaled_img_average < gray_average):
                gray_average = l_scaled_img_average
                rough_valid_filling_area = l_scaled_img.copy()
                t_scaled_level = i

        #去除右边界的空白边缘
        for i in  range(0,2):
            target_range_height = rough_valid_filling_area.shape[0]
            target_range_width = rough_valid_filling_area.shape[1]
            l_scaled_img = rough_valid_filling_area[0: target_range_height, 0: target_range_width - 1]
            l_scaled_img_average = np.sum(l_scaled_img) / l_scaled_img.size
            if(l_scaled_img_average < gray_average):
                gray_average = l_scaled_img_average
                rough_valid_filling_area = l_scaled_img.copy()
                r_scaled_level = i

        #去除下边界的空白边缘
        for i in  range(0,2):
            target_range_height = rough_valid_filling_area.shape[0]
            target_range_width = rough_valid_filling_area.shape[1]
            l_scaled_img = rough_valid_filling_area[0: target_range_height - 1, 0: target_range_width]
            l_scaled_img_average = np.sum(l_scaled_img) / l_scaled_img.size
            if(l_scaled_img_average < gray_average):
                gray_average = l_scaled_img_average
                rough_valid_filling_area = l_scaled_img.copy()
                b_scaled_level = i

        final_start_x = h_targer_start + l_scaled_level
        final_start_y = v_target_start + t_scaled_level

        final_end_x = h_targer_start + block_width - r_scaled_level
        finale_end_y = v_target_start + block_height - b_scaled_level
        cv2.rectangle(display_window_img,(final_start_x,final_start_y) ,(final_end_x, finale_end_y), (0,0,255),1)
        display_img[ex_block_ltpt[1]: ex_block_rbpt[1],ex_block_ltpt[0]: ex_block_rbpt[0]] = display_window_img
        #img_show(display_window_img)
        cv2.rectangle(ori_img,(ex_block_ltpt[0] +final_start_x,ex_block_ltpt[1] + final_start_y) ,(ex_block_ltpt[0] + final_end_x, ex_block_ltpt[1]+ finale_end_y), (0,0,255),1)


    img_show(ori_img)

if __name__ == '__main__':
    main()
